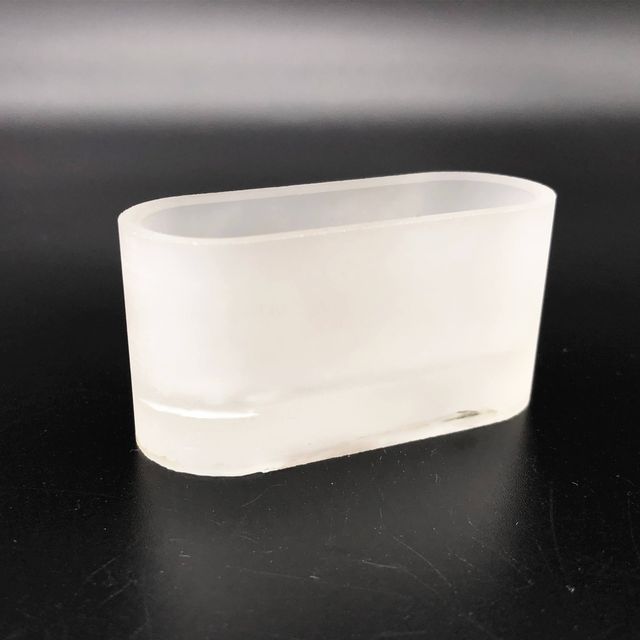

Custom Crystal Quartz Glass Clear Fused Silica CNC
- $1.00 /piece
- 1 piece
- Lianyungang Gls Trading Co., Ltd.
- Jiangsu, China
- Ms Diane Li
PRODUCT DETAIL
| brand: | not any | Processing services: | Bending, welding, cutting |
| Material: | SIO2>99.99% fused silica | Packaging Details: | Customized according to customer requirements |
| type: | Transparent Quartz Plate | model: | Quartz plate disc |
| Operating temperature: | 1100 degrees Celsius | Opaque quartz plates: | Available in clear and opaque quartz plates |
| Thickness Tolerance: | 0.02mm | application: | Optics/Semi-finished Products/Industrial |
| size: | client needs | Package preview: | |
| thickness: | 0.1-200mm | port: | Shanghai |
| Quartz processing: | Welding and Machining | Edge processing: | finely polished edges |
| Surface Quality: | 60/40 Quartz Sleeve | Application 2: | chemical industry |
| Origin: | Jiangsu, China | Supply capacity: | 300 pieces per day |
| payment terms: | Western Union, D/P, D/A, T/T | Application one: | optical quartz window |
| shape: | round shape |
product description
CNC machining of quartz products
GLS Quartz supplies fused silica plates from a standard stock range or custom sizes and options. Fused silica plates are widely used in industry and science because of their optical and mechanical properties. These properties make it resistant to chemicals, high temperatures and thermal shock. These include large quartz plates with an area of 1 square meter to protect delicate optical window devices with multi-layer coatings. It is machined into custom designs in various shapes and thicknesses.
List of functions
Properties of Fused Silica
* High temperature resistance
* High chemical purity
* High corrosion resistance
* Wide range of light transmission, from UV to IR
* Excellent electrical performance
insulation quality
* Very low coefficient of thermal expansion
* Very high hardness
* permeability
* Remarkable stability under atomic bombing
Processing machinery
Full CNC Capabilities | CNC engraving and milling machine |
OD and ID Grinders | grinding and polishing |
core drilling | External polishing |
centerless grinding | Multi wire sawing machine |
Laser Grinding/Grinding | laser |
pitch polishing | Wire cutting machine |
Face milling cutter | slice saw |
boring | water jet |
product specification
Quartz disk (stock available) | Quartz Ground Plates - Regular Stock Sizes | ||
10*1mm quartz disk | 1" X 1" X 1/16" thick quartz plate | 3" X 3" X 1/4" Thick Quartz Plate | |
12*1mm quartz disk | 1" X 1" X 1/8" Thick Quartz Plate | 4" X 4" X 1/16" thick quartz plate | |
15*1mm quartz disk | 1" X 1" X 1/4" Thick Quartz Plate | 4" X 4" X 1/8" Thick Quartz Plate | |
15*1.5mm quartz disk | 1.5" X 1.5" X 1/16" thick quartz plate | 4" X 4" X 1/4" Thick Quartz Plate | |
20*1mm quartz disk | 1.5" X 1.5" X 1/8" thick quartz plate | 5" X 5" X 1/16" thick quartz plate | |
20*1.5mm quartz disk | 1.5" X 1.5" X 1/4" thick quartz plate | 5" X 5" X 1/8" thick quartz plate | |
19.4*2mm quartz disc | 2" X 2" X 1/16" thick quartz plate | 5" X 5" X 1/4" Thick Quartz Plate | |
25*1mm quartz disk | 2" X 2" X 1/8" thick quartz plate | 6" X 6" X 1/16" Thick Quartz Plate | |
30*1mm quartz disk | 2" X 2" X 1/4" Thick Quartz Plate | 6" X 6" X 1/8" Thick Quartz Plate | |
30*2mm quartz disk | 3" X 3" X 1/16" thick quartz plate | 6" X 6" X 1/4" Thick Quartz Plate | |
36*2.2mm quartz disk | 3" X 3" X 1/8" thick quartz plate | ||
consistency
various precise thicknesses
Processing according to design
labware optical lens
Electronic industry medical components
Aerospace Chemicals
