Custom TN STN VA segment lcd display for fuel dispenser
- $8.00 / >=10 pairs
- 10 pairs
- Liuzhou Liyuan Photoelectric Technology Co., Ltd.
- Guangxi, China
- Mr Li Li
PRODUCT DETAIL
| View direction/Viewing Angle: | 3 o'clock, 6 o'clock, 9o'clock,12o'clock; | Working voltage: | Usually set in 3~5V; |
| Dimensional regular tolerance: | +/-0.2mm; | Polarizer type: | Reflective/Transflective/Full-transmissive; |
| Model Number: | LY886; | Place of Origin: | Guangxi, China; |
| Supply Ability: | 2000000 Pairs per Month H.S. code: 85312000; | LCD size: | Customized LCD is available; |
| Backlight: | LED backlight; | Type: | Segment LCD; |
| Operating temperature: | -35 ° c~+ 85 ° c; | Display Size: | Customized; |
| Packaging Detail: | Foam tray inner and standard carton outer. Packing quantity is according to the specific size and shape. Liuzhou Liyuan Photoelectric Technology Co., Ltd. supply: Mono LCDs/LCD modules; TN,HTN, STN, FSTN, VA LCD panels and accessory; Segement, dot matrix graphic and character LCD panels and modules; GOB, COG package LCD Customized LCD; | Package Preview: | ; |
| Color mode: | Yellow, green, gray, black, white, blue, etc; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,as per order; |
| Port: | Shenzhen/Guangzhou/HK or other port of China; | Display mode: | Positive,Negative; |
| Brand Name: | LIYUAN; | Display type: | TN,HTN,STN,FSTN,VA; |
Product Description
Product name | Custom TN STN VA segment lcd display for fuel dispenser |
LCD model number | LY-886 |
LCD type | TN /STN/VAPositive Transmissive |
Working temp. | -30℃~ -80℃ |
Storage temp. | -40℃~ -90℃ |
Driving method | Duty1/1, Bias1/1 |
Power supply | 5V |
Viewing direction | 6 o'clock |
Connection method | 72 metal pins |
Product performance description

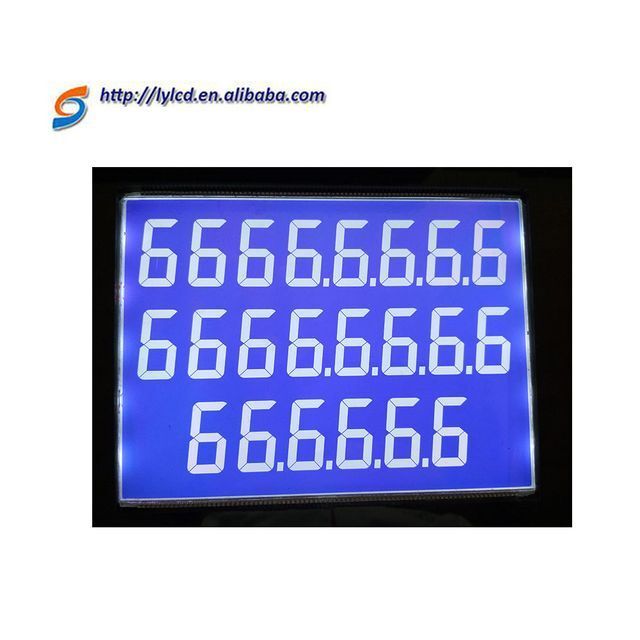

Fule dispenser LCD(with or without LED backlight）

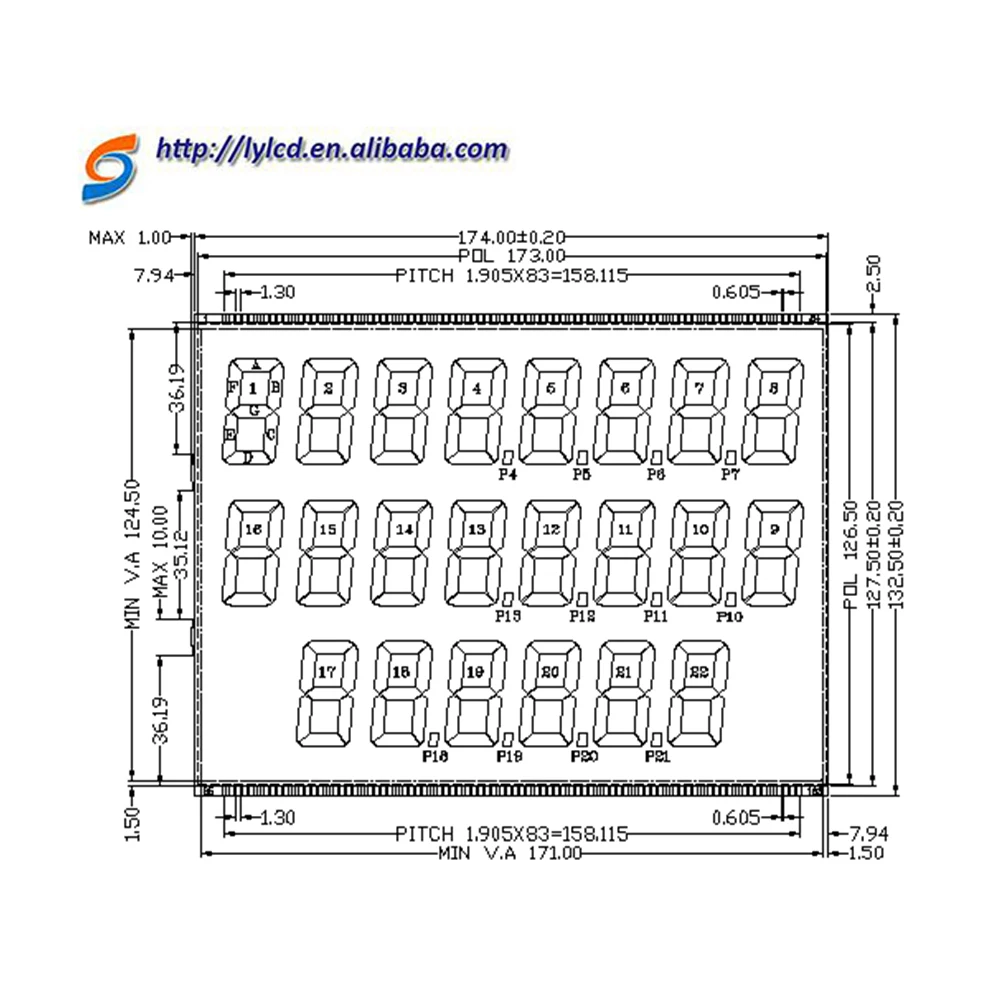

LCD size: 174.00(W)*127.50/132.50(H)*2.8mm
Viewing Area:171.00(W)*124.50(H)mm
Display: Black digits on white/gray background；white digits on blue/black background( others as per datasheet of drawing )
Product Usage
Product usage introduction
1. High-speed communication: It is equipped with high-speed communication, which has good stability and will not float due to
changes in time and environment;
changes in time and environment;
2. Low power consumption, high reliability: strong adaptability, no interference from current,voltage and static electricity, can be displayed in both Chinese and English, and has long service life;
3. Multi-font characters:with character generator ROM, including 10880 bits, 192 5X8 font characters and 64 5X10 font characters; with character generator
RAM, including 512 bits, 8 5X8 font characters and 4 5X10 font characters.
RAM, including 512 bits, 8 5X8 font characters and 4 5X10 font characters.
Related Products
Packing&Shipping
Packing:
Packing with foam tray inner+standard carton outer, packing quantity is according to the specific size and shape.
Customized package with your logo and your specific images are available.
Packing process steps as follwoing:
(1)confirm every specification of your goods;
(2)place poly foam into carton and pack your goods;
(3)conduct security test.
(1)confirm every specification of your goods;
(2)place poly foam into carton and pack your goods;
(3)conduct security test.
Delivery:
-Lead time:1-7days for sample;25-35 days for mass production .
-Shipping way:By DHL,FEDEX,UPS or appointed forwarder.
-Loading Port :Shenzhen/Guangzhou/HK or other port of China.
Payment:
-T/T, L/C,Western Union, Paypal, Bank Transfer, Cash, Money Gram and Escrow are all available.
-Sample order: You need pay 100% for the goods before drawing design chart.
-Formal order:You need pay 30% as the deposit before production, and pay the remaining 70% before shipment.
-We will do our best to help you in avoiding customs tax and promise that our goods are in reasonable price.
-Lead time:1-7days for sample;25-35 days for mass production .
-Shipping way:By DHL,FEDEX,UPS or appointed forwarder.
-Loading Port :Shenzhen/Guangzhou/HK or other port of China.
Payment:
-T/T, L/C,Western Union, Paypal, Bank Transfer, Cash, Money Gram and Escrow are all available.
-Sample order: You need pay 100% for the goods before drawing design chart.
-Formal order:You need pay 30% as the deposit before production, and pay the remaining 70% before shipment.
-We will do our best to help you in avoiding customs tax and promise that our goods are in reasonable price.
Company Introduction

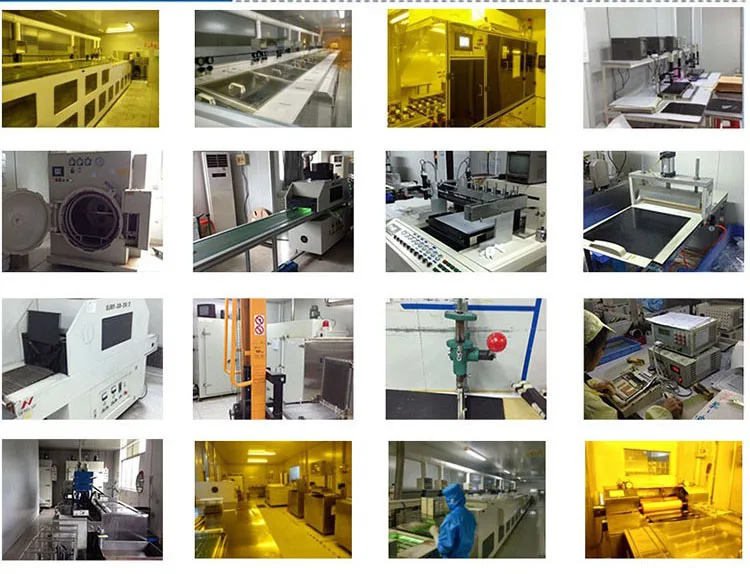

Liuzhou Liyuan Photoelectric Technology Co., Ltd. was established in 2007 with a plant area of 18,000 square meters. After years of development, We have became professional manufacturer of liquid crystal display (LCD) and liquid crystal display module(LCM) integrating R&D, design, production, sales and service.
Thousands of products produced over the years are mostly custom-made and are widely used in instrumentation, household appliances,communications equipment, automotive display,vehicle display, industrial equipment control and health care, instrumentation,medical equipment and other information terminal display.
We supply customized TN, HTN, STN, FSTN, VA LCD and COB, COG and TAB modules, Segment LCD Display, Dots Matrix Character LCD Display,Graphic LCD Display,and we are committed to the development and production of large-size (diagonal size 5~20inch) products, special LCD production processes and equipment, and we have advantages in high-quality products (STN, VA) and special process products (Multicolor screen printing LCD, special-shaped LCD and LCD with touch control ) .
We will offer the products solution and estimated price according to your order requirements details.
We are expecting to be your best reliable partner with high quality products, fast and timely delivery and efficient service!
Thousands of products produced over the years are mostly custom-made and are widely used in instrumentation, household appliances,communications equipment, automotive display,vehicle display, industrial equipment control and health care, instrumentation,medical equipment and other information terminal display.
We supply customized TN, HTN, STN, FSTN, VA LCD and COB, COG and TAB modules, Segment LCD Display, Dots Matrix Character LCD Display,Graphic LCD Display,and we are committed to the development and production of large-size (diagonal size 5~20inch) products, special LCD production processes and equipment, and we have advantages in high-quality products (STN, VA) and special process products (Multicolor screen printing LCD, special-shaped LCD and LCD with touch control ) .
We will offer the products solution and estimated price according to your order requirements details.
We are expecting to be your best reliable partner with high quality products, fast and timely delivery and efficient service!
CUSTOMIZATION ORDER
Warmly welcome your orders for new LCD module customization, please noted as following:
Step1>>Please send your original drawing paper, samples, or photos, if you haven’t these, please tell us your detailed
requirement: LCD mode, type,size, color,active area, negative/positive, transmissive/transflective or what you can show.
Step2>> According to your order requirements details, we will offer the products solution and estimated price for your reference.
Step3>>We will offer the exact quotation through negotiating the technical data with you .
Step4>>You arrange the tooling charge payment.
Step5>>We make design drawing for your confirmation in 2 days.
Step6>>New samples will be finished within 20 days.
Setp7>>After samples confirmed, mass production will be arranged as per your order.
Step1>>Please send your original drawing paper, samples, or photos, if you haven’t these, please tell us your detailed
requirement: LCD mode, type,size, color,active area, negative/positive, transmissive/transflective or what you can show.
Step2>> According to your order requirements details, we will offer the products solution and estimated price for your reference.
Step3>>We will offer the exact quotation through negotiating the technical data with you .
Step4>>You arrange the tooling charge payment.
Step5>>We make design drawing for your confirmation in 2 days.
Step6>>New samples will be finished within 20 days.
Setp7>>After samples confirmed, mass production will be arranged as per your order.
FAQ
Our Advantage:
1.High quality reasonable price.
2. Independent technical service.
3. Advanced LCD automated production equipment.
4. Professional research & develop department.
5. More than 14 years manufacture experience.
6. Convenient and fast transportation.
Quality Control:
1.We have strict quality control, to ensure product quality.
2. Whole production line is in a low temperature, dry and sterile environment.
3.Whoever enters the workshop must wear overalls.
4.There is an air shower at each workshop doorway, to blow off dust particles on the surface of overall.
5. After products have been produced, every lcd or lcm will be 100% tested.
1.High quality reasonable price.
2. Independent technical service.
3. Advanced LCD automated production equipment.
4. Professional research & develop department.
5. More than 14 years manufacture experience.
6. Convenient and fast transportation.
Quality Control:
1.We have strict quality control, to ensure product quality.
2. Whole production line is in a low temperature, dry and sterile environment.
3.Whoever enters the workshop must wear overalls.
4.There is an air shower at each workshop doorway, to blow off dust particles on the surface of overall.
5. After products have been produced, every lcd or lcm will be 100% tested.
Supply Ability：
Two million pcs per month.
If you need sample or custom-made products, please contact us!
Two million pcs per month.
If you need sample or custom-made products, please contact us!
