Customized OEM ODM outdoor metal bracket as street light pole
- $80.00 / 1 - 99 sets
$50.00 / 100 - 499 sets
$30.00 / >=500 sets - 1 set
- Jiangsu Feihua Lighting Co., Ltd.
- Jiangsu, China
- Ms Lei Hu
| place of origin; place of origin: | Guangdong, China | Types of: | round |
| Flange (mm): | 260*260*12 (can be customized) | Arm Length(mm): | 800 (can be customized) |
| Rod weight (kg): | 48.78 (can be customized) | Supply capacity: | 5000 sets per month |
| Lighting Solutions Services: | Lighting and circuit design, engineering installation | Certification: | CE ISO9001 ISO14000 ISO18000 CQC ROHS |
| Diameter (mm): | 60*140 (can be customized) | Light source power (w): | 30(can be customized) |
| life: | 20 years | Height (m): | 4-15m (can be customized) |
| Material: | steel | brand: | Florhar |
| Luminous efficacy (lm/w): | 120 | application: | Highway/Country/Commercial District |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | product name: | lamp post |
| Thickness (mm): | 2.75mm (can be customized) | Warranty (year): | 5 years |
| port: | Shanghai | Packaging Details: | Packaging and shipping forled solar street light outdoor with pole in pallet packaging led solar street light outdoor with pole in carton: |
data sheet
| Height (m) | diameter (mm) | Thickness (mm) | Flange(mm) | arm length(mm) | light source power (w) |
pole weight (Kilogram) |
| 5 | 60*140 | 2.75 | 240*240*12 | 800 | 30 | 41.24 |
| 6 | 60*140 | 2.75 | 260*260*12 | 800 | 30 | 48.78 |
| 7 | 80*160 | 3 | 280*280*14 | 1000 | 40 | 72.75 |
| 8 | 90*170 | 3.25 | 300*300*14 | 1000 | 40 | 94.71 |
| 9 | 90*180 | 3.25 | 350*350*16 | 1200 | 60 | 114.68 |
| 10 | 100*200 | 3.5 | 400*400*18 | 1200 | 80 | 153.31 |
| >10 |

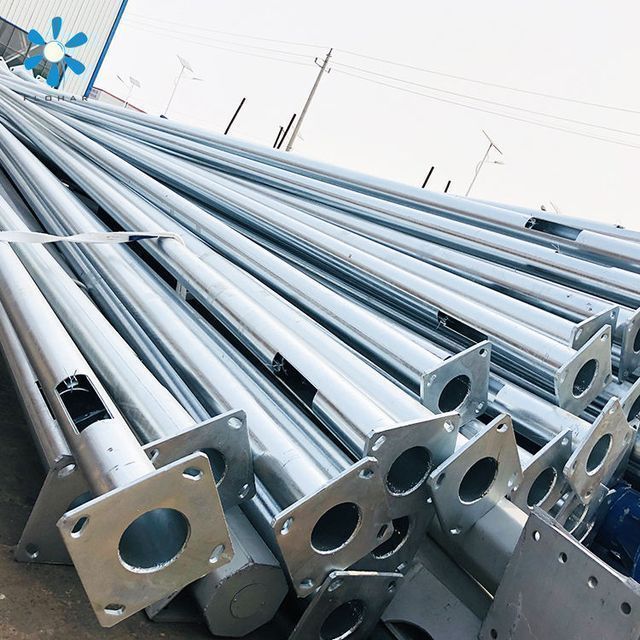

Hot-dip galvanized steel street light pole
♦ Light poles are designed to withstand 7 degrees of earthquake resistance, 11 degrees of wind resistance, and B grade of seismic strength.
♦ According to the design requirements, the light pole material is made of high-quality low-carbon steel Q235, and the silicon content of the steel is not higher than 0.04%. Large-scale bending machine is used for bending and forming, and the straightness error is not more than 0.05%.

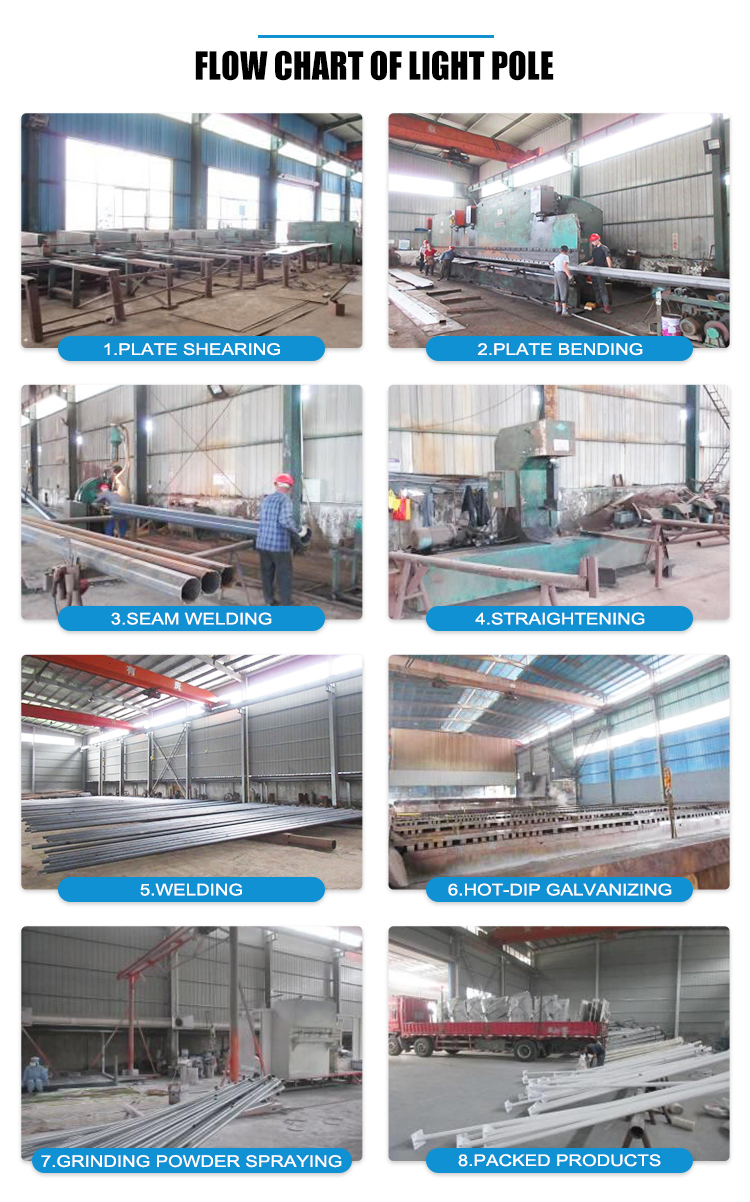

♦ Manufacturing process: Light poles are integrally formed with smooth lines and hot-dip galvanized inside and outside. The galvanizing process includes pickling, hot-dip galvanizing, water washing, passivation, etc. Meet the national standard GB/T13912-92. Galvanized adhesion, meet the requirements of the standard GB2694-88, anti-corrosion life of more than 30 years.
|
Company Services: |
|
|
1. |

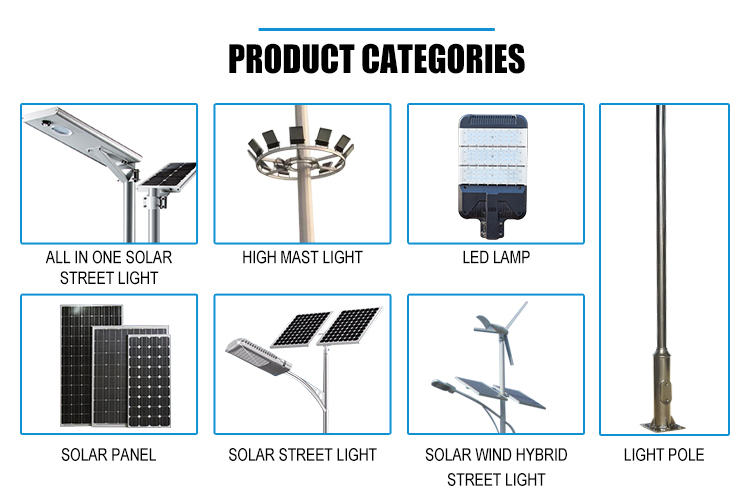

The company can provide application solutions for solar street lights, high pole lights, LED street lights, fill lights, solar and wind-solar complementary street lights and high bay lights. |
|
2. |

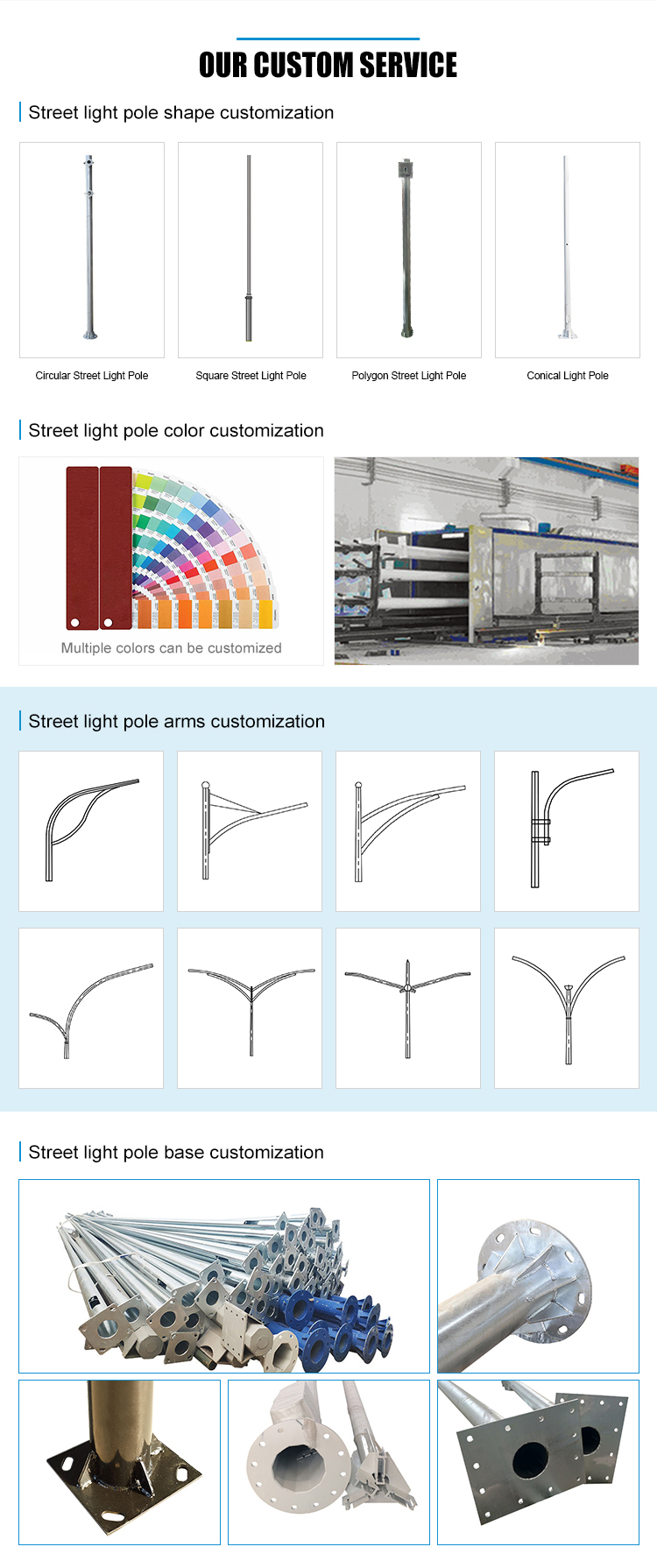

Optimize product parameters according to the specific needs of customers, and provide the best product design scheme. |
|
3. |
Organize production, transportation, installation, commissioning, personnel training and maintenance during the warranty period. |
|
4. |
Provide authoritative product testing reports and other technical support. |
