Customized Supplier Bentonite Waterproof Geosynthetic Clay Liner Gcl
- $0.70 / 1 - 1999 square meters
$0.68 / 2000 - 4999 square meters
$0.67 / >=5000 square meters - 1 square meter
- Beijing Long Way Times Science & Technology Co., Ltd.
- Beijing, China
- Ms Wei He
| Model Number: | tgb-1; | Thickness: | ≥6.4mm; |
| Specification: | /; | Puncture strength: | ≥635N; |
| Application: | Building; | Peel strength: | ≥68N; |
| Hydrostatic pressure resistance: | ≥70; | Peel strength of concrete face: | ≥3.0 KN/ m2; |
| Bentonite mass for unit area: | ≥5.5kg/m2; | Single gross weight: | 0.100 KG; |
| Packaging Detail: | Other packaging; | Extension rate: | ≥20; |
| Brand Name: | LW; | Place of Origin: | Beijing, China; |
| After-sale Service: | Other; | Project Solution Capability: | Others; |
| Expansion coefficient: | ≥ 25mL/2g; | Low temperature ductility: | No impact at -35°C; |
| Tensile strength: | ≥540N; | Selling Units: | Single item; |
| Design Style: | Chinese; | Warranty: | 1 Year; |
| Single package size: | 10X10X10 cm; |
Customized Supplier Bentonite Waterproof Geosynthetic Clay Liner Gcl

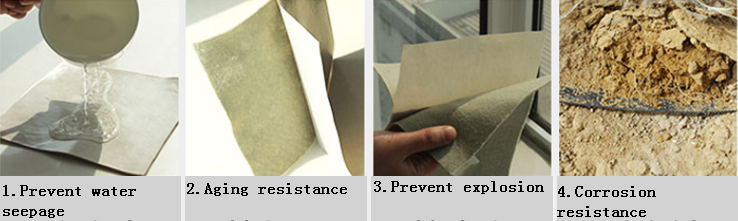

Features:
1.Compactness: sodium bentonite formed high density diaphragm under pressure state, when a thickness of about 3mm, its water permeability of 5 × 10-11m / s or less, equivalent to 100 times the density of 30cm thickness of clay, with a strong self-protection water performance.
2. Permanent waterproof performance: Because sodium bentonite-based natural inorganic material, even after a very long time or the surrounding environment changes, aging or corrosion will not occur, and therefore the waterproof performance is very durable.
3. The construction is simple: compared with other waterproof materials, the construction is relatively simple, does not require heating and paste. Just bentonite powder and nails, washers, etc. are connected and fixed. After construction does not require special inspection, if found defective water is also easy to repair. GCL waterproof material in existing shortest construction period material.
4. Impact from temperatures: in cold weather conditions are not brittle fracture.
5. Integration of waterproof materials and objects: sodium bentonite water, with 20 to 28-fold expansion of capacity, even if the concrete structure to vibrate and settlement, GCL bentonite can repair cracks in the concrete surface within 2mm.
6. Green: Bentonite is a natural inorganic material, no particular impact on the environment, with good environmental performance
Table 1 - Non-Woven Geotextiles
|
Property |
ASTM |
Class 1 (Heavy Duty) |
Class 2 (Normal Duty) |
Class 3 (Light Duty) |
|
Grab Tensile Strength (N) |
D 4632 |
900 |
700 |
500 |
|
Elongation (%) at Grab Tensile Strength |
D 4632 |
50 min |
50 min |
50 min |
|
CBR Puncture (N) |
D6241 |
2200 |
1800 |
1350 |
|
Trapezoid Tear (N) |
D 4533 |
350 |
250 |
180 |
|
UV Stability (min % Retained Strength @ hr) |
D 4355 |
50 % at 500 hr |
50 % at 500 hr |
50 % at 500 hr |
|
Apparent Opening Size, (mm) max |
D 4751 |
0.25 |
0.25 |
0.25 |
|
Permittivity (per sec) min |
D 4491 |
0.50 |
0.50 |
0.50 |
Table 2- Woven Geotextiles
|
Property |
ASTM |
Class 1 (Heavy Duty) |
Class 2 (Normal Duty) |
Class 3 (Light Duty) |
|
Grab Tensile Strength (N) |
D 4632 |
1400 |
1100 |
800 |
|
Sewn Seam Strength (N) |
D 4632 |
1260 |
990 |
720 |
|
Elongation (%) at Grab Tensile Strength |
D 4632 |
15 max |
15 max |
15 max |
|
CBR Puncture (N) |
D6241 |
4000 |
3200 |
2800 |
|
Trapezoid Tear (N) |
D 4533 |
500 |
400 |
300 |
|
UV Stability (min % Retained Strength @ hr) |
D 4355 |
50 % at 500 hr |
50 % at 500 hr |
50 % at 500 hr |
|
Apparent Opening Size,(mm) max |
D 4751 |
0.43 |
0.43 |
0.43 |
|
Permittivity (per sec) min |
D 4491 |
0.05 |
0.05 |
0.05 |
