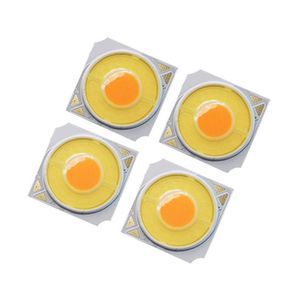

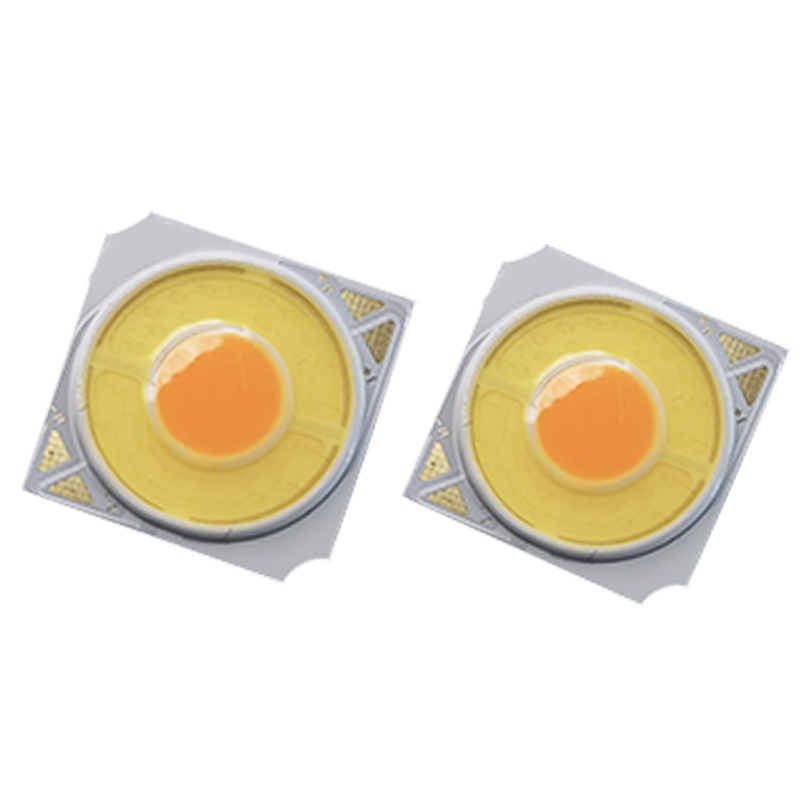

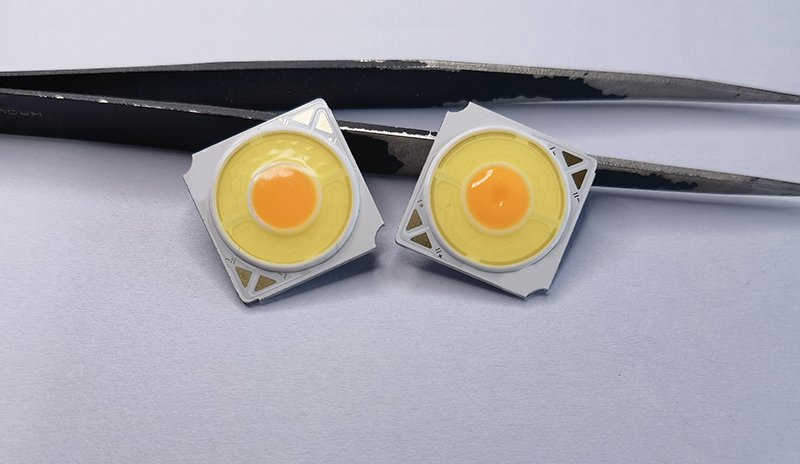

Customized dual-tone light dual-color 7W*2 8W*2 12W*2 36W*2 50W 100W 200W Sanan 4014 dual-color Flip Cob LED chip
- $5.00 / 2 - 9999 pieces
$4.50 / >=10000 pieces - 2 pieces
- Shenzhen Liangzan Optoelectronic Co., Ltd.
- Guangdong, China
- Ms Xia Jim
PRODUCT DETAIL
| Input voltage (V): | 20-24V | strength: | 8*2W |
| Supply capacity: | 1,000,000 pieces per day | Warranty Period (Years): | 3 years |
| Lifetime (hours): | 50000 | strength: | 8*2W |
| Color temperature: | 2000~7000K | Luminous flux (lm): | 800-1100LM |
| Light area (mm): | 17mm | Power consumption: | 0.01 |
| Storage temperature (℃): | -45 - 85 | Color rendering index (Ra): | 70/80/90/95 |
| Color temperature (K): | 2000~7000K | Light Efficiency (lm/w): | 110 |
| Current (mA): | 300 mA | Luminous (LM): | Dialogue: 550-750lm Dialogue: 800-1100LM |
| Working temperature (℃): | -45 - 85 | Light Attenuation (%): | 0.01 |
| Working hours (hours): | 50000 | Color Rendering Index (Ra): | Ra70/Ra80/Ra90/Ra95 |
| payment terms: | Western Union, wire transfer | Lighting Solutions Services: | Lighting and circuit design, Agi32 layout, engineering installation |
| Voltage (V): | 20-24V | Dimensions (mm): | 19*19mm |
| thing: | 1917D2267-8S4B-16-F3 | Series and parallel: | CW: 8S2P WW: 8S2P |
| place of origin; place of origin: | Guangdong, China | Dimmers supported: | Yes |
| Viewing angle (°): | 120 | Color Temperature (CCT): | 2000~7000K |
| type: | COB LED | Chip material: | Aluminum Gallium Phosphorus |
| Luminous color: | ww+cw | light intensity: | 320000 |
Product Description
》》Dual-color dual-color temperature 2700k~6500K with controller dimming color temperature and brightness

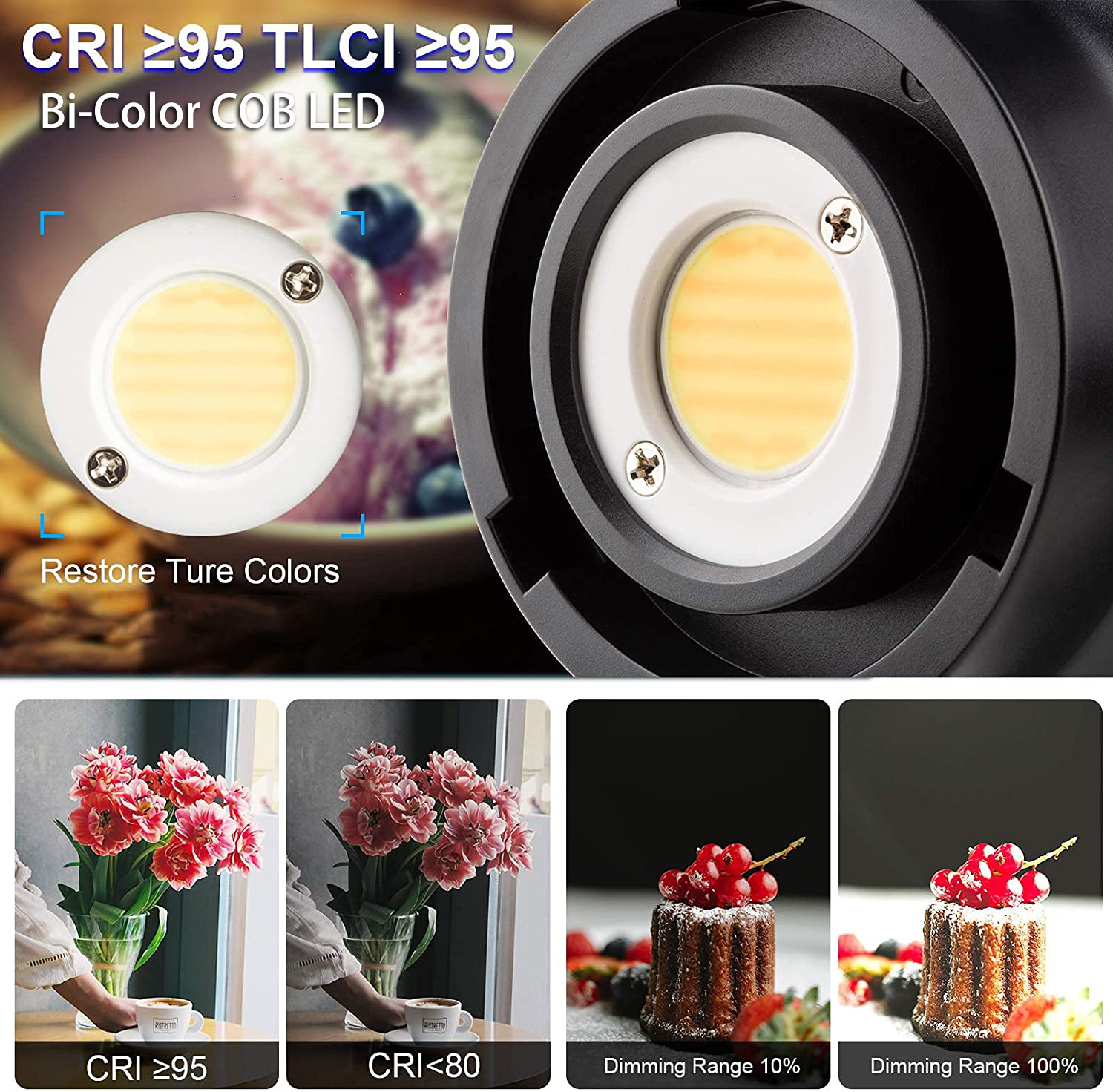

》》CRI ≥96 / TLCI ≥95 + There are CRI and TLCI indicators, restore color, suitable for COB photography lights

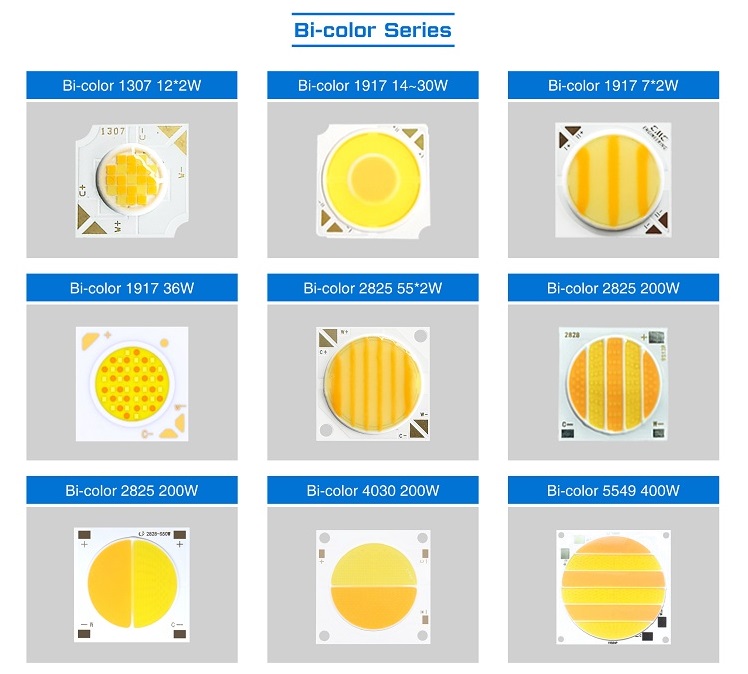

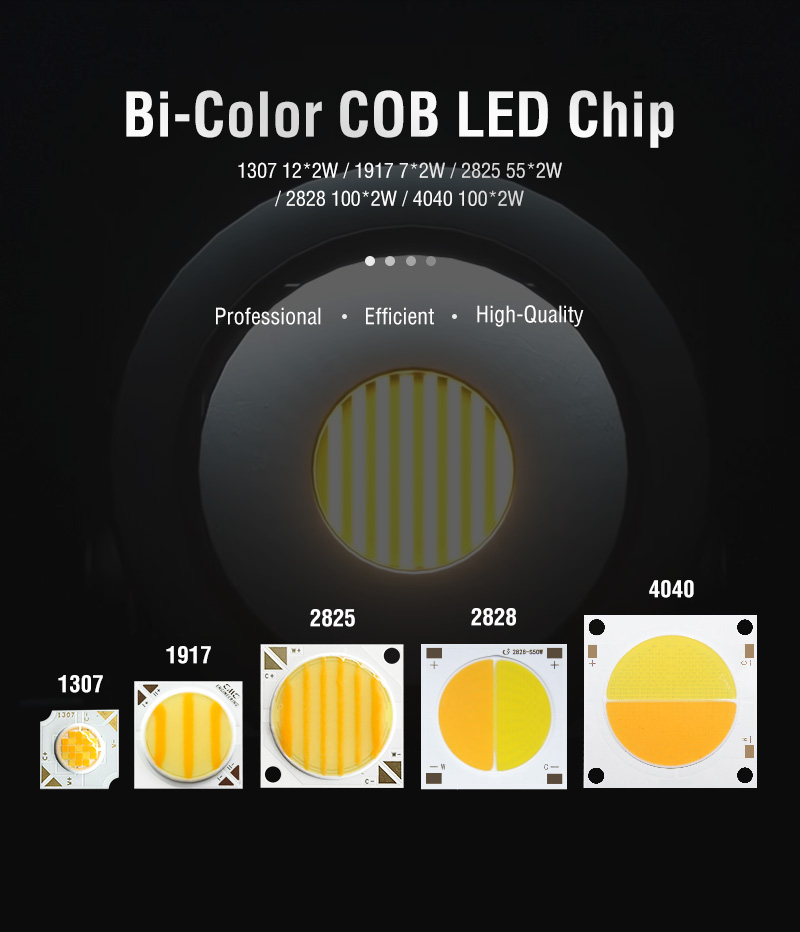

》》1313 1919 2828 4040 Different sizes are available, suitable for different video lights
》》14W 16W 24W 100W 200W optional, customized power, voltage according to your requirements
》》Application in Fresnel light, video light, photography light, stage light
8W + 8W Dual Color COB LED 1919 Customize CCT&CRI&Volt | ||
strength | 8*2W | |
Voltage | 20-24V | |
current | 300 mA | |
Peak forward current | 400 mA | |
Series Parallel | WW: 8S2P CW: 8S2P | |
lumen | WW: 550-750LM CW: 800-100LM | |
CCT | 1800K/2000K/3000K/4000K/5000K/6000K (customizable) | |
color rendering index | Pull 90 | |
Junction temperature | 115℃ | |
Solder temperature | 350℃ | |
Operating temperature | -40～+85℃ | |
strength (W) | size (mm) | Voltage (five) | current (Well) | luminescent (LM) | color rendering index (pull) | CCT (K) |
12*2W | 13*13mm | 20-24V | 600 mA | Width: 900-1100lm CW: 1000-1200lm | 70/80/90/95 | 2000~7000K |
7*2W | 19*19mm | 20-24V | 300 mA | Width: 600-900lm CW: 700-100lm | 70/80/90/95 | 2000~7000K |
8*2W | 19*19mm | 20-24V | 300 mA | Width: 550-750lm Clockwise: 800-1100LM | 70/80/90/95 | 2000~7000K |
36*2W | 19*19mm | 34-36V | 900 mA | 130-140LM/W 【Ra>80】 | 70/80/90/95 | 2000~7000K |
55*2W | 28*28MM | 34-36V | 1500 mA | WW: 5500-6000LM Clockwise: 5800-6500LM | 70/80/90/95 | 2000~7000K |
100*2W | 28*28MM | 27-32V | 3700mAh | 90-130LM/W | 70/80/90/95/98 | 2000~7000K |
50*2W | 28*28MM | 30-34V | 3200 mA | 90-130LM/W | 70/80/90/95/98 | 2000~7000K |
100*2W | 40*40mm | 30-34V | 3350 mA | 90-130LM/W | 70/80/90/95/98 | 2000~7000K |
200*2w | 55*55mm | 45-51v | 8000 mA | 90-130LM/W | 70/80/90/95/98 | 2000~7000K |
1200*2w | 60*60mm | custom made | custom made | 90-130LM/W | 70/80/90/95/98 | 2000~7000K |
