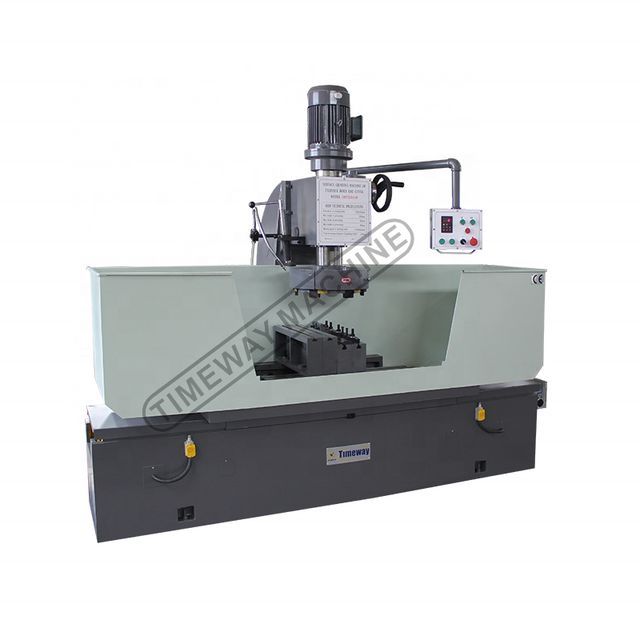

Cylinder grinder/rectifier 3M9735A
- $2500.00 / 1 - 2 sets
$2300.00 / >=3 sets - 1 set
- Zhengzhou Timeway Machine Tool Co., Ltd.
- Henan, China
- Mr David Cheung
PRODUCT DETAIL
Key words: | Cylinder head surface grinding | type: | Cylinder head and block surface grinders |
Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Name: | Cylinder block surface grinder |
Weight (kg): | 2300 | Video outbound inspection: | if |
Applicable industries: | Building materials stores, manufacturing plants, machine repair shops, farms, retail, construction engineering, energy and mining | brand: | Timak Time Road |
After-sales service provided: | Online support | Model: | 3M9735A |
Showroom location: | Philippines, Pakistan, Morocco, Colombia, Kazakhstan, Japan | payment terms: | L/C, Western Union, T/T, MoneyGram |
Supply capacity: | 300 sets per month | product name: | Cylinder head surface grinder |
Main selling points: | competitive price | Mechanical test report: | if |
port: | port of china | Packaging details: | Wooden box/plywood box |
Warranty: | 1 year, 1 year | color: | Customer choice |
Core component warranty: | 1 year | Key words: | Cylinder head surface grinder |
Place of origin: | Henan, China | Type of machine: | Cylinder head surface grinder |
Marketing type: | Hot Products of 2022 | Health status: | new |

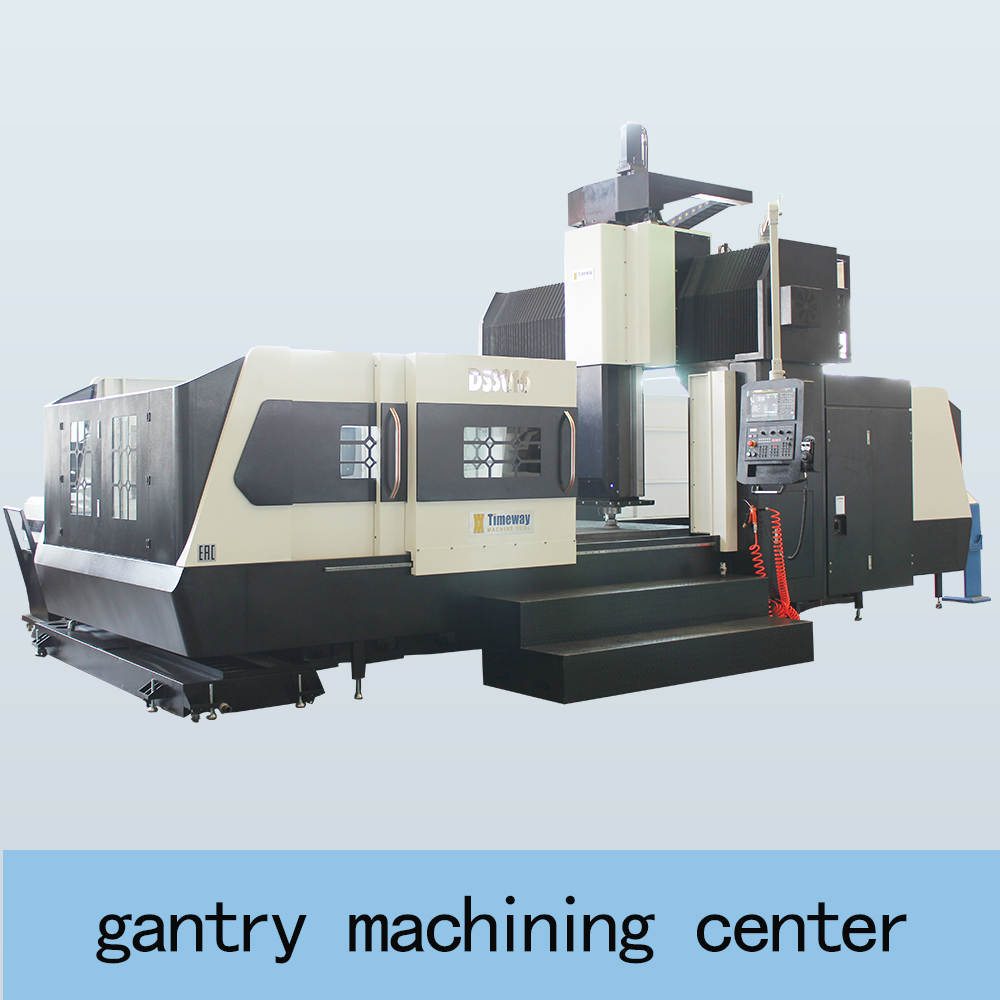

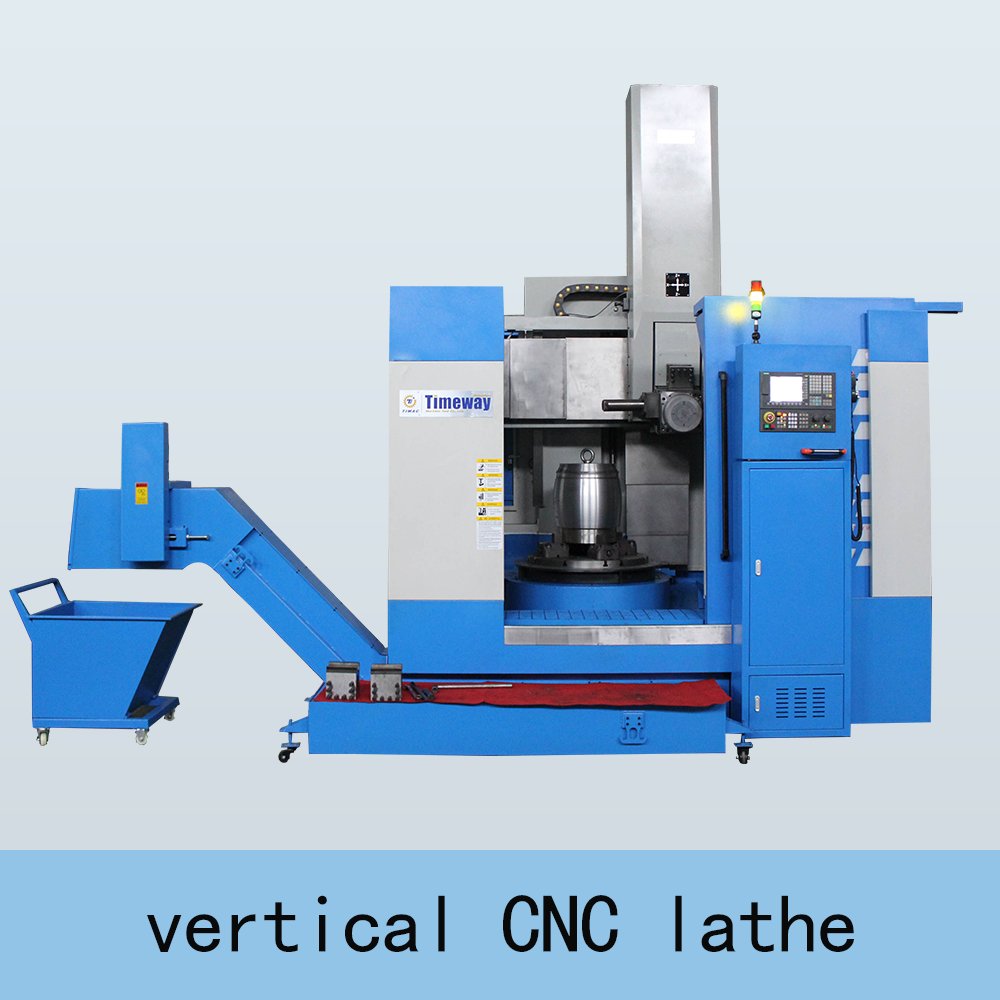

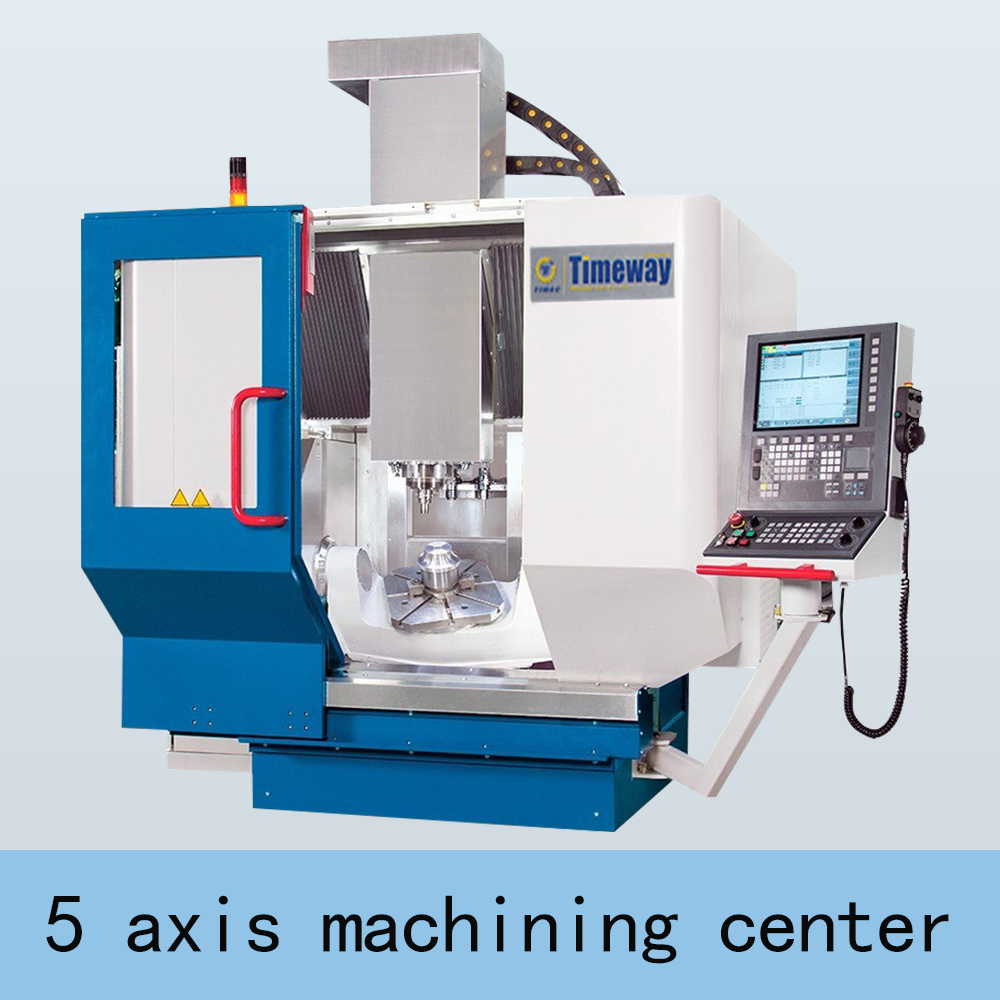

one stop shopping
You can click on the picture to view the products you are interested in
Product Description
Cylinder grinder
feature:
Cylinder block grinding machine
1. This machine is mainly used for grinding and milling the connecting surfaces of cylinder blocks and cylinder heads of various engines (cars, tractors, tanks, ships).
2. Due to long-term use of the engine, the connection surface between the cylinder block and the cylinder head will be deformed, causing the engine to fail to operate normally.
3. The connection surface between the cylinder block and the cylinder head can be processed with precision by grinding or milling.
4. If equipped with an electromagnetic chuck, this machine can also grind the surface of other parts.
5. This machine adopts (1400/700r/min) two-speed motor 1400r/min, which is used to grind the surface of the cylinder block or cylinder head made of cast iron. And use 700r/min to mill the surface of aluminum material. Grinding wheel feed is manual. When the handwheel rotates 1 step, the grinding wheel feeds 0.02mm. The pulley is of unloading type so that the main shaft only bears torsional moment.
6. The machine tool workbench adopts Y801-4 motor rotation drive. On the host panel,
The appropriate feed speed can be obtained by rotating the potentiometer thread, and the operation is convenient and reliable.
1. This machine is mainly used for grinding and milling the connecting surfaces of cylinder blocks and cylinder heads of various engines (cars, tractors, tanks, ships).
2. Due to long-term use of the engine, the connection surface between the cylinder block and the cylinder head will be deformed, causing the engine to fail to operate normally.
3. The connection surface between the cylinder block and the cylinder head can be processed with precision by grinding or milling.
4. If equipped with an electromagnetic chuck, this machine can also grind the surface of other parts.
5. This machine adopts (1400/700r/min) two-speed motor 1400r/min, which is used to grind the surface of the cylinder block or cylinder head made of cast iron. And use 700r/min to mill the surface of aluminum material. Grinding wheel feed is manual. When the handwheel rotates 1 step, the grinding wheel feeds 0.02mm. The pulley is of unloading type so that the main shaft only bears torsional moment.
6. The machine tool workbench adopts Y801-4 motor rotation drive. On the host panel,
The appropriate feed speed can be obtained by rotating the potentiometer thread, and the operation is convenient and reliable.
Specification
Specification | 3M9735Ax130 | 3M9735Ax150 |
maximum. Grinding length | 1300mm | 1500mm |
maximum. Grinding width | 350mm | 350mm |
Maximum grinding height | 600mm | 800mm |
Grinding head vertical movement distance | 120mm | 120mm |
Workbench lateral movement speed | 40-900mm/min | 30-900mm/min |
Grinding disc diameter | 360mm | 360mm |
Spindle speed | 1400/700 rpm | 1400/700 rpm |
Motor power cooling | 0.4kW | 0.4kW |
main motor power | 1.5/2.4kW | 1.5/2.4kW |

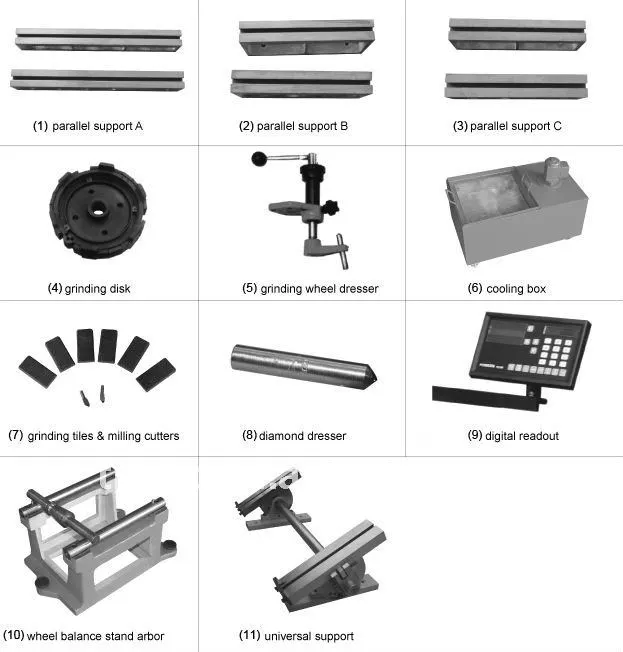

Machine details

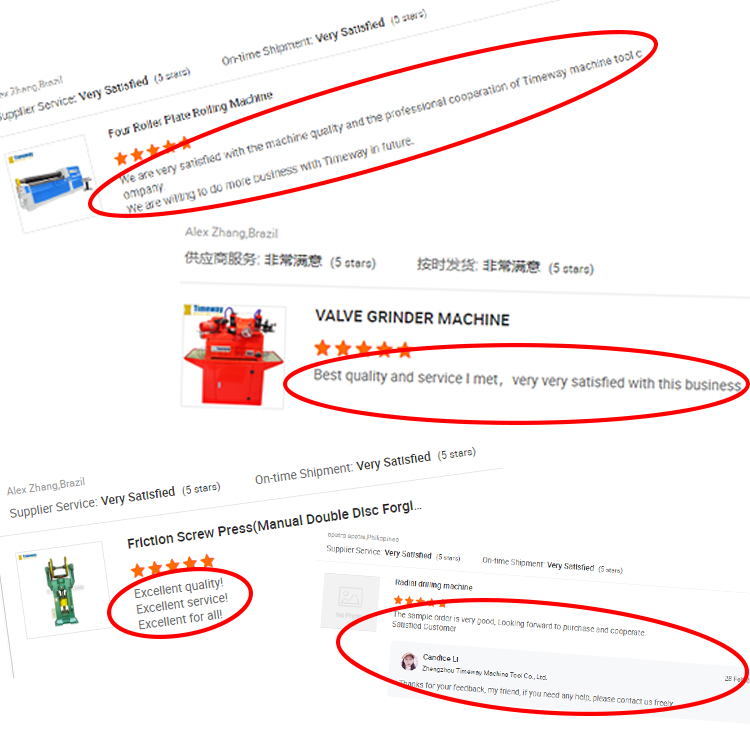

Positive customer reviews
our service
1. Free replacement of accessories during the warranty period. Cost price of out-of-warranty replacement parts. 2. Provide quick response and reply to technical issues at any time during the entire life cycle of the machine. 3. Some areas have overseas after-sales service centers. 4. Provide engineers overseas services according to customer requirements (relevant costs shall be borne by the customer).
