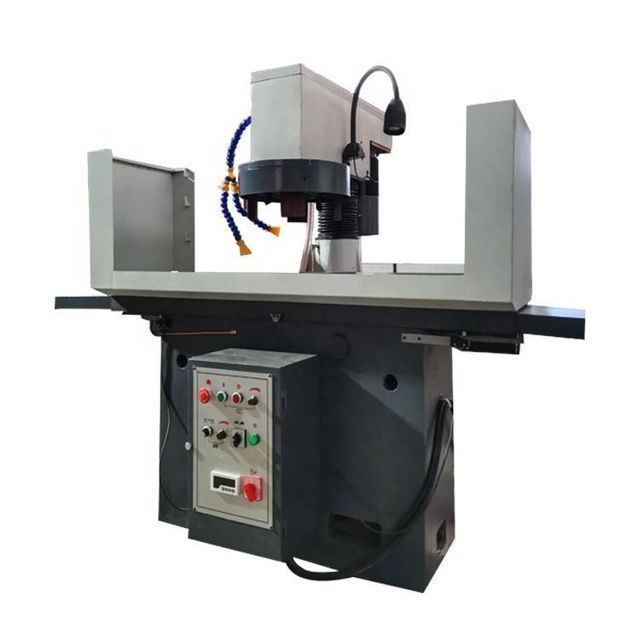

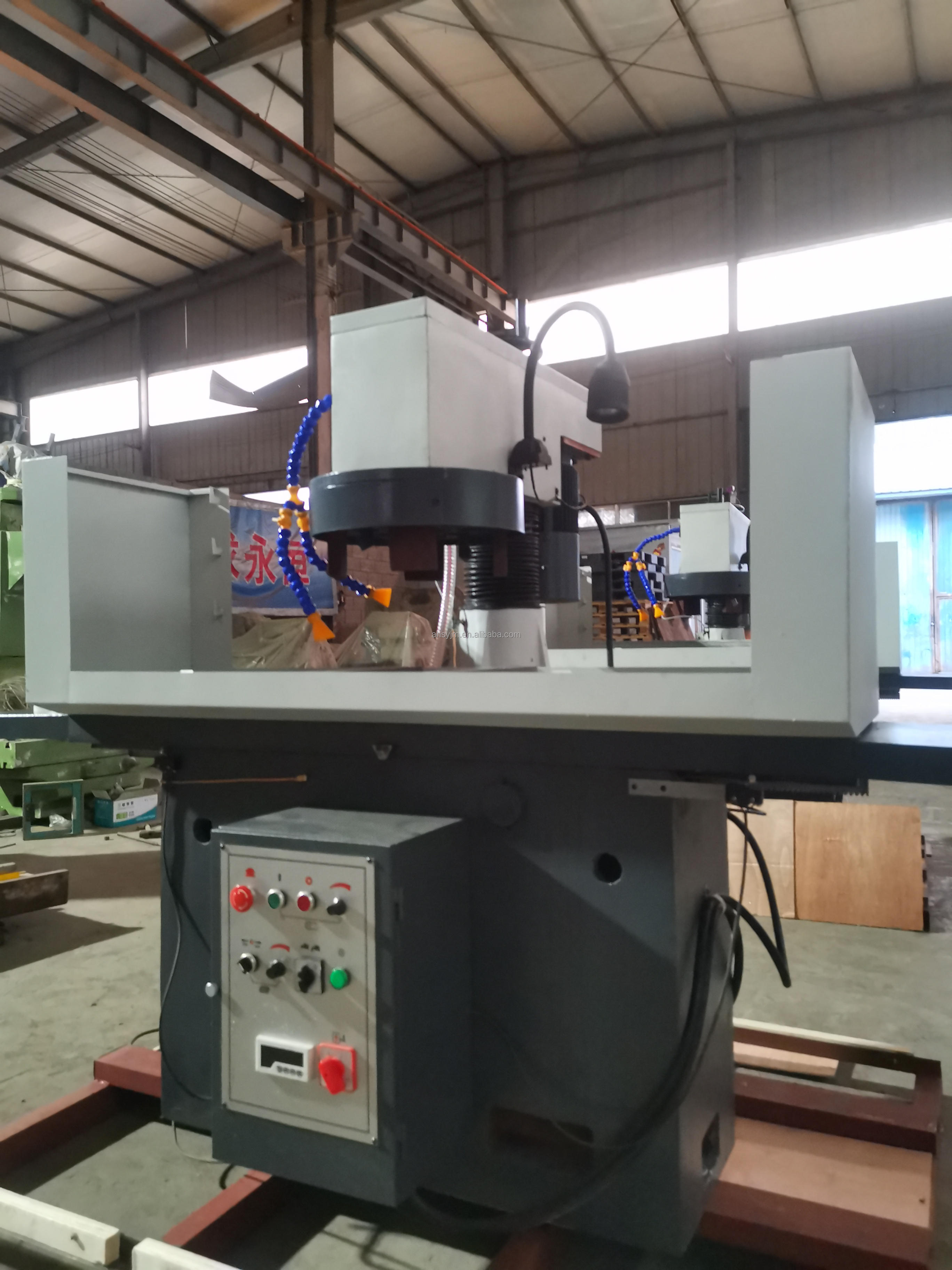

Cylinder head block surface resurfacing machine-TSM850
- $3000.00 /piece
- 1 piece
- Anhui Shangyi Precision Machinery Technology Co., Ltd.
- Anhui, China
- Mr LEO WU
PRODUCT DETAIL
| Core components: | Pump | Warranty: | 1 year |
| Grinding length (mm): | 850 | Weight (kg): | 800 |
| Health status: | new | Supply capacity: | 100 pieces per month |
| brand: | Shuichi | Mechanical test report: | if |
| Table travel (Y) (mm): | 160 | Core component warranty: | 1 year |
| Table size (mm): | 1115 | port: | Shanghai |
| CNC or not: | normal | Video shipment inspection: | if |
| Applicable industries: | Farms, households, energy and mining, clothing stores, retail, food stores, machinery repair shops, building supplies stores, food and beverage factories | Showroom location: | not any |
| Surface roughness (μm): | 0.03 microns | Voltage: | 220V/440V 50HZ |
| Packaging Details: | Our machine is covered with plastic film and fixed with steel wire inside, it will be well protected during transportation. | Table travel (X) (mm): | 440 |
| Dimensions (L*W*H): | 1720*870*1630mm | payment terms: | L/C, Western Union, T/T |
| Marketing Type: | New Products 2020 | place of origin; place of origin: | Jiangsu, China |
| Package preview: | Main selling points: | competitive price | |
| Power (kW): | 2.25 |
Main performance characteristics:
This machine tool is used for grinding (or milling) the joining planes of the engine block and cylinder head. equipped with
The corresponding fixture can also be used for plane processing of other parts.
1. This machine is a vertical grinding and milling machine with high grinding efficiency and high precision.
2. The movement of the workbench of this machine is driven by a geared motor and a ball screw, with frequency conversion and stepless speed regulation, which is convenient and fast
Stable adjustment.
3. Equipped with special fixtures to realize multi-angle grinding cylinders and grinding heads.
4. The castings of this machine are resin sand castings with small deformation and elegant appearance.
This machine tool is used for grinding (or milling) the joining planes of the engine block and cylinder head. equipped with
The corresponding fixture can also be used for plane processing of other parts.
1. This machine is a vertical grinding and milling machine with high grinding efficiency and high precision.
2. The movement of the workbench of this machine is driven by a geared motor and a ball screw, with frequency conversion and stepless speed regulation, which is convenient and fast
Stable adjustment.
3. Equipped with special fixtures to realize multi-angle grinding cylinders and grinding heads.
4. The castings of this machine are resin sand castings with small deformation and elegant appearance.
Product parameter description:
SpecificationsTSM-850
SpecificationsTSM-850
Table stroke 1115mm
maximum. Workpiece length 850mm
maximum. Workpiece width 330mm
maximum. Workpiece height 430mm
Min workpiece height 160mm
Table feed 0÷600mm/min
Milling wheel diameter 330 mm (13")
Milling wheel diameter 330 mm (13")
Tool speed 300÷1200g/min(rpm)
Voltage (+/- 15%) 230V , 400V
stage 1, 3
Minimum degree of protection IP 44
Main motor power 1.5kw
Gear box motor power 0.75kw
Total power 2.25kw
Environmental conditions: temperature 10÷30°C
Humidity15÷90%RH
Weight 800kg
Size length*width*height 1720*870*1630mm
Note: Product appearance is subject to any change. Please consult me for the latest exterior photos! ! ! ! ! ! !
