DABUND High Quality Copper Coil Air Conditioning Copper Tube and Insulation Tube
- $2.00 /piece
- 1 piece
- Changzhou Dabund Pipe Co., Ltd.
- Jiangsu, China
- Ms Amy Song
| size: | 1/4" 3/8" 1/2" 5/8" 3/4" | Material: | Copper/Insulation/Nut |
| color: | white/black/grey | Certification: | RoHS |
| Warranty: | 3 years | Packaging Details: | Shrink wrap 5 layers carton for high quality AC mounting tubes |
| place of origin; place of origin: | Jiangsu, China | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal |
| usage: | home air conditioner | length: | 3-20m |
| Energy source: | gas, manual | application: | Air conditioner connecting pipe,Home |
| After-sales service provided: | Free spare parts, on-site installation, on-site maintenance and repair services, overseas call center | model: | DAC1005 |
| brand: | Dabang | market: | Repair/Used Market |
| port: | Shanghai/Ningbo/Qingdao | Packaging Preview: | |
| thickness: | 6mm-25.4mm | Supply capacity: | 20,000 quality AC installation pipes per day |
| type: | Air Conditioning Parts, Air Conditioning Parts |

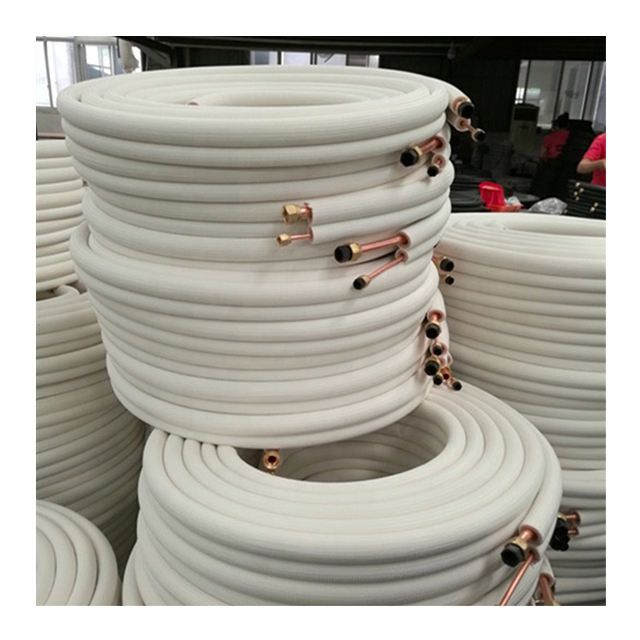

DABUND High Quality High Quality AC Mounting Pipe
We can do the length of high-quality copper pipe insulation air conditioners required by customers.
Our coils are copper and copper-aluminum resistance welded pipes, not whole aluminum pipes.
We can install or not install brass nuts according to customer's requirements.
Our lengths are 3m, 5m, 6m, 7n, 9m, 15m, etc. And according to customer requirements.
1. Recommended size parameters of air conditioning insulation pipes (double pipes) (applicable to R410A, R404A, R407C, R507A, R134A refrigerants)
|
Specification |
Aluminum tube size |
Insulation size |
Insulation pipe wall thickness |
|
1/4”+3/8” |
6.35×0.8+9.52×0.8mm |
φ8+φ12 |
8mm+8mm |
|
1/4”+1/2” |
6.35×0.8+12.70×0.8mm |
φ8+φ14 |
8mm+8mm |
|
1/4”+5/8” |
6.35×0.8+15.88×1.0mm |
φ8+φ18 |
8mm+8mm |
|
3/8”+5/8” |
9.52×0.8+15.88×1.0mm |
φ12+φ18 |
8mm+8mm |
|
3/8”+3/4” |
9.52×0.8+19.05×1.0mm |
φ12+φ22 |
8mm+8mm |
|
1/2”+3/4” |
12.70×0.8+19.05×1.0mm |
φ14+φ22 |
8mm+8mm |
2. Recommended size parameters of air conditioning insulation pipe (double pipe) (applicable to R22, R12 refrigerant)
|
Specification |
Aluminum tube size |
Insulation size |
Insulation pipe wall thickness |
|
1/4”+3/8” |
6.35×0.6+9.52×0.6mm |
φ8+φ12 |
8mm+8mm |
|
1/4”+1/2” |
6.35×0.6+12.70×0.6mm |
φ8+φ14 |
8mm+8mm |
|
1/4”+5/8” |
6.35×0.6+15.88×0.8mm |
φ8+φ18 |
8mm+8mm |
|
3/8”+5/8” |
9.52×0.6+15.88×0.8mm |
φ12+φ18 |
8mm+8mm |
|
3/8”+3/4” |
9.52×0.6+19.05×0.8mm |
φ12+φ22 |
8mm+8mm |
|
1/2”+3/4” |
12.70×0.6+19.05×0.8mm |
φ14+φ22 |
8mm+8mm |
PS: The diameter and wall thickness of all copper-aluminum pipes can be changed according to customer's requirements.

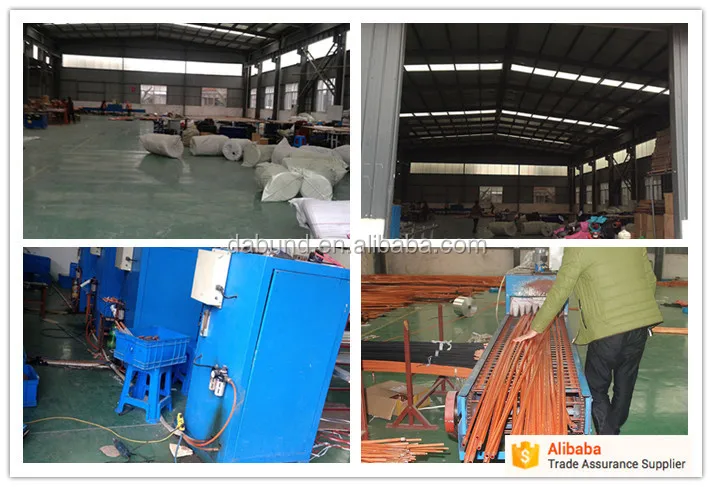

We are a professional manufacturer of high quality copper tube thermal insulation air conditioner
,Aluminum pipes, aluminum pipes, copper-aluminum fittings, copper pipes, aluminum coils, copper pipes and air-conditioning connecting pipes are used in HVAC&R systems. Alloy 1050/1060/1070/1100-3103/3003/5052/5056/6061/6063, hot extruded and cold drawn. We also help customers buy some electronic products like thermostats. We have more than 16 years of experience and have our own factory, we focus on providing customers or partners with quality products and the best air conditioning and service refrigeration industry.
we acceptOEMand ODM.
