DC 24V Solar Complete Kit Door Motor Heavy Duty Automatic Sliding Door Operator
- $85.00 / >=10 sets
- 10 sets
- Quanzhou Autoga Machinery Co., Ltd.
- Fujian, China
- Mr Will Wu
| Project solution ability: | other | Maximum pulling force: | 1100N |
| Maximum loading weight: | 500KG | After-sales service: | online technical support |
| Output torque: | 16.8-32.0N | Output gear modulus: | 4 |
| place of origin; place of origin: | Fujian China | payment terms: | Western Union, T/T, Paypal |
| type: | automatic door operator | design style: | modern |
| brand: | giant sliding door opener | Motor Power: | 24VDC 120W |
| Supply capacity: | 2000 sets per month | application: | apartment |
| port: | Xiamen | gross weight: | 11KG |
| model: | Jinjiang-PYM- A024 | Warranty: | 1 year |
| Input voltage: | 220V±10% 50HZ | Opening (closing) speed: | 12m/min |
| Number of output gears: | 16 | Packaging Details: | 1 set/carton (32cm*24cm*30cm) 36CTNS/ CBM 1000 sets/20'container |

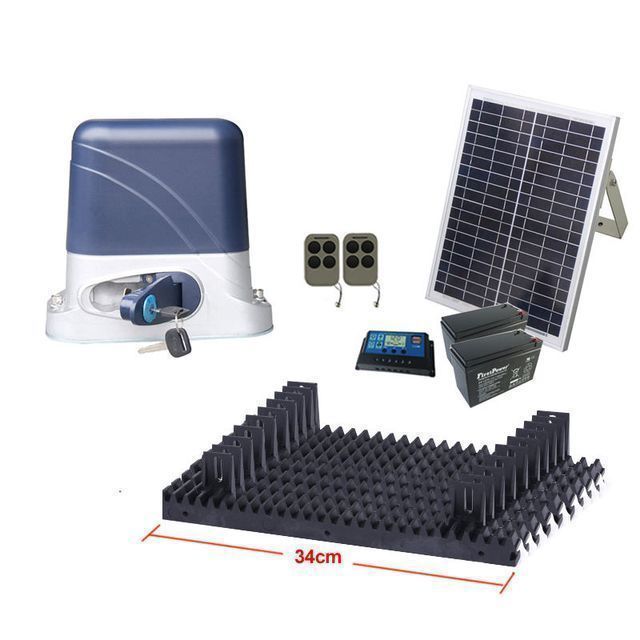

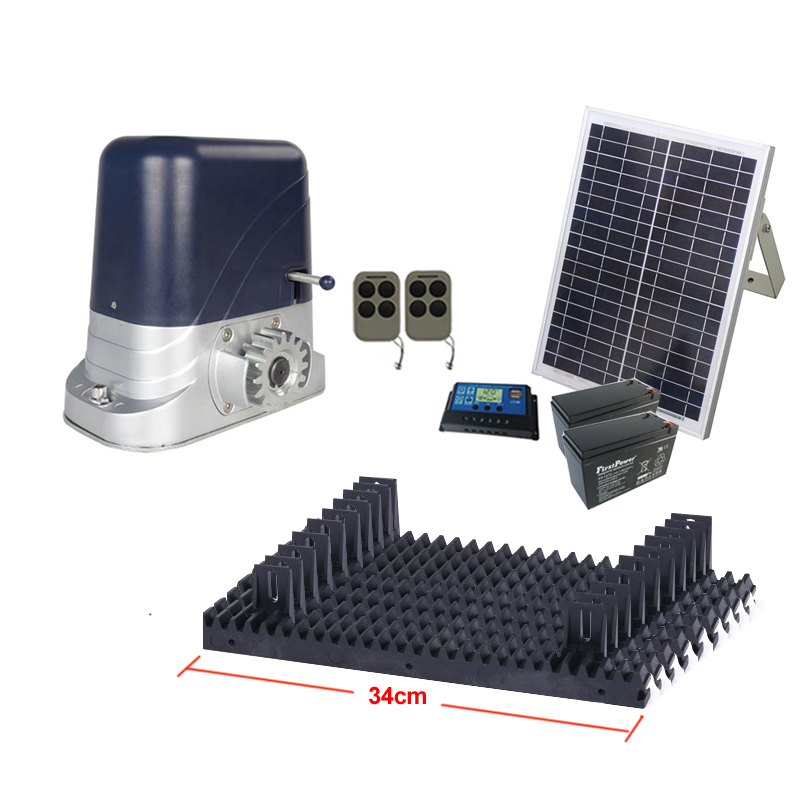

120W solar panel with bracket
2 pieces of 12V 7AH/9AH batteries
1 solar charger
1 large box
2 remote controls
1 set of hardware accessories

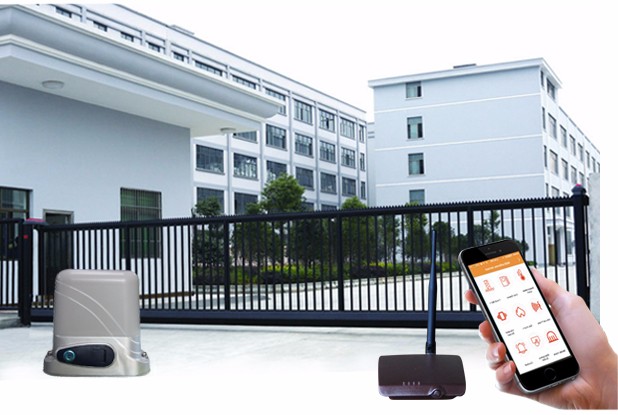

Smartphone heavy-duty automatic swing door opener

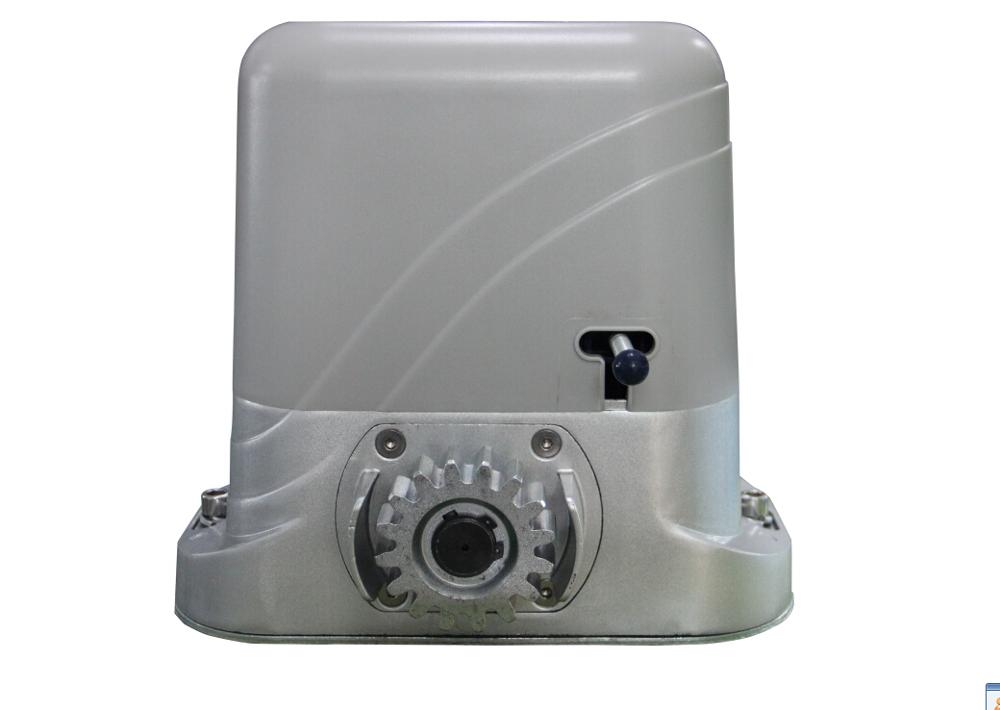

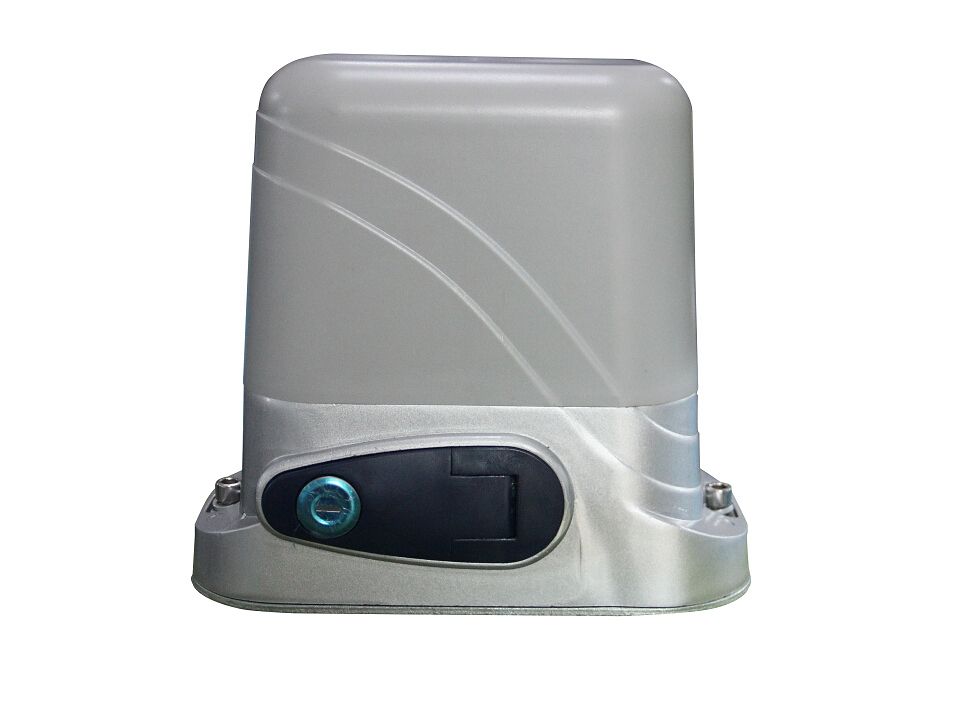

This AC powered sliding door opener is designed to operate sliding doors weighing up to 500kg. It is an integrated motor and control panel, easy to install, very compact and tidy.
1. Weatherproof

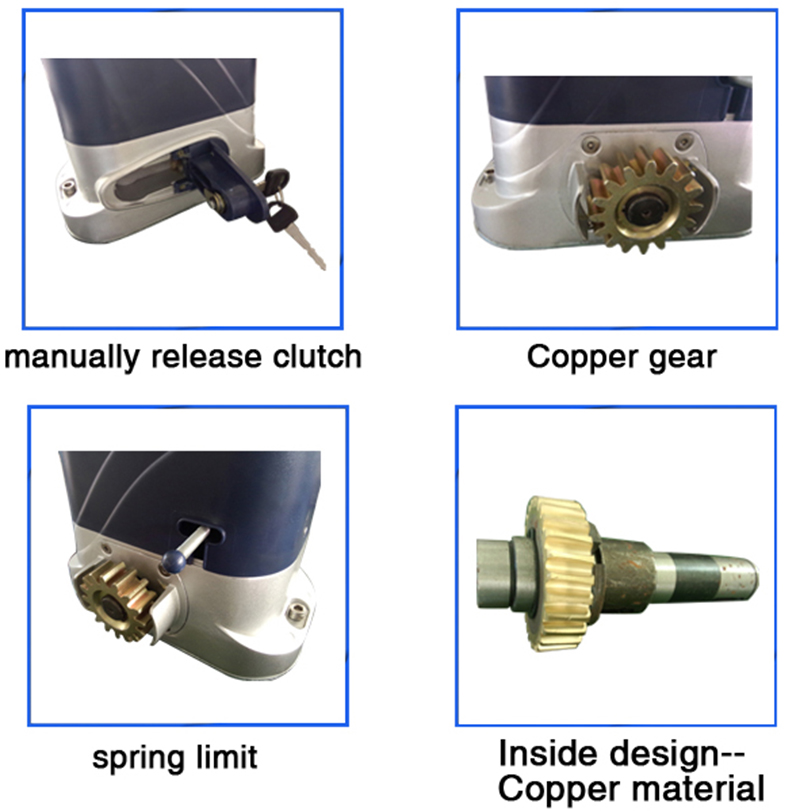

2. Manual override
3. Full metal gear
4. Metal gear transmission
5. All-in-one internal motor and weatherproof control panel
product name | Sliding door opener PYM A024 |
Material | aluminum alloy |
color | grey |
Motor Power | 120W |
Maximum Loading Weight | 500 kg |
B maximum thrust | 1100N |
Speed of work | 12m/min |
Gear modulus | m=4 |
Specification:
1. Fully integrated electromechanical system (frame not included).
2. The control board interface of the shock-proof infrared photocell is optional.

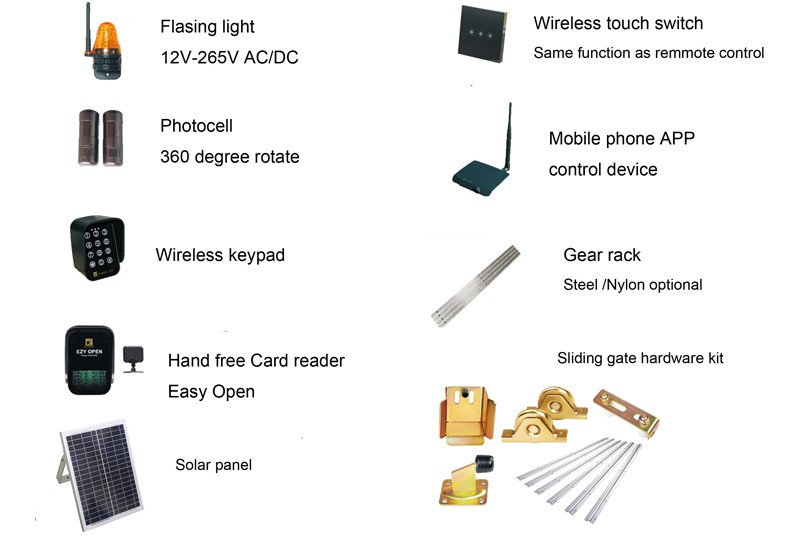

3. It can be connected with flashlight, keyboard and electric lock, etc.
4. Automatic delay off.
5. Resistance sensitivity is adjustable.
6. When encountering an obstacle, the door automatically stops and reopens.
7. Wireless remote control or wired remote control is optional.
8. 24VDC sliding door opener can connect transformer and backup battery.

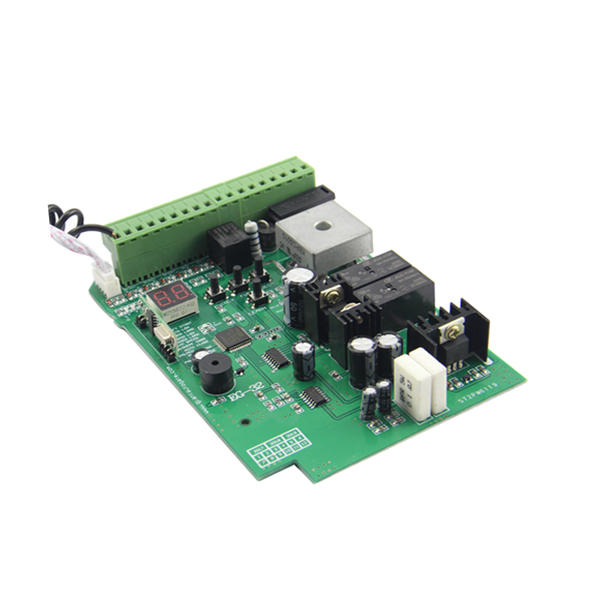

Model | EG-32 |
Voltage | 24V DC |
modulation | ask |
frequency | 433.92Mhz |
motherboard memory | 150 remote controls |
The output voltage | DC 24V |
Function
Single key cycle work (open, stop, close, etc.)
Adjustable working hours
Adjustable resistance sensitivity
Adjust the auto-off time
Terminals can be used for loop detectors, photocells, buttons, keypads, access control devices, and more.
Custom rolling code makes the system more secure and has high anti-theft performance
