DIY Wheelbase RichenPower Y-16 Agri 16L Hybrid Electric Agricultural Spray Drone With Water Tank 20 Minutes Flight Time
- $4360.80 /piece
- 1 piece
- Shenzhen FX Dynamics Technology Co., Ltd.
- Guangdong, China
- Ms Hellen Li
PRODUCT DETAIL
| Packaging Details: | gift wrap | Maximum takeoff weight: | 38kg |
| brand: | Ruichen Power | Private model: | Do not |
| Supply capacity: | 1000 boxes per month | port: | Shenzhen |
| payment terms: | wire transfer, paypal | Material: | plastic, metal |
| Max hover time: | 18 minutes | Maximum flight speed: | 10m/s |
| capacity: | 16000 ml | weight: | 22 kg |
| type: | agricultural use | strength: | Battery |
| place of origin; place of origin: | Guangdong, China | Diagonal wheelbase: | 1568 meters |
| Packaging Preview: | Fuel consumption: | 4 liters/hour | |
| model: | RIC-Y16 | Function: | Altitude hold mode, with G-sensor, headless mode, with camera, APP control, with remote control, voice control, with LED light |
| Maximum service cap above sea level: | 2000 meters |
Product Description

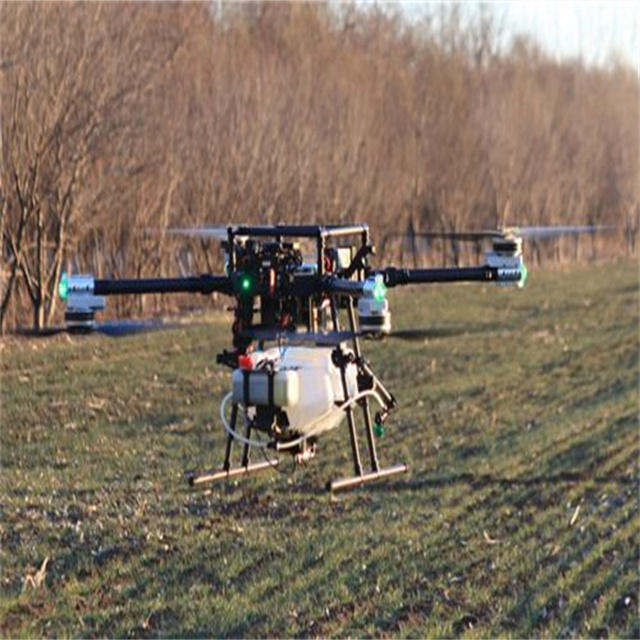

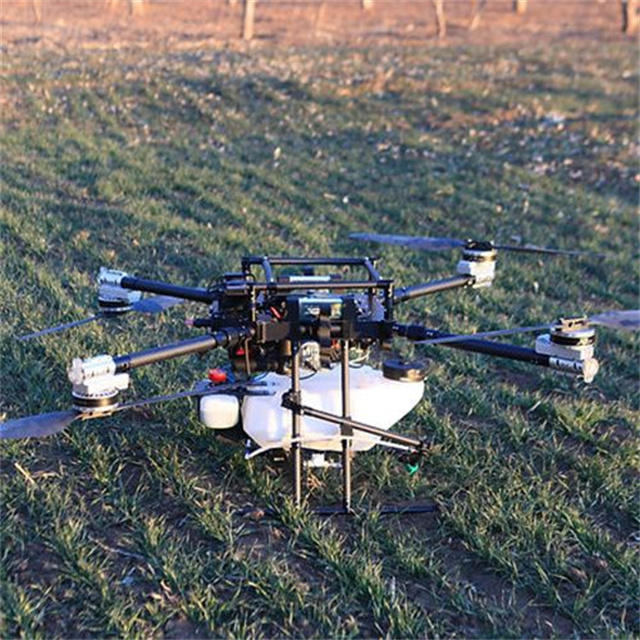

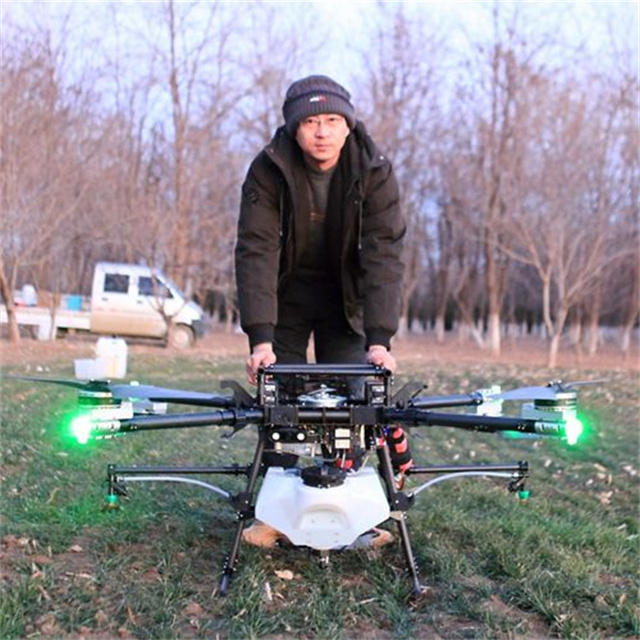

RichenPower Y-16 Agri 16L Hybrid Electric Agricultural Spraying Drone With Water Tank 20 Minutes Flight Time Total Weight (without Fuel) (kg): 22
Maximum take-off weight (kg): 38
Max Hover Time (minutes): 18
GNSS+ positioning system hovering accuracy (cm)
GNSS* GPS+GLONASS+BEIDOU: Horizontal ±60 Vertical ±30 Radar Module Enable ±10
Dimensions (L x W x H) (mm): 600 x 680 x 700 (frame arms folded); 1200 x 1200 x 700 (frame arms unfolded)
Diagonal wheelbase (mm): 1568
Number of weapons: 4
Maximum running speed (m/s): 7
Maximum flight speed (m/s): 10
Fuel consumption (l/h): 4
Operating temperature (°C): -20 ~ 40
Maximum service ceiling above sea level (m): 2000
Press to start: yes
Gasoline: Regular92 or E92 or above
FPV Camera: FOV Horizontal 98°Vertical78°Resolution1080x960
Tank Volume (L): Standard 16; Up to 17
Tank Payload (kg): Standard 16; Up to 17
Number of nozzles: 2
Nozzle model: Teejet XR11001VS or German Agro11001 (Droplet Size 130~250 μm)
Maximum spray flow (l/min): 1.8 (ISO 005 nozzle), 3.6 (ISO 040 nozzle)
Spray width (m): 6~10 m (2 nozzles, height 1.5~3 m above the crop)
Terrain following radar: height detection range 1 - 30 m; stable working range 1.5 - 15 m; maximum slope 35° in mountain mode
Pellet tank volume (liters): 20
maximum. Particle spreader rate (kg/min): 60
Maximum take-off weight (kg): 38
Max Hover Time (minutes): 18
GNSS+ positioning system hovering accuracy (cm)
GNSS* GPS+GLONASS+BEIDOU: Horizontal ±60 Vertical ±30 Radar Module Enable ±10
Dimensions (L x W x H) (mm): 600 x 680 x 700 (frame arms folded); 1200 x 1200 x 700 (frame arms unfolded)
Diagonal wheelbase (mm): 1568
Number of weapons: 4
Maximum running speed (m/s): 7
Maximum flight speed (m/s): 10
Fuel consumption (l/h): 4
Operating temperature (°C): -20 ~ 40
Maximum service ceiling above sea level (m): 2000
Press to start: yes
Gasoline: Regular92 or E92 or above
FPV Camera: FOV Horizontal 98°Vertical78°Resolution1080x960
Tank Volume (L): Standard 16; Up to 17
Tank Payload (kg): Standard 16; Up to 17
Number of nozzles: 2
Nozzle model: Teejet XR11001VS or German Agro11001 (Droplet Size 130~250 μm)
Maximum spray flow (l/min): 1.8 (ISO 005 nozzle), 3.6 (ISO 040 nozzle)
Spray width (m): 6~10 m (2 nozzles, height 1.5~3 m above the crop)
Terrain following radar: height detection range 1 - 30 m; stable working range 1.5 - 15 m; maximum slope 35° in mountain mode
Pellet tank volume (liters): 20
maximum. Particle spreader rate (kg/min): 60
Product packaging
Y-16 UAV x 1

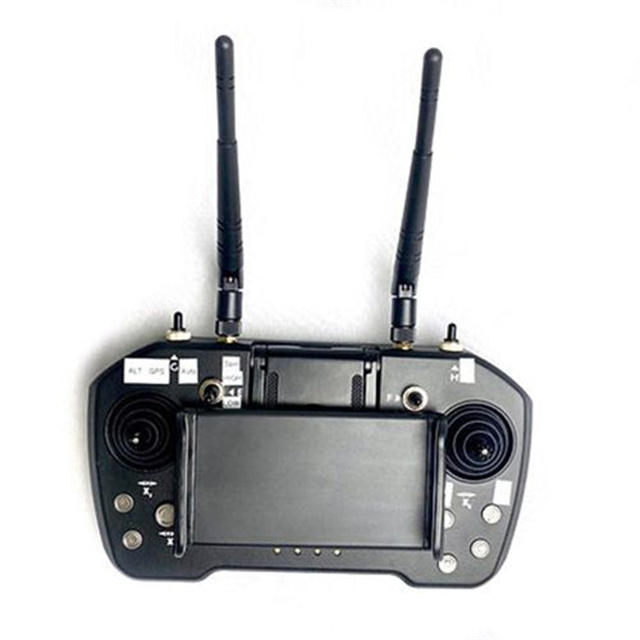

Remote Controller x 1

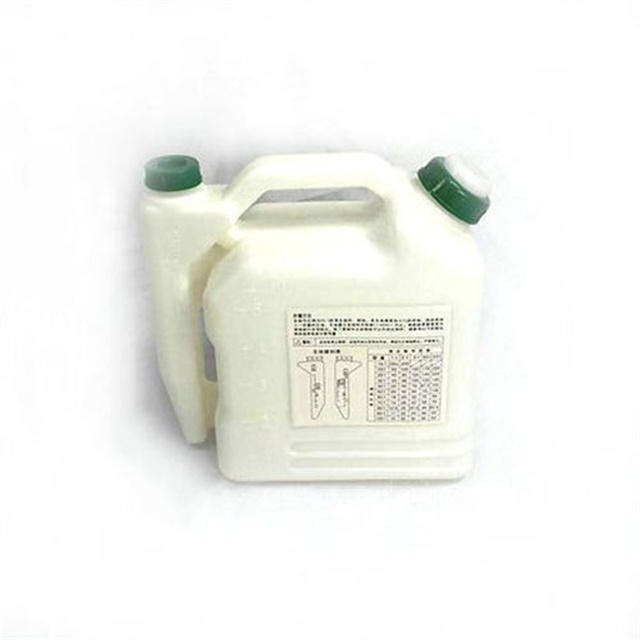

fuel mixer x 1
Remote Controller x 1
fuel mixer x 1
