DN125 concrete pump straight pipe double wall wear-resistant pipe flange connection 2017 hot sale
- $10.00 /piece
- 1 piece
- Hebei Chunda Pipefittings Manufacturing Co., Ltd.
- Hebei, China
- Ms Cathy Kang
PRODUCT DETAIL
| Marketing Type: | normal product | Origin: | Hebei china |
| Supply capacity: | 5000 pieces per day | Material: | Q235, 20#, 16Mn, ST52, 45Mn2, 37Mn5, 50Mn2, W12-5 |
| application: | Truck-mounted concrete pumps for concrete pumping | Warranty: | 1.5 years |
| Health status: | new | brand: | pure big |
| Weight (kg): | 38 | port: | Tianjin Xingang |
| length: | 1-6m, according to customer requirements | payment terms: | L/C, Western Union, T/T |
| Package preview: | Showroom location: | not any | |
| Video shipment inspection: | if | weight: | 38-52 kg |
| Years of use: | 6,000-80,000 cubic meters | connect: | flange |
| Standard or non-standard: | standard | Packaging Details: | Export standard packaging or according to customer requirements. |
| Mechanical test report: | if | color: | red, white etc. |
| Name: | concrete pump pipe | Applicable industries: | Building material stores, manufacturing plants, machinery repair shops, construction projects |
| thickness: | 4.5mm, 5mm, 7.0mm, etc. |
DN125 concrete pump straight pipe double wall wear-resistant pipe flange connection 2017 hot sale
1. We are a professional manufacturer of concrete pump pipes in China. Our products include delivery pipes, elbows, reducers, couplings, rubber hoses, cleaning balls, etc.
2. Our products are top quality in China and have been used in SCHWING, PM, KYOKUTO, SANY,
ZOOMLION, CIFA, SINOTRUK (CNHTC), FOTON, XUGONG, CHUTIAN, HAINUO, etc., and have been approved by them.
3. The HRC of the inner wall can reach 60~65 degrees, and the service life can be increased by 3~5 times.
4. The inner wall is quenched and treated with carburizing chemical treatment, which has high wear resistance.
5. We provide OEM
| concrete pump pipe | |||||||
| type | DN | Weight (mm) | Length (m) | Matching flange(mm) | (Human Resources Committee) | Hardness layer depth (mm) | Application life (CBM) |
| hardening | 125 | 4.5 | 1--9 | 148 | 60-65 years old | 2-2.5 | 20,000-30,000 |
| pipeline | 4.85 | 148 | 2-2.5 | 25,000-30,000 | |||
| (45Mn2) | 5 | 148 | 2.5-3 | 35,000-40,000 | |||
| 7 | 148 | 3.0-4.0 | 40,000-50,000 | ||||
| Common | 125 | 4.5 | 1--9 | 148 | 10 | 8,000 | |
| pipeline | 4.85 | 148 | 1,000 | ||||
| (45Mn2) | 5 | 148 | 12,000 | ||||
| 7 | 152-148 | 20,000 | |||||
| double | 125 | 2.5+2 | 1--9 | 148 | 60-65 years old | 2.5 | 40,000 |
| layer | 3+2 | 148 | 3 | 50,000 | |||
| Pip (45Mn2) | 4+3 | 152-148 | 4.5 | 70,000 | |||
| Common | 125 | 4 | 1--9 | 148 | 60-65 years old | ||
| steel | 4.5 | 148 | |||||
| Pipe (20#) | 4.75 | 148 | |||||
| 150 | 4.5 | 148 | |||||
| 5 | 148 | ||||||
product display

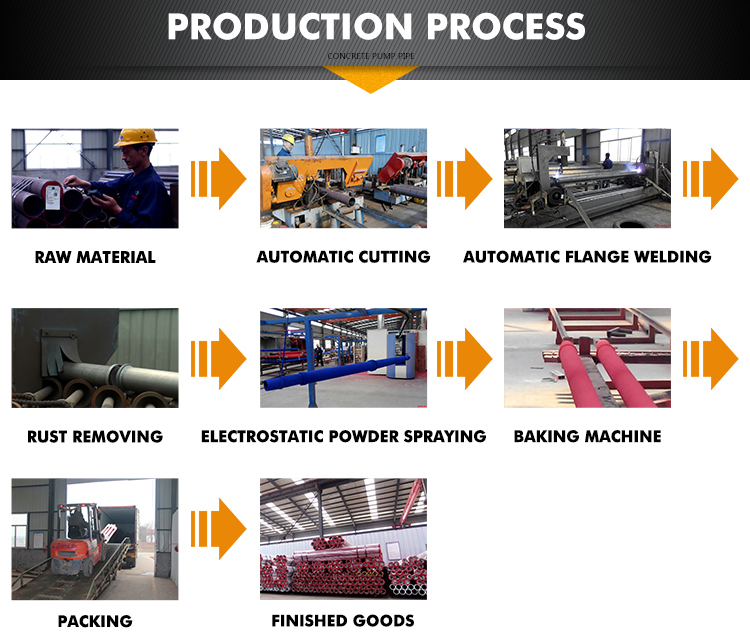

Product process
