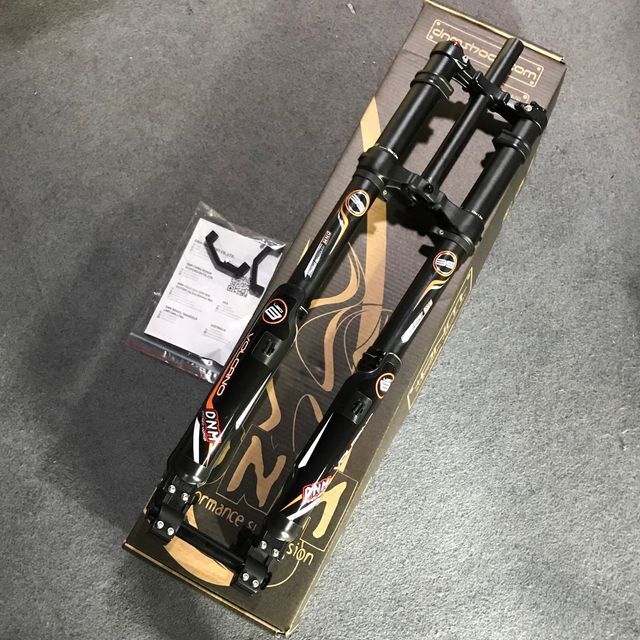

DNM USD-8C Dirt Bike Double Crown Fork with Head Light Mounting Feature/DoodleBike

PRODUCT DETAIL

Material:	Aluminum;	Down Tube:	110*20mm axle, AL7075;
Steerer Tube:	28.6mm(1.13inch), 1-1/8" to 1.5"(Taper) AL7075;	Drop Out/Crown:	Forging, AL6061;
Place of Origin:	Taiwan, China;	Blade length:	110;
Brand Name:	DNM;	Payment Terms:	T/T;
Inner Structure:	Coil Spring;	Outer Tube:	42mm AL6061;
Packaging Detail:	Standard shipping carton + Double package;	Package Preview:	;
Fit For:	Disc Brake(Post Mount);	Travel:	112/203mm(4.41/8inch);
Model Number:	USD-8C;	Suspension:	Inverted Feature,Yes;
Stem Size:	28.6mm;	Wheel Size:	24/26/27.5",24/26/27.5" wheel size;
Use:	Mountain Bikes;	Supply Ability:	1000 Pieces per Month;
Type:	Oil Spring Fork (Spring Resilience/Oil Damping);	Inner Tube:	35mm, AL7075 Dark Hard Anodized;
Port:	Shanghai;	Weight:	3.6Kg/7.92Lb;

Model Number: USD-8C

For Ebike use, support headlight mounting and Hanlde bar lock.

Specs:

- Weight: 3.6Kg(7.92lb)

- Wheel size: 24/26/27.5 inch

- Travel: 112/203mm (4.41/8inch)

- Steerer tube: 28.6mm(1.13mm), 1-18" t0 1.5" (taper) AL7075

- Drop out/Crown material: Boost, Forging, AL6061

- Outer tube: 42mm/AL6061

- Inner tube: 35mm/AL7075 dark hard anodized

- Down tube: 20mm axle *110mm thru-axle design AL7075,

- Feature: inverted fork

- Inner structure: Coil spring

- Adjustments: Preload, Rebound, Adjust high pressure

- Brake type: Disc brake(post mount)

- Riding type: DH

- Color: Black
