DOL Magnetic Motor Starter
- $7.80 / >=50 pieces
- 50 pieces
- Shanghai Ebasee Electric Co., Ltd.
- Shanghai, China
- Mr David Dong
| Brand Name: | EBASEE; | Main Circuit Rating Voltage: | 110V, 220V, 380V; |
| Supply Ability: | 50000 Pieces per Month OEM available dol magnetic starter; | Place of Origin: | Shanghai, China; |
| Port: | Shanghai, Ningbo; | Phase: | Single phase/ Three phase; |
| name: | dol magnetic starter; | Model Number: | EBSE1; |
| Payment Terms: | L/C,D/P,T/T,Western Union,Paypal; | Packaging Detail: | Standard export cartons; |
| Electricity Type: | AC; | Number of Pole: | 3; |
| Main Circuit Rating Current: | 9~95A; |
1. About Us
Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades.
EBASEE factory locates in Shanghai,China, covering an area of 5000m2.There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.
QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
2. Why us
3. Certification
4. FAQ
5. Contact Us

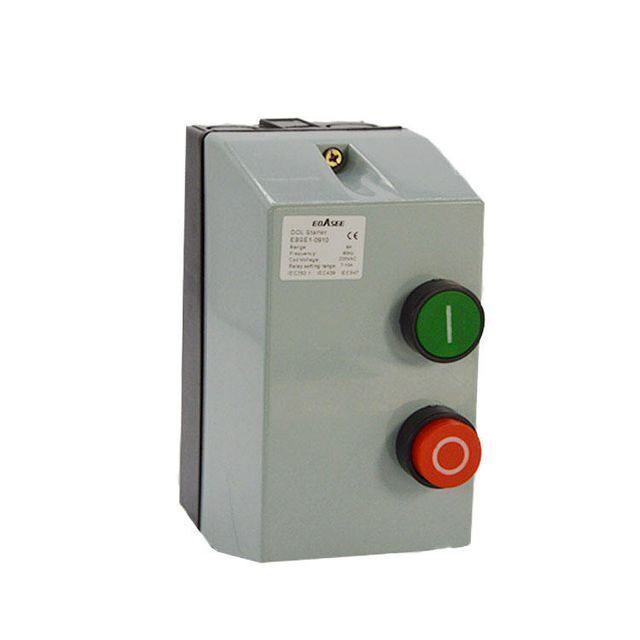

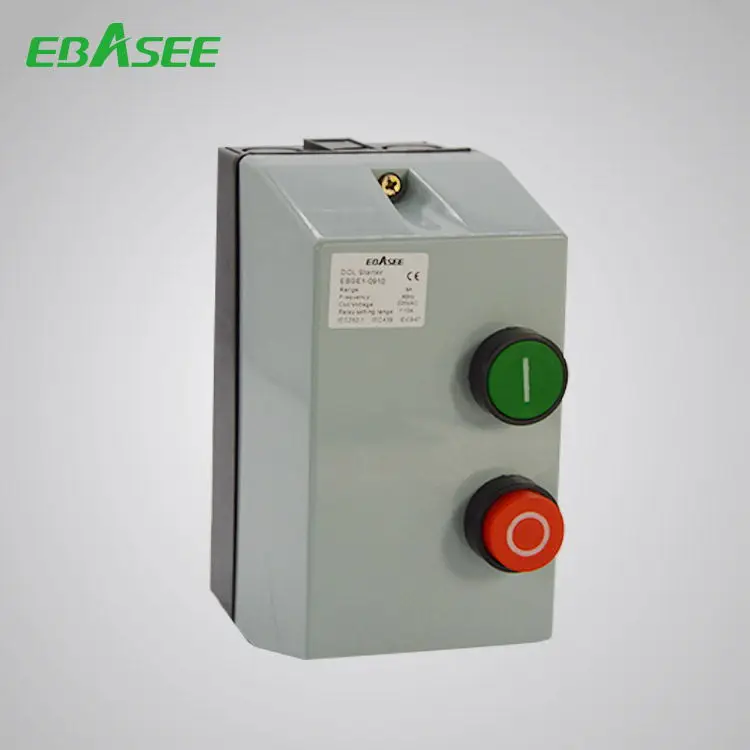

DOL Starter
Function
EBSE1 DOL magnetic Starter mainly applies to circuit if AC 50 or 60Hz, voltage up to 550V for remote making and breaking circuit and frequently starting and controlling motor .
Technical Parameter
|
Model Name |
|
EBSE1 Dol starter |
|
Standard |
|
IEC60947-4-1 IEC60439-1 |
|
Voltage of coil |
|
P 230V; U 240V; Q 380V |
|
Rated current(A) |
|
9 12 18 25 32 40 50 65 80 95A |
|
Rated insulating voltage |
|
690V |
|
Material |
|
Plastic and metal |
|
Protection level |
|
IP65 |
|
Connection |
|
Pre-wired power and control circuit connections |
Features
n EBSE1 DOL Starter features small volume light weight, low power consumption, high efficiency, safe and reliable performance etc.
n One starter can be installed with different setting current thermal relay to control different power motor and protect overload,the relay has to be ordered separately.
Applicable Working
|
Ambient temperature |
|
-5~+40℃, the average value cannot exceed to +35℃ within 24h |
|
Altitude |
|
≤2,000m |
|
Relative humidity |
|
≤95% |
|
Pollution level |
|
III. |
|
Installation category |
|
3 |
