Dental spindle motor atc DECI for milling cutter

PRODUCT DETAIL
Applicable industries:Building material stores, manufacturing plants, mechanical repair shops, printing shops, construction works, energy and miningweight:1.35KG
Core components:bearingMarketing Type:New Products 2020
Showroom location:not anystrength:0.35KW
Weight (kg):1.8Video external inspection:if
Running speed:60000 rpmfrequency:1000Hz
current:2.5AVoltage:100V(3~)
application:millingplace of origin; place of origin:Guangdong, China
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,PaypalHealth status:new
Supply capacity:1000 sets per monthdrive:motor
brand:desiMax torque:0.056
Warranty:12 months, 1 yearcooling method:water cooling
Mechanical test report:if
Product Description

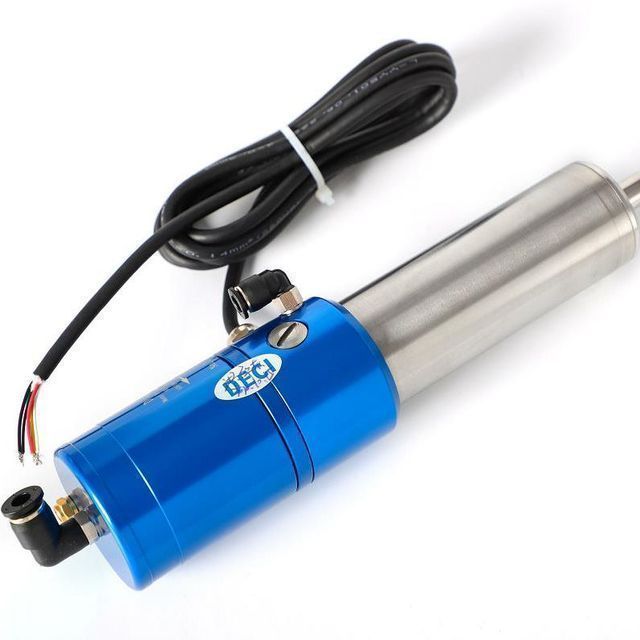

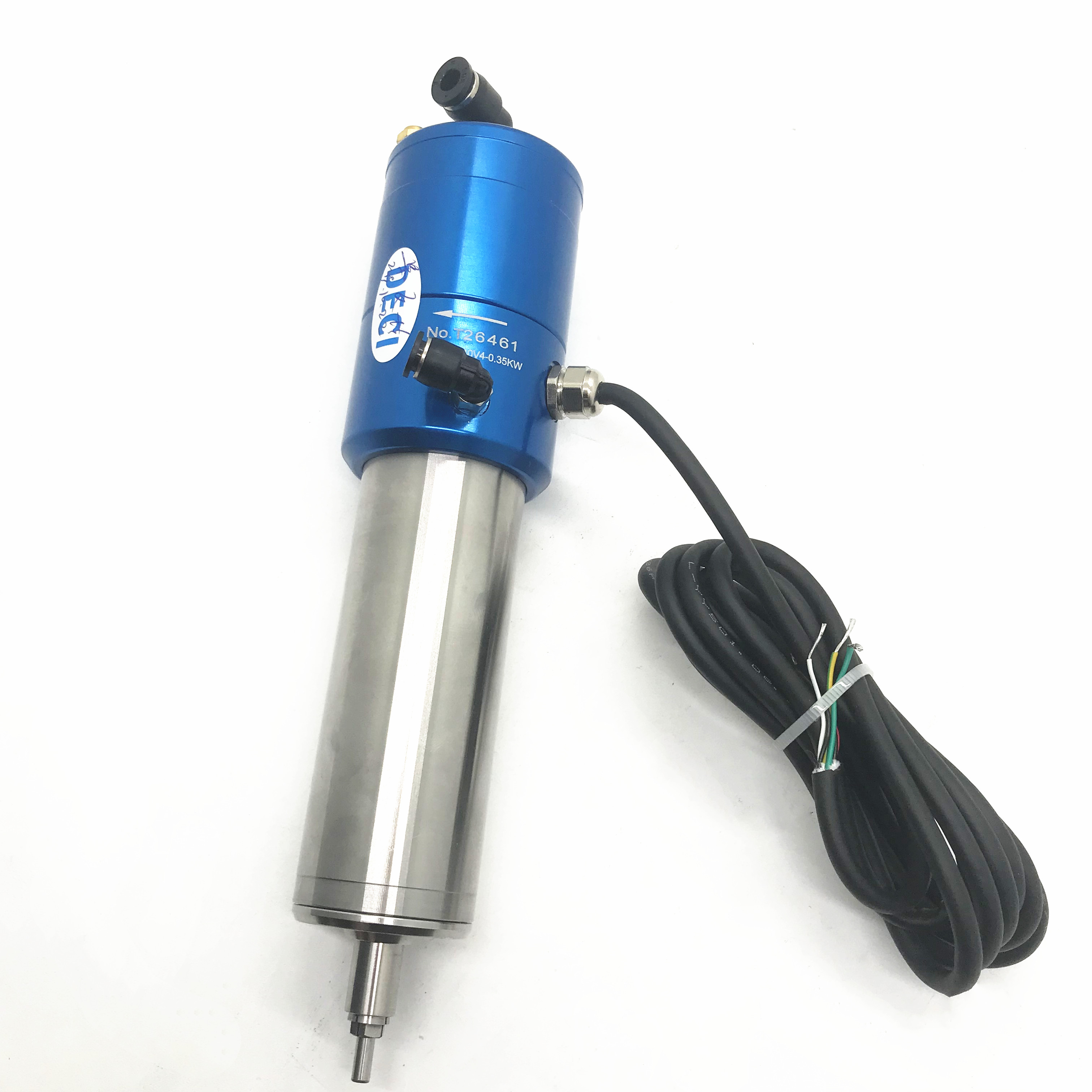

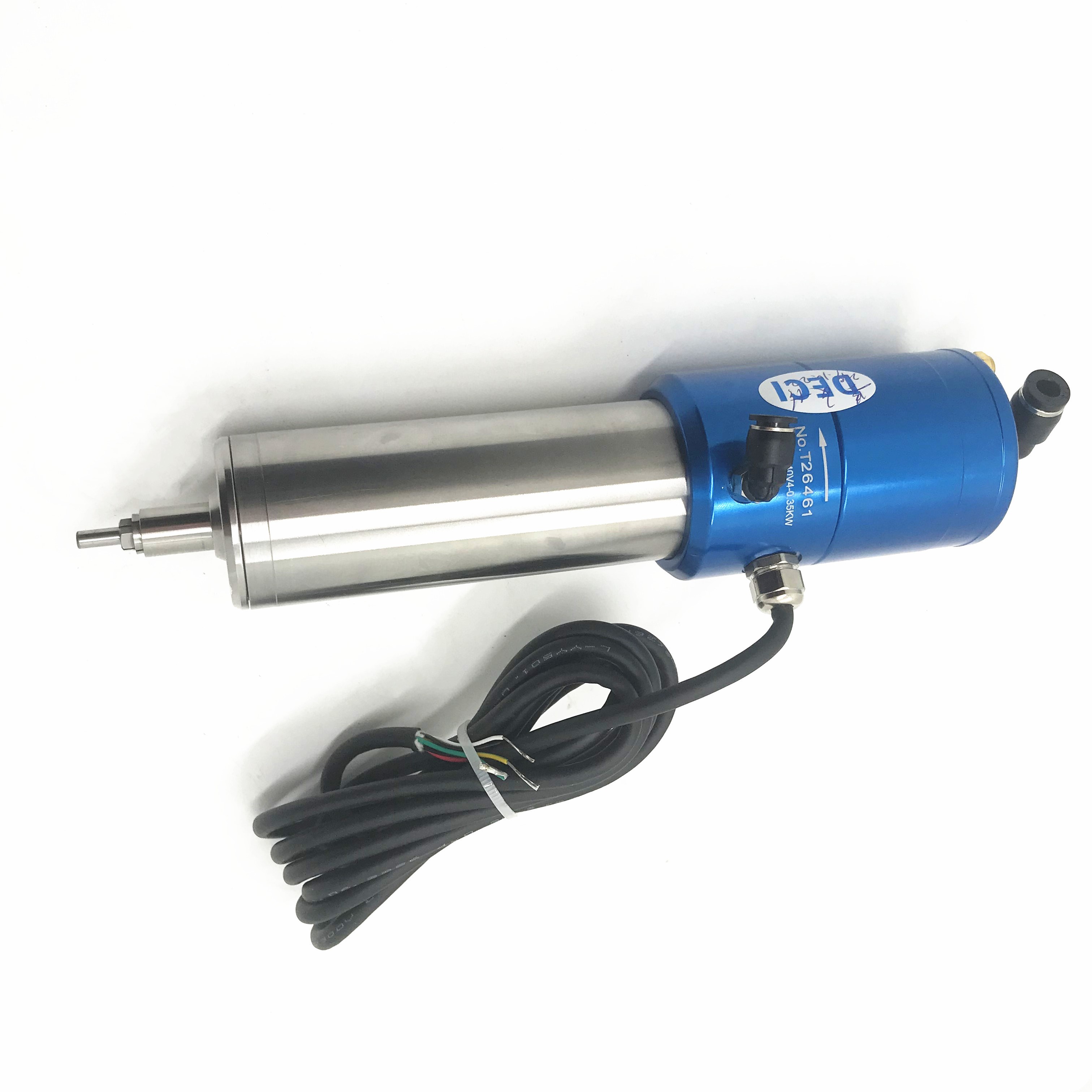

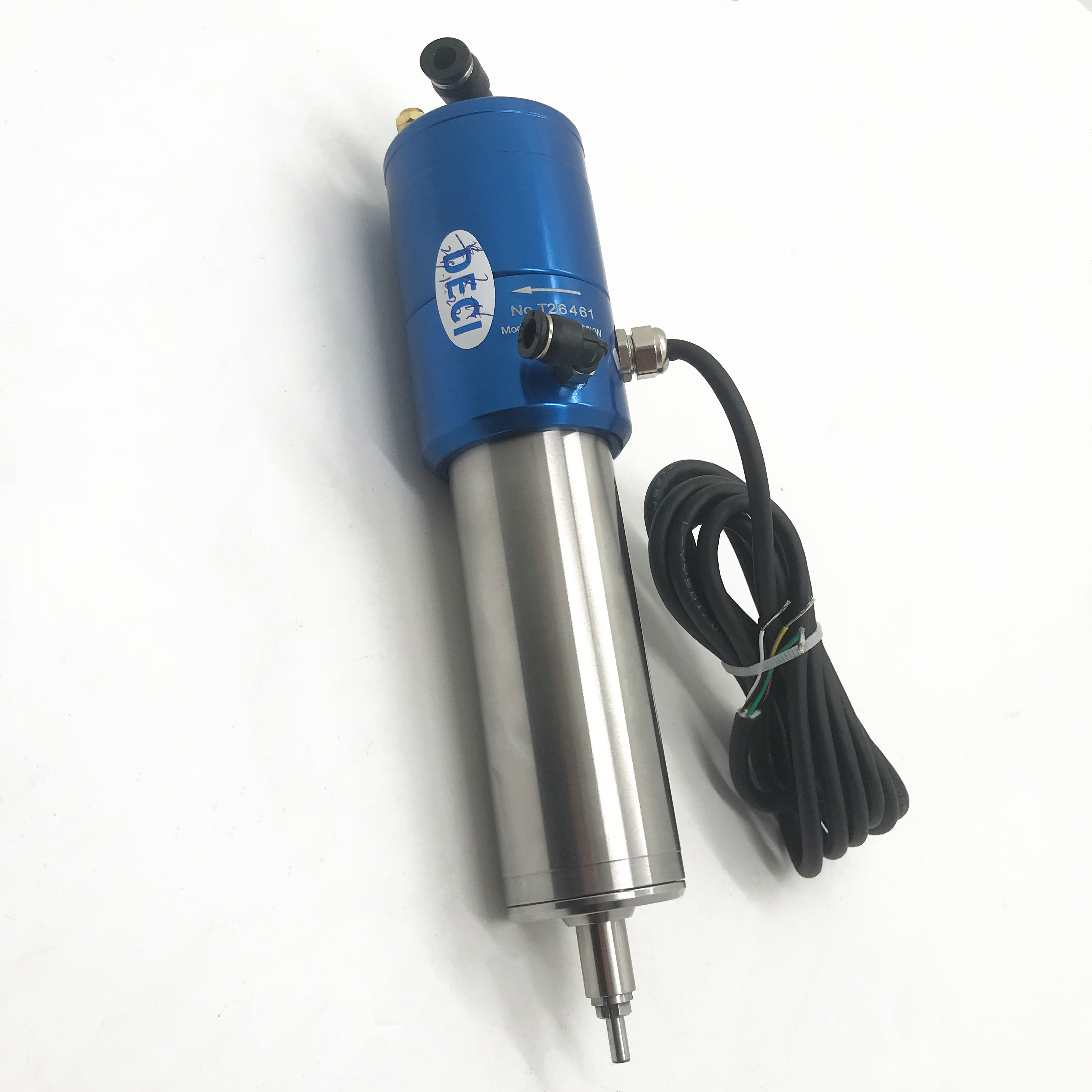

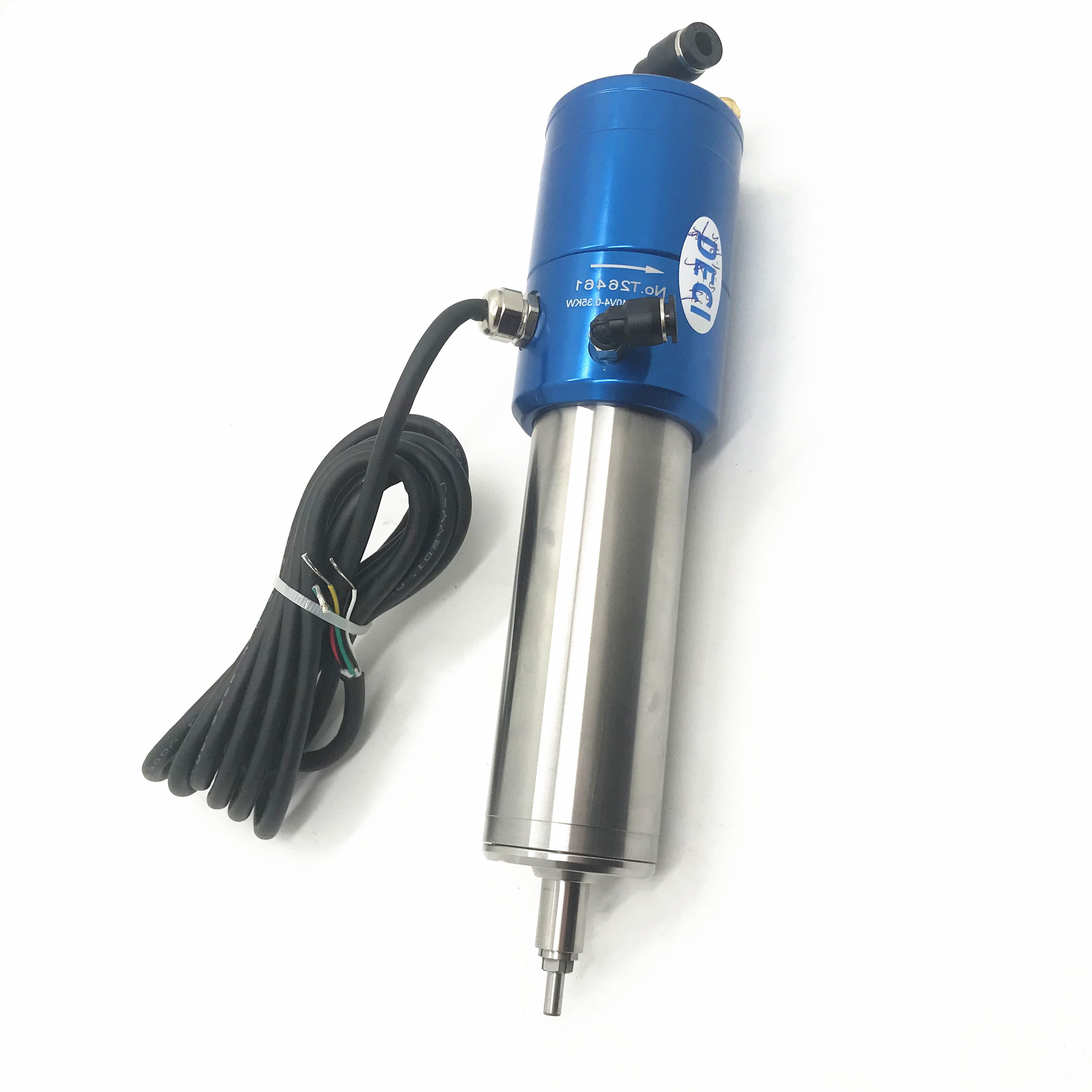

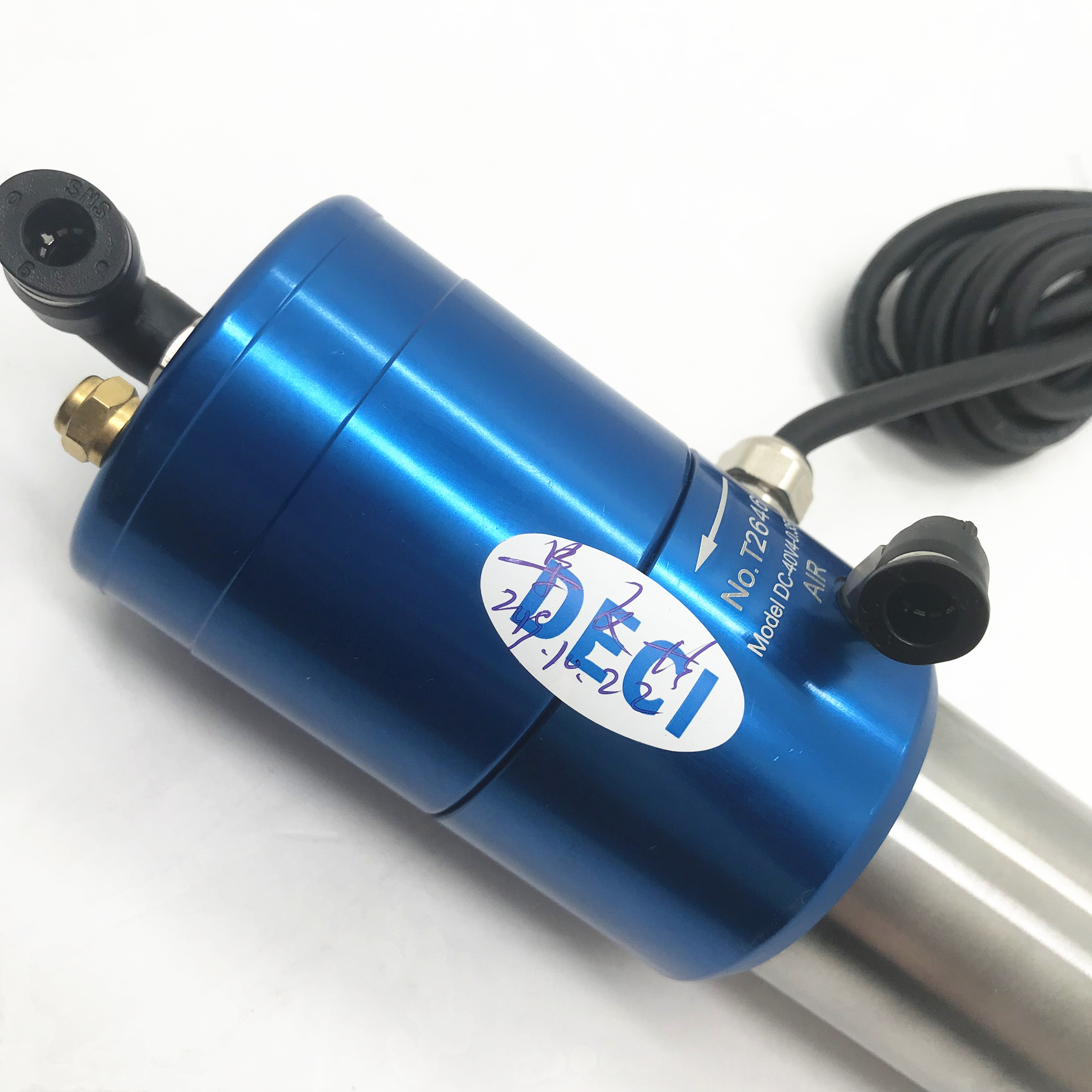

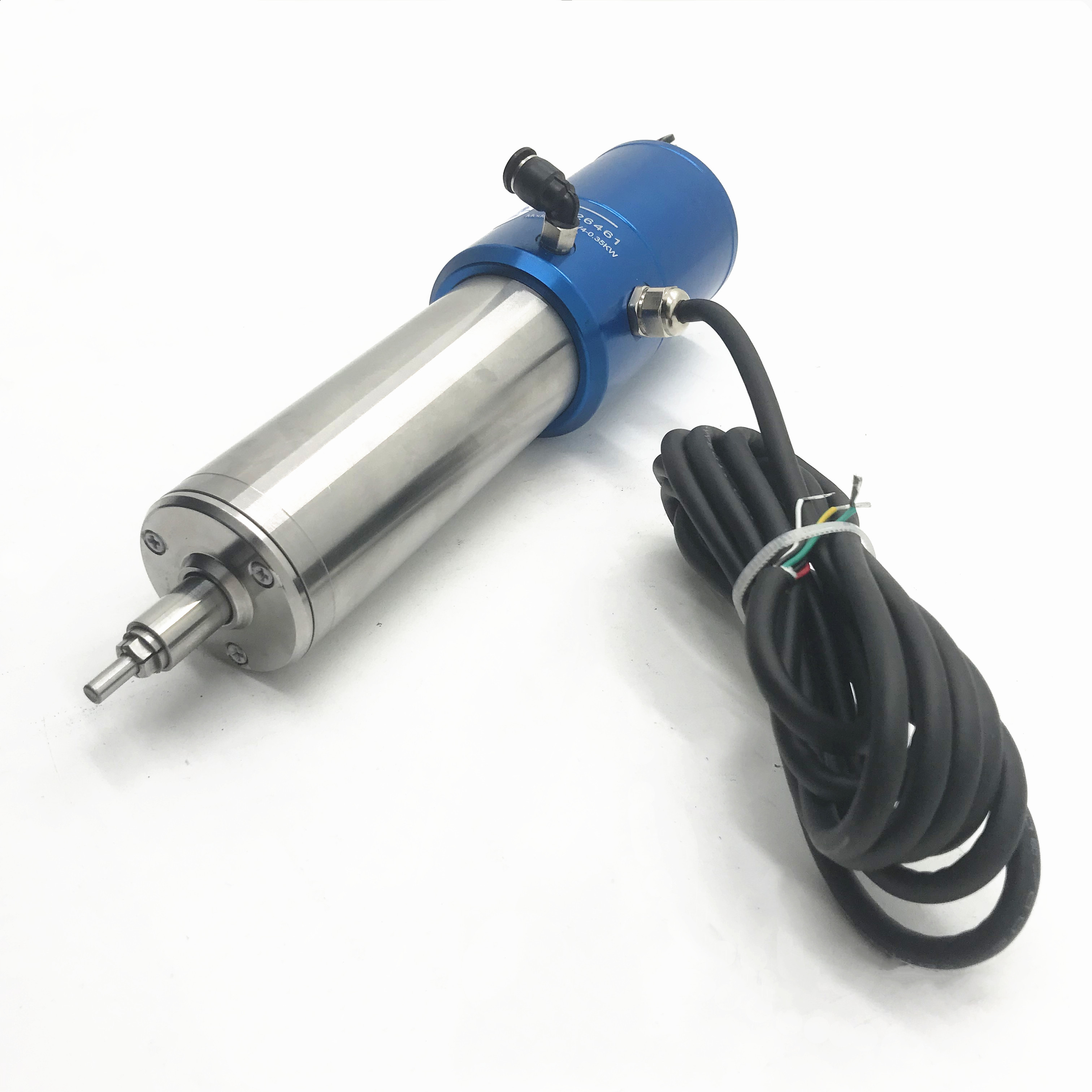

This product is a dental high-speed electric spindle with a maximum speed of 60,000 rpm and a rated power of 0.35kW. It is suitable for the processing of composite materials such as zirconia and ceramic grinding.



DECI Spindle Motor Features

1) Imported bearings with good quality and long service life.

2) Application: Milling, engraving, drilling on various CNC router machines.

3) There are water-cooled spindle, air-cooled spindle and self-cooled spindle for your choice.

4) Each spindle motor must be polished to improve the concentricity of the spindle and increase the service life of the motor.



DECI More Spindle is also available at the best price, feel free to contact us if you need it.

1. Water cooling: 300w, 800w, 1.2kw, 1.5kw, 2.2kw, 3kw, 4kw, 3.2kw, 4.5kw, 5.5kw

2. Air cooling: 800w, 1.5kw, 2.2kw, 3.5kw, 4.5kw, 6kw, 7.5kw, 12kw

3. Self-cooling: 400w

4. ATC spindle: water cooling: 1.5kw, 2.2kw, 5.5kw, 6kw, 7.5kw

Air cooling: 8kw, 9kw (same as HSD)

5. Edge sealing spindle: 350w, 550w, 700w, 750w, 1.1kw, 1.8kw, 2.2kw

Personalized customization: The company has strong research and development strength and flexible design, and can customize high-speed milling electric spindles with different functions, speeds and precisions according to customer needs.

Specification
DC-40V3
parameter

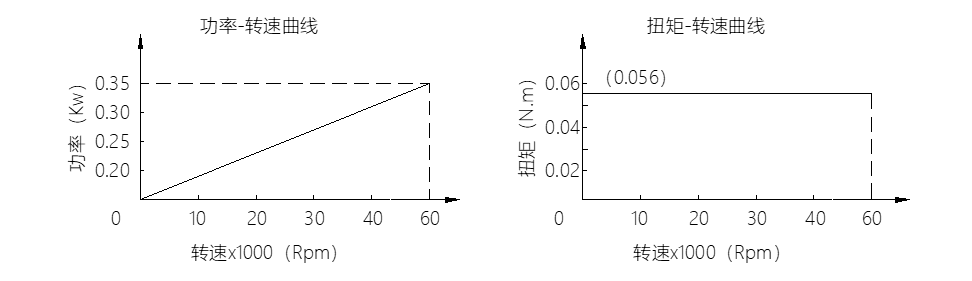

Motor Power kilowatt 0.35 Rated voltage Voltage/AC 100(3~)
maximum speed Rotating speed 60000 Maximum current One 2.5
maximum frequency hertz 1000 torque cow rice 0.056

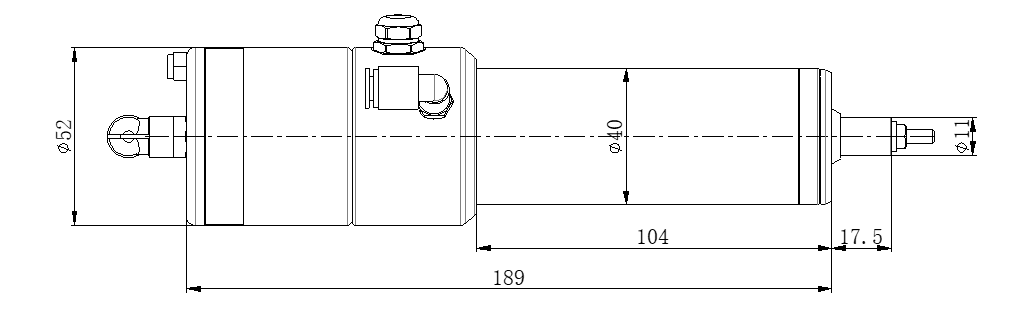

Specification
Cone runout at the end of the shaft mm ≤0.001 Tool releases air pressure Kilogram force/square centimeter 5.0-6.0
Tool replacement method ~ air traffic control Front air pressure Kilogram force/square centimeter ~
Tooling pull n ≥1000 Tool back air pressure Kilogram force/square centimeter ~
Tool connection ~ Φ4 chuck cool down ~ air cooling
Encoder ~ ~ coolant pressure Kilogram force/square centimeter 2.5~3.0
proximity switch ~ ~ Bearing marking method ~ grease
balance level ~ G1 installation method ~ flange
Vibration value mm/s ≤0.8 weight Kilogram 1.35



Applicable industries



Packaging and Shipping
