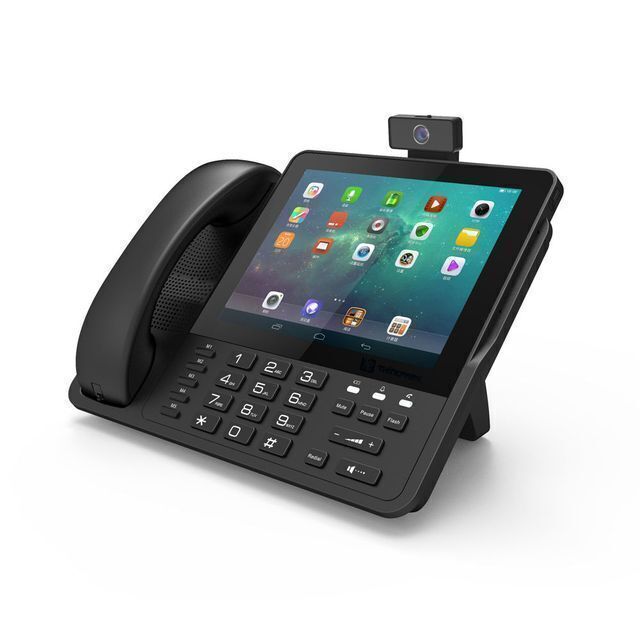

Desktop wireless smart HD video android sip phone
- $100.00 /piece
- 1 piece
- Shenzhen Thinkpark Technology Co., Ltd.
- Guangdong, China
- Mr Tom Xiang
| Display: | 8 inch LCD capacitive touch screen; | SIP / IP-PBX Server: | Built-In; |
| Type: | sip phone; | Temperature: | -10℃~ 50℃; |
| Video call resolution support: | HD 1080P,HD 720P,720x480,352x288; | Network Protocols: | HTTP; |
| Camera: | 2.0 million pixels; | Voice Codec: | G.729; |
| Packaging Detail: | Origial Box Packing.; | Model Number: | TP09; |
| OS: | Android5.1; | Humidity: | 10%~ 90%; |
| Supply Ability: | 1000 Piece/Pieces per Month; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Brand Name: | Thinkpark; | Place of Origin: | Guangdong China; |
| Port: | Shenzhen; | Power: | Input 100-240V,Output 2A/12V; |
Desktop wireless smart HD video android sip phone
TP09 Multimedia telephone, using 4G LTE six-mode communication module, support HD voice calls; With android 5.1 system design, support application extension based on Open Android platform; 8 inch 1024 x 768 IPS HD resolution and multi-touch capacitive screen, support dual band WIFI connection (2.4 G / 5 G); Meantime, support RJ45 port; Support HDMI HD output, can connect TV, projection and other devices; The device is equipped with BT and wired earphones, which are suitable for different office occasions.
|
|
TP09-M |
TP09-S |
TP09-A |
TP09-R |
|
Function description |
4G Multimedia smart phone, support 4G voice and data |
4G+VOIP |
4G+PSTN |
Only support VOIP |
|
OS |
Android5.1 |
Android5.1 |
Android5.1 |
Android7.1 |
|
LCD display |
8”1024*768 IPS Capacitive touch screen |
8”1024*768 IPS Capacitive touch screen |
8”1024*768 IPS Capacitive touch screen |
8”1024*768 IPS Capacitive touch screen |
|
Camera |
X |
2.0 million pixels Can be covered and installed or plugged |
X |
2.0 million pixels Can be covered and installed or plugged |
|
Video call |
X |
HD 1080P |
X |
HD 1080P |
|
Built-in WIFI |
802.11 b/g/n 2.4G/5G dual band |
802.11 b/g/n 2.4G/5G dual band |
802.11 b/g/n 2.4G/5G dual band |
802.11 b/g/n 2.4G/5G dual band |
|
Built-in BT |
BLE 4.0 |
BLE 4.0 |
BLE 4.0 |
BLE 4.0 |
|
USB 2.0 |
*1 |
*1 |
*1 |
*1 |
|
RJ45 port |
10/100M *1 |
10/100M *1 |
10/100M *1 |
10/100M *2 |
|
POE |
X |
X |
X |
802.3 af |
|
SIP account |
X |
4 |
X |
4 |
|
Handset |
√ |
√ |
√ |
√ |
|
Power |
12V input |
12V input |
12V input |
12V input |
|
Type of SIM |
Nano SIM |
Nano SIM |
Nano SIM |
X |
|
Record |
√ |
√ |
√ |
√ |
Introduction to characteristics and functions
- Based on the android native system design, support the seamless adaptation of third-party information software, greatly improve the desktop phone information means.
- Leading hardware echo cancellation and noise reduction processing, support HD audio calls.
- Support maximum 1080 p HD video communication, with leading dynamic video adjustment scheme; Real-time adjustment of HD phone state according to the network situation, especially in WIFI connection, there is unique wireless network HD video call processing mechanism.
- 5 G WIFI network support, relative to interfere with the complex of 2.4 G network, can support 2.4 G and 5 G dual-band WIFI network support, provide a better experience of wireless access.
- 4G network(FDD/TDD LTE)
Technical parameter
- 8 inch LCD capacitive touch screen, 1024×768 IPS HD solution
- Camera: 2.0 million pixels
- Built-in 2.4G/5G dual band WIFI, and built-in 4.0 BT
- Ethernet interface, USB2.0 port
- Android 5.1 system(can update to 7.1)
- 4 SIP circuits
- Support 4G network
- Support PSTN
- Voice coding support: PCMU,PCMA,G729,G723,GSM,SILK,G7221, ISAC, speex, ILBC,AMR, opus...
- Video coding support:H.264, H.263,VP8
- Video call resolution support: HD 1080P,HD 720P,720x480,352x288
- Echo cancellation: the leading dual-channel hardware echo cancellation and noise reduction design
- Support hands-free full-duplex communications
- Support SIP domain
- DTMF support: SIP info, INBAND, RTP
