Different capacity hot dip galvanized feed silos in chicken farm

PRODUCT DETAIL
Dimensions (L*W*H):1800mm, 2750mm, 3200mmplace of origin; place of origin:Shandong China
Supply capacity:50 units per dayMaterial:Galvanized Steel 275g
Main selling point:Keep feed fresh and nutritiousproduct name:Feed silo/storage silo/storage silo
Mechanical test report:ifPackaging Preview:
Service life:15-20 yearspayment terms:Western Union, wire transfer

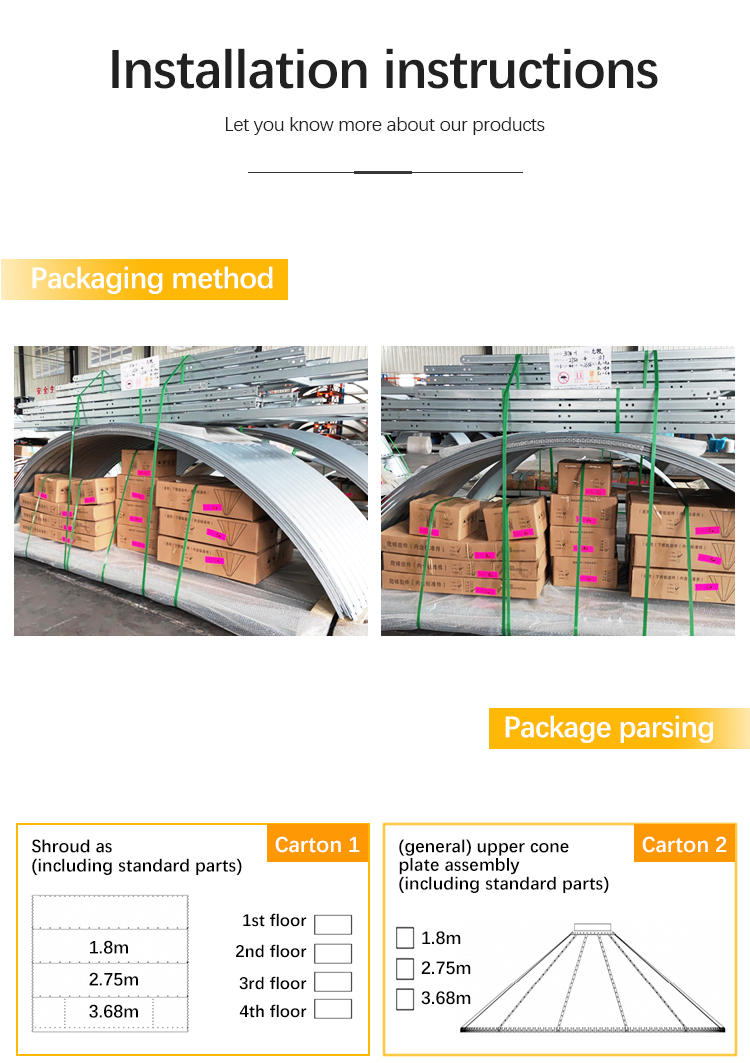

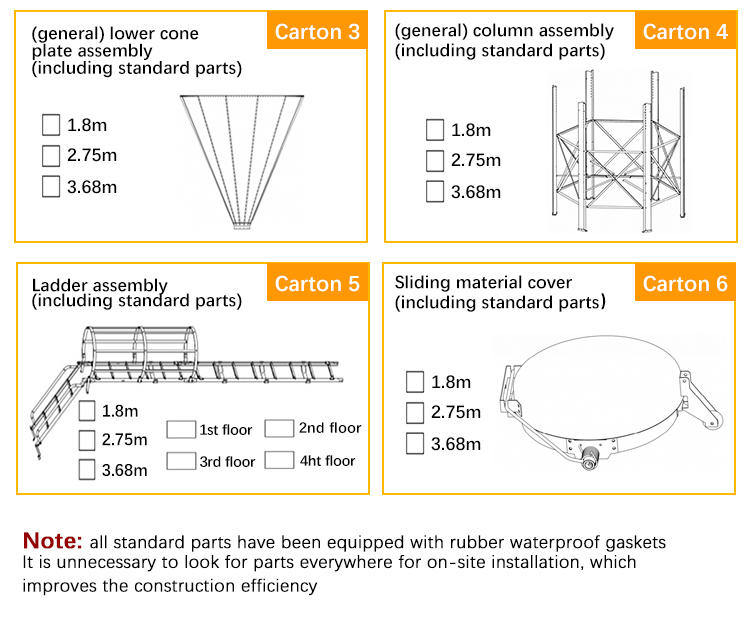

weight:940kgPackaging Details:All components of the feed silo are well packaged to save space and ensure easy installation by customers
Health status:newAfter-sales service provided:Free spare parts, video technical support, online support
leg:4-6Warranty:1 year
Capacity (cubic meters):4.6-52.2Applicable industries:feedlot
Galvanized Thickness:275 g/m²Marketing Type:New Products 2022
port:Qingdao PortCore Components Warranty:1 year
Video external inspection:ifShowroom location:China
Layers:1-4Core components:Galvanized sheet
brand:Agrisso

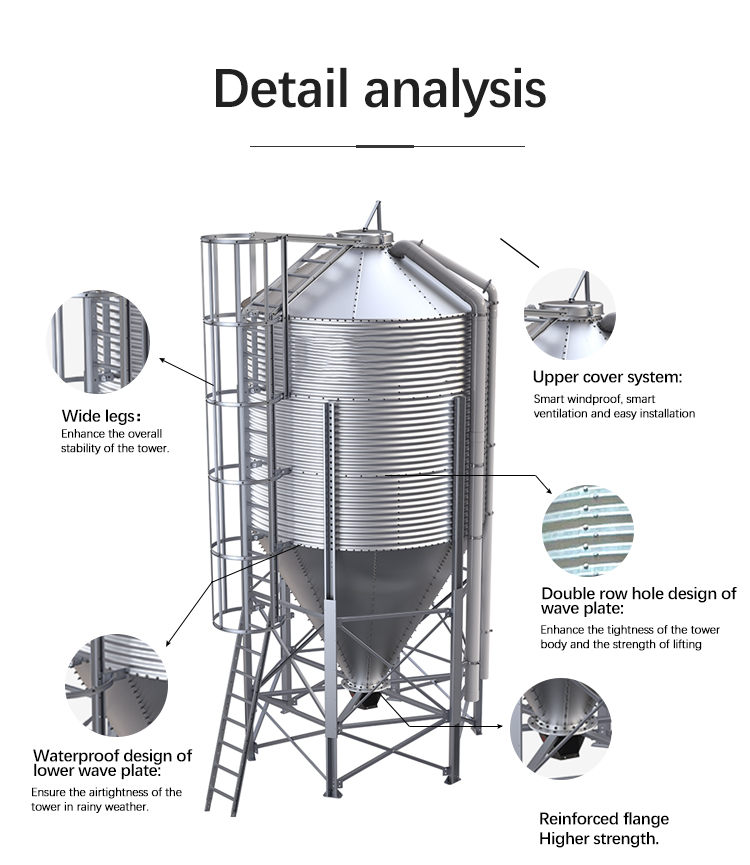

Detailed analysis

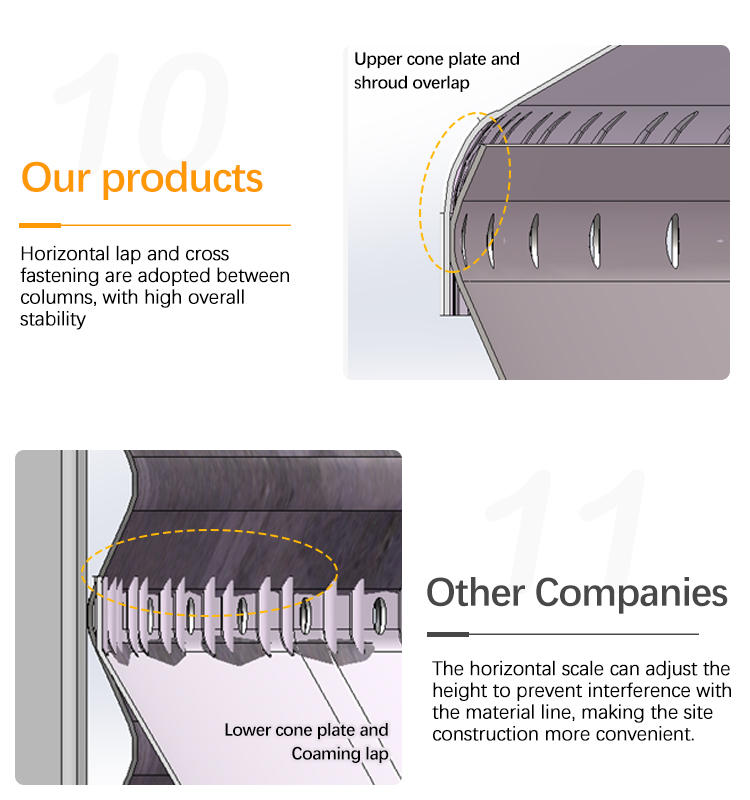

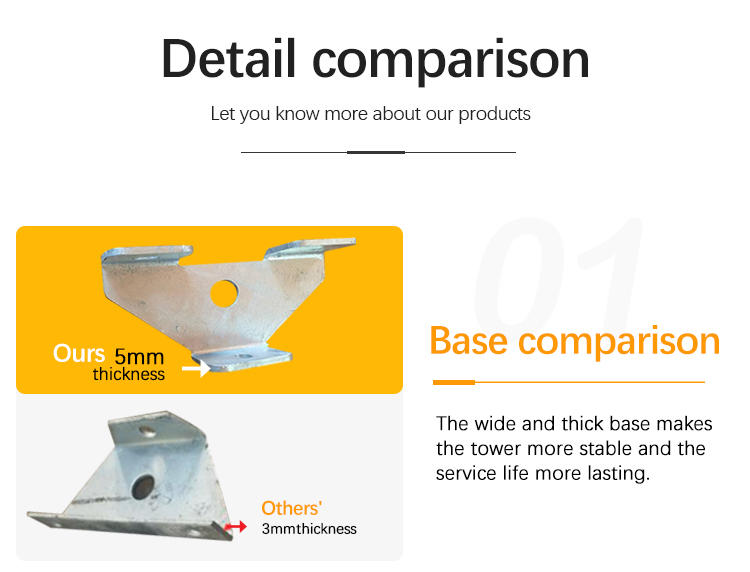

Detailed comparison

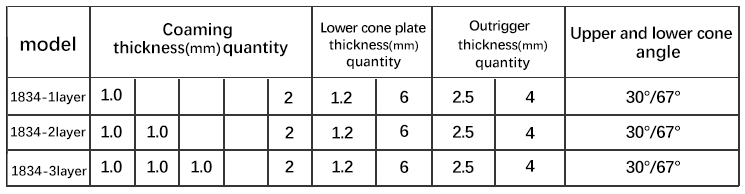

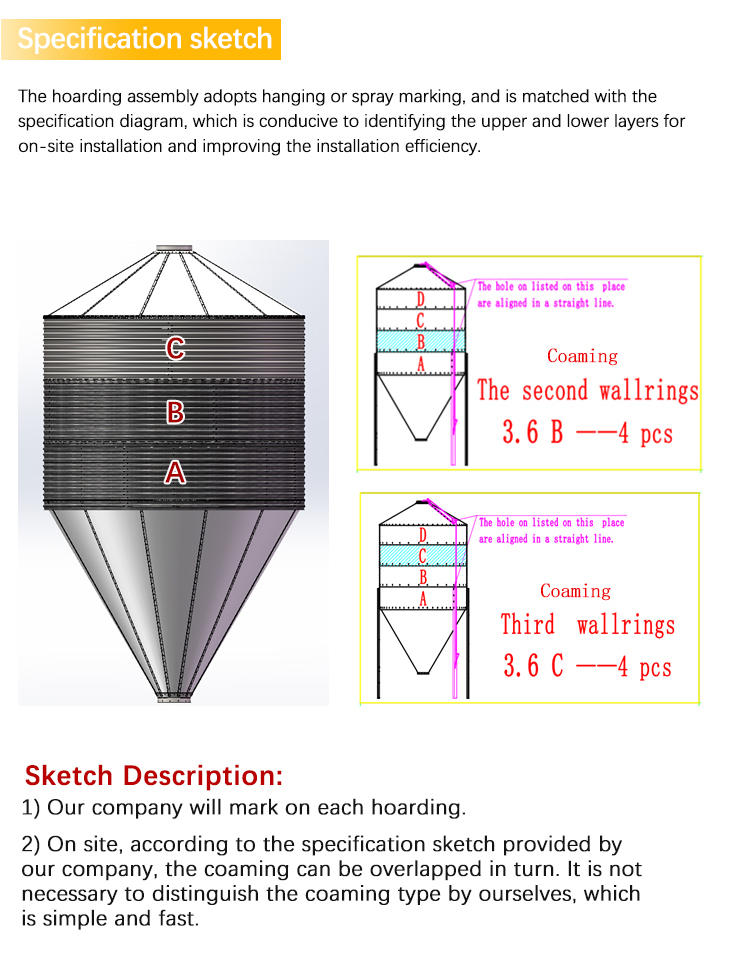

Specification
Model
Theoretical capacity (tons)
Volume (m³)
Weight (kg)
Height (m)
Upper cone plate thickness (mm) Quantity
1834-1 floor
3.0
4.6
330.0
4.1
1.0
6.0
1834-2 floor
4.5
6.9
400.0
5.0
1.0
6.0
1834-3 floors
6.0
9.2
460.0
5.9
1.0
6.0
Model
Theoretical capacity (tons)
Volume (m³)
Weight (kg)
Height (m)
Upper cone plate thickness (mm) Quantity

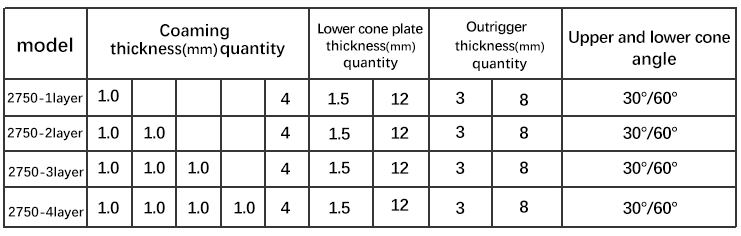

2750-1 floor
7.5
11.6
595.0
4.5
1.0
9.0
2750-2 floors
11.0
16.8
690.0
5.6
1.0
9.0
2750-3 floors
14.3
22.0
770.0
6.5
1.0
9.0
2750-4 floors
17.7
27.2
880.0
7.4
1.0
9.0
Model
Theoretical capacity (tons)
Volume (m³)
Weight (kg)
Height (m)
Upper cone plate thickness (mm) Quantity
3668-1 floor
15.8
24.3
940.0
5.7
1.0
12.0
3668-2 floors
21.8
33.6
1070.0
6.6
1.0
12.0
3668-3 floors
27.9
42.9
1180.0
7.5
1.0
12.0
3668-4 floors
33.9
52.2
1295.0
8.4
1.0
12.0
Product parameters
