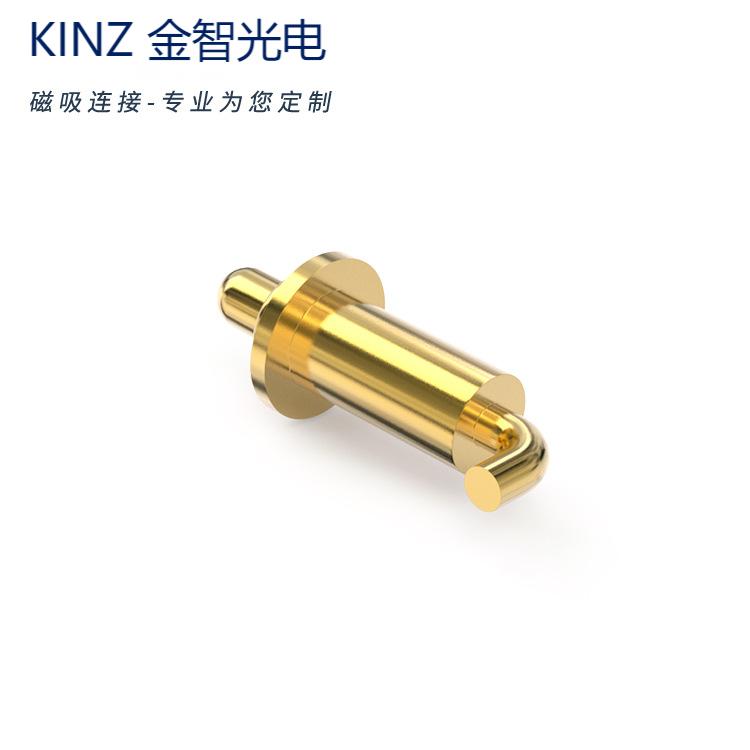

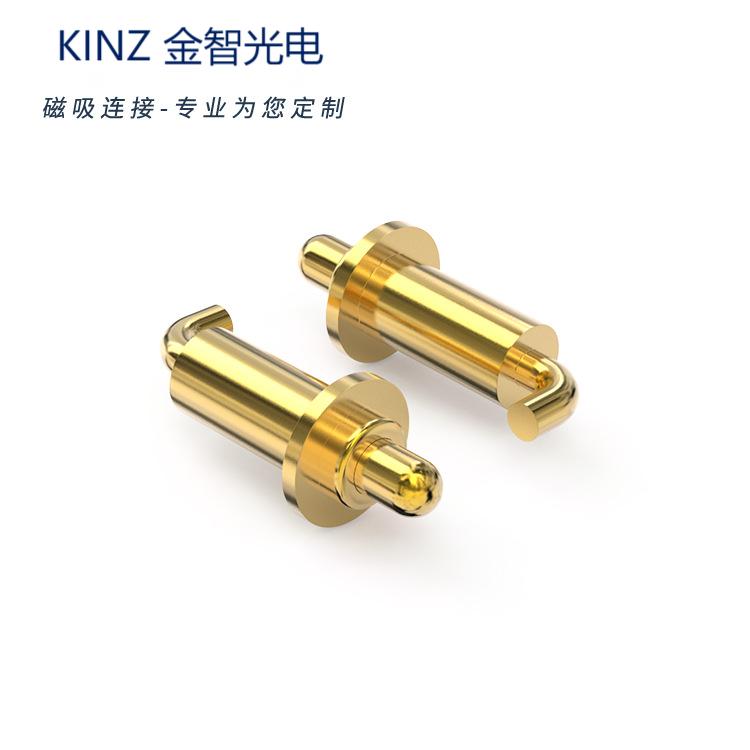

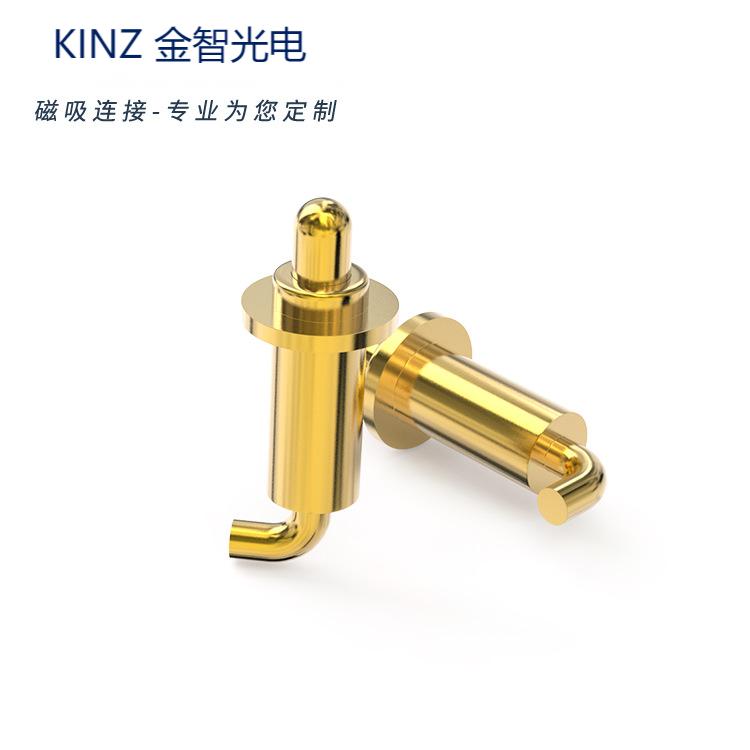

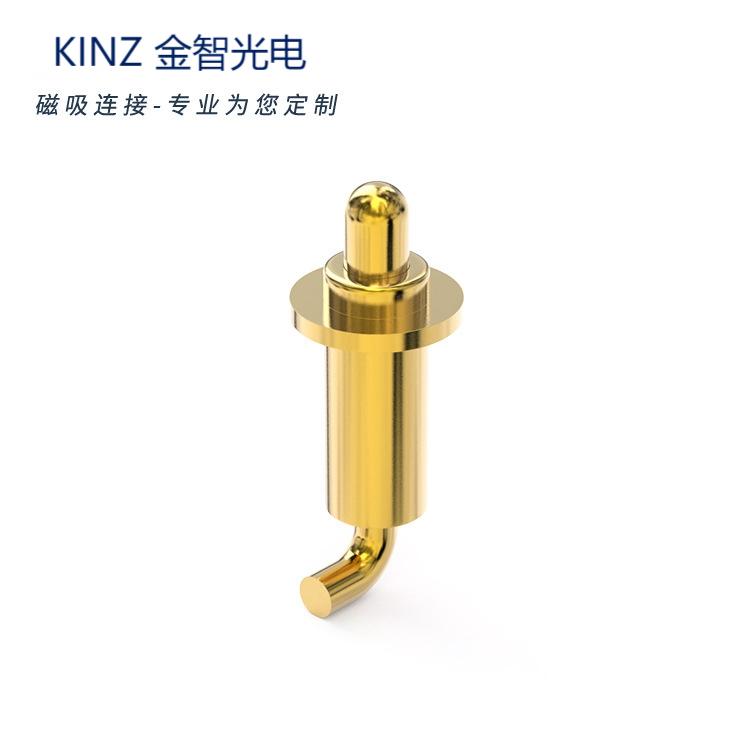

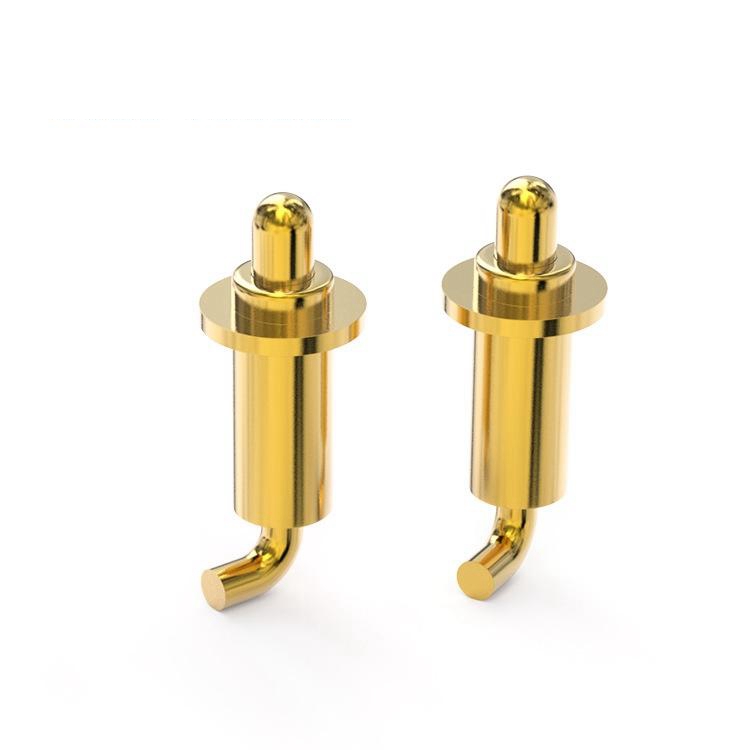

Direct supply pogopin connector pogo pin intelligent telescopic bending charging pin 90 bend Pogopines
- $0.15 / >=1000 pieces
- 1000 pieces
- Shenzhen Jinzhi Photoelectric Technology Co., Ltd.
- Guangdong, China
- Mr
| MOQ: | 100 metres | Fiber name: | Charging pin conductive pogo pin |
| model: | KINZ-pogo pin-05 | application: | Charging pin conductive pogo pin |
| payment terms: | D/A, T/T, credit card | Origin: | Guangdong, China |
| Package: | carton | Operating temperature: | -55~120 degrees |
| Certification: | Compliant with RoHS Directive, ISO9001 | length: | custom made |
| type: | other | name type: | dip |
| port: | Shenzhen | Key words: | Charging pin conductive pogo pin |
| Package preview: | brand: | China, Jinz | |
| Packaging Details: | Rolled carton, or according to customer demand. |
What is a pogopin?
Description: Pogopin is a small elastic pin with spring, referred to as pogo pin. The main functions of pogopin are: charging, mechanical fixation, radio frequency, video, antenna, data transmission, etc.
"Pogo pin is a precision connector used in mobile phones and other electronic products. It is widely used in semiconductor devices for connection. Its appearance varies according to different applications, but overall, pogo pin has a precise spring structure inside. The surface of the product is generally gold-plated, and the spring is also gold-plated when the process requires it. The thimble is energized or conductive, and most of them contact the copper wall through an oblique downward direction, and the spring has a small bearing capacity. Therefore, the inner wall of the copper sleeve is required to be smooth, so that the electrical characteristics will be active. Find the resistance The smallest path to conduct current
application:A pogopin (pogo pin) is a precision electronic hardware that is often used as a connection for electrical current and signal transmission. There are many products that use pogopin in daily work and life, such as smart watch bracelet (charging port), magnetic charging cable (charging port), TWS earphones (headphone female end and charging compartment pogopin male end), and what is called pogopin in printers Refers to the male end, that is, the end with a spring, and the corresponding female end is called the rotating part, also known as the electrode.
Classification:The traditional pogopin pogo pin consists of three parts: needle shaft, spring and needle tube. There are many products extended from pogopin: pogopin connector (pogopin+plastic base), magnetic connector (pogopin connector+magnet), magnetic charging cable (magnetic connector+cable parts) are widely used.
Our advantage service
New products can be customized according to customer requirements
Why choose us?
