Disabled Portable Wheelchair Ramp

PRODUCT DETAIL
Package:bags and cartonsport:Shanghai
4-section folding with safety lock:yesCertification:chief executive
place of origin; place of origin:Jiangsu, Chinamodel:ASTR17
Packaging Details:One piece per carton, bag optionalbrand:Aishun Medical
If custom width and length:yesMaterial:6061-T5 aluminum
product name:Portable Wheelchair Ramp Triple Folding Handicapped Loading RampPackage preview:
application:vehicle rampcapacity:270 kg (600 lb)
Model:ASTR17Supply capacity:10000 pieces per month
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramsize:73*63 cm
Carrying capacity:270 kg (6000 lbs)Warranty:3 years
Product Description

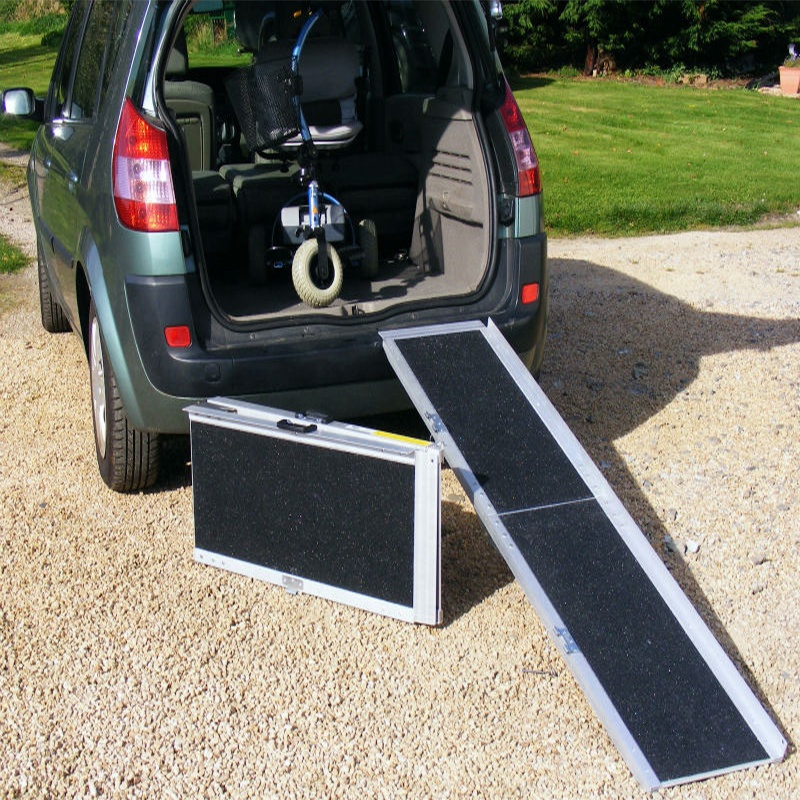

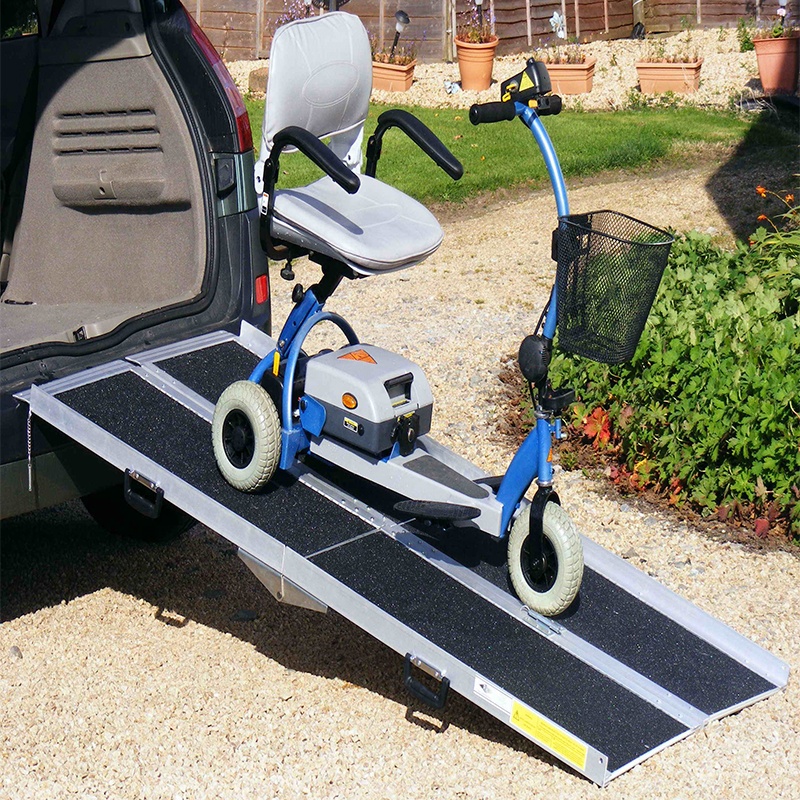

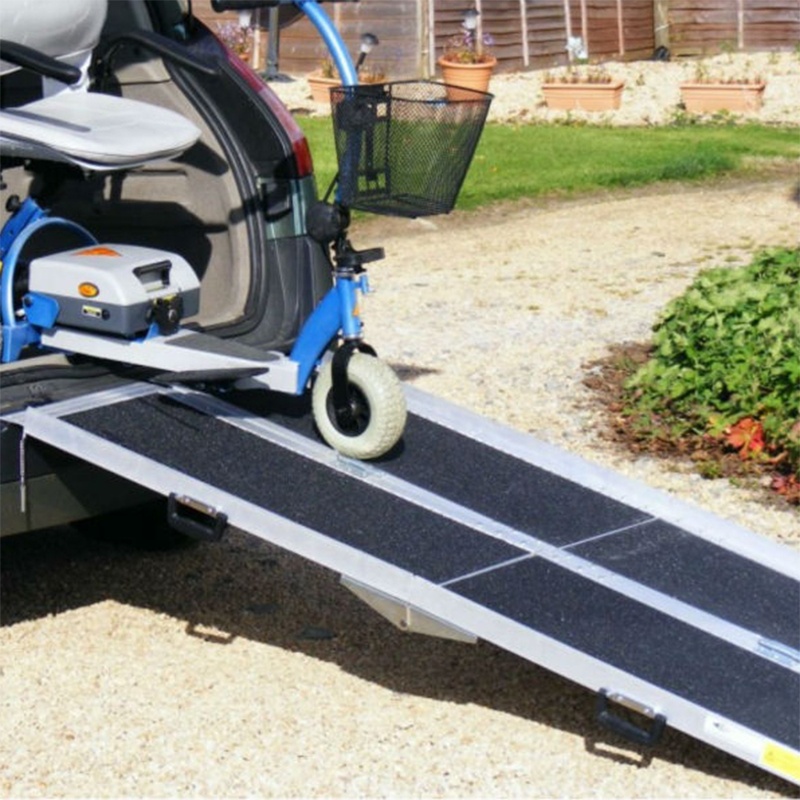

Portable Wheelchair Ramp Triple Folding Loading Ramp with Non-slip Strap for Handicapped



Portable Wheelchair Ramp Tri-Folding Loading Ramp with Non-Slip Tape for Handicapped Main Features:

l Material: aluminum alloy 6061-T5

l Load capacity: 270 kg per pair (600 lbs/pair)

l Very suitable for loading ATV or motorcycle etc.

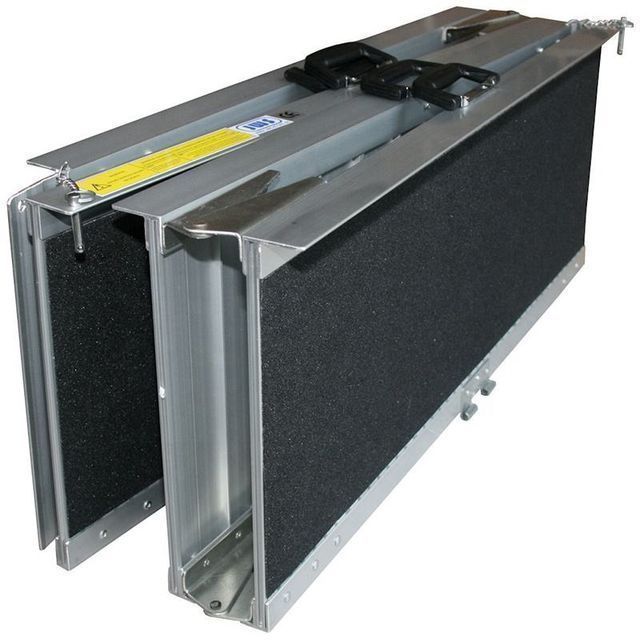

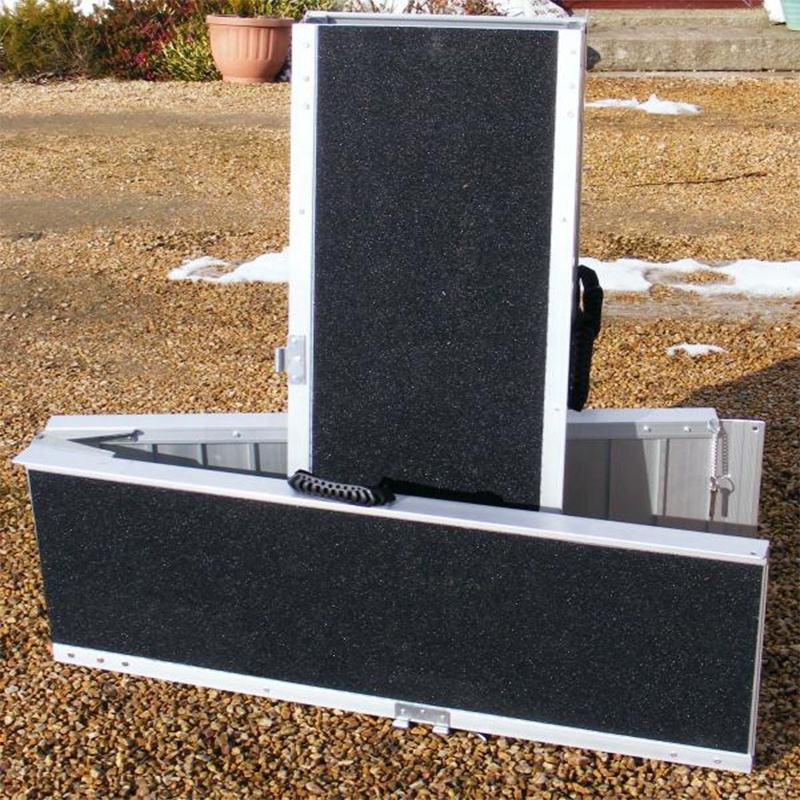

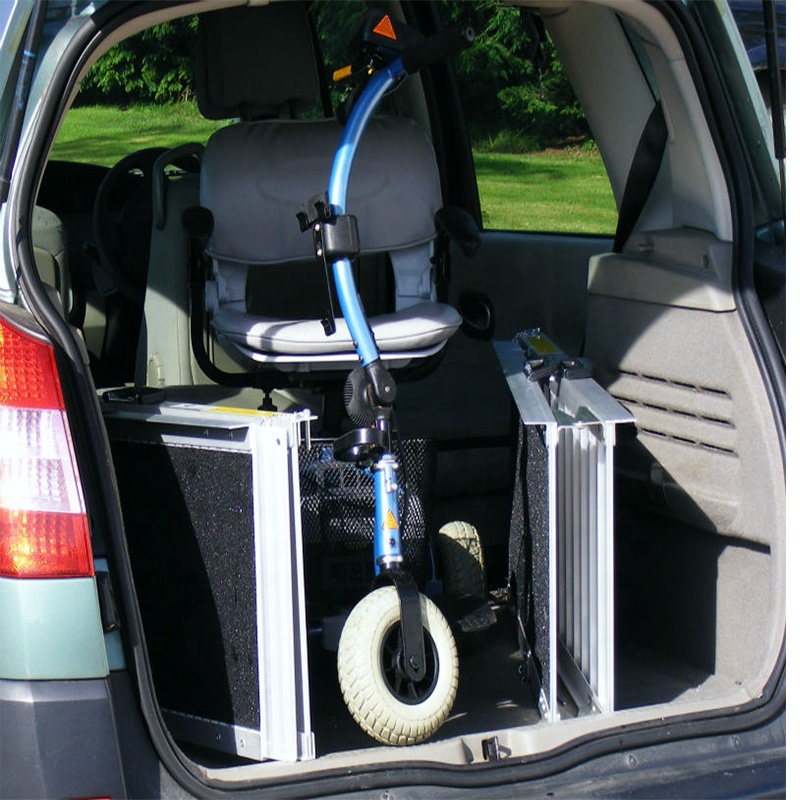

l 4-section folding with safety lock. Left and right can be separated. Very lightweight, easy to carry and store.

l Side rails with rounded edgesProvides user-specific security

l Non-slip tape surface keeps wheelchairs and scooters walking smoothly on ramps.

l Non-slip all-weather surface with 40mm safety side walls

l Easy-to-use portable ramp with carrying handle. Divided into 2 parts, both parts are folded and connected by a stainless steel removable pin.

l Anti-rust aluminum body, stainless steel parts, non-slip surface

l Anodized and polished aluminum surface.

l The safety step is milled on the surface of the ramp to ensure safe use in all weather conditions

l Width and length can be customized

l Certificate: CE;



product name

Portable Wheelchair Ramp Triple Folding Loading Ramp with Non-slip Strap for Handicapped

model.

ASTR17

Material:

6061 aluminum

Maximum capacity:

270 kg (600 lb)

model. expand fold Weight (kg) Number of CTNRs
length (cm) Width (cm) length (cm) Width (cm) northwest gross weight 20GP
ASTR17-4 feet 122 (4 feet) 73 63 36 10.2 12 400
ASTR17-5 feet 152 (5 feet) 73 77 36 13.6 16 325
ASTR17-6 feet 183 (6 feet) 73 91.5 36 16 18 282
ASTR17-7 feet 213 (7 feet) 73 107 36 19.5 twenty two 220
ASTR17-8 feet 243 (8 feet) 73 122 36 22.5 twenty four 18
