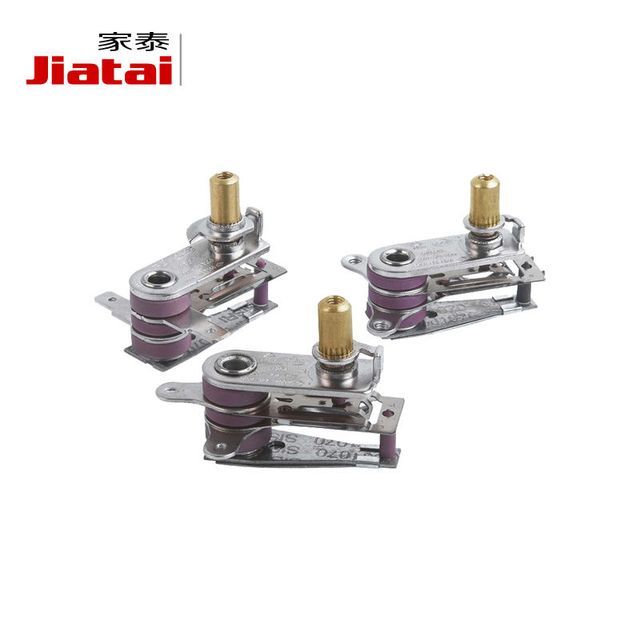

Domestic bimetal manual iron thermostat KST254-B

PRODUCT DETAIL
Packaging Details:export cartonDelivery Details:According to the customer's order quantity
Temperature control accuracy:+- 10 degreesCenter distance:15/18/20
ON~OFF difference:10~30 degrees depends on installation and designMaximum ambient temperature:T250
Terminal type and connection range:C1-C8 optionalTemperature control range:60~250 degrees
Supply capacity:50000 pieces per daytype:Iron accessories
agree with:UL&CUL/TUV/CQC/RoHsport:Ningbo/Shanghai
model:KST254-BAdjustment axis type:D1-D9 optional, or depending on installation and design
Adjust axis length:Can be designed according to needspayment terms:T/T, Western Union, MoneyGram
brand:JiataiTurning range:120~300 degrees optional
Origin:Zhejiang, China

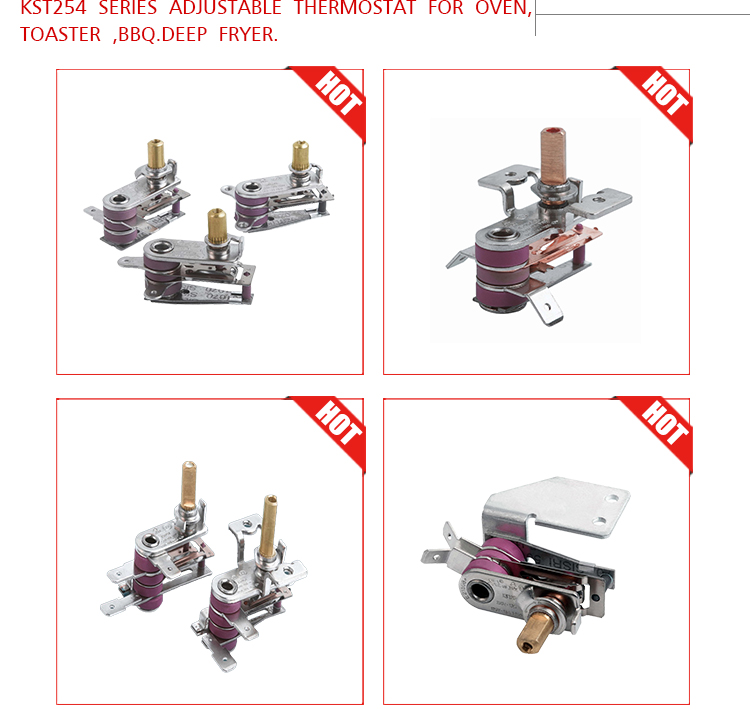

Domestic bimetal manual iron thermostat KST254-B



Electric steam iron thermostat China adjustable thermostat KST254-B for steam iron, electric iron

Rotisserie thermostats, bimetal thermostats, temperature controllers, adjustable thermostats:

KST254-B series specifications:

Standard Rating:

UL&CUL

125V AC 15A

TUV Rheinland

250V AC 10A/125V AC 12A

CQC

250V AC 10A

Service life:

UL&CUL

30000 cycles

TUV Rheinland

100000 cycles

CQC

30000 cycles

ambient temperature

T250ohC

temperatureControl range

60~250ohC

Temperature control accuracy

+-10ohC

ON~OFF difference

10~30ohC, depends on installation and design

Terminal type and connection range

C1~C8 optional

Adjust axis type

D1~D9 are optional and can be designed according to requirements

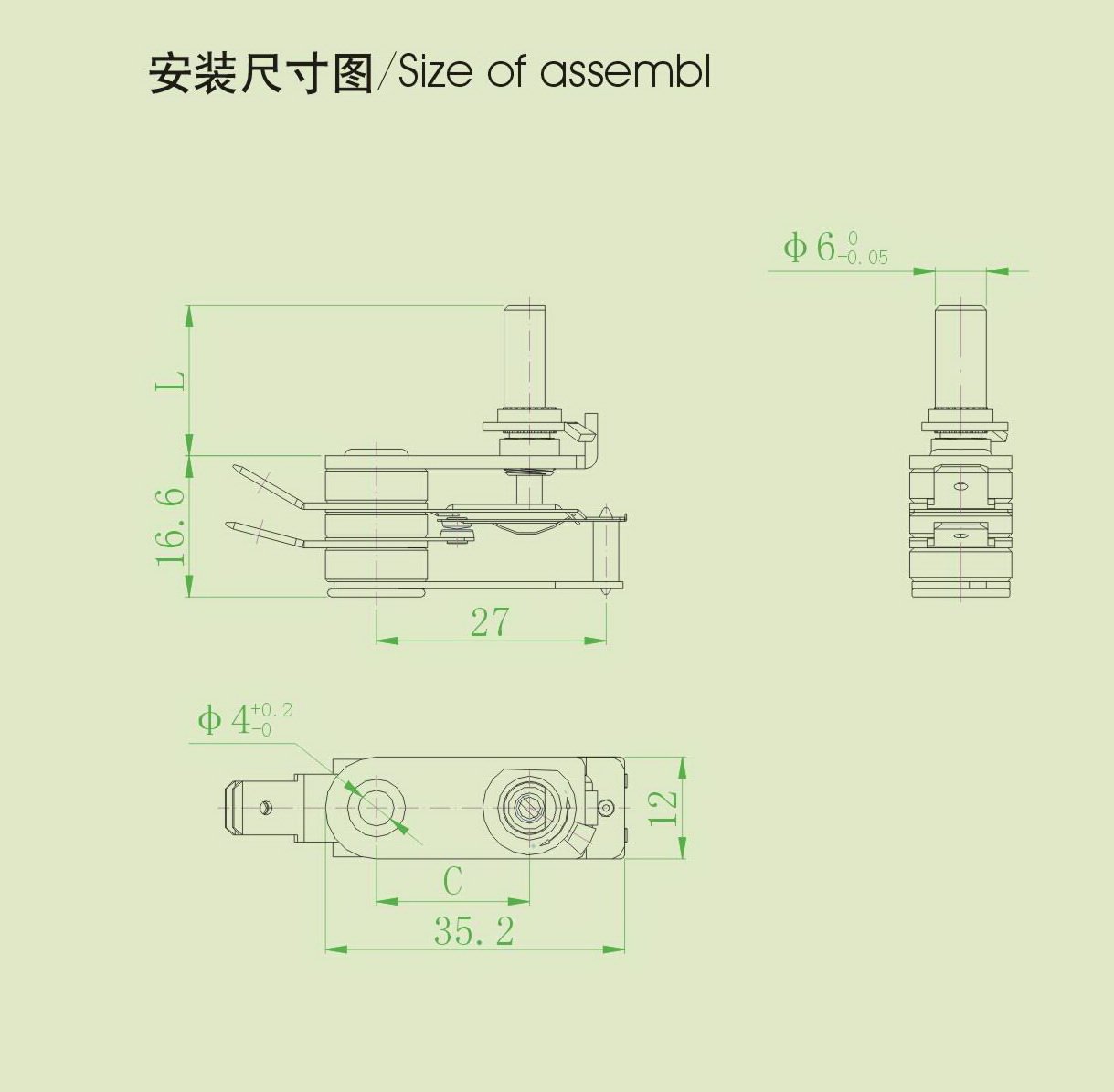

Center distance C

15/18/20 mm

Adjust shaft length

Can be designed according to needs

withstand voltage

2000V AC for 1 minute

agree with

UL&CUL CQC RoHS

application

1) Widely used in temperature control of dry and steam electric irons, etc.

2) The bimetal sheet is close to the heating part, with sensitive touch, stable control and small difference

3) Sturdy structure, rich variety, flexible fixed position

4) The contact action is fast and the electromagnetic interference is small
