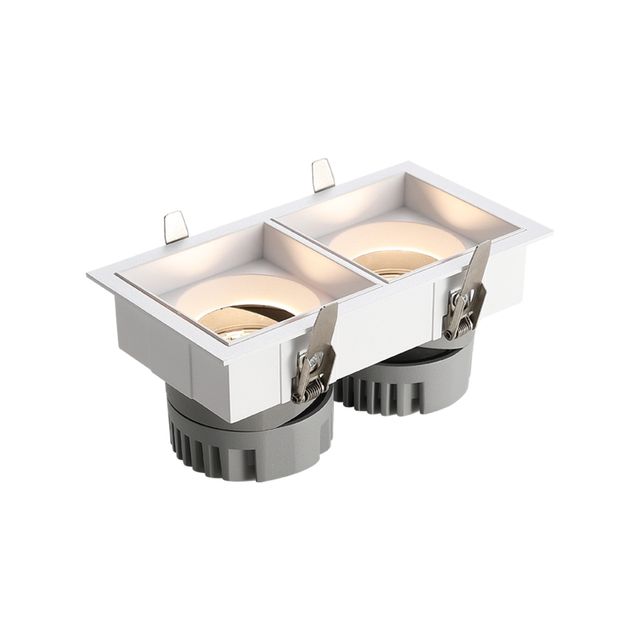

Double Head Square LED Downlight 2*10W Dimmable LED Center Spotlight

PRODUCT DETAIL
Working hours (hours):30000Installation method:embedded
Warranty Period (Years):3 yearsColor rendering index (Ra):90
Key words:Square LED Recessed DownlightPackaging Details:Standard brown box and brown carton. Color box can be customized.

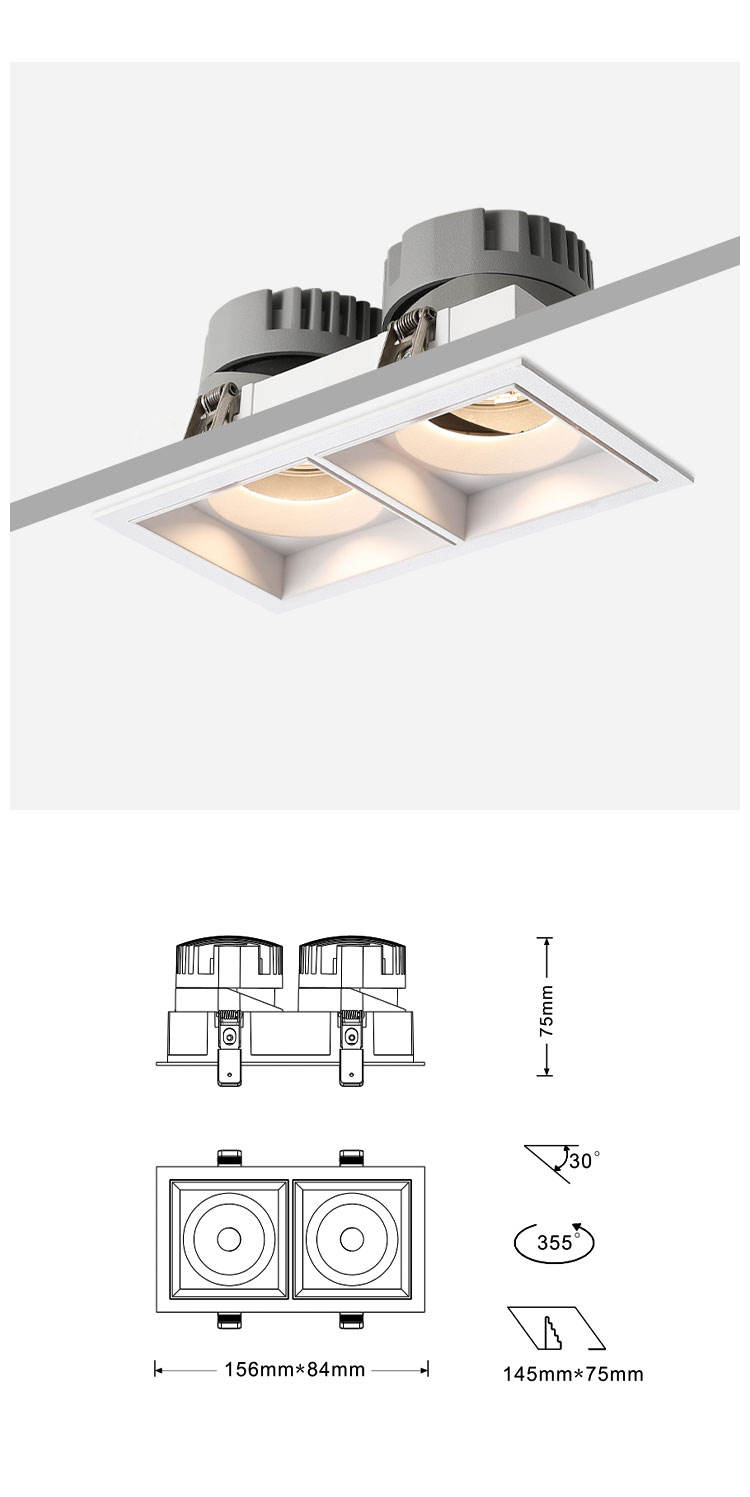

Color Temperature (CCT):3000K/3500K/4000K, 3000Ksize:Diameter 156*84mm
Lamp luminous efficiency (lm/w):75type:downlight
strength:2*10Wbase type:T4
payment terms:Western Union, wire transferLighting Solutions Services:Lighting and circuit design, DIALux evo layout, LitePro DLX layout, auto CAD layout
Beam angle:15D/24D/36D/feature:fashion appearance
model:DL221-AProduct weight (kg):1
Lifetime (hours):50000Lamp body material:aluminum
Intellectual property level:IP20Name:LED recessed downlight
Input voltage (V):AC 220V(±10%)Dimmers supported:Yes
Featured Products

DB001


DB003


DB003N


DB003SN

DK003-6

DK003-8
product information

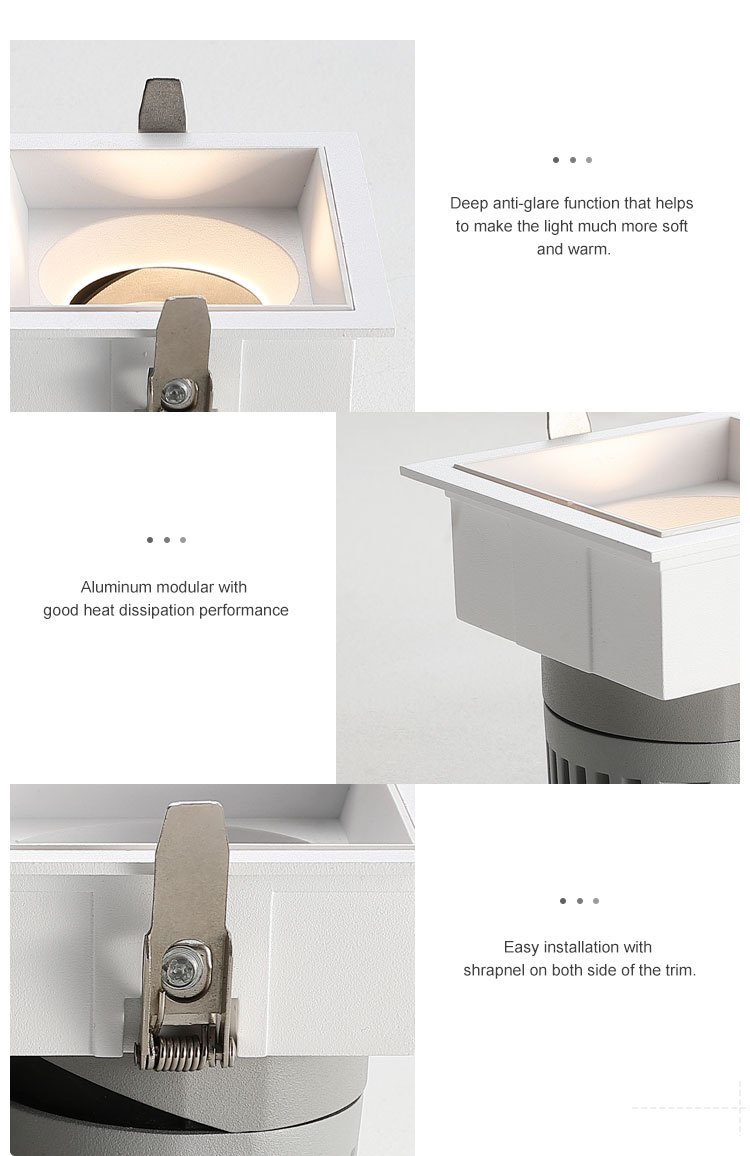

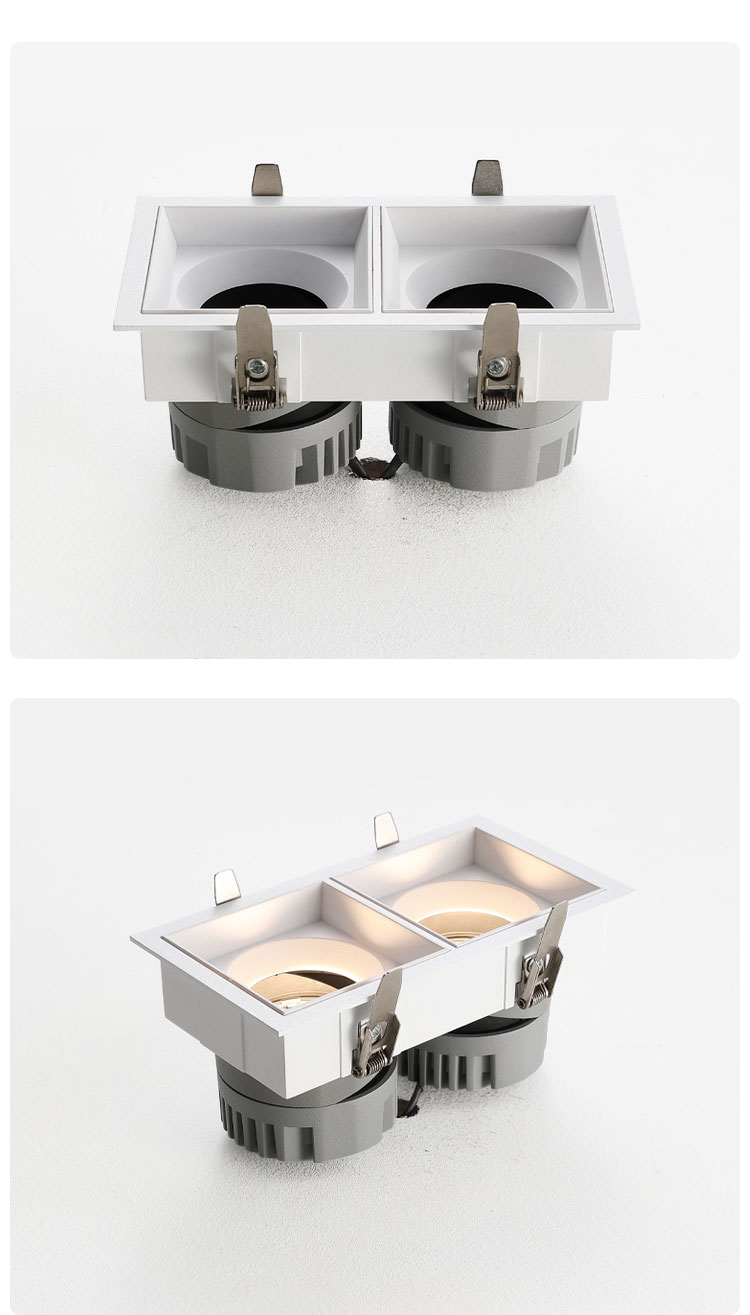

detailed picture
Product parameters
Model
DL221-A
light source
Bridgelux
System power
2*10W (250mA 36V)
Lumen flux
1500lm (36D, 3000K, Ra.90)
color temperature
2700K, 3000K, 4000K
color rendering index
Ra≥90
Chroma ratio
<3 McAdam
Beam angle
24D, 36D, 60D, lens type
service life
50,000 hours, L70
Ingress protection
IP20
Operating Voltage
220-240Vac, 50/60Hz
Operating temperature
-20~40 days
Protection class
three
finishing
grey+white
put up
aluminum
Install
embedded
Warranty
3 years
lighting control
Eaglerise no dimming, triac dimming 0-10V, Dali dimming upon request
Certificate
CE, ROHS

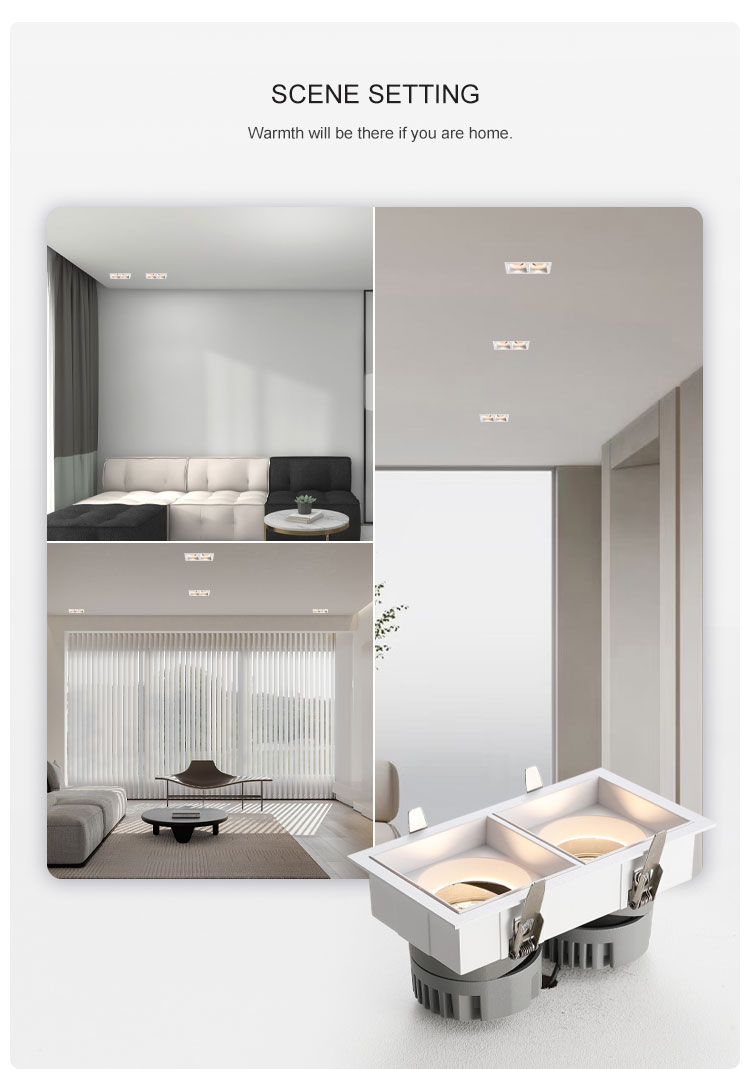

application
Hotel, bedroom, study, living room, hallway, etc.

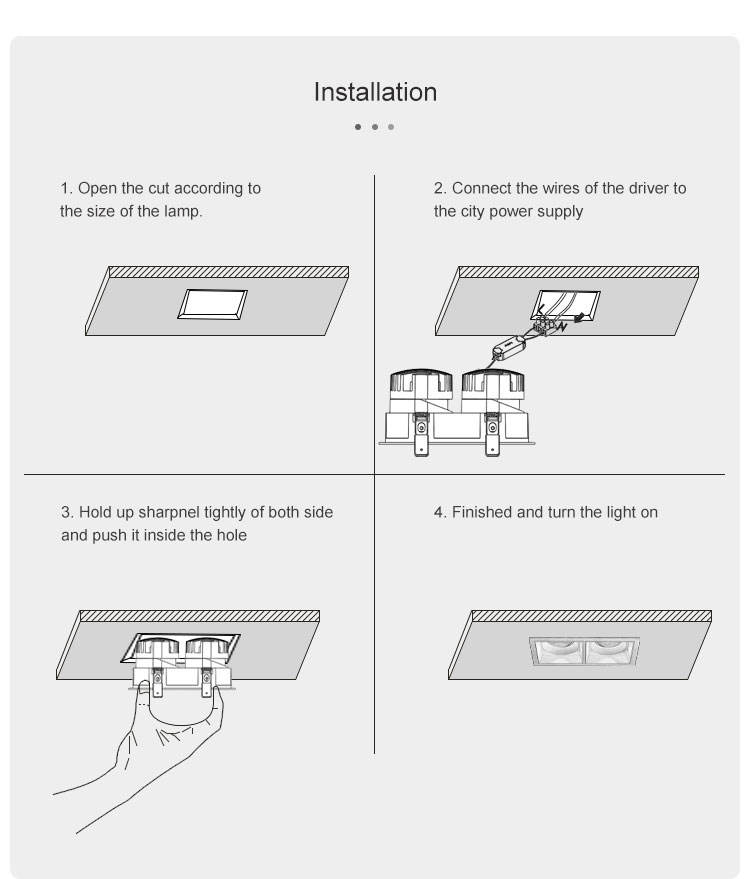

Installation Notes
