EN124 aluminum corner frame pedestrian loading single door hydraulic manhole cover new development design

  • $1.00 /piece
  • 1 piece
  • Anjoy Global Co., Ltd.
  • Hunan, China
  • Ms Laura Yang
PRODUCT DETAIL
place of origin; place of origin:Chinamodel:AJHY-UF001
payment terms:wire transferport:Shanghai, Ningbo, Shenzhen, Changsha
brand:Enjoysize:Customize any size
Product Description

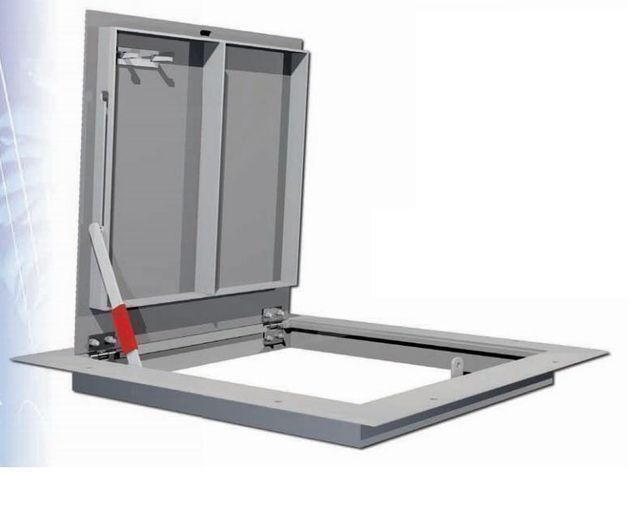

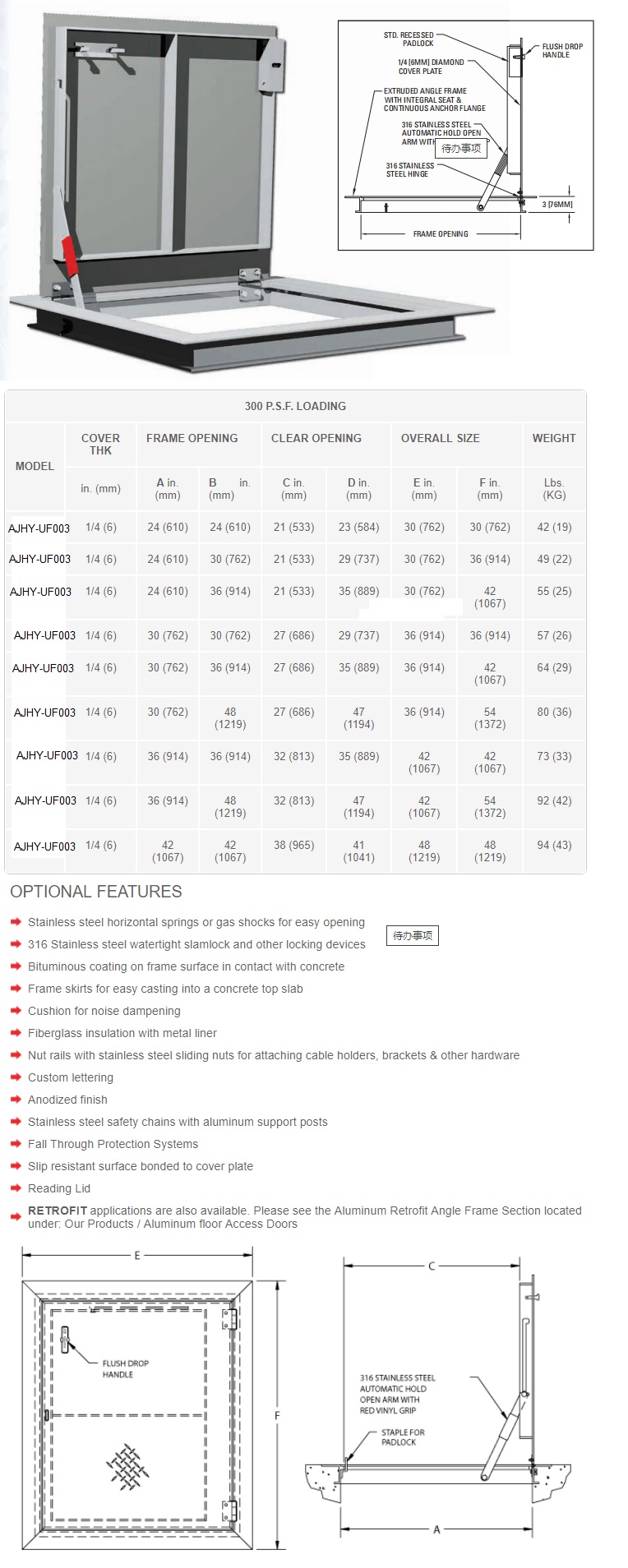

Specification:The floor inspection door model is AJHY-UF001 produced by Anjia. Dimensions are specified in the plans. Door leaves shall be 1/4 inch thick diamond shaped aluminum plate capable of withstanding a live load of 300 psf. The frame shall be extruded aluminum with integral anchor flanges and door seats on all four sides. Floor access doors shall be equipped with a flush carrying handle that does not protrude above the lid, and 316 stainless steel spreader arms with red vinyl handles that automatically hold the lid in the upright open position. Doors shall have 316 stainless steel hinges and 316 stainless steel tamper resistant bolts/lock nuts. For security, padlock staples should be provided. Adhesive backed vinyl to protect the product during shipping and installation should cover the entire top of the frame and cover. Installation should be carried out in accordance with the manufacturer's accompanying instructions.

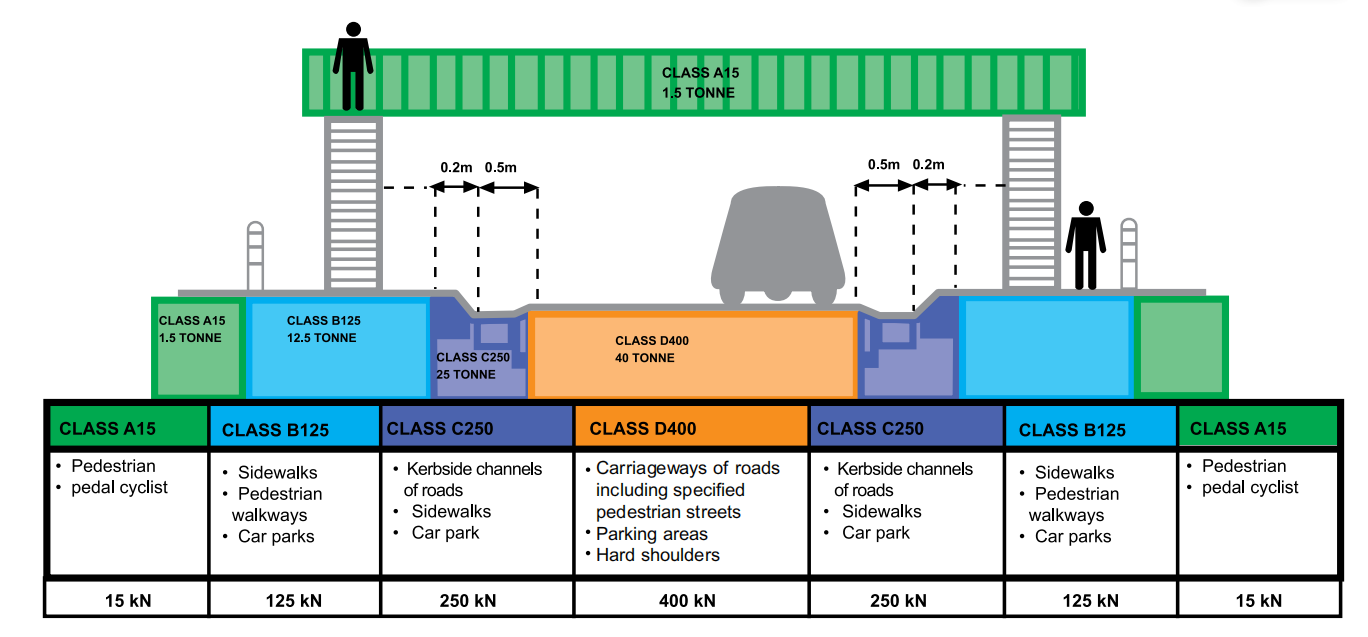

Loading



Packaging and Shipping
