EN131 Red and Yellow FRP Ladder Aluminum and Fiberglass Telescopic Ladder

PRODUCT DETAIL
Package preview:Material:FRP
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramMaximum load:150kg/330lbs
thickness:3 mmPackaging Details:plastic film+paper
After-sales service:Online technical support, on-site installation, on-site training, on-site inspection, free spare parts, return and exchange, othersWeight capacity:Type 1A – 300 lbs
step:2*16application:outdoor
Advantage:non-slip D rungSupply capacity:15000 pieces per month
type:industrial ladder, industrial ladderWarranty:1 year
Project solution ability:Graphic design, 3D model design, overall project solution, cross-category integration, othersfeature:Folding Ladder, Thermal Ladder, Telescopic Ladder
Material:glass fiberbrand:Jiatai
port:Newportstructure:telescopic ladder
Certificate:EN131product name:FRP telescopic ladder
model:JTEL-32color:yellow or red
design style:industrialOrigin:Hebei china
Product Description

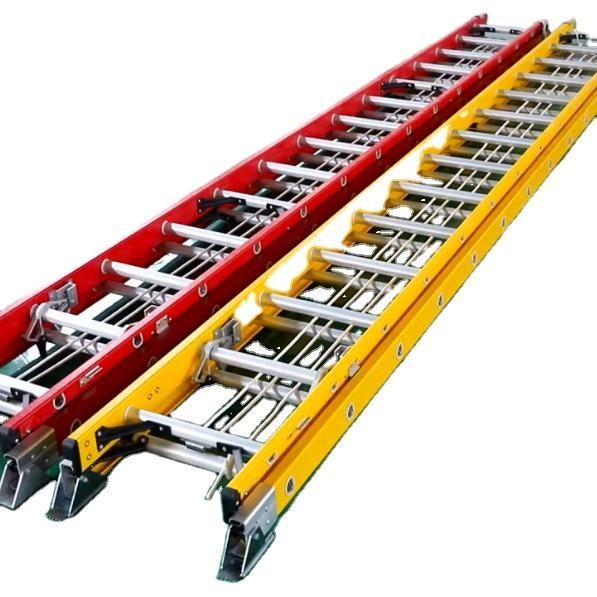

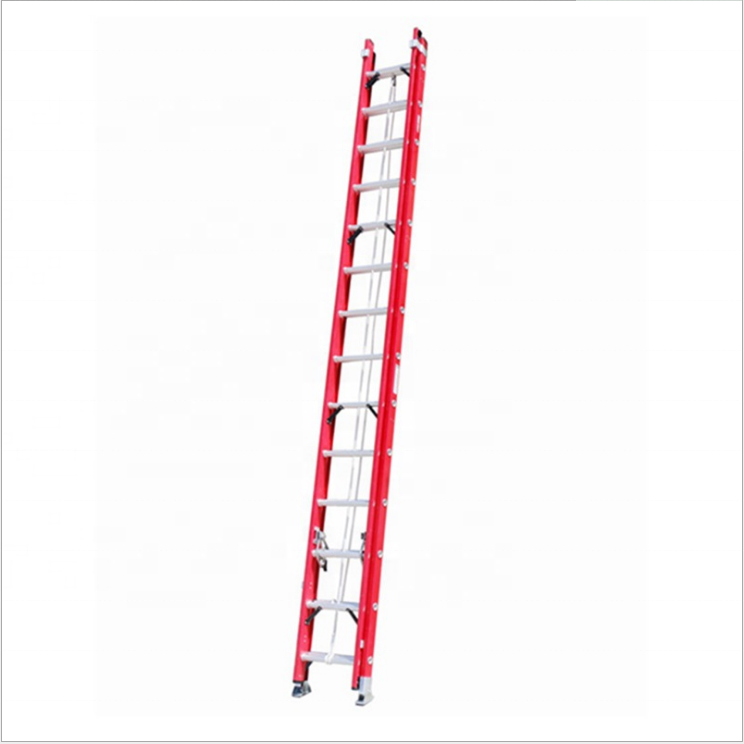

12m Fiberglass FRP Telescopic Ladder EN131 Fiberglass

Fiberglass telescoping ladders are designed for use in overhead line structures to allow climbing. It consists of two sliding parts.
The ladder is portable and suitable for use during construction operations and maintenance work. They consist mainly of round and lattice-shaped steel and concrete poles. FRP telescopic ladder complies with EN131 standard.

feature
★Frame size: 30*85mm
★Thickness: 3mm
★Color: yellow or red
★Non-slip steps
★Gravity spring step lock
★Adjustable shoes with non-slip tread

Specification
Model
expand
length
closure
length
all
length

width
pace
step
distance
net
weight
JTEL-16
4.08m
2.6m
5.2m
390/420mm
2×8
30cm
13.10 kg
JTEL-20
5.28m
3.2m
6.4m
390/420mm
2×10
30cm
16.15 kg
JTEL-24
6.48m
3.8m
7.6m
390/420mm
2×12
30cm
19.10 kg
JTEL-28
7.68m
4.38m
8.76m
390/420mm
2×14
30cm
21.70 kg
JTEL-32
8.86m
4.98m
9.96m
390/420mm
2×16
30cm
24.50 kg
JTEL-36
9.80 meters
5.6m
11.2m
390/420mm
2×18
30cm
27.90 kg
JTEL-40
10.7m
6.2m
12.4m
390/420mm
2×20
30cm
30.30 kg
Our advantage
a. Imported filaments produced by Owens Corning are used.

b. The edge is designed as arc. This design can reduce the friction during the use of the ladder and save labor.

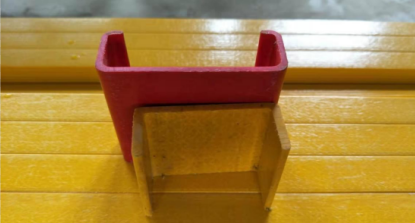

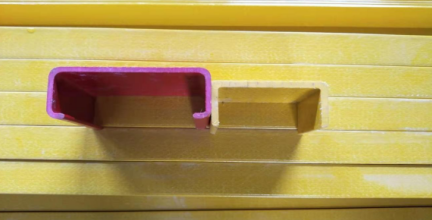

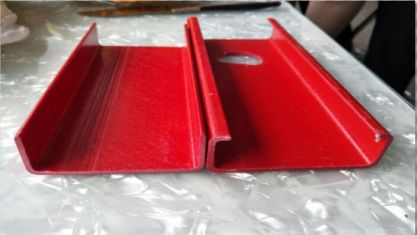

c. The size of the fiberglass frame is 30 x 85mm, which is larger than the common ladders in the market.

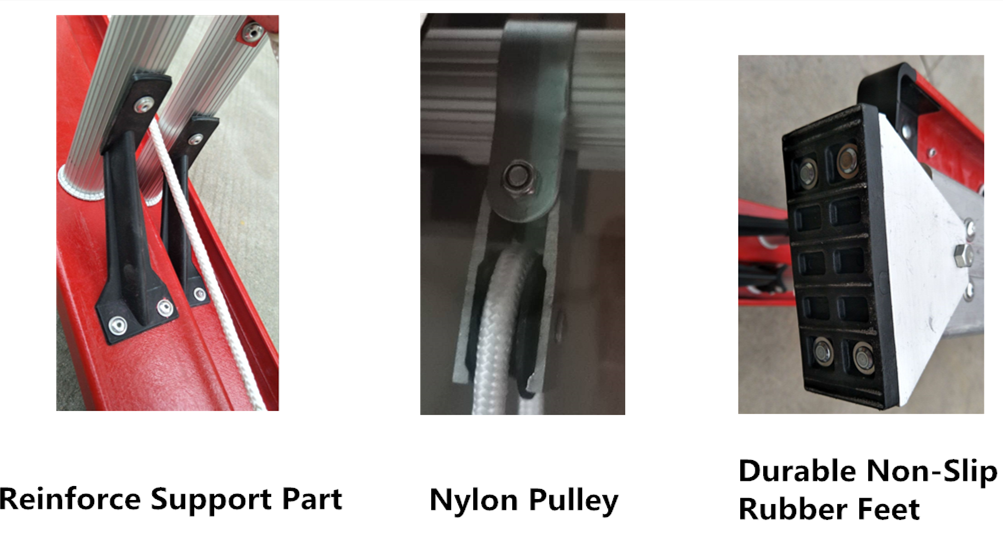

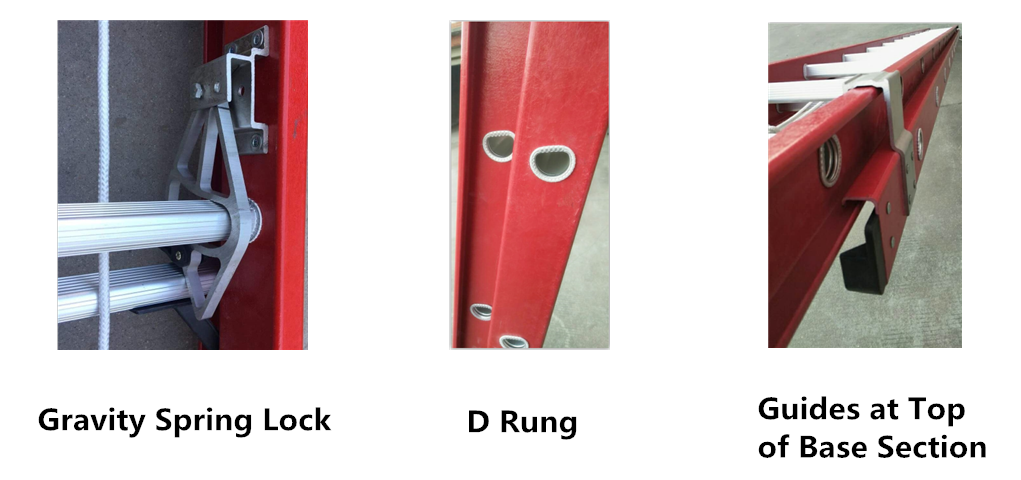

detailed drawing
