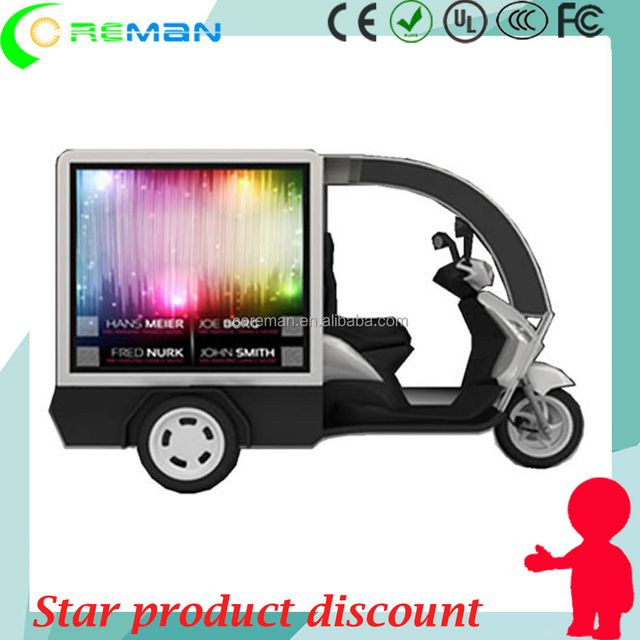

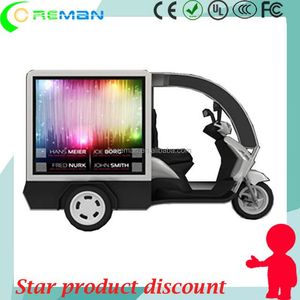

Electric motorcycle advertising led sign / p6 full color wireless control LED panel

PRODUCT DETAIL
payment terms:L/C,T/T,Western UnionWarranty:3 years, 5 years, 7 years
Delivery Details:3-12 daysport:Shenzhen
life:11 yearsusage:outdoor
Tube color:full colorLED Parts:Lights, Power, Cables, Hub Cards
model:Outdoor-P3/P4/P5/P6/P7.62/P8/P10/P12/P16screen size:custom made
LED chip:Nicha, Cree, Epistar, Silan, OptoSupply capacity:2000 square meters per month
Packaging Details:1. Pearl wood + cartoon box 2. Pearl wood + wooden box 3. Pearl wood + air boxcolor:16777216
Pixels:3mm/4mm/5mm/6mm/7.62mm/8mm/10mm/12mm/16mmLED content:Text, image, flash, animation, video
place of origin; place of origin:Chinabrand:Coleman
Intellectual property level:IP65LED Cabinet:steel and aluminium
Display function:videocontrol method:Wireless system, 3G, GPRS, GSM, SMS, WIFI, U disk, USB, SD
Grayscale:16 bits per color
technical parameter







cell board



pixel pitch

6mm

6.67mm

8mm

10mm

module size)

192mm*192mm

320mm*160mm

320mm*160mm

320mm*160mm

module resolution)

32*32 points

48*24

40*20 points

32*16 points

pixel density)

27,777 points/square meter

22,500 points/square meter

15,625 points/square meter

10,000 points/square meter

LED package)

SMD 3535

SMD 3535

SMD 3535

SMD 3535

Pixel configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

The main technical parameters

grayscale

16 bits per color

16 bits per color

16 bits per color

16 bits per color

color capability

16,777,216

16,777,216

16,777,216

16,777,216

color temperature

3500~9500K

3500~9500K

3500~9500K

3500~9500K

best viewing distance

≥6m

≥6m

≥8m

≥10m

Horizontal viewing angle

140º

140º

140º

140º

perspective

140º

140º

140º

140º

drive mode

1/8 scan

1/6 scan

1/5 scan

1/2 scan

brightness

≥7000cd/m2

≥6800cd/m2

≥6800cd/m2

≥6500cd/m2

frame rate

50~60HZ

50~60HZ

50~60HZ

50~60HZ

refresh rate

≥1800HZ

≥1800HZ

≥1800HZ

≥1800HZ

IP level

IP65

IP65

IP65

IP65

Cabinet size

576mm*576mm

640mm*640mm

640*640mm

640*640mm

Cabinet Resolution

96*96 points

96*96 points

80*80 points

64*64 points

Cabinet gross weight

10 kg

13kg

13kg

13kg

Maximum power consumption

320W/cabinet

360W/cabinet

320W/cabinet

320W/cabinet

Average power consumption

110W/cabinet

120W/cabinet

110W/cabinet

110W/cabinet

Operating Voltage

AC110V/220V±10%

Storage temperature

-40℃-+65℃

Operating temperature

-30℃-+55℃

Earth leakage current

≤20mA (single lamp)

Storage Working Relative Humidity

10%—90%RH

defect rate

≤0.00001 (LED display line mark <0.0001)

Flatness

Tolerance between pixels≤0.3mm, module gap tolerance≤0.6mm

MTBF

≥10,000 hours

life

≥100,000 hours

Signal input - with video processor

Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD_SDI, etc.

Communication distance

CAT5 optical cable (L≤140m), multi-mode fiber (L≤500m), single-mode fiber (L≤20km)

control method

async/sync

CPU (CPU of the PC

Pentium 4 and above

computer system

WinXP, Win2000, Vista, Win7, etc.

Control System

Nova/Linsn/Colorlight/DBstar etc.








Numbering.P10P10P12P16P16
Classificationfull colorfull colorfull colorfull colorfull color
pixel pitch10mm10mm12mm16mm16mm
Module size (mm*mm)160*160160*160192*192256*128/256*256256*128/256*256
pixel density10000 points/meter210000 points/meter26944 points/m23906 points/meter23906 points/square meter
pixel composition1R1G1B1R1G1B2R1G1B2R1G1B1R1G1B
LED package346SMD 5050/5035346546546
Module resolution16*1616*1616*1616*8/16*1616*8/16*16
best viewing distance≥10mm≥10m≥12m≥14m≥14m
Best viewing angle (horizontal/vertical)120°/110°140°/120°120°/110°120°/110°120°/110°
Maximum power consumption1100W/m21100 W/m21100W/m21100W/m21100W/m2
Average power consumption400~600 W/m2400~600 W/m2350~550W/m2400~650W/m2400~650W/m2
Standard Cabinet Size (mm)960*960960*9601152*9601024*10241024*1024
Standard Cabinet Resolution96*9696*9696*8064*6464*64
Standard Cabinet Weight55kg50kg66kg62 kg62 kg
drive mode1/4 scan1/4 scan1/4 scanstationarystationary
frame rate60 Hz/sec60 Hz/sec60 Hz/sec60 Hz/sec60 Hz/sec
refresh rate≥1000HZ≥1000HZ≥1200HZ≥1200HZ≥1200HZ
white balance brightness≥7500cd/m2≥7000cd/m2≥7000cd/m2≥8000cd/m2≥8000cd/m2
Working/Storage Ambient TemperatureWorking: -20°C~60°C Storage: -35°C~80°C
Working environment humidityWork: 10%--95% HR Storage: 10%--90% HR
IP levelFront: IP65 Back: IP54
Operating VoltageAC 220±10% or 110±10%
grayscale16 bits per color
Dimming256 levels of manual/automatic/editing schedules
signal inputRF, S-Video, RGB, RGBHV, YUV, YC.ect
Control SystemPCTV nonlinear editing card + DVI display card + main control card + optical fiber transmission (optional)
MTBF≥5000 hours
life≥100000 hours
point of failure rateless than 0.0001
Transmission distanceNetwork cable less than 100m; Optical fiber transmission: MMF less than 500m, SMF less than 20km
Using more receivers can increase the refresh rate: other parameters can be changed according to different applications.






feature

  && Main Features

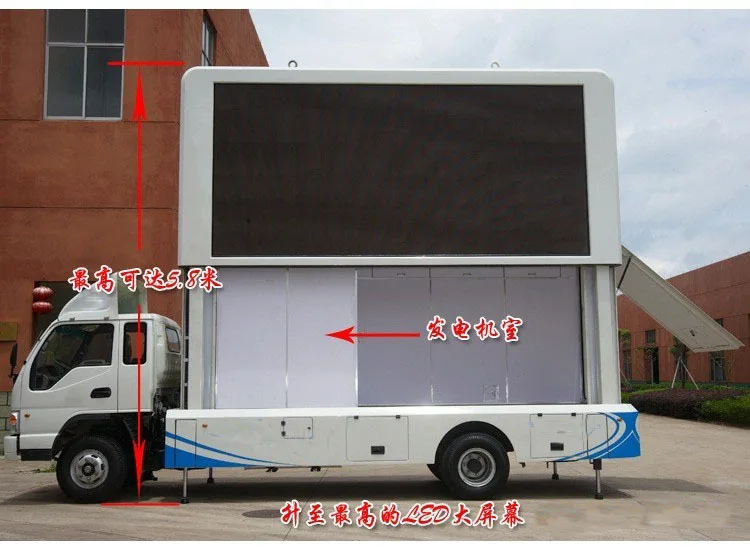

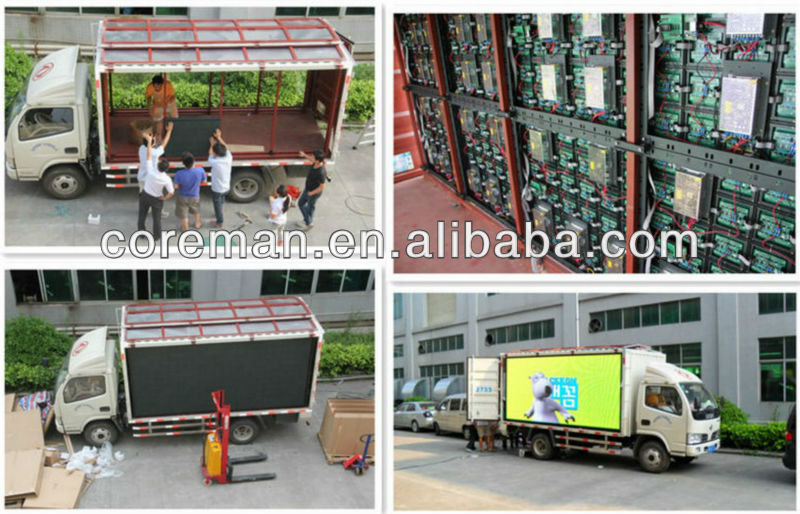

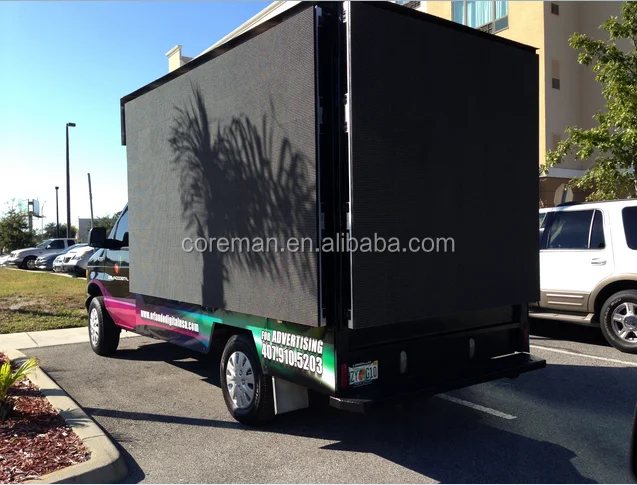

Mobile LED display is an innovative outdoor display, including trailer type, roof type and side wall structure.
Mobile LED display is mainly used for outdoor mobile advertising, so it is especially suitable for electricity, energy, shockproof, etc. Generally speaking, we use DIP outdoor or SMD outdoor to meet these requirements, the main features are as follows:


1.Dual copper technology improves system stability, better thermal conductivity and telecommunication parameters and enhanced shock resistance.

2.The high uniformity mask is perfectly combined with the module,The mask is uniform in color without shadows, without UV aging, and can resist 20,000pa instantaneous pressure.


3.The perfect power solution and drive modePower consumption can be reduced, thereby reducing operating costs.


4.Provide MINI multimedia control roomIt supports input modes of various formats, and the refresh rate is up to 9400HZ, which perfectly supports TV broadcasting and maximizes usability and ease of use.


5. Cabinet shockproof designProtect the screen body and the system, so that the system can run safely for a long time.



detailed image



&&DIP LED Modules and SMD LED Modules

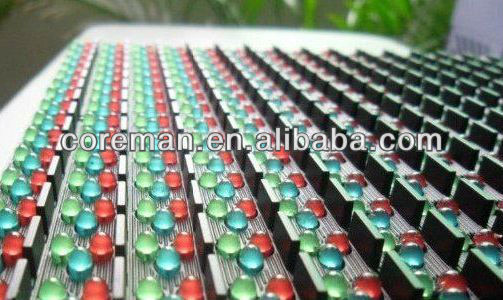

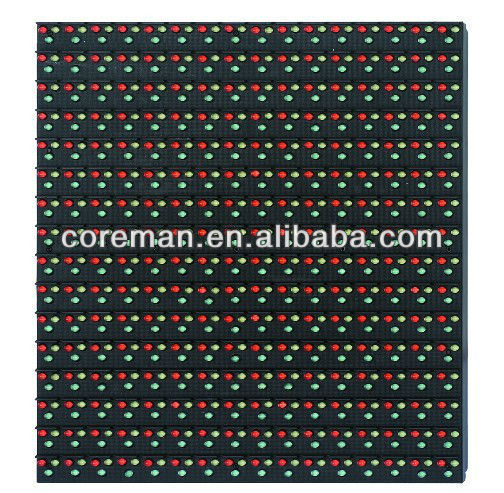

DIP module

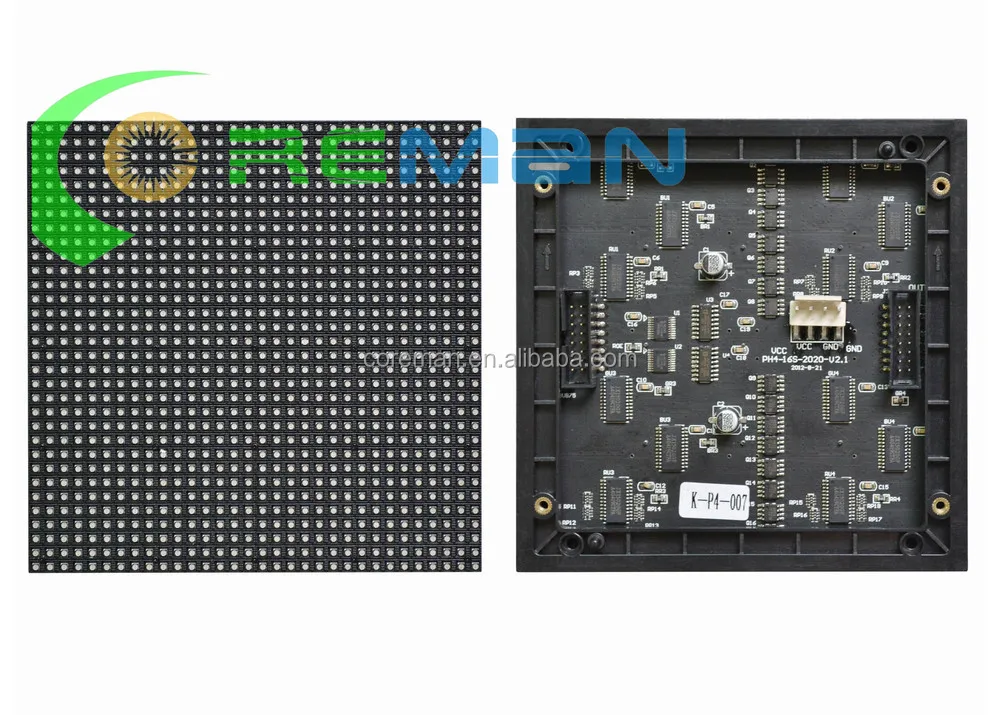

SMD module

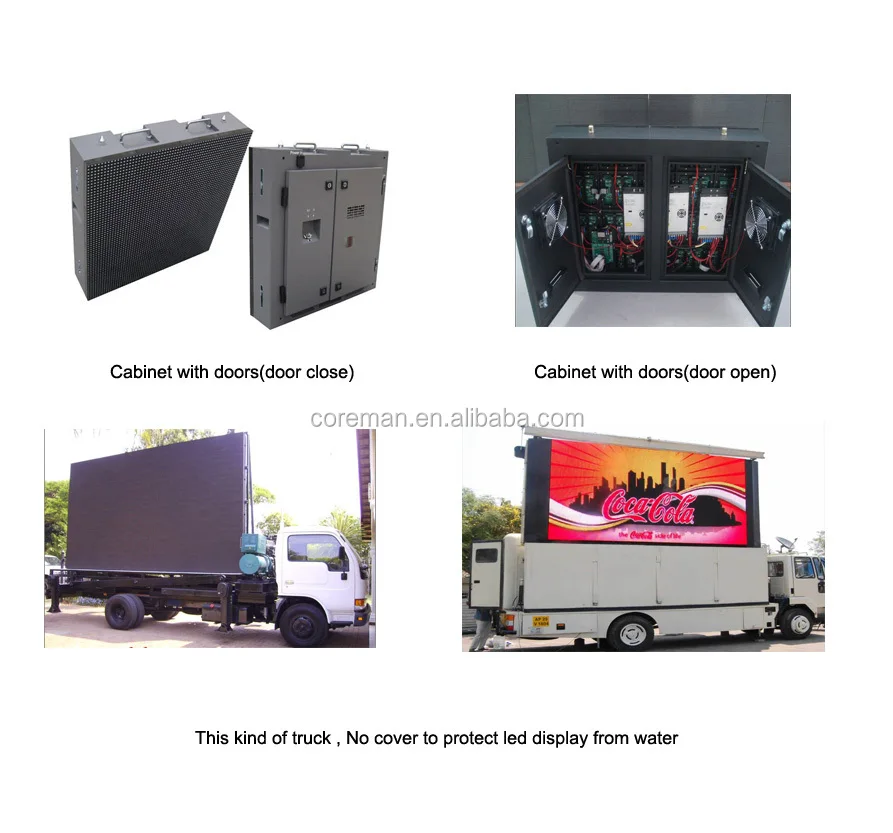

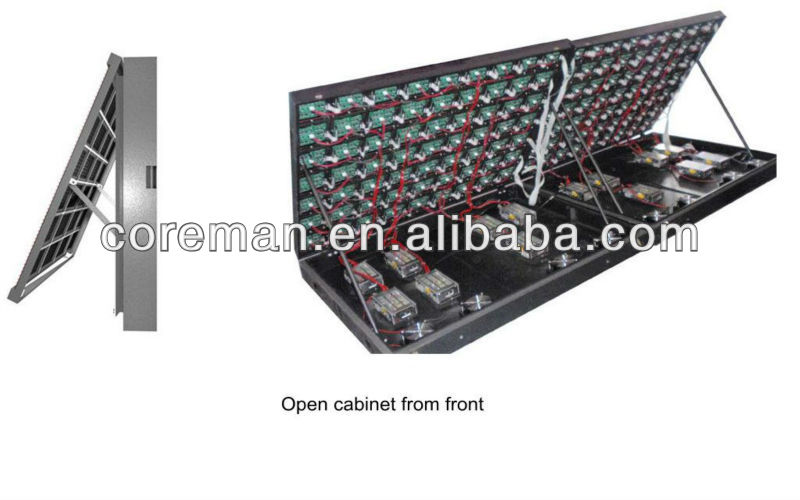

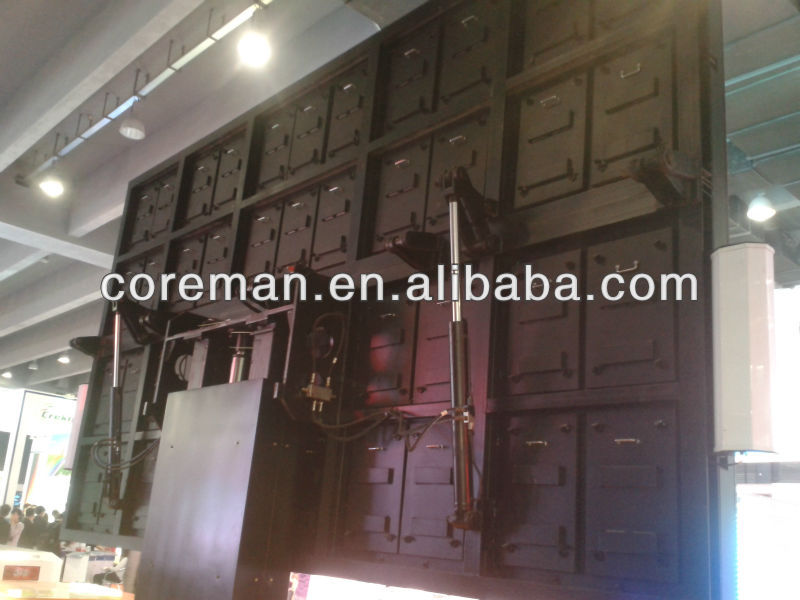

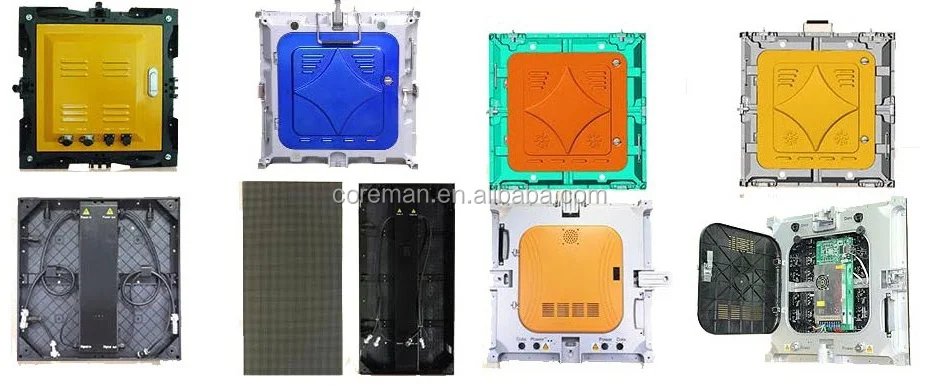

cabinet











product description

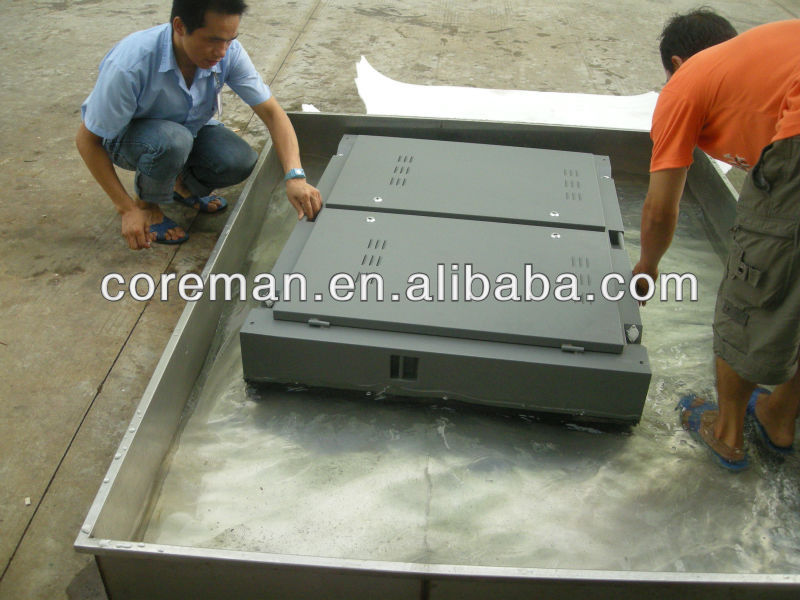

&& water-proof test

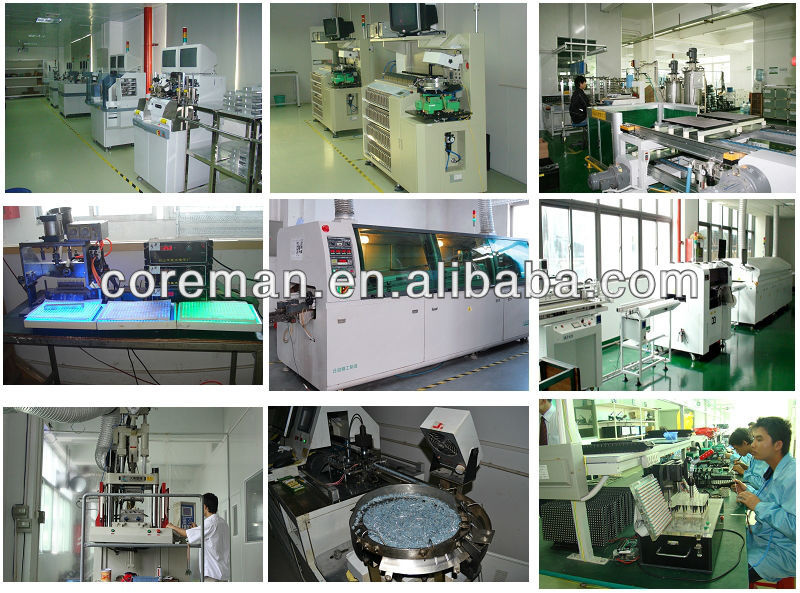

&&factory









We only do one thing - to meet customer requirements







If you are interested in our company or like us, please feel free to contact me
