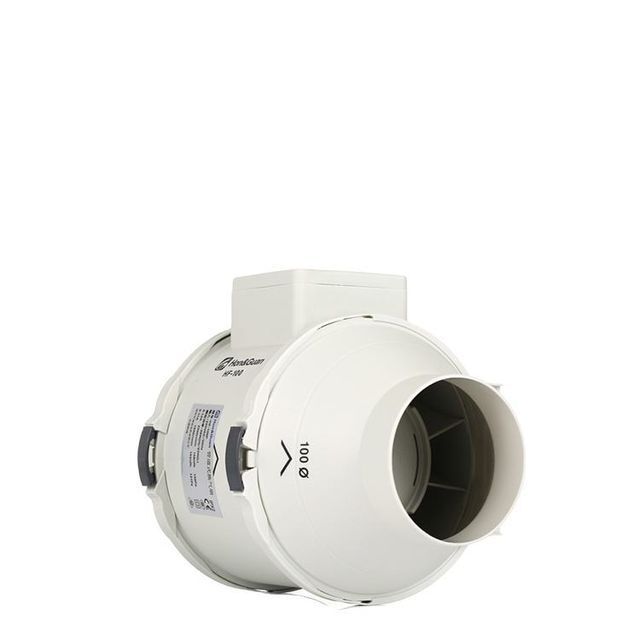

Environment protection material good quality ventilation exhaust fans
- $30.00 / 5 - 49 pieces
$23.00 / 50 - 99 pieces
$22.00 / >=100 pieces - 5 pieces
- Guangdong Hongguan Electric Appliance Co., Ltd.
- Guangdong, China
- Ms Joanna Jiang
| Payment Terms: | L/C,Western Union,T/T; | Packaging Detail: | Each fan in one poly bag and sealed packed in small carton and then in big carton with four or per client's request.; |
| Noise: | 26/31 dB; | Power Source: | Electric; |
| Port: | shenzhen; | Current: | 0.11~0.12; |
| Speed(RPM): | 1850/2200; | Power: | 23/26W; |
| Usage: | Air Ventilation system; | Net weight: | 1.5 KG; |
| Warranty: | 1 Year; | Air Pressure: | 156/131 Pa; |
| App-Controlled: | Yes; | Voltage/Frequency: | 220~240V/50HZ and 100~120V/60HZ; |
| Supply Ability: | 100000 Pieces per Day air ventilation system; | Application: | Any place that needs ventilation,Hotel; |
| Brand Name: | hon&guan; | Airflow: | 198/165 M3/h; |
| Model Number: | HF-100P; | After-sales Service Provided: | None; |
| Place of Origin: | Guangdong, China; |
Environment protection material good quality ventilation exhaust fans

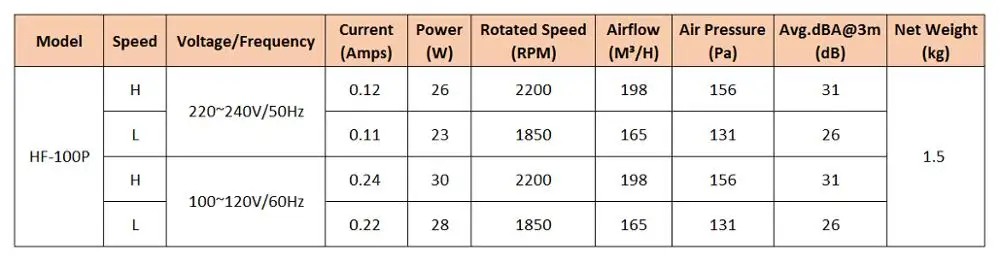

Specification:
1. Material of frame:Environmental protection material PP and casting iron mounting base
2. Working temperature range/Operating Temperature Range: -20°C~60°C
3. Protection class: IP44 protection level
4. Life: Japanese NMB ball bear, Outer rotor motor with 50000hours working life
5. Setting Angle: Horizontal, vertical and others angle
6. 5-30min timer delay function
7. Frequency:100~120V/60HZ
8. IP44 protection level
9. Outer rotor motor with 50000hours working life.

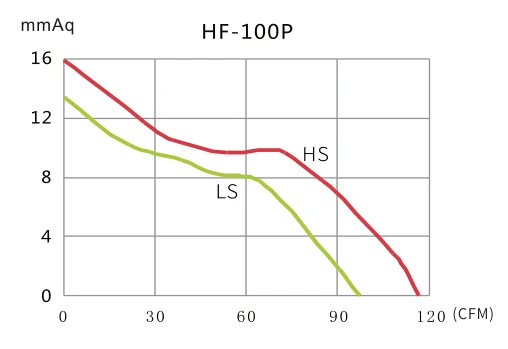

10. 198m³/h airflow,156Pa air pressure
11. 5-30min timer delay function.
12. Three speed or switch on the connection box
Features:
1. Fan body is made of eco-friendly raw material with beautiful lines and double insulation
2. Fan blade is designed according to fluid dynamics principle to reach optimal airflow and air pressure
3.High efficiency working, low energy consumption and low noise

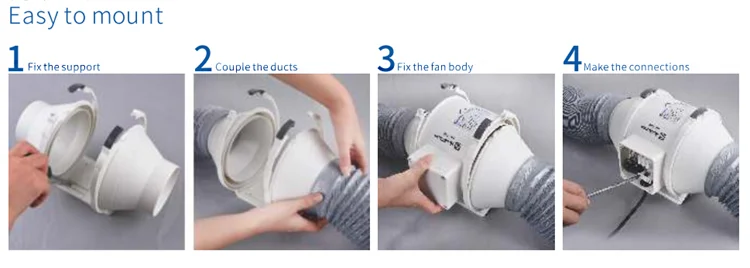

4. Special design of joint for easy installation and maintenance
5. Optional timer delay, humidity sensor, temperature sensor or other functions
6.Special design of joint to facilitate installation and dismounting; Easy installation and maintenance.
Warranty: One year warranty for new machine
After-sales Service Provided: Overseas service center available
GZY Greenfan Electric CO.,Ltd is the branch of Shenzhen Hongguan Mechatronics Co., Ltd. HG Fan which focuses on the R & D manufacturing of air replacement, fresh air ventilation and ventilation equipment, is a modern high-tech enterprise with main products such as mixed flow inline duct fan, ventilation fan, AC and DC fans. Our headquarter is located in Longhua District, Shenzhen, very near to the world-famous Mission Hills Golf Club.
Shenzhen Hongguan Mechatronics Co., Ltd has been always adhered to the way of developing and creating its own brand "Hon & Guan" brand since 2010. All of our products comply with CCC CE, SAA certification,especially we own several patents for our mixed flow fan products in China. We are at the forefront of overall strength and brand influence in the ventilation industry.
We positively promote the enterprise's cultural construction and innovation with the modern management system. Meanwhile, we attach great importance to the user experience and always keep going in satisfying users' needs. Until now, Hon & Guan mixed flow inline fan products are widely spread to Asian, European, North American, South American and many other countries.
We keep pursuing the excellence in management, development and sales team with the leading industrial design concept. We still practice the "full quality" concept and follow the principle of "quality comes before quantity", and we have got good word of mouth among our customers with outstanding quality and superior performance in this industry.
We keep working hard at increasing our advantages in pre-sale, sale, after-sale and other aspects by continuous improving our service and products. Our dream is to make Hon &Guan the leading brand in medium and high ventilation products.
