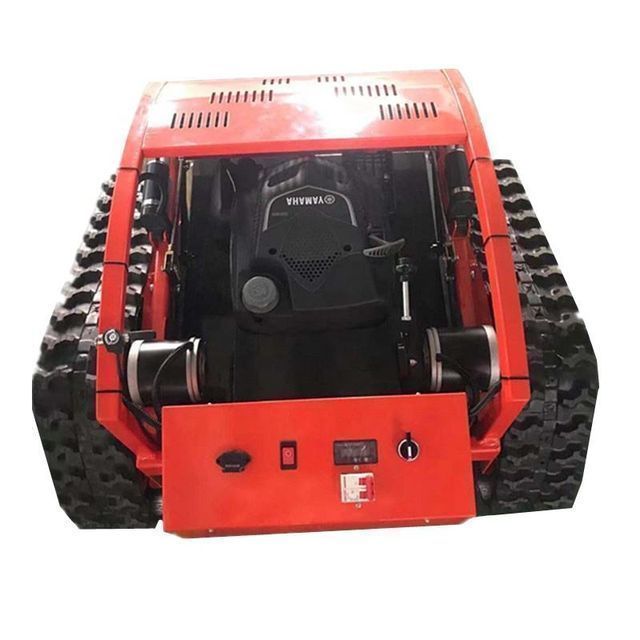

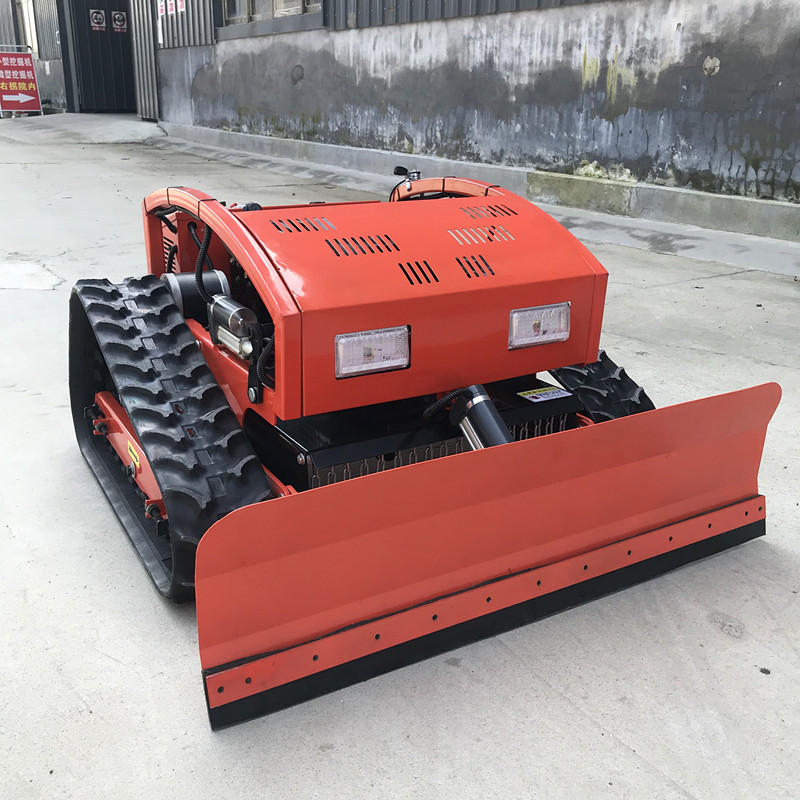

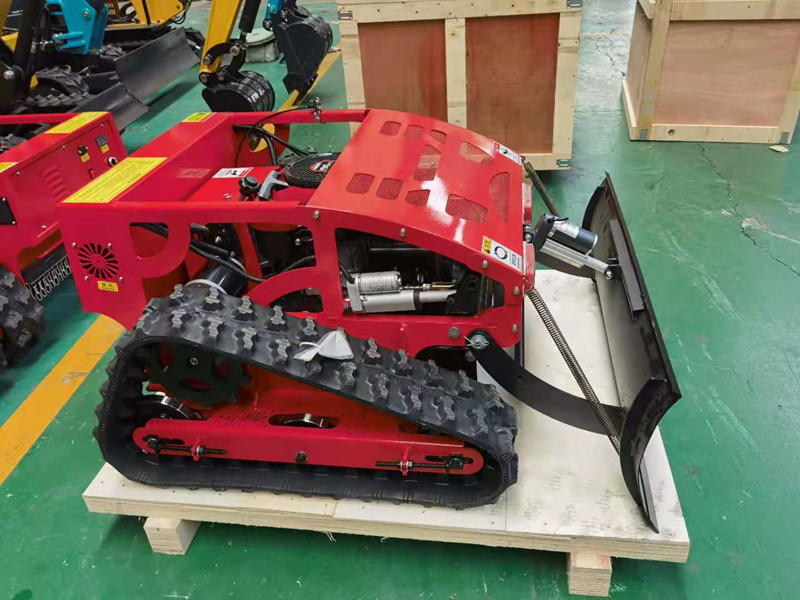

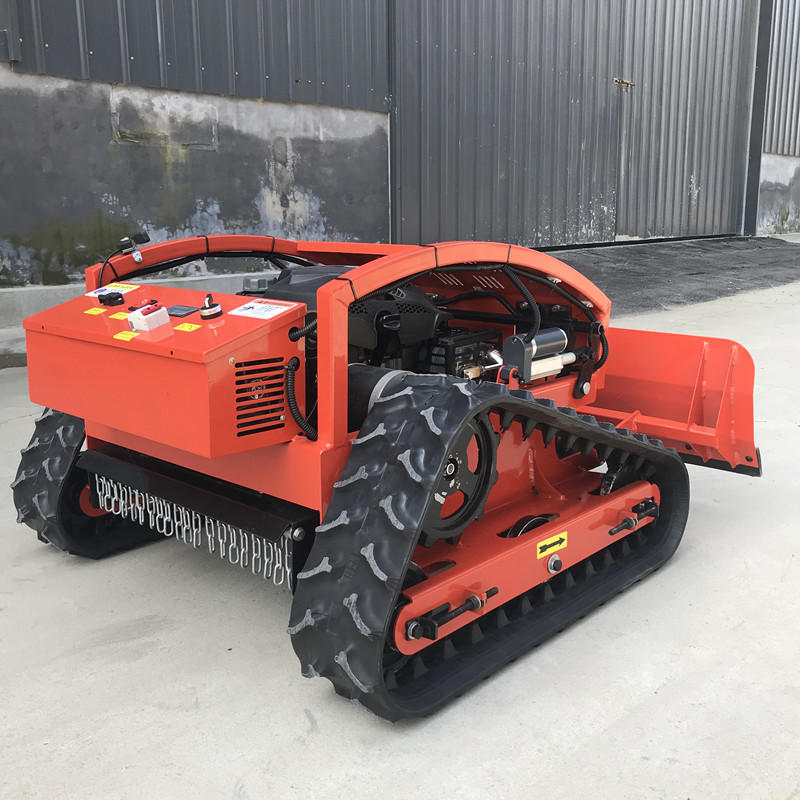

Equipped with gasoline system Lawnmowers Efficient intelligent robot 750/110
- $590.00 /piece
- 1 piece
- Shandong Degres Machinery Co.,Ltd
- Shandong, China
- Mr Roy Lee
PRODUCT DETAIL
Key words: | remote control | Model: | DE-110/750/1500 |
Warranty: | 3 years | Voltage: | 24V, 28V, 48V, 36V |
Custom Support: | OEM | application: | lawn cutting |
engine: | Yamaha/Loncin | feature: | 2-stroke, 4-stroke, height adjustable handle, steel chassis, telescopic handle |
model: | DE-750 | Forward speed: | 6 km/h |
Cutting height: | 0-200mm | product name: | remote control lawn mower |
grade: | DIY, Industrial | engine capacity: | 196CC |
Supply capacity: | 15200 pieces per week | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
port: | Qingdao, Shanghai, Guangzhou | Application range: | 200M-800M |
Energy source: | Battery | brand: | De Grasse |
type: | crawler | color: | customer request |
place of origin; place of origin: | Shandong China | Packaging Preview: | |

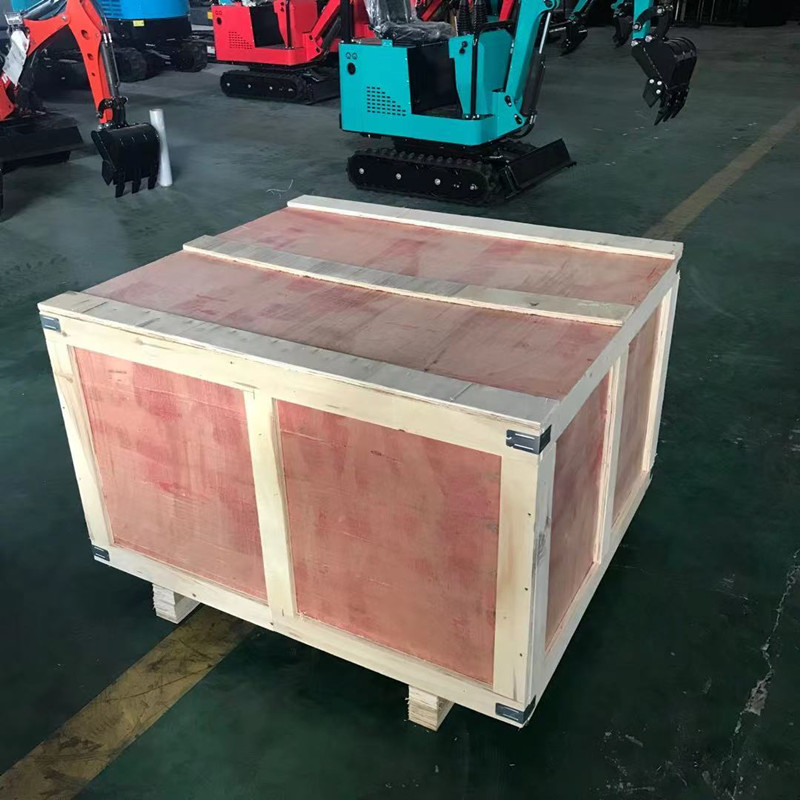

Packaging Details: | Wooden box 1100*860*950mm | Package: | wooden box |
product name | remote control lawn mower |
Machine size | 930*860*580mm |
Package dimensions | 1060*960*810mm |
cutting width | 550mm |
height adjustable | 10-150mm |
cutting height | 20-150mm |
Walking speed | 0-6 km/h |
working slope | 0-30° |
Minimum distance from the ground | 20mm |
engine | Loncin |
strength | 7.5HP |
engine type | Vertical axis four-stroke |

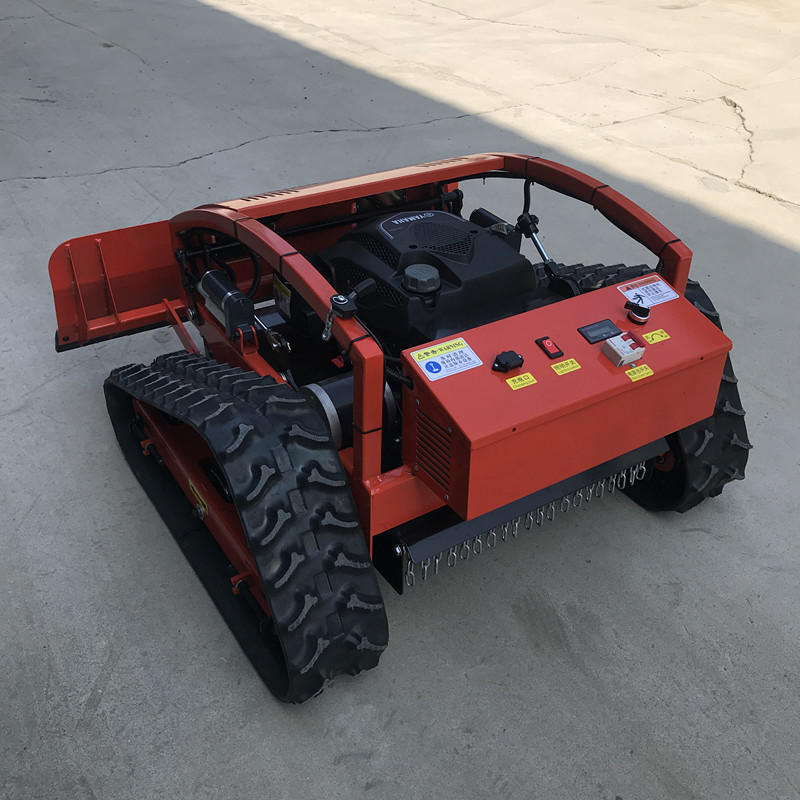

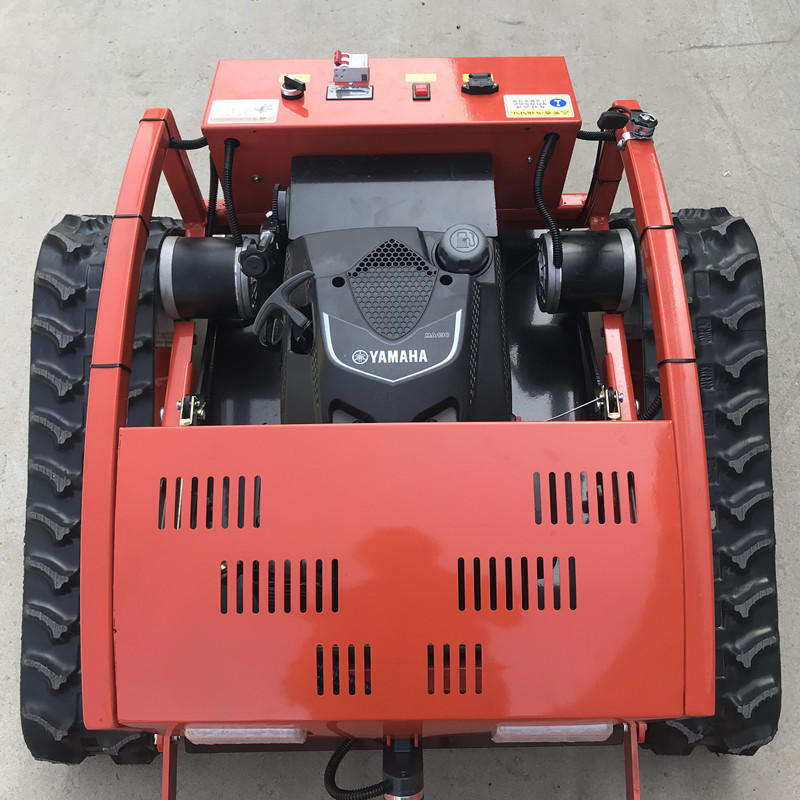

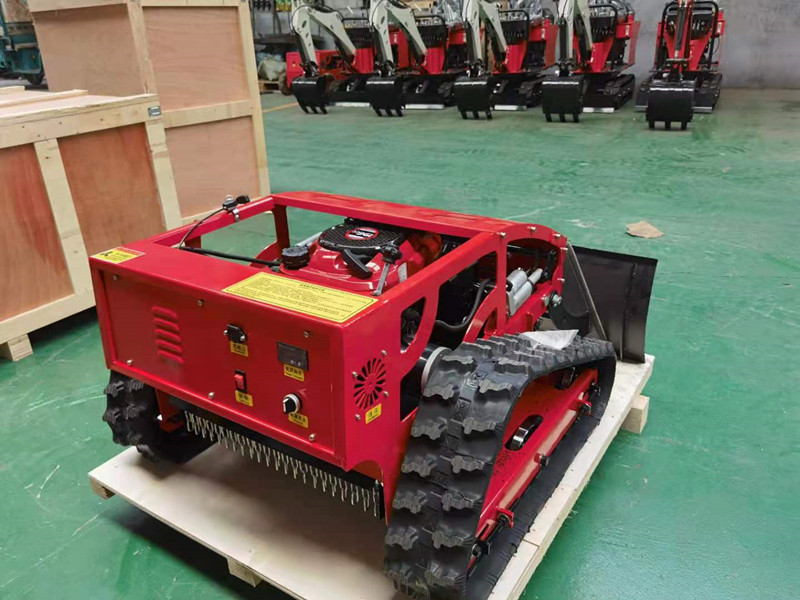

Mini remote control lawn mower is mainly used in orchards, gardens, lawns, wastelands, slopes and other places with narrow and inclined working spaces. The main feature is remote control walking, equipped with gasoline engine, and the cutter head can be raised and lowered. It is safer, more efficient, environmentally friendly and reduces noise.
Lawn Mower Instructions
1. Preparations before starting the remote control lawn mower
(1) Be sure to confirm the tightness of the screws in each part before starting the machine.

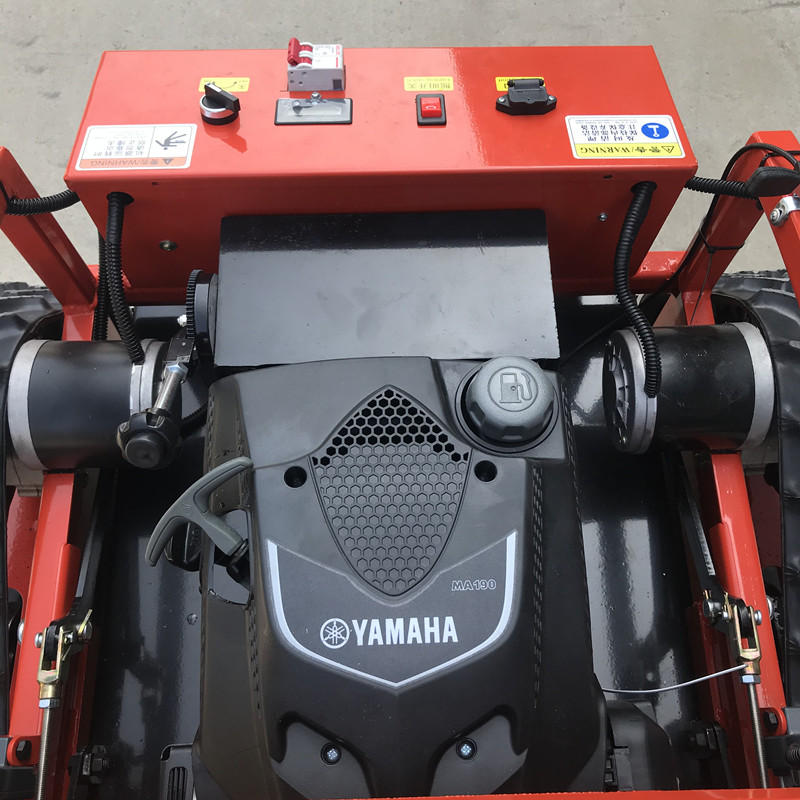

(2) Turn on the power key switch of the machine, pull the right lever back and hold it down, then press the switch key of the remote control to turn on the remote control.
(3) "DiDi" will appear when the remote control is turned on, indicating that the machine matches the remote control normally.
(4) Engine start;
a. Release the brake on the right side of the engine (disconnect the flameout switch at the same time);
b. Turn the left throttle to the end counterclockwise (to open the engine throttle at the same time);
c. Pull the pull rope of the hand pull plate hard to start the engine;
d. After starting the engine, adjust the throttle to the appropriate speed in time;
e. Operate the remote control to cut grass.

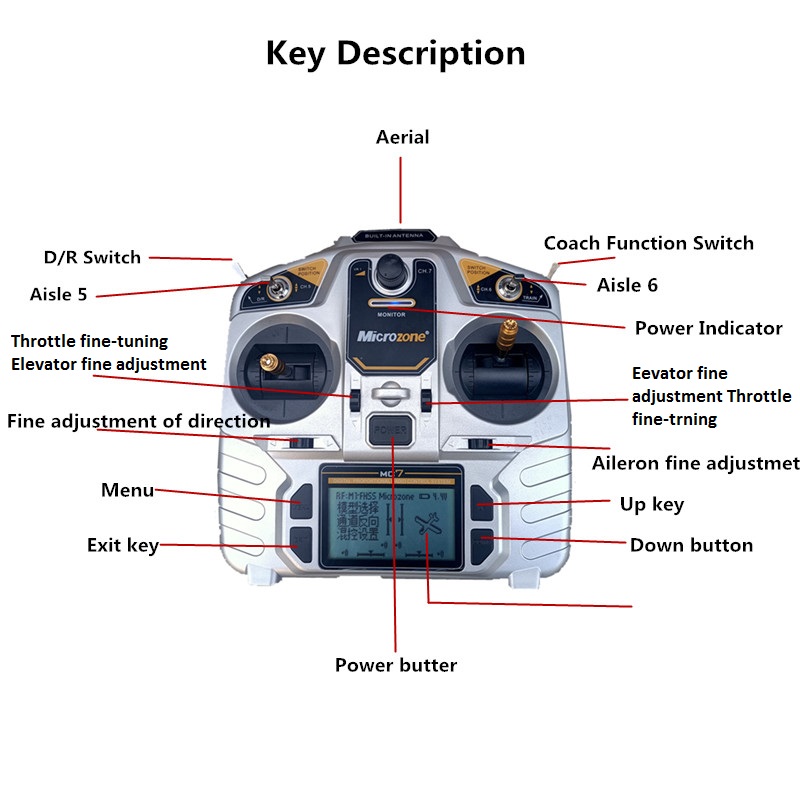

2. Remote control description:
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high speed) The left joystick controls the machine to move forward and backward, and the right joystick controls the left and right turns 5 channels (two-stage switch): the cutter head lifts and adjusts cutter head cutting high.
1. Preparations before starting the remote control lawn mower
(1) Be sure to confirm the tightness of the screws in each part before starting the machine.
(2) Turn on the power key switch of the machine, pull the right lever back and hold it down, then press the switch key of the remote control to turn on the remote control.
(3) "DiDi" will appear when the remote control is turned on, indicating that the machine matches the remote control normally.
(4) Engine start;
a. Release the brake on the right side of the engine (disconnect the flameout switch at the same time);
b. Turn the left throttle to the end counterclockwise (to open the engine throttle at the same time);
c. Pull the pull rope of the hand pull plate hard to start the engine;
d. After starting the engine, adjust the throttle to the appropriate speed in time;
e. Operate the remote control to cut grass.
2. Remote control description:
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high speed) The left joystick controls the machine to move forward and backward, and the right joystick controls the left and right turns 5 channels (two-stage switch): the cutter head lifts and adjusts cutter head cutting high.
Servo fine-tuning (left and right adjustment): When adjusting the walking speed of the machine, the electronic regulator in the machine will make a "beep" sound. Only then use the "rudder trim" button until the electronic adjustment in the machine is silent.
Throttle trim (up and down adjustment): the same principle as the "rudder trim" button.
Power switch: push up to turn on the remote control, pull down to turn off the remote control.
Power switch: push up to turn on the remote control, pull down to turn off the remote control.
