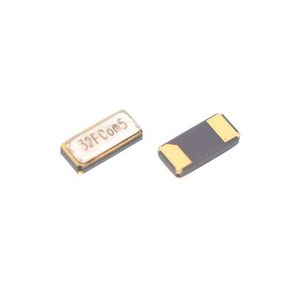

FCom Crystal 3215 32.768 KHz 20 PPM 12.5 PF SMD passive crystal oscillator
- $0.22 / >=1000 pieces
- 1000 pieces
- Shenzhen Huihao Electronic Technology Development Co., Ltd.
- Guangdong, China
- Mr Matt Chan
PRODUCT DETAIL
| Package: | 3000pcs/plate | model: | 3215 |
| Warranty: | 180 days | Nominal frequency: | 32.768KHZ |
| Frequency Range: | 32.768KHz | Media available: | data sheet, photo |
| Frequency Stability: | ±20ppm | brand: | communication company |
| Nominal frequency: | 32.768KHz | type: | Crystal oscillator, original |
| Load Capacitance: | 12.5pF | place of origin; place of origin: | Guangdong, China |
| Basic resonator: | crystal | type of packaging: | SMD 3215 |
| Operating temperature: | -40~+85℃ | Temperature and frequency difference: | ±20ppm |
| Adjust frequency difference: | ±20ppm | aspect: | 3215 |
| Pay: | Wire transfer in advance | Model: | 3215 32.768KHz |
| Card: | FCom, 3215 chip crystal oscillator | Load Capacitance: | 12.5pF |
| Supplier type: | original factory | Frequency Tolerance: | ±20ppm |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |

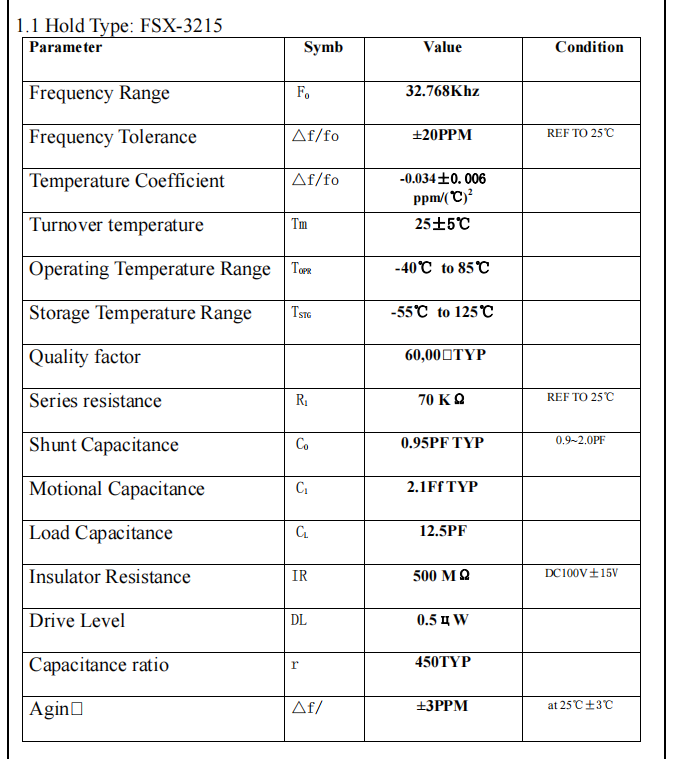

Product Description
3215 32.768KHZ 2PIN | ||||
standard frequency | load capacitance | frequency deviation | ||
32.768KHZ | 12.5PF | 20PPM | ||
32.768KHZ | 9PF | 20PPM | ||
32.768KHZ | 7PF | 20PPM | ||
