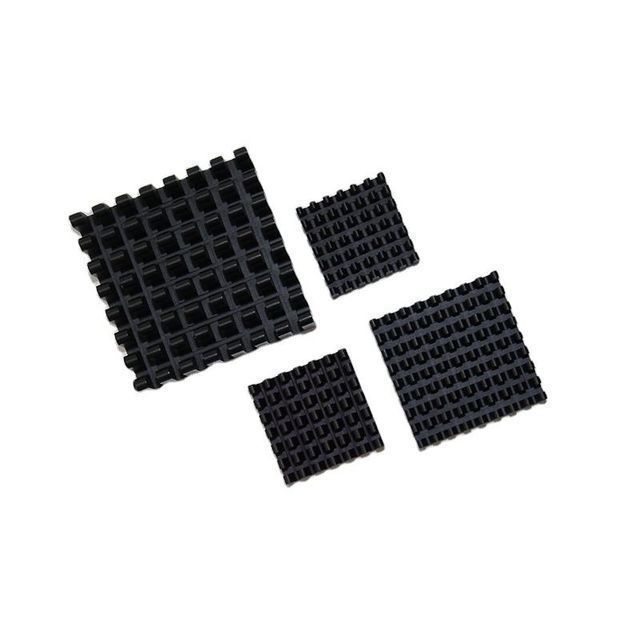

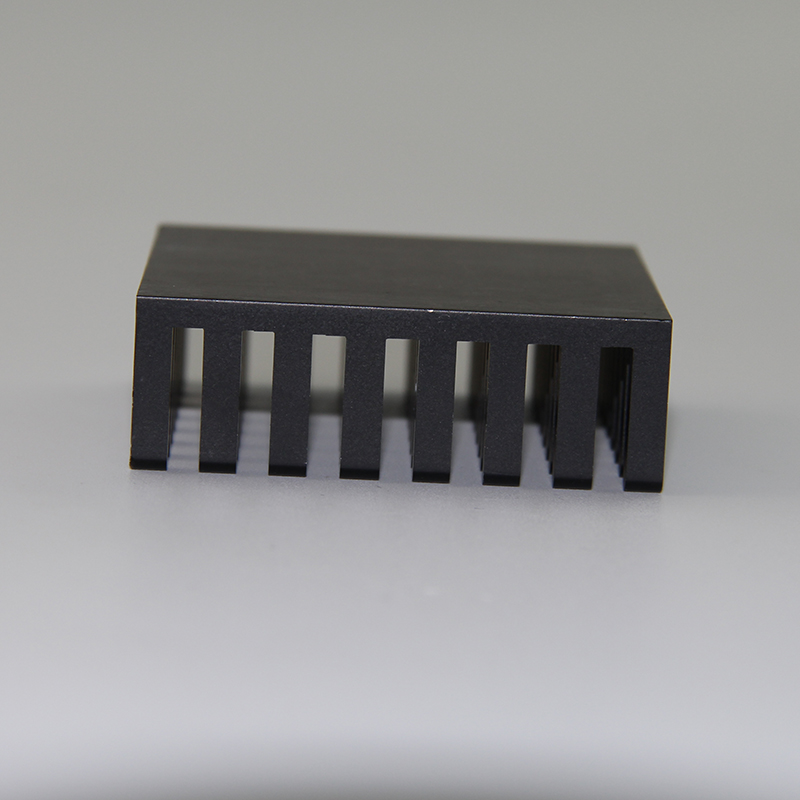

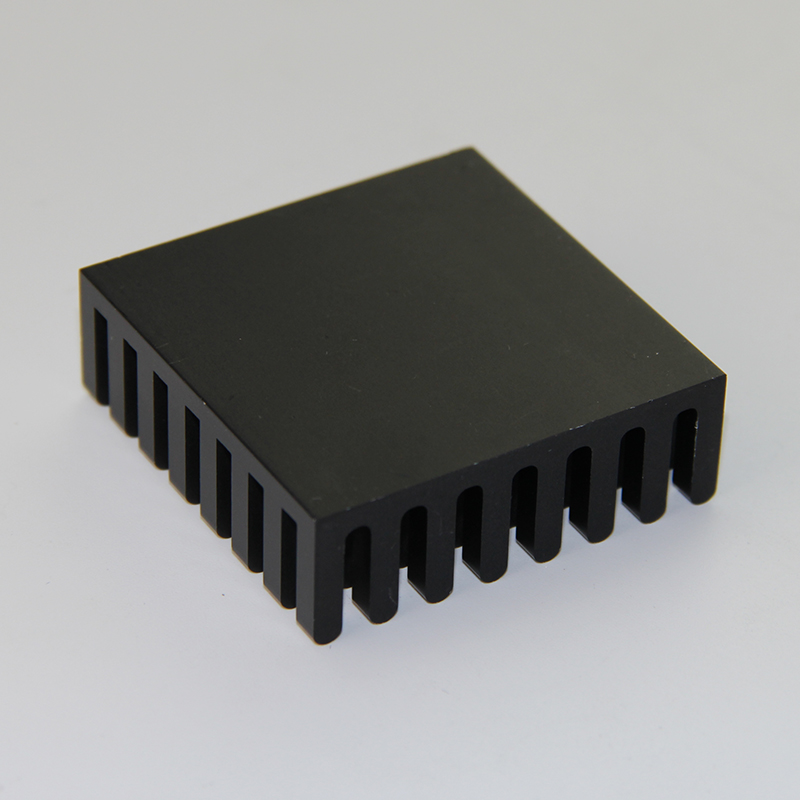

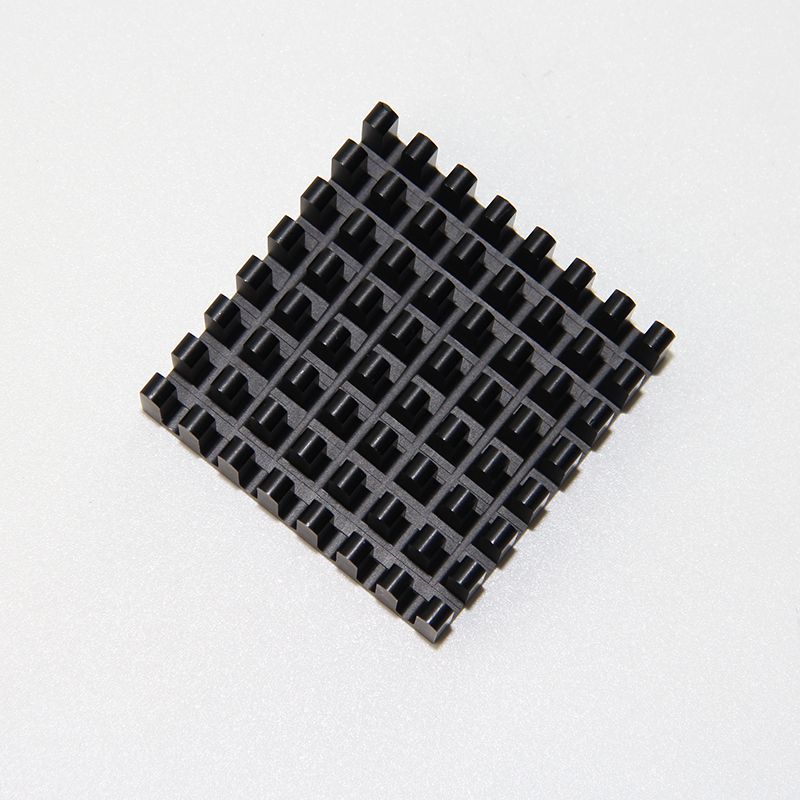

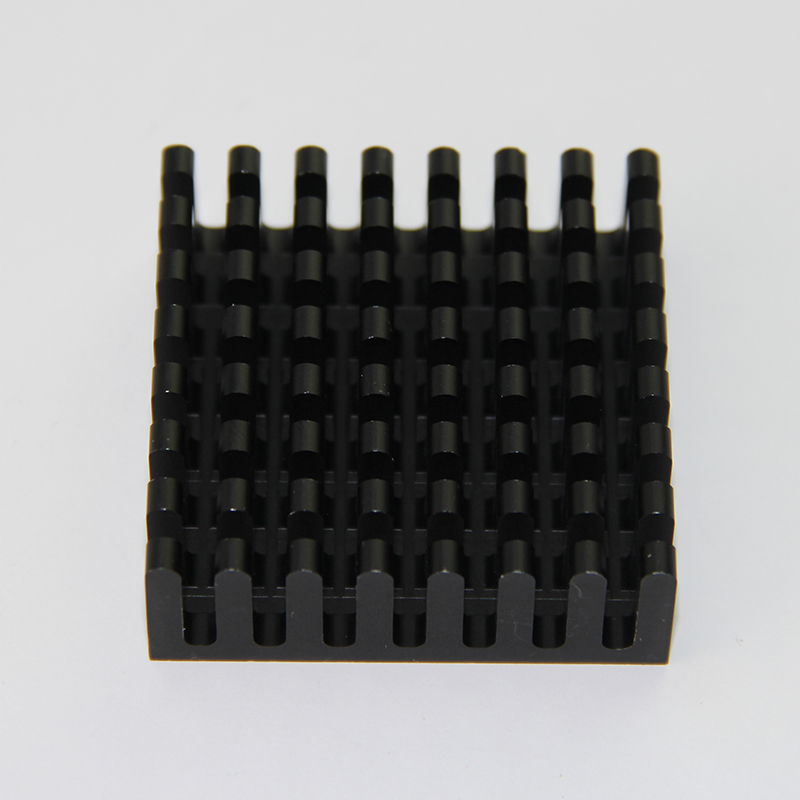

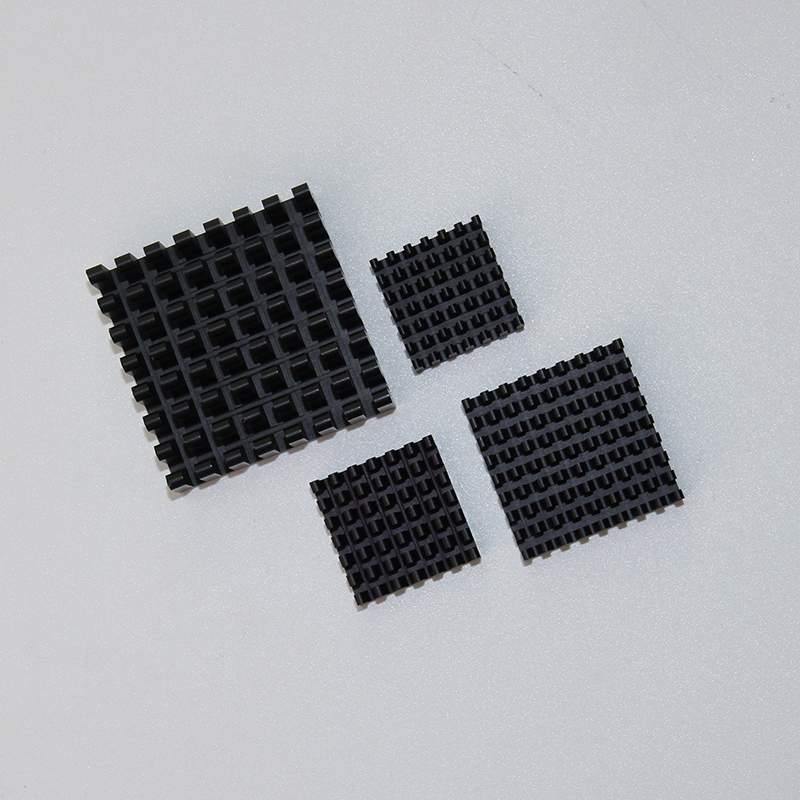

FM custom cold forged fins cob led tec standard peltier cooling control board ic chip 40x40mm set aluminum radiator radiator
- $1.80 / 5 - 99 pieces
$1.50 / >=100 pieces - 5 pieces
- Dongguan Formal Precision Metal Parts Co., Ltd.
- Guangdong, China
- Mr Suzn Huang
PRODUCT DETAIL
Production Process: | Profile extrusion - cutting - CNC machining (milling, drilling, tapping) | Surface treatment: | Anodizing, polishing, electroplating, polishing, sandblasting, etc. |
Finish: | Anodizing, polishing, electroplating, polishing, sandblasting, etc. | OEM and ODM: | usable. Our engineers can check and discuss your design, very helpful! |
Material: | aluminum | thickness: | 0.4mm-20mm or customized |
type: | heat sink | Supply capacity: | 10000 pieces per week |
port: | Shenzhen | Lighting Solutions Services: | Lighting and Circuit Design |
color: | Silver, black, blue, wood, RAL powder paint, etc. | application: | LED lighting, inverter, power supply equipment, IGBT, etc. |
Body material: | aluminum | Intellectual property level: | - |
payment terms: | letter of credit, wire transfer | shape: | Round, square, flat, or custom, square |
Deep Processing: | CNC, drilling, milling, cutting, punching, welding, bending, assembly | Packaging Preview: | |
tolerant: | ±0.01mm | place of origin; place of origin: | Guangdong, China |
Packaging Details: | 30/box | Warranty Period (Years): | 1 year |
process: | cold forging | the color of car: | Black |
brand: | FM |

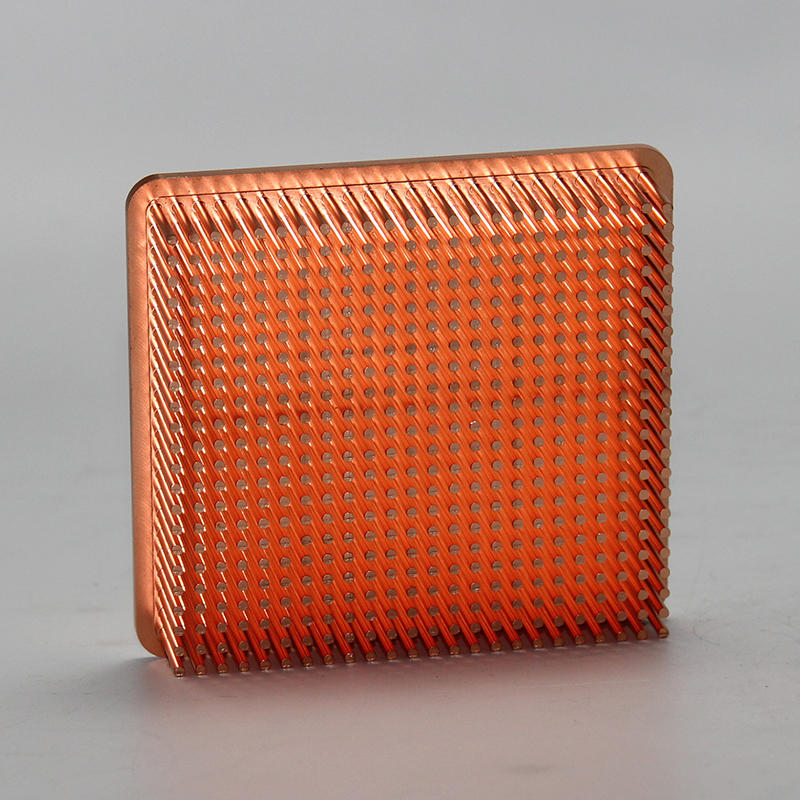

Cold forged heat sinks are a good alternative to casting and can form complex shapes with excellent thermal conductivity. The cold forging process can make the fins per square millimeter almost perfectly straight. Cold forged radiator shapes include plate fin radiators, round pin radiators and oval fin radiators. Cold forged heat sink fabrication is well suited to the use of copper as copper heat sink formation does not require high temperatures and can be formed with minimal damage. Secondary machining operations, such as holes, chamfers and steps, can often be included in cold forged heat sink manufacturing to reduce waste. Forging involves forming metal using localized compressive forces.
Forged radiators are manufactured using this improved process called cold forging. Cold forging uses high pressure and low temperature to ensure that there are no air bubbles or other impurities in the material. This improves the thermal performance of the heat sink and increases the density of the material. FM Thermal Products utilizes special mold opening tools and high pressure to produce high-precision heat sinks with high aspect ratios. Forged radiators are usually made one part at a time and can be made from AL 6063 or C1100. Aspect ratios as high as 35:1 are possible and no draft angles are required on the fins. The fins can be round, oval, straight or any combination of the same part.
Another benefit of this process is that forged radiators of the same design with different heights can be produced using only one set of forging dies. Forged heat sinks have no thermal interface between the fins/pins and the base when using high aspect ratio or dense fins, which will provide better performance than stamped fin or bonded fin heat sinks. The heat distribution of the aluminum heat sink can be further improved by embedding copper inserts into the base during the forging process. Since this process is fairly expensive, for small batches it may be worth exploring crosscut extrusion to produce square pins. It is a good choice for larger volume die castings.
FM has a smart engineering team that will greatly help our partnersSimplify product design and reduce manufacturing costs.
FM can do the most complexDie casting mold in 3 weeks,Stamping dies and extrusion dies were completed within 2 weeks.
Free samples available.We can shorten the sampling time to 3 days. No matter how big the order is, our delivery time will beno more than 1 month.
Free samples available.We can shorten the sampling time to 3 days. No matter how big the order is, our delivery time will beno more than 1 month.

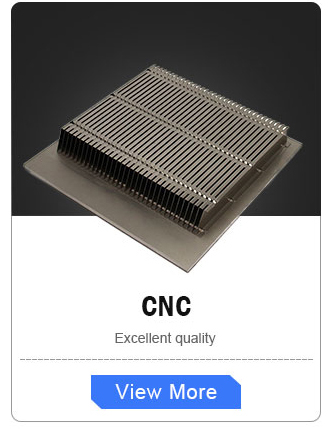

cnc machined radiator
Copper tube life: 7 years
Maximum processing size: 2500mm
Minimum machining accuracy: 0.01mm
Minimum surface roughness: 0.05mm
Maximum processing size: 2500mm
Minimum machining accuracy: 0.01mm
Minimum surface roughness: 0.05mm

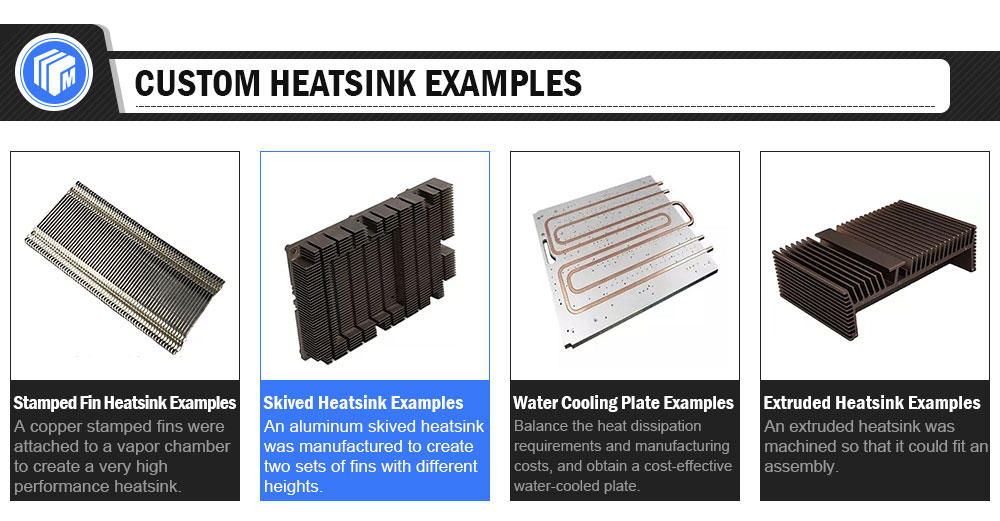

Stamped Fin Heat Sink
Copper tube life: 7 years
Lowest investment in fin tools
Different finish options
Lowest investment in fin tools
Different finish options
Turned Radiator
Minimum fin thickness: 0.1mm
Maximum fin height: copper 70mm, aluminum 130mm
Maximum width: 1000mm
Maximum fin height: copper 70mm, aluminum 130mm
Maximum width: 1000mm

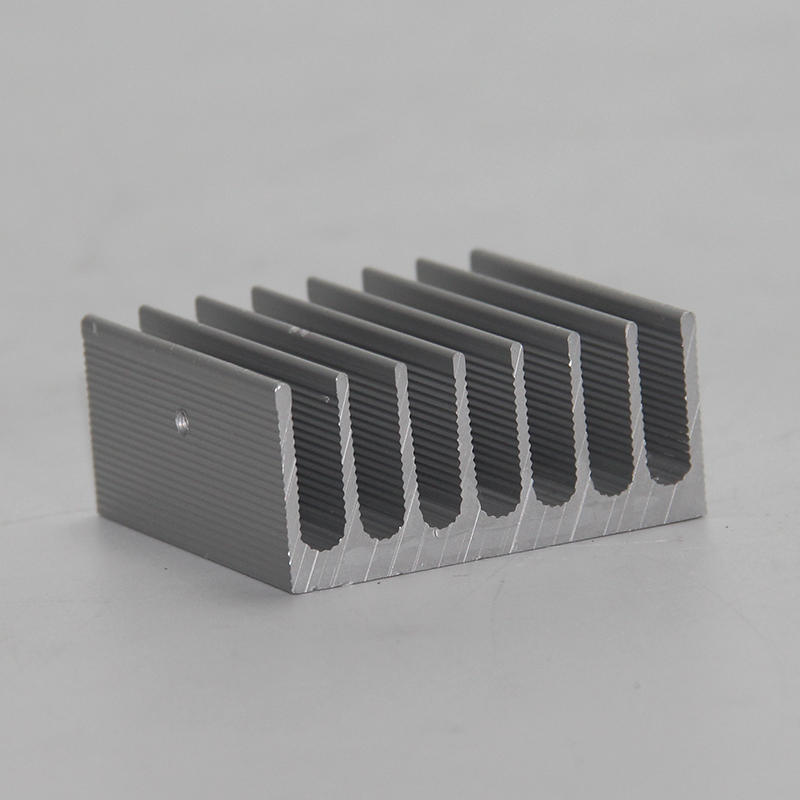

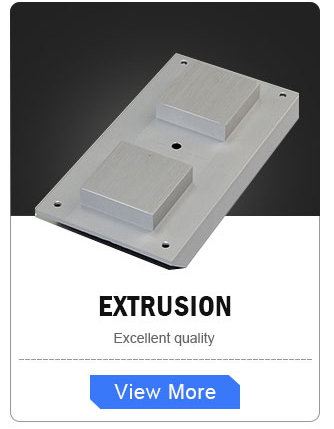

Extruded heat sink
Our extruder size ranges from 450T~9000T,
Can meet extrusion needs of various sizes.
Can meet extrusion needs of various sizes.

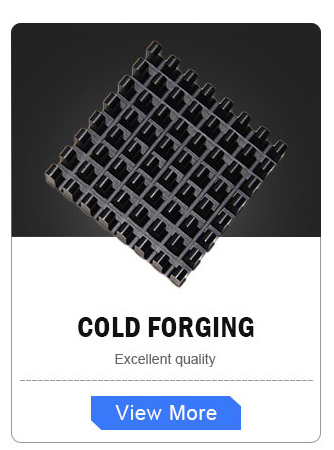

Cold forged radiator
Our largest cold forging machine is 5000T,
Various types of radiators can be made as required.
Various types of radiators can be made as required.

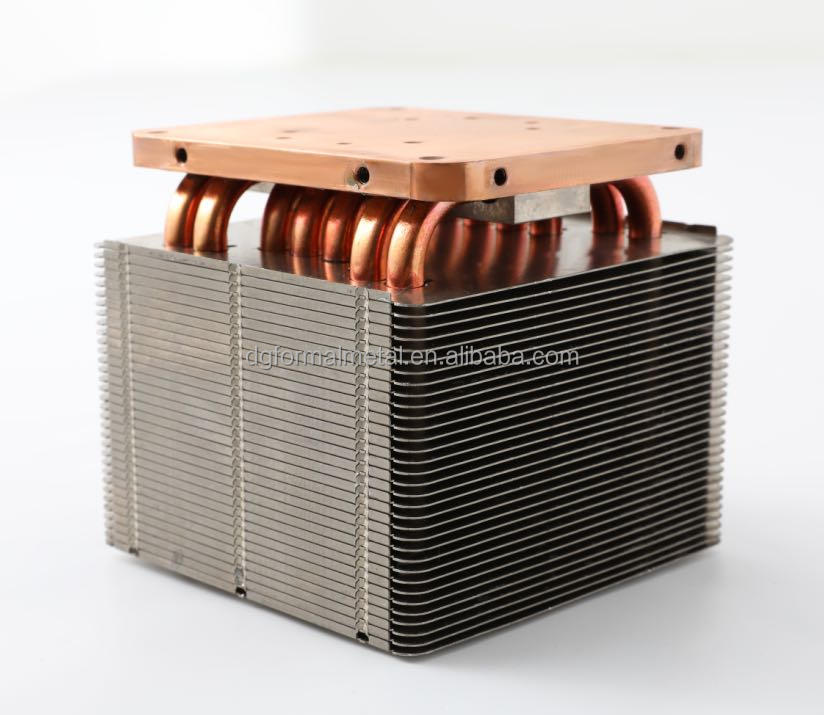

heat pipe radiator
Copper tube life: 7 years
Lowest investment in fin tools
Different finish options
Lowest investment in fin tools
Different finish options
1. How can I get the price?"- We usually quote within 24-48 hours of receiving your inquiry (excluding weekends and holidays).- If you are in a hurry to get a price, please send us an email or otherwise contact us so that we can provide You provide a quote."2. Can I buy samples when I place an order?-Yes. Please feel free to contact us.3. What is your delivery time?- It depends on the order quantity and the season you place the order.4. What is your payment term?T/T, L/C or PayPal. This is negotiable.5. What is the shipping method?"- It can be shipped by sea, ocean or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing your order."6. How do you keep our business in good long-term relationships?"-1. We maintain good quality and competitive price to ensure our customers benefit; -2. We respect every customer, just like our friends, we sincerely do business with them and make friends , no matter where they come from."
Specification
Item type | custom radiator |
Material | aluminum, copper |
size | Standard or custom sizes |
color | Silver, black, blue, wood, RAL powder paint, etc. |
shape | Round, square, flat or customized |
thickness | 0.4mm-20mm or customized |
application | LED lighting, inverter, welding machine, communication equipment, power supply equipment, electronic industry, thermoelectric Chiller/generator, IGBT/UPS cooling system, etc. |
Production Process | Profile extrusion - cutting - CNC machining (milling, drilling, tapping) - deburring - cleaning - inspection - packaging |
Finish | Anodizing, Polishing, Electroplating, Polishing, Sandblasting, Powder Coating, Silver Plating, Brushing, Painting, PVDF, etc. |
Deep Processing | CNC, Drilling, Milling, Cutting, Stamping, Welding, Bending, Assembling, Custom Aluminum Fabrication |
tolerant | ±0.01mm |
length | custom length |
Minimum order quantity | Low MOQ |
Bale | Standard export packaging or discussion |

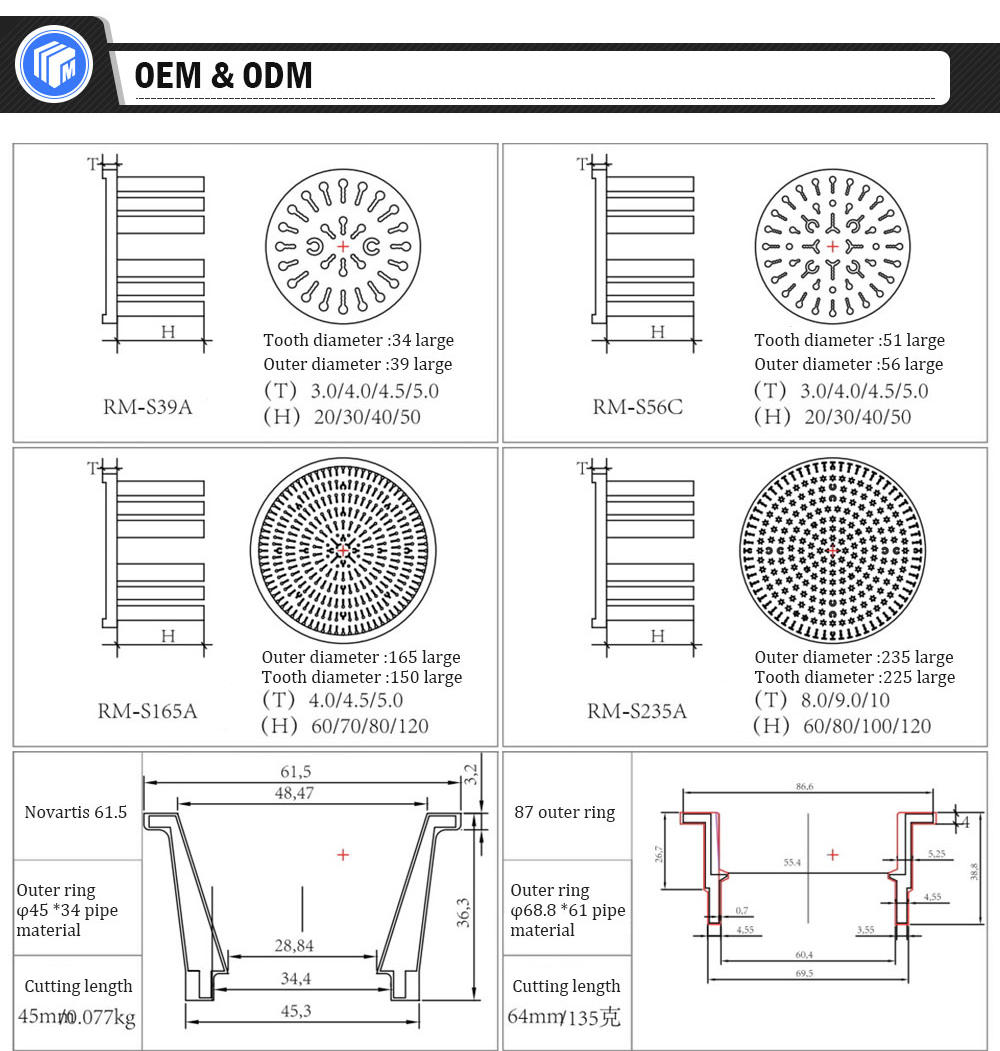

OEM & ODM | usable. Our engineers can check and discuss your design, very helpful! |
delivery time | 15-20 days after sample confirmation and advance payment, or negotiated |
