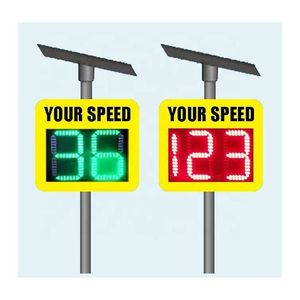

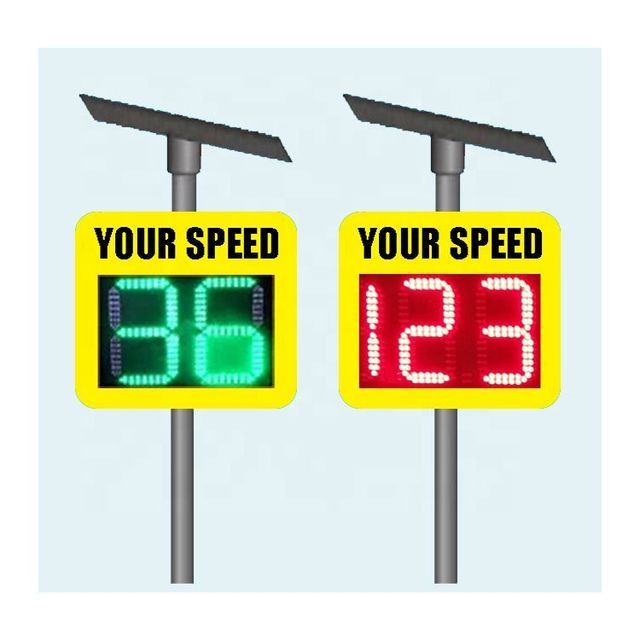

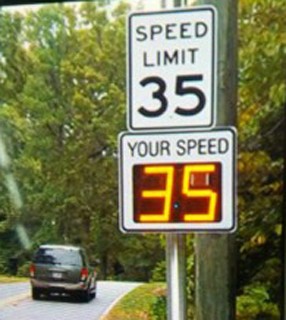

Factory Direct Traffic Sensor Solar Speed ​​Radar

  • $498.00 / 1 - 49 units
    $488.00 / 50 - 99 units
    $478.00 / 100 - 199 units
    $468.00 / >=200 units
  • 1 unit
  • Shenzhen Juming Electronics Co., Ltd.
  • Guangdong, China
  • Mr Huang Gang
PRODUCT DETAIL
Material:iron/aluminumSupply capacity:1200 pieces per month
color:red green yellowWarranty:3 years
Packaging Details:Triple Pack Triple Protection. Full protection, bumper, feeder, pressure resistance, shock resistance, moisture resistance. Foam pad, corrugated box, wood, fully enclosed wood.payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
power supply:Solar or DC12/AC110-220Vbrand:UMLED
weight:15KGport:Shenzhen Port
Display velocity values:1-199km/hModule size:45CM*35CM
Solar panels:18V/60WDisplay mode:2 or 3 digits
Origin:Guangdong, Chinaproduct name:radar speed limit sign
Product Description

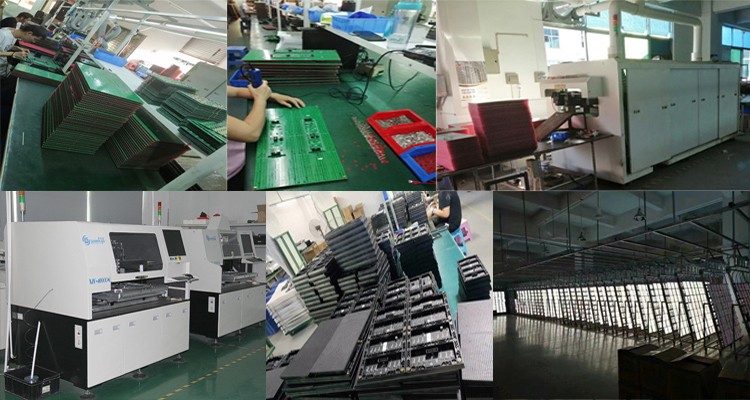

"Technical Strength": The company has a group of experienced and high-quality software and hardware technical engineers to develop targeted products for different customers.
"Chinese factory, factory direct sales, mass production, welcome to customize"

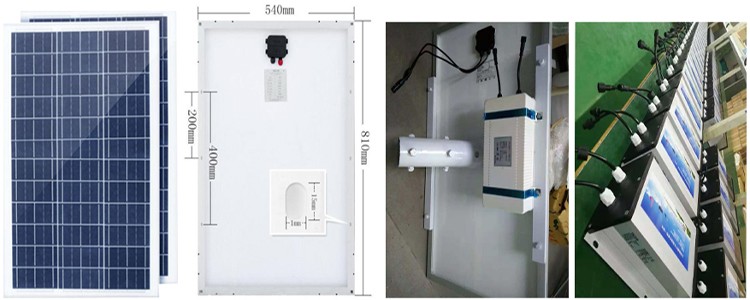

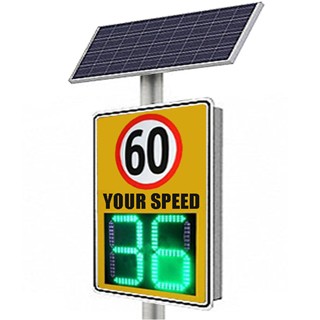

Solar panel parameters:
Model: UMSP60
Maximum power: 60(W)
Size: 810*550*30(mm)
Weight: 6(KG)
Working current: 4.51(A)
Working voltage: 18.68(V)
Open circuit voltage: 22.7(V)
Short circuit current: 3.68(A)
Product List:

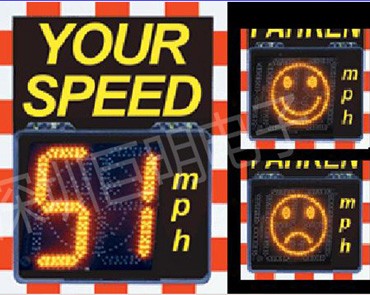

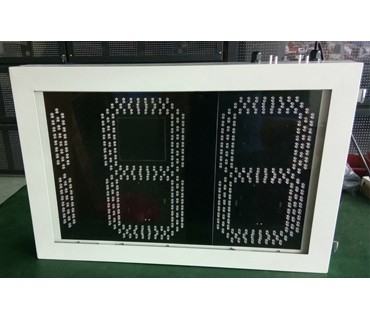

speed display

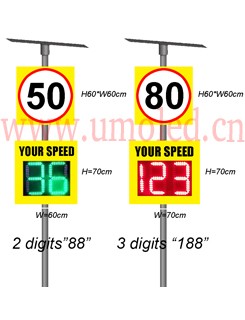

2 digits "88" or 3 digits "188"
radar module
K band, 24.150GHZ
solar panel
UM-S60W
Battery
DC12V60AH lithium battery

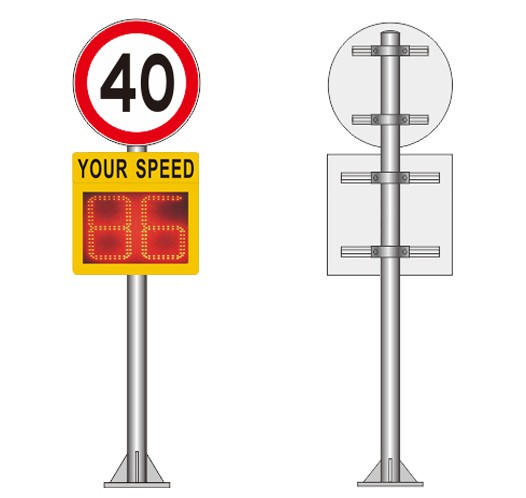

Install the pillar support
According to customer requirements



UMLED Radar Speed ​​Sign Specifications:

1. Production size digital size: H 360mm×W 500mm or H 360mm×W 600mm
Logo size: H 900mm×W 600mm×T 120mm
Customized according to customer requirements
2. Pixel structure: RED+GREEN
3. Display color: red, green, yellow
4. LED wavelength red: 620 green 525
5. Brightness density: ≥6000cd/㎡, outdoor highlight
6. Angle of view: ±60°
7. Working voltage: DC12V or AC110--220V or solar power supply is optional
8. Power consumption: maximum 15W average ≤10W
9. Input signal: RS232/485
10. Viewing distance: 1-300 meters
11. Speed ​​range: 1-199KM/H
12. Radar frequency K-band: 24.150GHZ
13. Accuracy: ±1KM
14. Radar range: 1-200M
15. Service life: ≥100,000 hours
16. Weight: ≤20KG
17. Protection level: IP65
18. Working temperature: -40℃~65℃
19. Working humidity: 5%~95%RH
20, delivery time: 5-15 days according to requirements
21, packing: carton

22. Port: Shenzhen Port

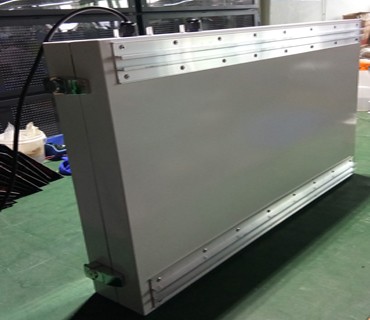

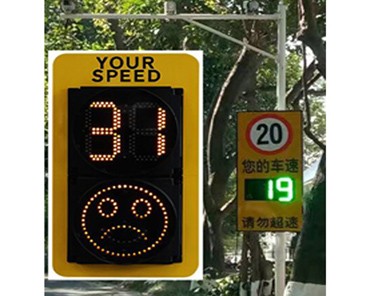

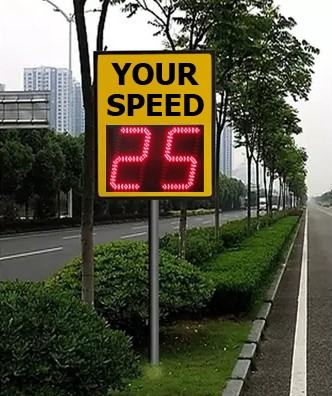

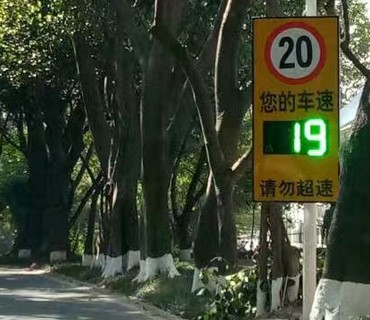

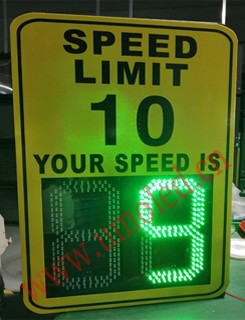

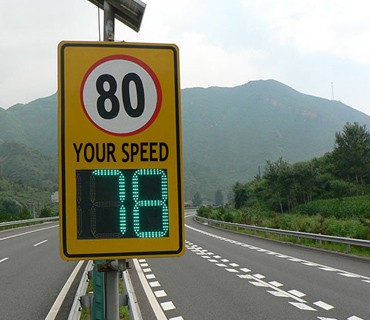

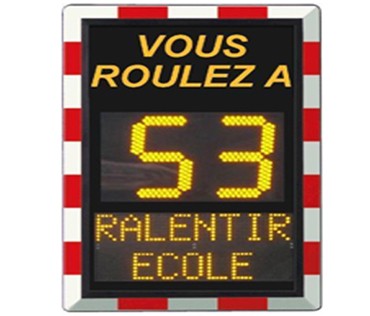

detailed image
Packaging and Shipping

1. For small quantity, we prefer to meet your deadline worldwide on time than to ship by UPS, DHL, EMS, TNT or FedEx express.
2. For regular mass production, shipment can be arranged by air, sea or express. Let us know your requirements, we will try our best to save your budget and meet the deadline.
