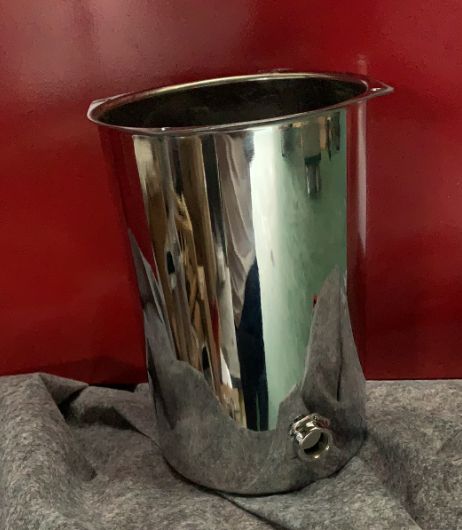

Factory direct custom polished and chrome cans

PRODUCT DETAIL
type:hydraulic power unitproduct name:Hydraulic tank
color:Chrome or customizedweight:8
capacity:1-12.5LMaterial:Metal
structure:otherpressure:other
brand:blogshape:round or square
application:For power units/power packsAfter Warranty Service:Video technical support
Warranty:1 yearSupply capacity:10000 pieces per month
Packaging Details:1. Standard export packing 2. Bulk orders will be shipped with pallets 3. Delivery time: 2-3 working days after payment.Health status:new
strength:otherCaliber/Diameter:94mm&120mm&123mm&135mm
Original Equipment Manufacturer:Yesport:Ningbo Port
size:Different kindsShowroom location:not any
place of origin; place of origin:Zhejiang, Chinapayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Other
poster



Product Description
number Model instruct
Diameter (mm) volume Material shape size color Install

1

TG-MC094-010W Φ94 1L steel round Φ98-149 black/custom

horizontal

or

vertical

2 TG-MC094-012W 1.2L Φ98-185
3 TG-MC120-018W Φ120 1.8L Φ124-161
4 TG-MC120-022W 2.2L Φ124-200
5 TG-MC120-030W 3.0L Φ124-212
6 TG-MC120-032W 3.2L Φ124-266
7 TG-MC120-035W 3.5L Φ124-321
8 TG-MC120-030H Φ120 3L Φ178-160
9 TG-MC120-032H 3.2L Φ150-210
10 TG-MC120-046H 4.6L Φ178-225
11 TG-MC120-056H 5.6L Φ178-264
12 TG-MC120-062H 6.2L Φ178-290
13 TG-MC120-080H 8L Φ178-366
14 TG-MC120-098H 9.8L Φ178-435
15 TG-MC120-125H 12.5L Φ178-545
16 TG-MC120-022V Φ120 2.2L Φ150-160
17 TG-MC120-030V 3.0L Φ178-160
18 TG-MC120-032V 3.2L Φ150-210
19 TG-MC120-046V 4.6L Φ178-225
20 TG-MC120-056V 5.6L Φ178-265
twenty one TG-MC120-062V 6.2L Φ178-290
twenty two TG-MC120-080V 8.0L Φ178-366
twenty three TG-MC120-098V 9.8L Φ178-435
twenty four TG-MC120-125V 12.5L Φ178-545



Remarks: DiaΦ123, ​​Φ135 connection port or square fuel tank can also be selected.

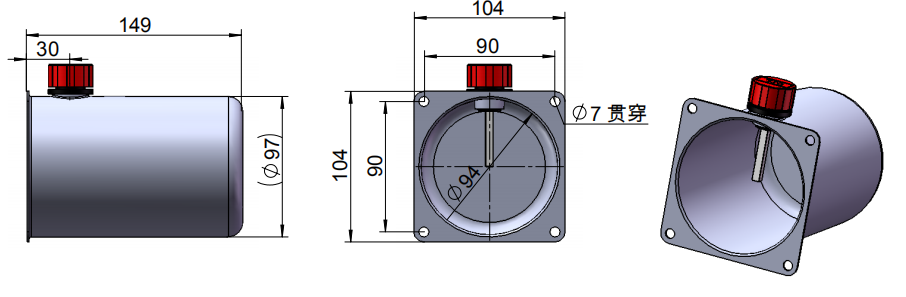

                                              TG-MC094-010W

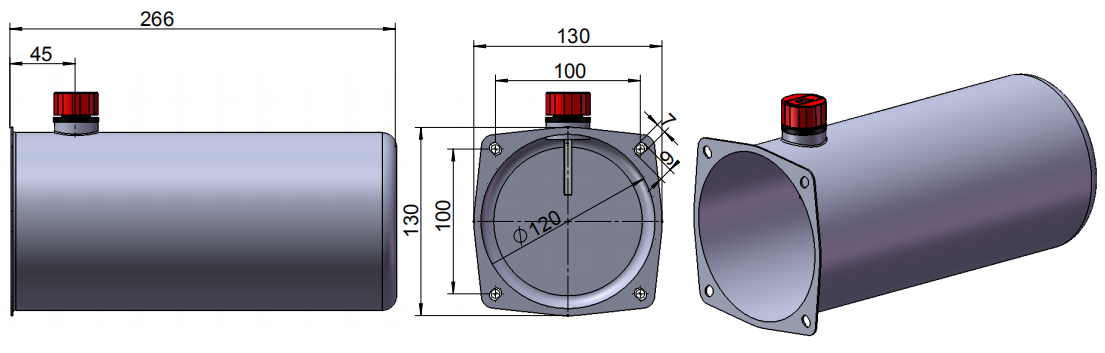

TG-MC120-032W

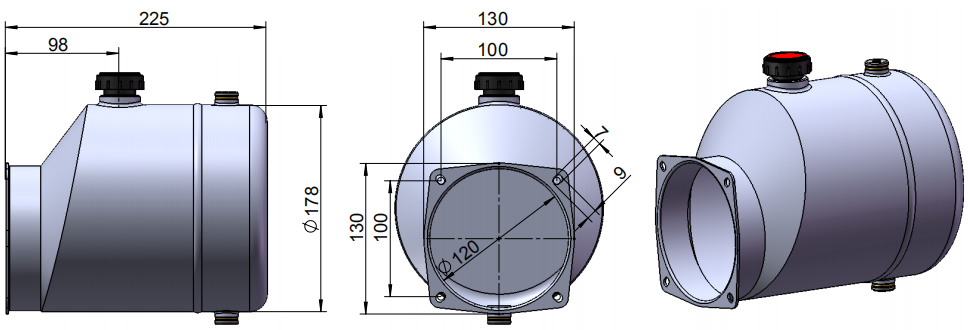

TG-MC120-046H

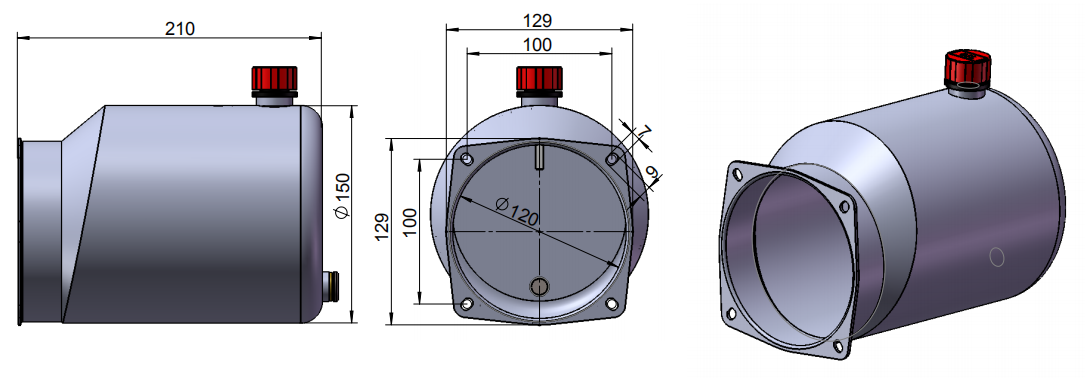

TG-MC120-032H

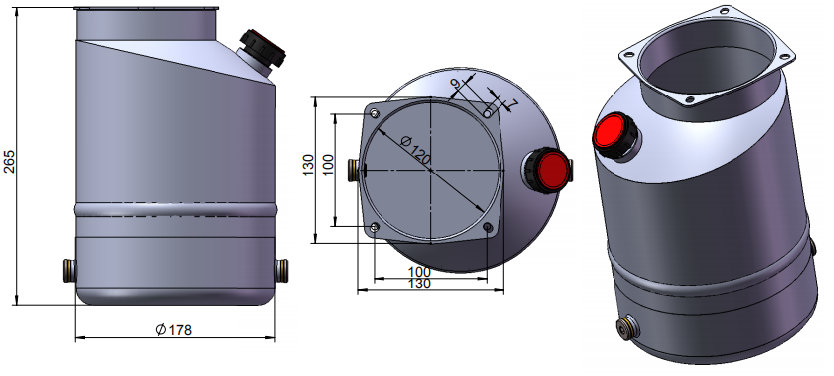

TG-MC120-056V







advantage
