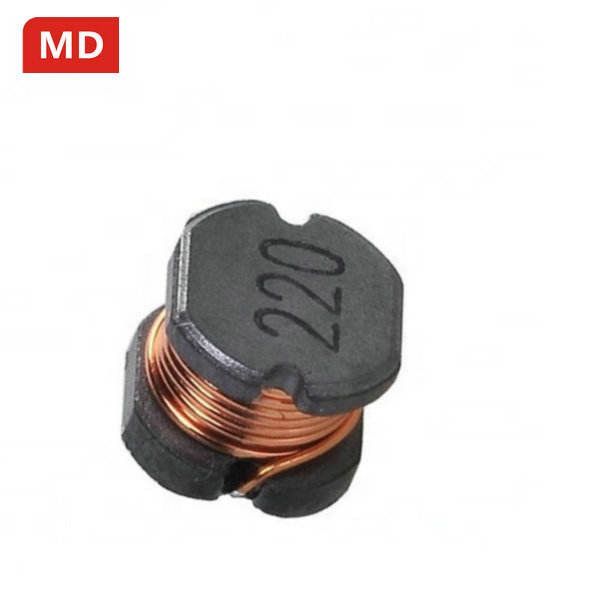

Factory direct sale PCB with low loss shielded power chip inductor coil ceramic inductor
- $0.15 / >=300 pieces
- 300 pieces
- Huizhou Mingda Precise Electronics Co., Ltd.
- Guangdong, China
- Mr Tianlu Ji
PRODUCT DETAIL
Supplier Type: | Original, MD-2106 | rated power: | custom made |
Inductor - Series: | custom made | high: | custom made |
Current - Saturation: | custom made | application: | For LED power supply, for LED driver |
DC Resistance: | 0.241Ω max | tolerant: | ±20% |
Material - Core: | Nitz | Supply capacity: | 5000000 pieces/month |
port: | Shenzhen Port, Yantian Port, according to customer requirements | Packaging/Case: | custom made |
Installation type: | Mounter | Packaging Preview: | |
Rated Current - Parallel: | custom made | shield: | unshielded |
Rated Current (Ampere): | custom made | Temperature Coefficient: | custom made |
type: | Inductor Surface Mount | Card: | Medical PhD |
DC Resistance (DCR) - Parallel: | custom made | Dimensions / Dimensions: | custom made |
Inductance - Parallel: | custom made | Operating temperature: | -45°C to +130°C |
Operating temperature: | -20℃~+80℃ | Frequency - Self-Resonance: | custom made |
DC Resistance (DCR): | custom made | Number of coils: | custom made |
place of origin; place of origin: | Guangdong, China | DC Resistance (DCR) - Series: | custom made |
payment terms: | D/P, T/T, Paypal | brand: | Medical PhD |
Rated current: | 1.14A max | feature: | Low loss, high power |
Certification: | RoHS Compliant | Resist: | custom made |
Package: | Tape*Reel Packaging | type of packaging: | Tape and Reel |
Current Saturation - Series: | custom made | Output Power: | 0.05 to 5000W |
Packaging Details: | Packed with *roll | Cross reference: | SMD inductor |
Current Saturation - Parallel: | custom made | metallic line: | Excellent choke inductor copper |

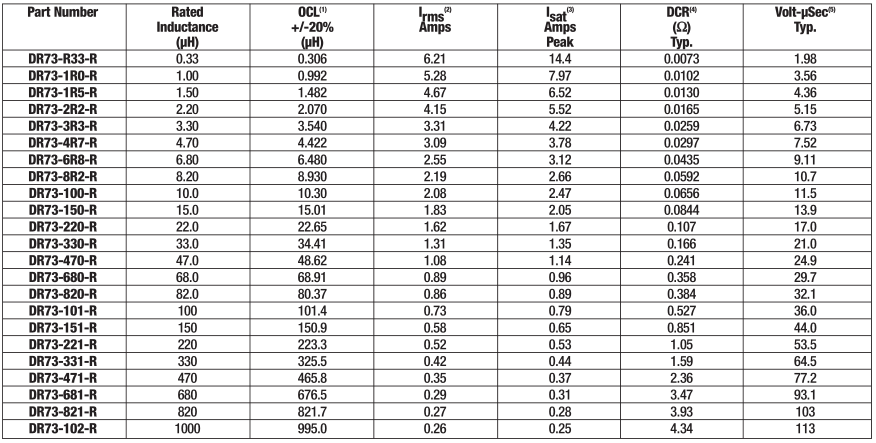

model: | DR73-470-R | inductance: | 47 er, custom |
Resistor Tolerance: | ±10% |
Factory direct sale PCB with low loss shielded power chip inductor coil ceramic inductor
Product Description
1. Carrier tape packaging for SMT
2. High rated current, low DCR, roundness
3. Diameter: 3.5mm---10mm, Height: 1.0mm---6.0mm
4. Suitable for reflow soldering SMT process soldering
5. Lead-free products, RoHS compliant

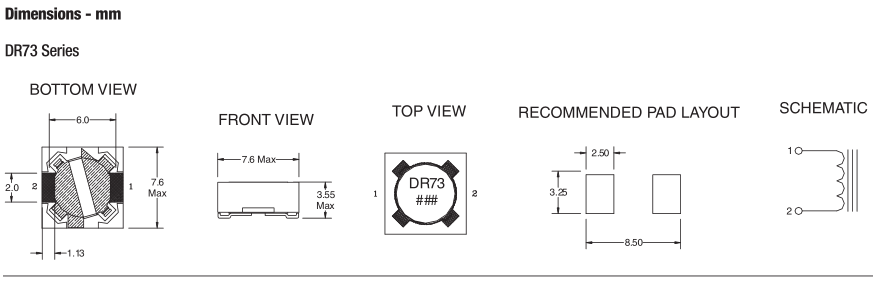

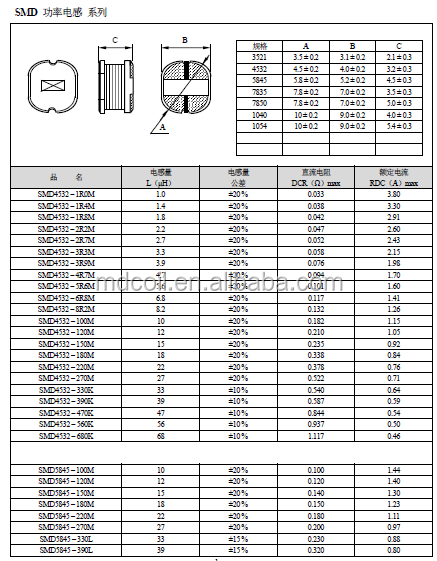

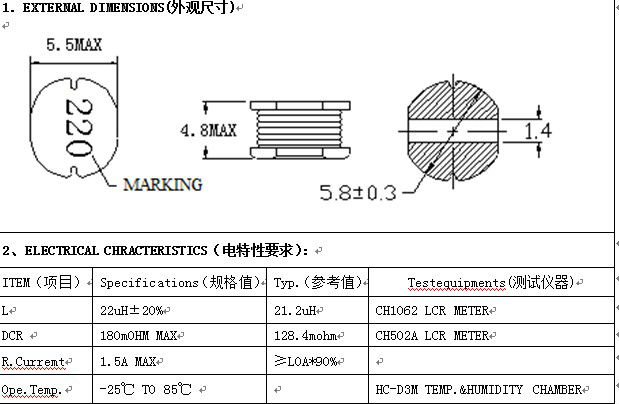

shape and size
Support customization, welcome to inquire!
