Factory price recycling hopper plastic loader suction machine automatic dust removal vacuum plastic automatic loader
- $170.00 / 1 - 9 sets
$168.00 / 10 - 19 sets
$165.00 / >=20 sets - 1 set
- Dongguan Excellence Technology Co., Ltd.
- Guangdong, China
- Mr Andy Liu
PRODUCT DETAIL
| Package dimensions: | 37*36*64 | port: | Shenzhen/Guangzhou |
| Voltage: | 220v/single phase, 220v or customized | Marketing Type: | Hot Products of 2019 |
| Warranty: | 1 year | Video external inspection: | if |
| Packaging Preview: | Hopper volume: | 7.5L | |
| Motor Power: | 1.5 hp | Suction lift: | 4m |
| product name: | Automatic hopper loader | Health status: | new |
| Showroom location: | not any | place of origin; place of origin: | China |
| Core components: | motor | Delivery capacity: | 350 kg/h |
| Applicable industries: | Manufacturing plants, farms, other | Supply capacity: | 1000 sets per month |
| Motor Type: | carbon brush | Dimensions (L*W*H): | 206*330*545 |
| Packaging Details: | Standard carton | payment terms: | Western Union, wire transfer |
| Weight (kg): | 14 kg | Power (kW): | 1.5HP |
| weight: | 14 kg | Mechanical test report: | if |
| Capacity (kg/hour): | 350 kg/h | Diameter of delivery pipe: | 38mm |
| Core Components Warranty: | 1 year |

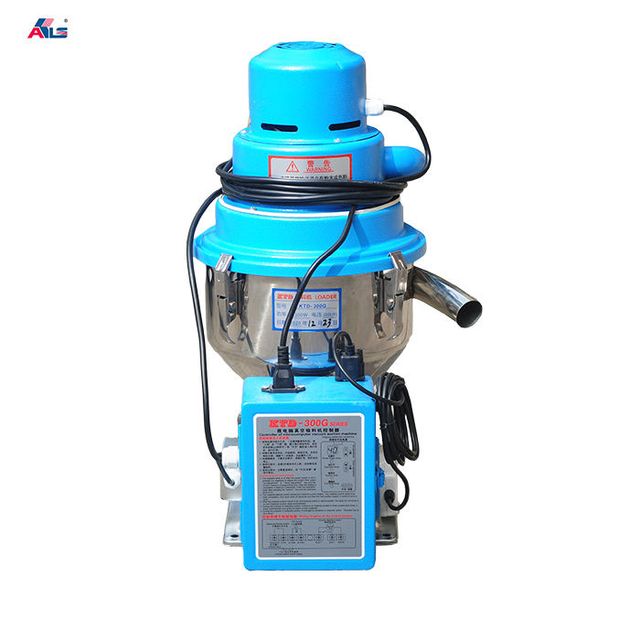

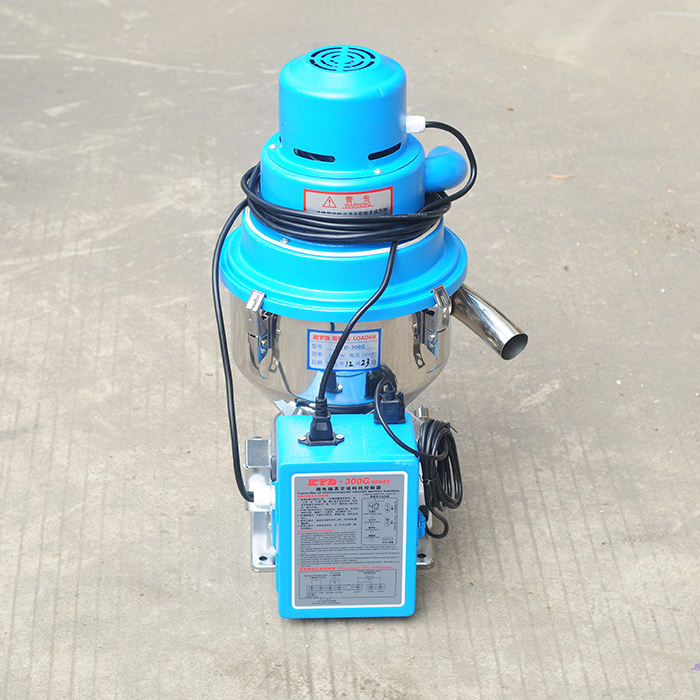

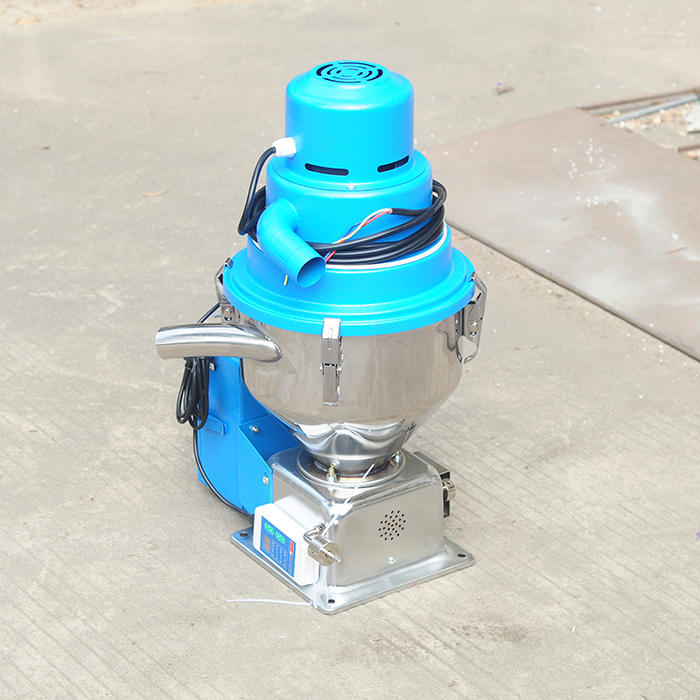

AL-300G Vacuum Automatic Feeder
Equipped with a carbon brush motor, this compact vacuum automatic feeder is suitable for new powder-free granular raw materials, small in size and light in weight, and can be placed directly on the dryer.
Function list
compact structure
light weight
strong power
simple control
easy to maintain
Product configuration

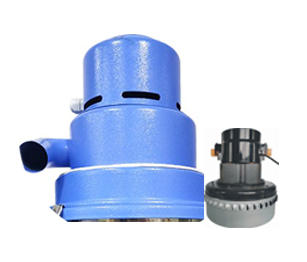

High power motor

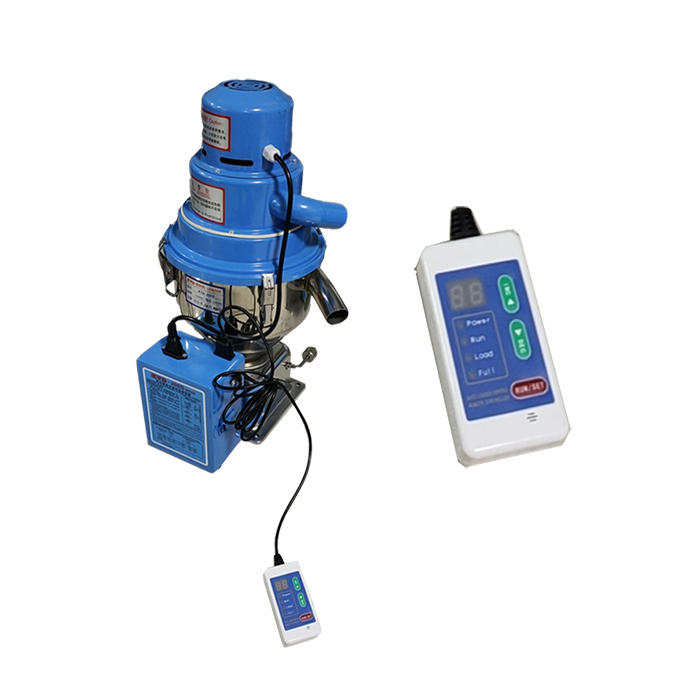

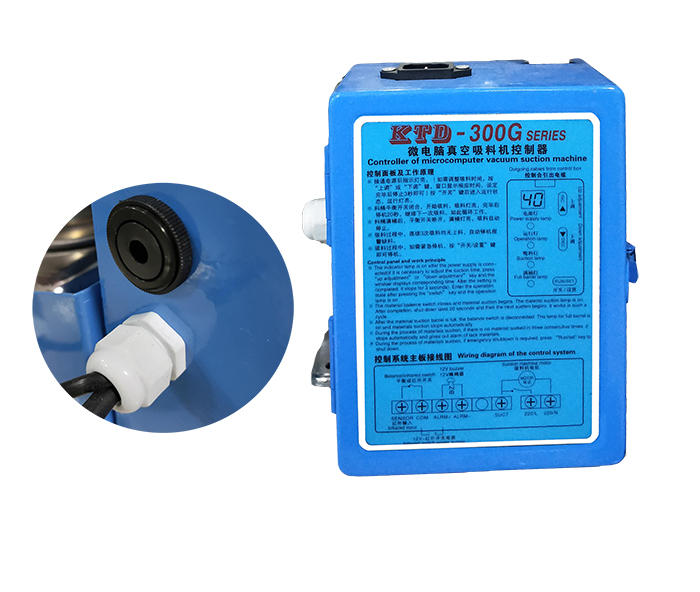

remote control panel
Audible alarm

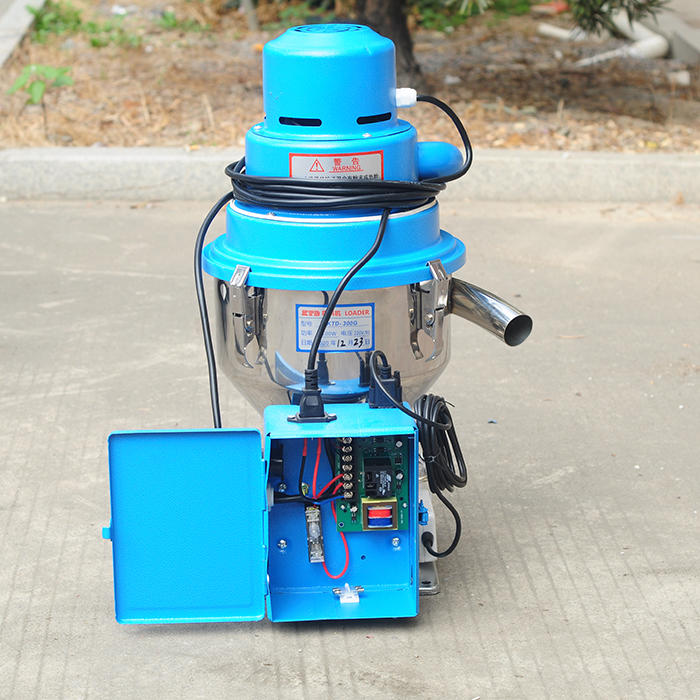

detailed picture

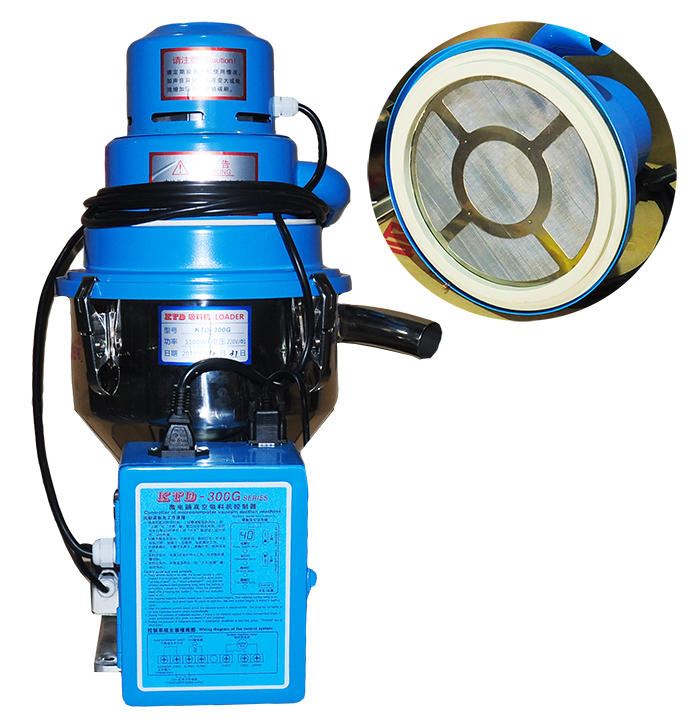

cloth filter
The dense mesh filter can filter even the smallest dust and powder.

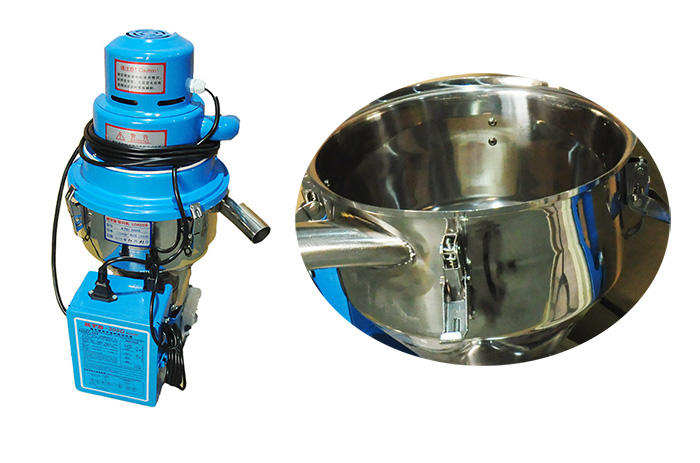

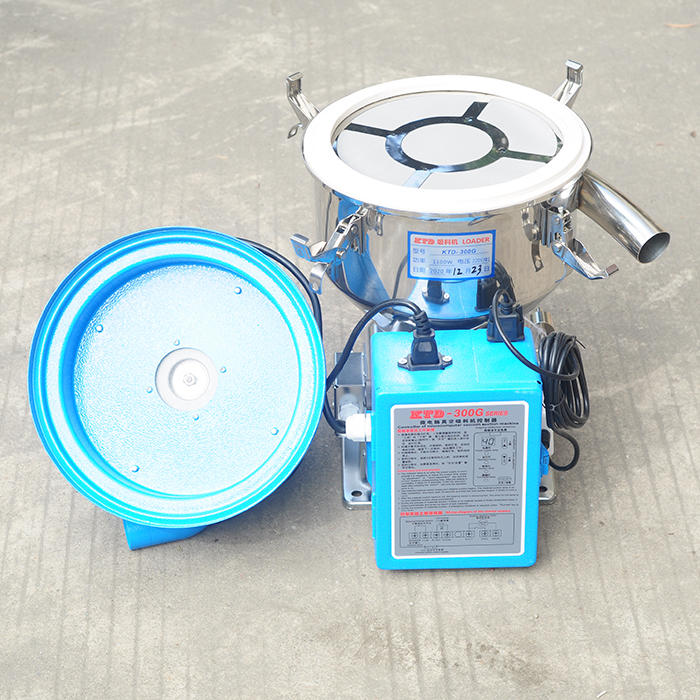

stainless steel hopper
Open structure, easy to operate and clean, stainless steel material prevents rust.

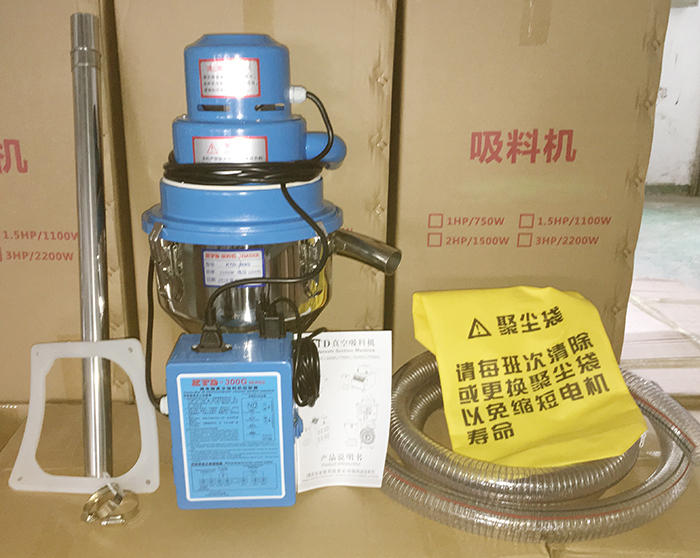

Do not. | Name | quantity |
1 | loader | 1 |
2 | Hose 3m | 1 |
3 | Stainless steel tube 60cm | 1 |
4 | trash bag | 1 |
5 | Gasket | 1 |
6 | manual | 1 |
Product Specifications
Model | motor | delivery ability | elevator | hopper volume | diameter pipeline | aspect | weight | ||||
type | strength | machine (mm) | pack (centimeter) | ||||||||
AL-300G | carbon brush | 220v/1Φ,1.5hp | 350 kg/h | 4m | 7.5L | Φ38 | 206*330*640 | 37*36*64 | 14KG | ||
AL-400G | Inauguration | 380v/3Φ,1hp | 400 kg/h | 4m | 7.5L | Φ38 | 206*330*670 | 43*44*73 | 26KG | ||
AL-700G | carbon brush | 220v/1Φ,1.5hp | 400 kg/h | 4m | 7.5L | Φ38 | 365*295*540 | 70*34*58 | 25KG | ||
AL-800G1 | Inauguration | 380v/3Φ,1hp | 400 kg/h | 4m | 7.5L | Φ38 | 445*375*625 | 74*41*71 | 47KG | ||
AL-800G2 | Inauguration | 380v/3Φ,1.5hp | 550 kg/h | 4m | 7.5L | Φ38 | 445*375*625 | 74*41*71 | 51KG | ||
AL-800G3 | Inauguration | 380v/3Φ,2hp | 700 kg/h | 5m | 7.5L | Φ38 | 445*375*625 | 74*41*71 | 53KG | ||
AL-900G1 | Inauguration | 380v/3Φ,1hp | 400 kg/h | 4m | 7.5L | Φ38 | 420*470*1080 | 48*52*120 | 55KG | ||
AL-900G2 | Inauguration | 380v/3Φ,1.5hp | 550 kg/h | 4m | 7.5L | Φ38 | 420*470*1080 | 48*52*120 | 60KG | ||
AL-900G3 | Inauguration | 380v/3Φ,2hp | 700 kg/h | 5m | 7.5L | Φ38 | 420*470*1080 | 48*52*120 | 65KG | ||
