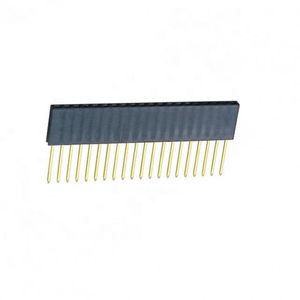

Factory supply PCB 2.54mm male and female head 2.54mm H8.5 single row direct welding PC104 female head
- $0.01 / >=500 pieces
- 500 pieces
- Shenzhen Yoso Connector Electronics Co., Limited
- Guangdong, China
- Ms Daisy Dai
| type: | Headers and PCB Sockets | Supply capacity: | 100000 pieces per day |
| Origin: | Guangdong, China | describe: | 2.54mm female connector direct welding |
| brand: | Yangshang | Contact resistance: | 20mΩ max |
| Minimum working height: | -40°C | model: | F185X1XXXXYSXX01 |
| Pressure resistance: | 1000V AC/DC | Rated current: | 3.0 amps |
| Material: | PA6T | Rows: | 1 |
| Contact pin: | 2~80P | Maximum working height: | +105°C |
| gender: | PCB connection | Packaging Details: | PE bag; Tube bag; Tray packing; Tape and reel packing |
| port: | Shenzhen; Hong Kong | application: | circuit board |
| Package: | tube | Certificate: | ISO9001/ROHS/REACH/MSDS |
| Package preview: | Solder Type: | DIP SMT RA; Horizontal SMT | |
| Position/Compartment/Rows: | 1 | Area of use: | Global |
| asphalt: | 2.54mm | color: | Black |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supplier type: | Original factory, ODM |
| Insulation resistance: | Minimum 1000mΩ | Contact materials: | Phosphor bronze or brass |
| plating: | gold plated or tin plated | Installation type: | PCB direct soldering |
| Insulation Materials: | Polyester (UL94V-0) | Pin or socket: | pin, external contact |
| Connector usage: | connect |
Factory supply PCB 2.54mm male and female head 2.54mm H8.5 single row direct welding PC104 female head
femaleTitle Series Information
| asphalt | 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.2mm, 2.54mm, 3.96mm 5.08mm |
| Standard Insulator Height | 2.0&2.1mm, 3.4&3.5mm, 4.0&4.3mm; 4.6&5.0mm, 6.35&6.8mm; 7.1mm, 5.7mm, 8.5mm... |
| contact bar | one to four rows |
| Number of stitches per row | 1pin~40pin; welding length can be customized |
| termination type |
Direct welding (DIP), right angle welding (RA), surface mount (SMT), horizontal SMT Pin length can be customized |
| Contact Plating | Gold plating, tin plating, gold thickness can be customized |
| Insulation Materials | PBT, PA6T, PA46, PA9T, LCP |
| standard package | PE bag; Tube bag; Tray packing; Tape and reel packing |
product information
| asphalt | 2.54mm |
| Insulator height | H3.4/H5.9/H3.5/H4.5/H5.0/H5.7/H7.1/8.0/H8.5/11.0/13.0 |
| Rows | single row; double row, triple row |
| stylus | 1~40P per row |
| Insulation Materials | PBT/ LCP/ PA46/ PA6T /PA9T |
| terminal material | Phosphor bronze or brass |
| terminal type | DIP/ RA /SMT/ Horizontal SMT |
| plating | gold-plated; tin-plated |
| positioning nail | yes or no |
| Encapsulation | PE bag; Tube bag; Tray packing; Tape and reel packing |
| OEM/Design and Manufacturing | Can produce drawings or samples |
| sample | Provide free samples for testing |
| MOQ | 500 |
| delivery time | 1~2 weeks |
product specification
Rated current: 3.0AMP
Contact resistance: 20mΩ Max
Withstanding voltage: 1000V AC/DC
Insulation resistance: minimum 100mΩ
Operating temperature: -40C to +105C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni.
Insulation material: Polyester (UL94V-0)
Standard: PA6T
Maximum processing temperature: 230C for 30-60 seconds
(260C 10 seconds)

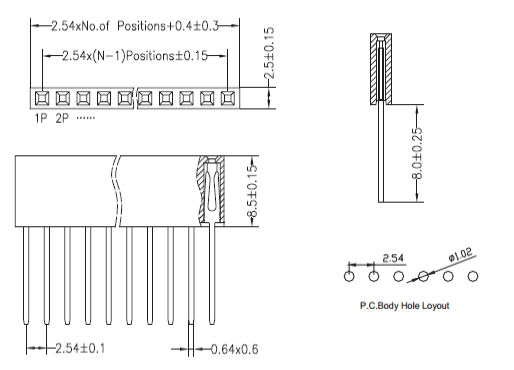

product specification

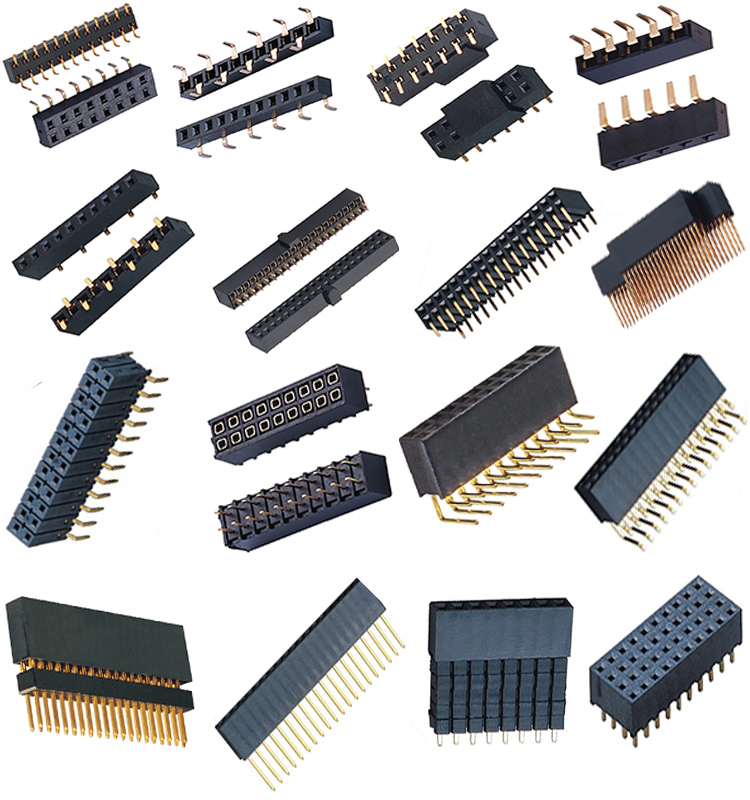

Related Products

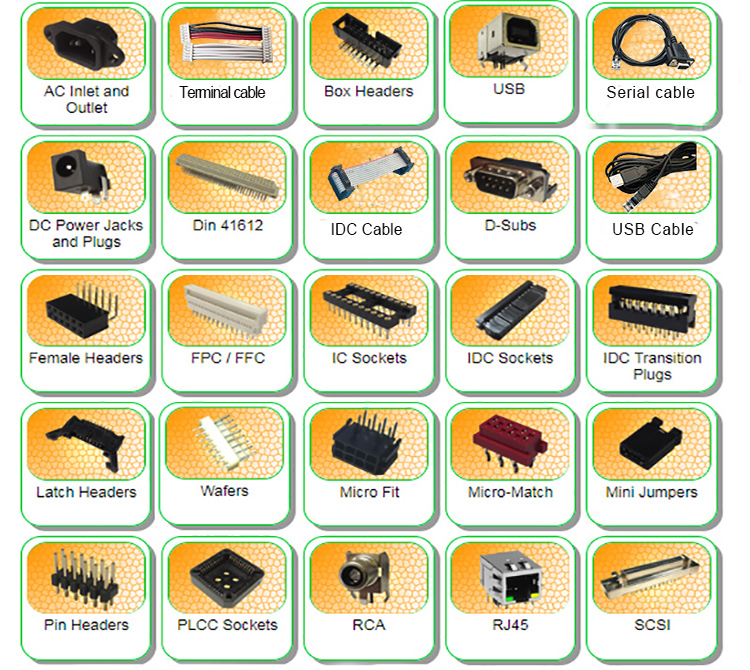

main products
If you don't find the product you are searching for, please feel free to contact us, we will check and reply you as soon as possible.

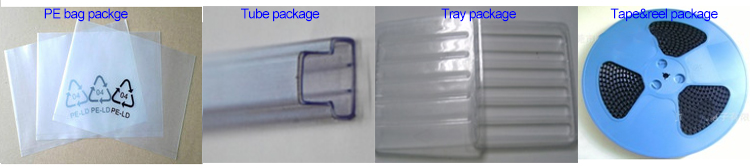

Package
We will choose the appropriate packaging method to protect the product.
Standard packing method: PE bag; tube bag; tray packing; tape and reel packing
shipping
1. For samples shipped by DHL TNT FedEx UPS SF
2. For bulk products by air or sea
3. Customer appoints freight forwarder or we can also recommend reliable freight forwarder
1. High quality, rich experience, excellent service will be your reliable connector and cable assembly partner
2. Provide various connector and cable assembly solutions with competitive prices, also can be customized according to your special requirements
3. Cherish every opportunity to serve you and achieve a win-win business relationship
4. We arrange your order in our tight production schedule, ensuring fast and punctual delivery time.
5. We have a professional team to provide service and technical support.
6. Fast and professional communication, saving your time
Q1.What kind of products do you offer?
We provide competitive solutions and diverse connectors and harnesses
ask2.your... isMOQ?
The MOQ is 500pcs, the quantity depends on the items you need
ask3. What is your sample policy?
We can provide free samples, but customers need to afford the courier cost.
ask4. then yourleadtime?
Sample needs 3~5 days, mass production needs 2~3 weeks, it depends on
Regarding the items and quantities you ordered. If you need the item urgently, we will try our best to meet your delivery time
ask5. How about itWhat are your payment terms?
T/T in advance or before shipment, payment can be negotiated when we have stable relationship
ask6. What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
ask7. Can you produce according to samplesor drawings?
Yes, we can produce by your samples or technical drawings. We can manufacture molds and fixtures. 3D files will be provided to you for confirmation before production
ask8.How can you guarantee product quality?

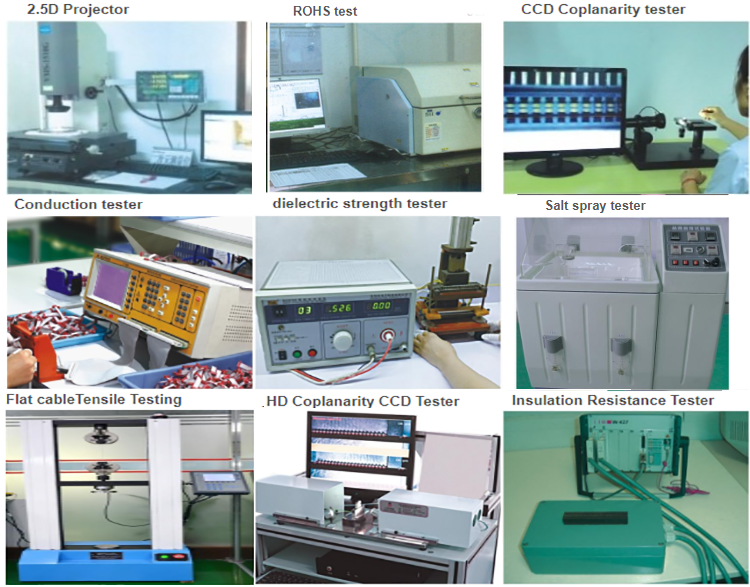

A: We have a strict policy on the production process, all products will be 100% tested before delivery
ask9. how can i get a quoteelectronic?
A: It will be very helpful to us if you can provide product details, detailed description, photos or drawings. We will send alternative drawings when the quotation is made to you.
Q10.How do you make our business a long-term good relationship?
High quality, rich experience, excellent service, will provide products with good quality and competitive price; be honest and respect every customer as our friend
