Factory wholesale zlp 800 suspended platform 630 with great price
- $1000.00 /set
- 1 set
- Shandong Xingdou Intelligent Equipment Co., Ltd.
- Shandong, China
- Mr Nick Ma
| Application: | Office Building; | Voltage: | 220-440V, 50-60Hz,3phase; |
| Project Solution Capability: | graphic design,3D model design,total solution for projects,Others; | Rated Load(Kg): | 200, 500, 630, 800, 1000; |
| Type: | new; | Max. Lifting Height: | 300 m; |
| Port: | Qingdao; | Supply Ability: | 50000 Set/Sets per Year Suspended Working Platform; |
| Packaging Detail: | Paper box and wooden cases or as your requirements.; | After-sale Service: | Online technical support,Free spare parts,Other; |
| Safety lock: | LS 30, 20-30KN.M; | Length of platform: | from 1m to 10m; |
| Place of Origin: | Shandong China; | Model Number: | ZLP500/630/800/1000; |
| Matrial: | Steel, Aluminum Alloy; | Surface treatment: | Painted, hot galvanized; |
| Usage: | Electrical work gondola Equipment; | Wire Rope Dia.: | 8.3/8.6/9.1/9.3/10.2mm; |
| Brand Name: | Xingdou; | Design Style: | Modern; |
| Operate system: | Electrical, Auto, Manual; | Warranty: | 1 Year; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Factory wholesale zlp 800 suspended platform 630 with great price
We are a factory specializing in the production of suspension platforms. Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.
Technical Parameter | ||||||||
Type | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | ||||
Rated Load | 500KG | 630KG | 800KG | 1000KG | ||||
Platform Sise | 5x0.69x1.18m | 6x0.69x1.18m | 7.5x0.69x1.18m | 7.5x0.69x1.18m | ||||
Platform material | Aluminum Alloy type, steel type with hot galvanized,steel type with painting | |||||||
Wire Rope Height | 0-200m | |||||||
Electrical Cable | (3x2.5+2x1.5mm2 )0-200m | |||||||
Working height | 0-200m | |||||||
Steel rope | 4pcsx100m,Ф8.3mm,Ф8.6mm,Ф9.1mm | |||||||
| Hoisting Machinery (Copper winding) | LTD5.0 | LTD6.3 | LTD8.0 | LTD10.0 | ||||
1.5kwx2 | 1.5kwx2 | 1.8kwx2 | 2.2kwx2 | |||||
15KN | 15KN | 15KN | 15KN | |||||
Lifting speed | 9.3m/min ± 5% | |||||||
Safety Lock | LSG20 | LSG20 | LSG30 | LSG30 | ||||
20KN | 20KN | 30KN | 30KN | |||||
Locking Cable Angle: 3°~8° | ||||||||
Suspension mechanism Hot Galvanized | Front beam overhang: 1.3 m | |||||||
Support adjustable height: 1.1~1.6m | ||||||||
Power Source | 380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase | |||||||
Counterweight | 800kg | 1000kg | 1000kg | 1200kg | ||||
Platform accessories
A.Features of Factory wholesale zlp 800 suspended platform 630 with great price
1. Combination of the bottom platform
2. Convenient and reliable electric control system
3. Reasonable designed structure and Attractive appearance
4. The working height can be asjusted to customer need.
5.. The voltage and frequency can be changed according to different countries conditions.
6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material
7. Famous brand of galvanized stee wirel rope
8. The film of the ZLP Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot gavalnized could choosed; price will be different. )
B. Our CHINA ZLP800, ZLP1000, ZLP250, ZLP500, ZLP630 Suspended Platform|Cradle|Gondola|Swing Stage|Powered
Access Platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.
1.The length of platform can be adjusted within 1M-30M.
2.The working height can be adjusted with your need.
3.The voltage can be adjusted with your need.
4.The platform materials can be adjusted with your need. 1) Aluminum alloy 2) Steel

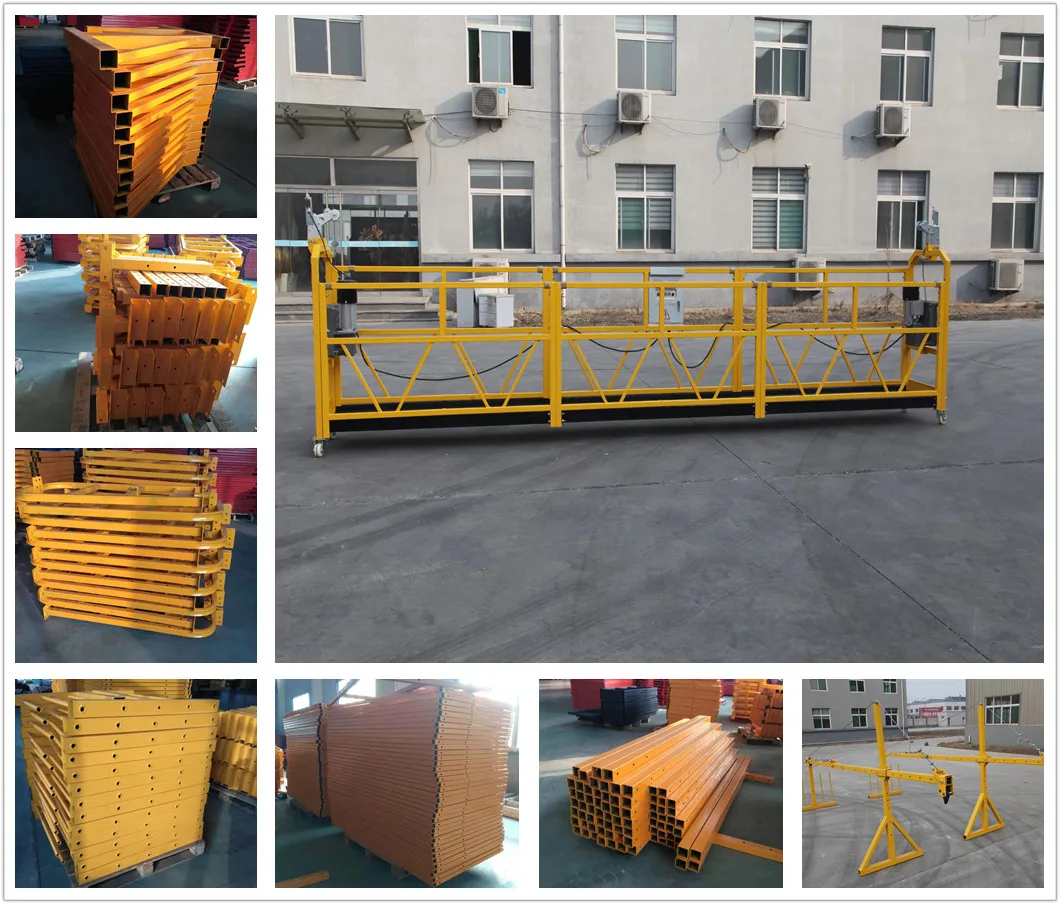

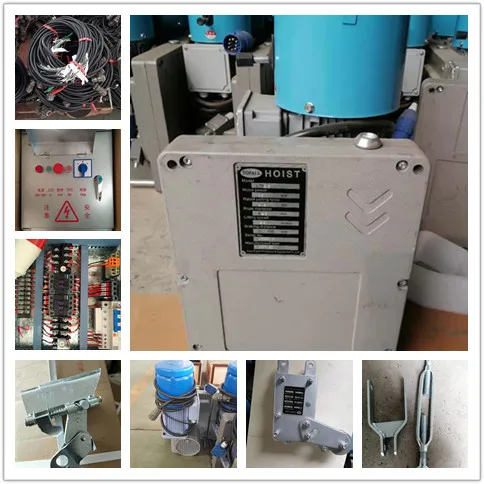

C. Parts contains:
1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)
2. Suspension Mechanism: Steel (plastic coating or hot galvanization)
3. Electric hoists: LTD5, LTD6.3 or LTD8
4. Safety Lock: LSB30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm or 8.6mm
7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²
8. Counterweights: Cement or Cast Iron
9. Spare parts
D. Advantages of Factory wholesale zlp 800 suspended platform 630 with great price
1. CE ISO international certificates.
2. One year guarantee time.
3. Special made can be accepted.
4. Factory direct sale.
Main Parts of Factory wholesale zlp 800 suspended platform 630 with great price
Parts of Factory wholesale zlp 800 suspended platform 630 with great price :
1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
Case:
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term?
T/T or L/C at sight.
6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
7. Can you make suspended platform with our brand?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
