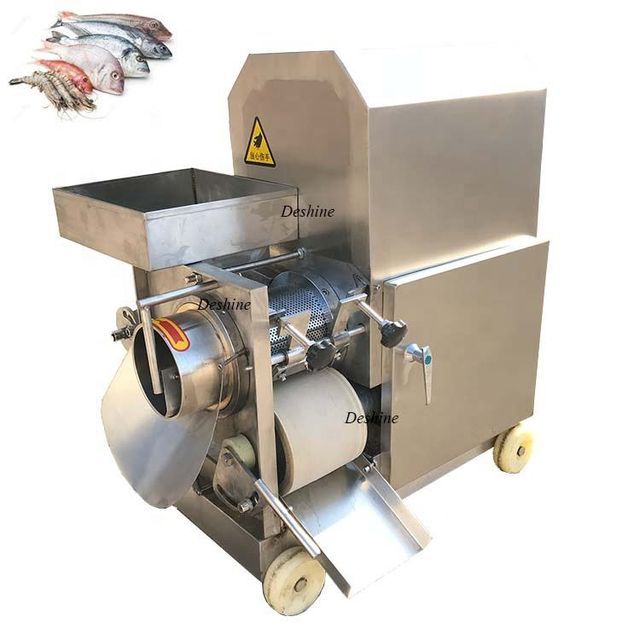

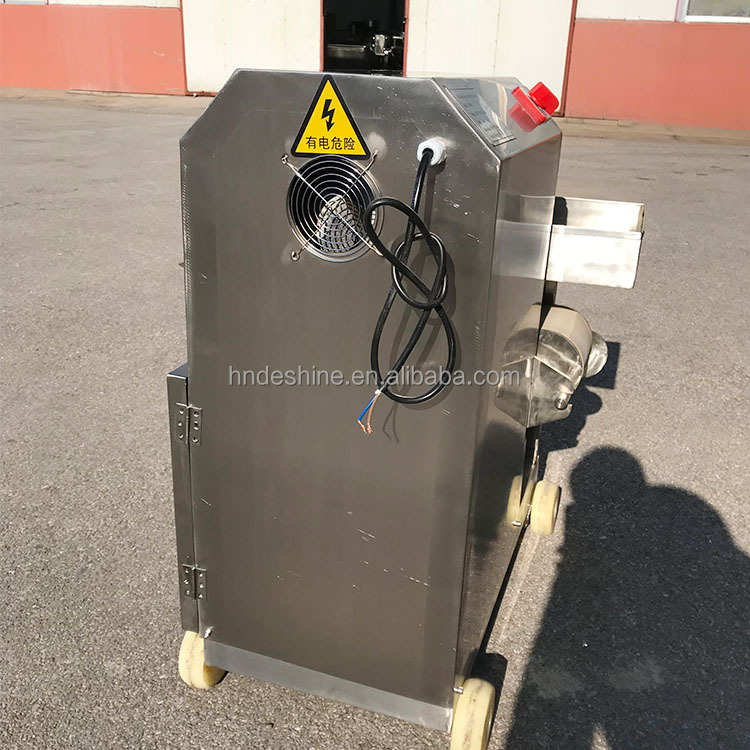

Fish meat separator electric steel fish deboning machine stainless steel fish deboning machine
- $1600.00 / 1 - 4 sets
$1500.00 / 5 - 9 sets
$1400.00 / >=10 sets - 1 set
- Henan Deshine Machinery Co., Ltd.
- Henan, China
- Ms Doris Lee
strength: | 2.2kW | Material: | 304 stainless steel |
brand: | Deschamps | Health status: | new |
Place of origin: | Henan, China | Package preview: | |
Marketing type: | New products for 2023 | Roller thickness: | 7mm |
Mesh diameter: | 2.7mm/3mm/3.2mm/customized | Production capacity: | 150kg/hour |
Showroom location: | not any | Mechanical test report: | not available |
Dimensions (length*width*height): | 850*60*900mm | payment terms: | L/C, Western Union, Wire Transfer, Credit Card/Cash |
weight: | 180kg | Drum length: | 350mm |
Core component warranty: | 1 year | Voltage: | 220v/380v/customized |
Supply capacity: | 50 stainless steel fish deboning machines per month | application: | Fish, shrimp and crab processing |
Core components: | engine | Drum diameter: | 219mm |
port: | Qingdao Port, Shanghai Port, Guangzhou Port or other ports in China | Video outbound inspection: | if |
Belt length: | 1450mm | raw material: | fish shrimp crab |
Automatic level: | automatic | Packaging details: | The stainless steel fish deboning machine will be packed in wooden boxes according to export standards |
Warranty: | 1 year | Belt thickness: | 20mm |
type: | Meat and bone separator | product name: | Stainless steel fish deboning machine |
Applicable industries: | Manufacturing factories, food and beverage factories, restaurants, food and beverage stores, others, fish and shrimp processing plants |
Fish meat separator electric steel fish deboning machine stainless steel fish deboning machine
This machine is suitable for sea fish and freshwater fish, for segmenting large fish and directly removing meat from small fish. It is also suitable for collecting shrimp and crab meat.
The collected meat can be used to make shrimp balls, fish balls, crab sticks, meat patties, meat floss and other meat products.
Introduction of stainless steel fish deboning machine

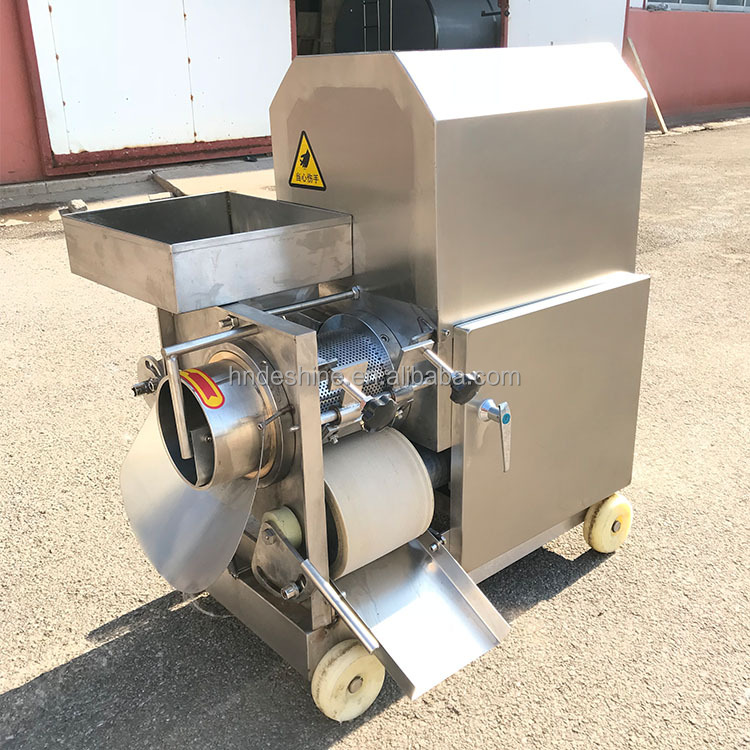

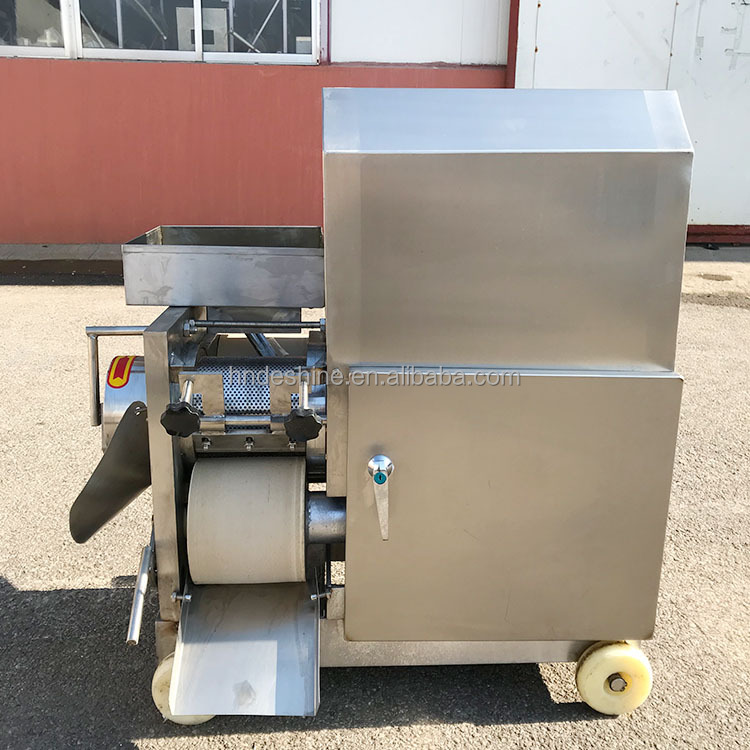

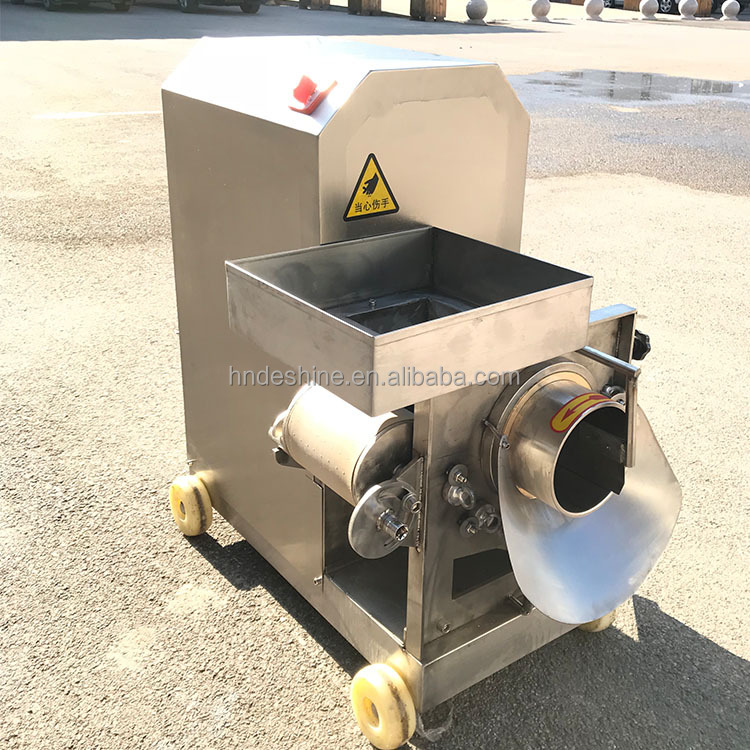

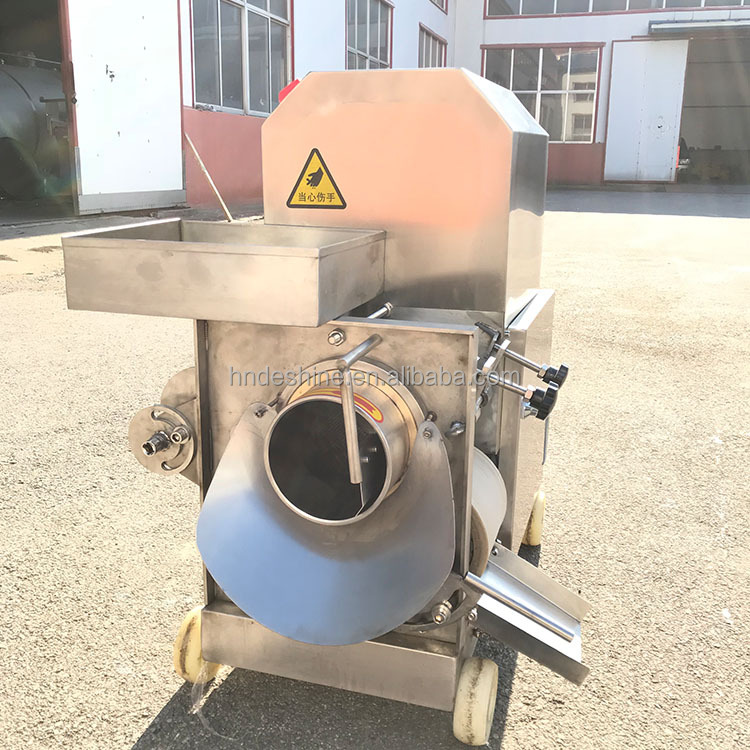

The stainless steel fish deboning machine is equipped with a meat barrel and a rubber band for crushing the meat. Through the mutual extrusion motion of the rolling meat barrel and the moving rubber band, the fish meat is squeezed into the meat barrel and the fish skin and bones are removed. The meat hopper is sent out of the machine by a scraper.
Stainless steel fish deboning machine structure and use:

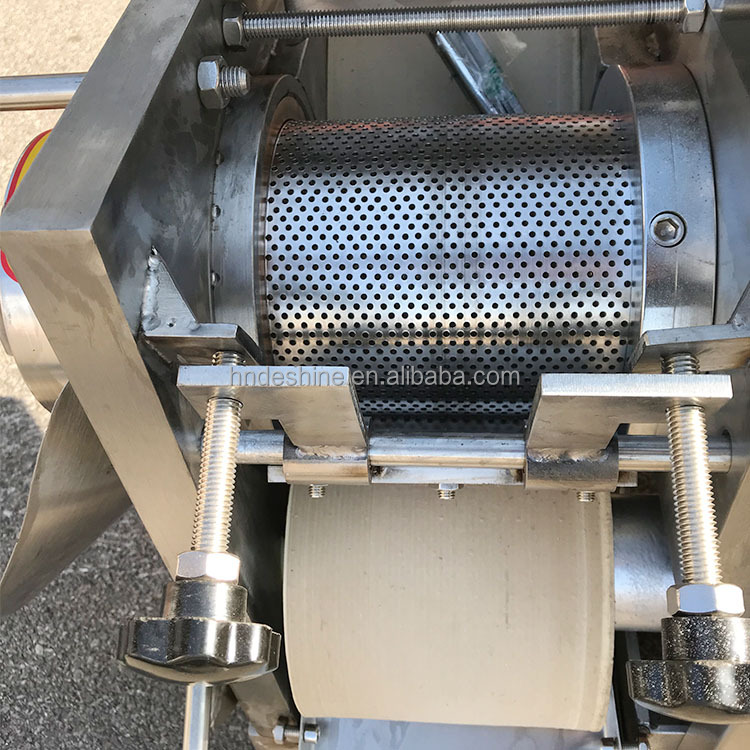

1. Drum scraper: used to scrape fish meat from the inner wall of the drum.
2. Meat-picking roller: used to collect fish meat.
3. Automatic fine-tuning device: used to automatically adjust pressure callback, gap reset and other functions.
4. Scraper fixed wheel: used to fix the external scraper of the drum.
5. External roller scraper: used to scrape off the separated fish bones and skin.
6. Meat-stewing belt: used to transport fish, and forms a strong squeeze with the meat-stewing machine drum to separate the fish meat.
7. Gap adjustment handle: adjust the gap between the meat picking belt and the meat picking roller.
8. Power switch: used to control the start and stop of the machine.
9. Belt tightness adjustment: used to adjust the belt tightness of the meat harvester.
Stainless steel fish deboning machine parameters
product name | Fish meat separator/shrimp meat separator/crab meat separator | |||

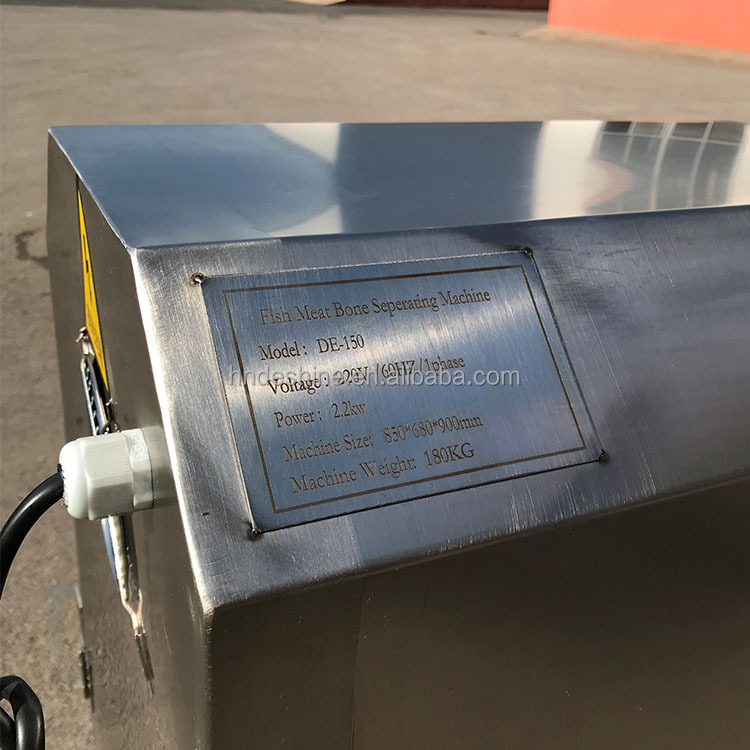

machine type | DE-CRJ-150 | DE-CRJ-200 | DE-CRJ-300 | DE-CRJ-350 |
Machine size | 870*560*860mm | 940*700*930mm | 1100*700*930mm | 1300*1000*1050mm |
Machine material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
Machine capacity | 150kg/hour | 250kg/hour | 500kg/hour | 1.5 tons/hour |
Machine power | 1.5kW | 1.5kW | 3kW | 5.5kW |
Belt thickness | 20mm | 20mm | 20mm | 20mm |
Belt length | 1240mm | 1450mm | 1450mm | 1680mm |
Drum diameter | 162 mm | 219 mm | 219 mm | 265mm |
Drum length | 300mm | 350mm | 500mm | 550mm |
Roller thickness | 7mm | 7mm | 7mm | 7mm |
Mesh diameter | 2.7mm/3mm/3.2mm/customized | |||
Machine weight | 180kg | 240kg | 300kg | 750kg |
