Flash stamping machine working area 110*80mm size

Sealing material:
Chapter shell, photosensitive gasket, photosensitive ink filter, Liu Suanzhi/printing film, exposure film.
Photosensitive seal engraving process:
1) Print the prepared samples on six acid paper or film with a laser printer.
2) Cover the transparent film for exposure according to the sample specifications, and the size is subject to the complete coverage of the sample.
3) Open the exposure box of the photoreceptor, put the photosensitive gasket in sequence (expose the sne chapter shell, remove the handle and cover of the chapter shell, remove the exposure box at the bottom of the transparent organic board, and put the chapter gasket exposure box according to the direction), exposure Film, print proofs. Proofing, exposure negatives, and photosensitive sealing pads are in the order and direction: bottom photosensitive sealing pad, middle layer of exposed negatives, proofing on top, print side down. The three are in close contact, which in turn prohibits folding with a gap in the middle. Exposure box plate clip photosensitive machine, photosensitive sealing machine.
4) Turn on the power, turn on the power switch, and the machine starts to charge.
5) There are many kinds of photosensitive gaskets, and the gaskets require different light energy. All photosensitive gaskets can be exposed accurately. The machine adopts the voltmeter display and the exposure method of free random exposure. The exposure voltage ranges from 160v to 160v, which can be exposed. (For the first use, it is recommended that users use leftovers to test the optimal exposure voltage value of the pad in Chapter 1. As for the exposure voltage value of some domestic photosensitive pads: Liu Sianzhi’s typescript 280v+5%, film typescript 260v+5%). Stop the photoreceptor charge indicator to reach the mat exposure voltage required in this chapter, turn off the power, and press the trigger button to complete the exposure.
6) Take the exposure box out of the machine, open the exposure box, take out the exposed chapter pad, and take out the six acid paper/print and film for exposure.

7) Put the gasket into the housing, inject the scalar quantity to seal several times according to the specification. Users should fully absorb it and deliver it to customers for use.

Scope of application:
1. Cartoon seal;
2. In-store product packaging and sealing;
3. Marriage seal;
4. Stamp your birthday stamp;
5. Portrait seal;
6 stamps, pictures;
7. Various DIY stamps
technical parameter:
Number of tubes (1): 2
Flash Energy (J): 3600
Weight (kg): 10
Maximum exposure area (mm) : 110 x 80
Power supply: AC 220v/50hz + 10%/10%/110v

other information:
The basic principle of the photosensitive printer is to use special materials, photosensitive, without imprinting on the surface of the seal, and form a layer of impermeable film locally, so as to achieve the effect of the seal. Therefore, the speed of engraving stamps with photosensitive stamps is fast. The photosensitive stamping machine does not need printing pad ink and can be filled repeatedly; the user must not spread, not fade, and dry after printing; the seal is clear, not deformed, and not subject to sealing pressure; the service life is more than 100,000 times; , true gourmet anti-counterfeiting; can be plastic, bond, glass or metal stamps. It can be used to manufacture photosensitive stamps and stamp pens. with someone's badge,

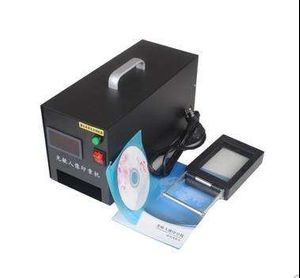

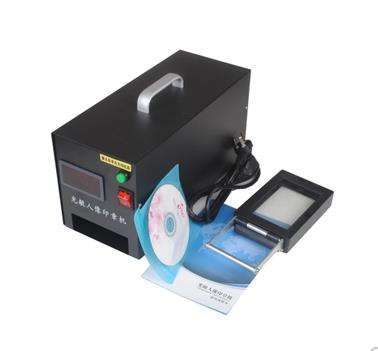

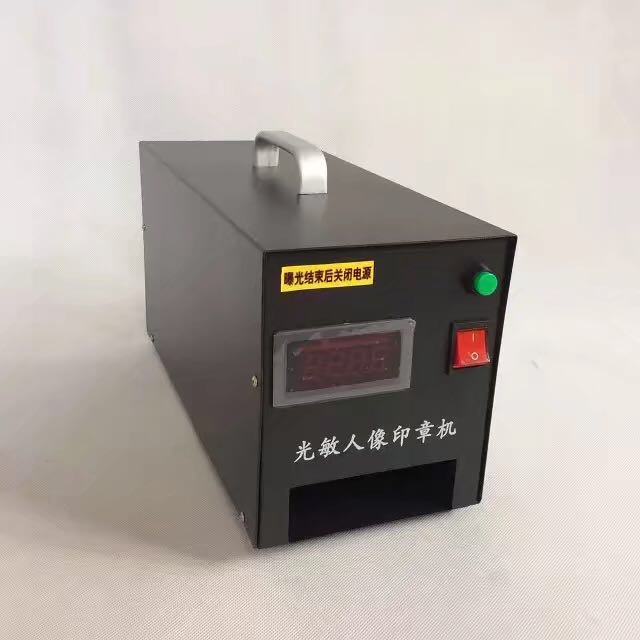

picture:
