For Steel Plant China Made High Power Grade Graphite Electrode Cast Graphite Electrode
- $3000.00 / 1 - 4 pieces
$1800.00 / 5 - 19 pieces
$800.00 / >=20 pieces - 1 piece
- Hebei Xingwangxiang Trade Co., Ltd.
- Hebei, China
- Ms Delia Zhang
PRODUCT DETAIL
| port: | Tianjin | usage: | EAF/LF/other steelmaking |
| color: | black, grey | Ash: | 0.3% max |
| application: | EAF/LF/other steelmaking | raw material: | 100% imported needle coke |
| Advantage: | high energy efficiency | Resistance (μΩ.m): | 6.20 |
| Supply capacity: | 50 tons per month | Bending strength (N/㎡): | 10.50 |
| thermal expansion: | 1.5 | length: | 1800mm/2100mm/2400mm/2700mm or as required, 1800-2700MM |
| grade: | UHP, HP (high power) | Package preview: | |
| brand: | New Weixin | Packaging Details: | Choose the appropriate packaging method according to the customized product |
| product name: | graphite electrode | Customs code: | 85451100 |
| model: | XWX-031701 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| place of origin; place of origin: | Hebei china | Apparent Density (g/cm3): | 1.68 |
| Package: | wooden box | Types of: | Electrode bolt |

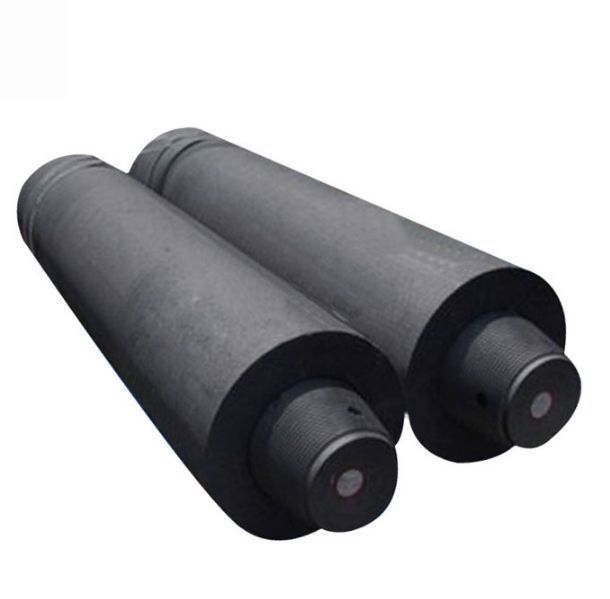

Graphite electrode uhp600 excellent thermal conductivity graphite electrode
Product Description
Graphite electrodes are mainly obtained from domestic petroleum coke and imported needle coke, and are widely used in electric arc furnaces, ladle furnaces and submerged heat electric furnaces to produce alloy steel, metal and
non-metallic materials.
Our graphite electrodes include Regular Power, High Power, Ultra High Power and Ultra High Power. They have the characteristics of low resistivity, good electrical and thermal conductivity, good oxidation and thermal shock resistance, and high mechanical strength. Various sizes and grades are available from our factory to meet customer requirements for specific applications.
non-metallic materials.
Our graphite electrodes include Regular Power, High Power, Ultra High Power and Ultra High Power. They have the characteristics of low resistivity, good electrical and thermal conductivity, good oxidation and thermal shock resistance, and high mechanical strength. Various sizes and grades are available from our factory to meet customer requirements for specific applications.
Features of graphite electrodes:
1. Low resistance
2. Good electrical and thermal conductivity
3. High density
4. High antioxidant capacity
5. High mechanical strength
6. High processing precision
2. Good electrical and thermal conductivity
3. High density
4. High antioxidant capacity
5. High mechanical strength
6. High processing precision
Graphite Electrode Specifications
thing | unit | echo | life value | ultra high pressure | ||||
300-800mm | 300-800MM | 300-600MM | 650-800MM | |||||
Resistivity≤ | electrode | μΩm | 7.8-8.8 | 5.8-6.6 | 4.8-5.8 | 5.8-6.6 | ||
nipple | 5.0-9.5 | 4.2-5.0 | 3.8-4.5 | 4.2-5.0 | ||||
Flexural strength≥ | electrode | MPa | 7.0-12.0 | 10.0-13.0 | 10.0-14.0 | 10.0-13.0 | ||
nipple | 15.0-20.0 | 18.0-22.0 | 20.0-26.0 | 18.0-22.0 | ||||
Elastic modulus≤ | electrode | Gpa | 7.0-9.3 | 8.0-12.0 | 9.0-13.0 | 8.0-12.0 | ||
nipple | 12.0-14.0 | 14.0-16.0 | 15.0-18.0 | 14.0-16.0 | ||||
Bulk density≥ | electrode | g/cubic centimeter | 1.53-1.56 | 1.62-1.66 | 1.68-1.74 | 1.62-1.66 | ||
nipple | 1.70-1.74 | 1.74-1.80 | 1.77-1.82 | 1.74-1.80 | ||||
Coefficient of thermal expansion≤ | electrode | x10-6/℃ | 2.2-2.6 | 1.6-1.9 | 1.1-1.4 | 1.6-1.9 | ||
nipple | 2.0-2.5 | 1.1-1.4 | 0.9-1.2 | 1.1-1.4 | ||||
Ash | % | 0.3 | 0.3 | 0.3 | 0.3 | |||
A variety of product shapes are available, and customization is also supported
Product advantages:
* A full range of carbon materials, graphite materials, refractory materials and water treatment materials products and solutions;
* High output, 80,000 tons per year, timely delivery; guaranteed delivery
* Low resistivity
* high temperature strength
* Good thermal and electrical conductivity
* Low coefficient of thermal expansion
* Low ash content, the ash content is controlled within 3%.
* The structure is dense and uniform, and the consumption of graphite electrodes is low.
* Good oxidation resistance
* High mechanical strength
* The content of needle coke accounts for 80%, and the raw materials are imported from Japan and South Korea
application:
1. Electric arc steelmaking furnace.
Graphite electrodes are mainly used in electric furnace steelmaking. Electric Furnace Steelmaking Using Graphite Electrodes
Introduce electric current into the furnace. A strong current passes through the gas at the lower end of the electrode to generate an arc discharge,
And use the heat generated by the arc for melting.
2. Ore heating furnace.
Graphite electrode heating furnace is mainly used to produce ferroalloy, pure silicon, yellow phosphorus, matte and calcium
Cemented carbide, etc., is characterized by conductive...
3. Resistance furnace.
Graphitization furnace for graphite product production, melting furnace for glass melting, electric furnace for production
Silicon carbide is a resistance furnace.
4. For processing.
A large number of graphite electrode blanks; also used for processing into various crucibles, graphite boats, hot die casting
Molds for vacuum electric furnaces, heating elements, etc...
* A full range of carbon materials, graphite materials, refractory materials and water treatment materials products and solutions;
* High output, 80,000 tons per year, timely delivery; guaranteed delivery
* Low resistivity
* high temperature strength
* Good thermal and electrical conductivity
* Low coefficient of thermal expansion
* Low ash content, the ash content is controlled within 3%.
* The structure is dense and uniform, and the consumption of graphite electrodes is low.
* Good oxidation resistance
* High mechanical strength
* The content of needle coke accounts for 80%, and the raw materials are imported from Japan and South Korea
application:
1. Electric arc steelmaking furnace.
Graphite electrodes are mainly used in electric furnace steelmaking. Electric Furnace Steelmaking Using Graphite Electrodes
Introduce electric current into the furnace. A strong current passes through the gas at the lower end of the electrode to generate an arc discharge,
And use the heat generated by the arc for melting.
2. Ore heating furnace.
Graphite electrode heating furnace is mainly used to produce ferroalloy, pure silicon, yellow phosphorus, matte and calcium
Cemented carbide, etc., is characterized by conductive...
3. Resistance furnace.
Graphitization furnace for graphite product production, melting furnace for glass melting, electric furnace for production
Silicon carbide is a resistance furnace.
4. For processing.
A large number of graphite electrode blanks; also used for processing into various crucibles, graphite boats, hot die casting
Molds for vacuum electric furnaces, heating elements, etc...
