Fully automatic complete soap finishing production line laundry soap making machine manufacturer price
- $2300.00 / 1 - 4 sets
$1870.00 / >=5 sets - 1 set
- Zhengzhou Yize Machinery Co., Ltd.
- Henan, China
- Ms Grace Chow
PRODUCT DETAIL
Product Name: | Laundry Soap Making Machine | Warranty: | 1 year |
application: | Soap production | Key selling points: | High productivity |
Marketing Type: | New products for 2024 | Keywords: | Soap production line |
Weight (kg): | 240 | Origin: | Henan, China |
Mechanical test report: | if | Core component warranty: | 1 year |
Advantages: | High efficiency | Related machine 2: | Soap Packaging Machine |
raw material: | Soap particles | Name: | Soap Making Machine |
kilowatt: | Laundry soap production line | Exhibition Hall Location: | No |
Health status: | New | Brand Name: | Yize |
Video factory inspection: | if | type: | Solid soap production line |
Core components: | engine | Applicable industries: | Production Plant |
Machine Type: | Soap production line | Soap shape: | Custom shapes |
Product Type: | Soap |
Product Description
Bathroom hotel soap making finishing production line machine price laundry soap making machine small solid soap full production line introduction:

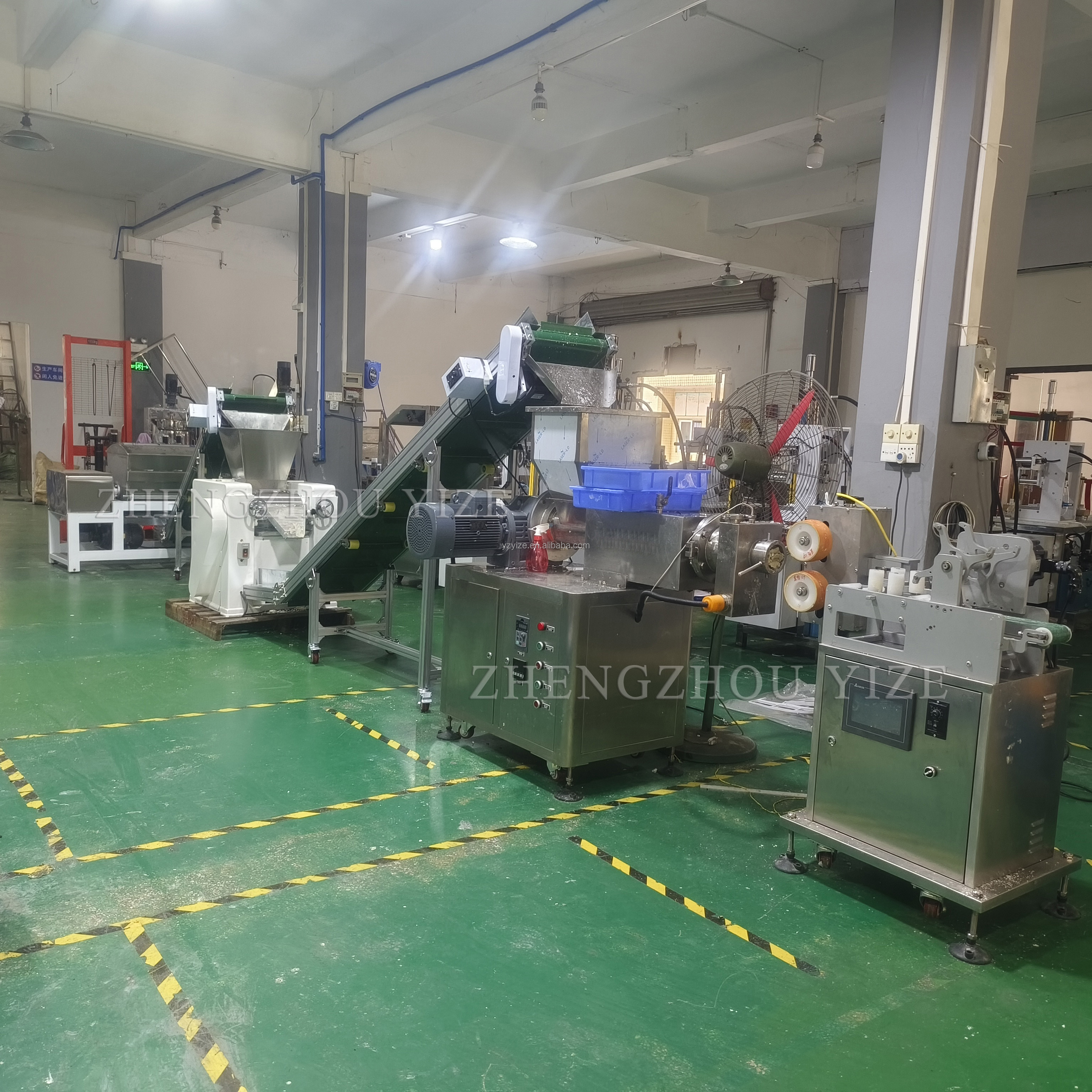

This soap production line is used to make laundry soap from soap granules, the whole production line includes mixer, conveyor, three-roll mill, conveyor, single screw extruder, soap punch and cutter.
raw material

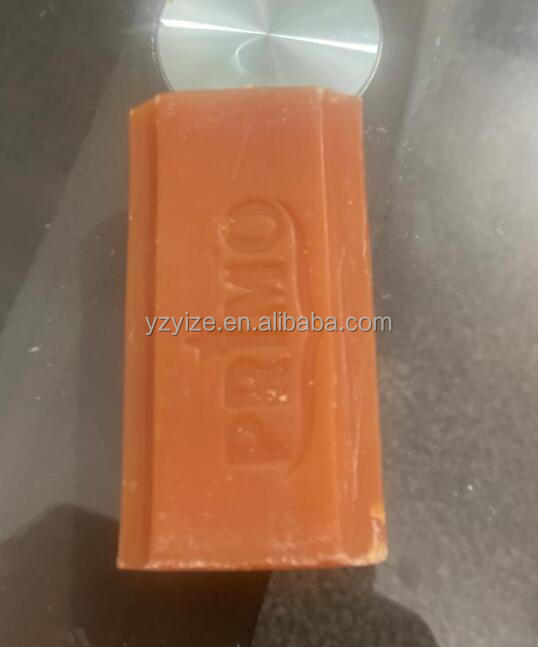

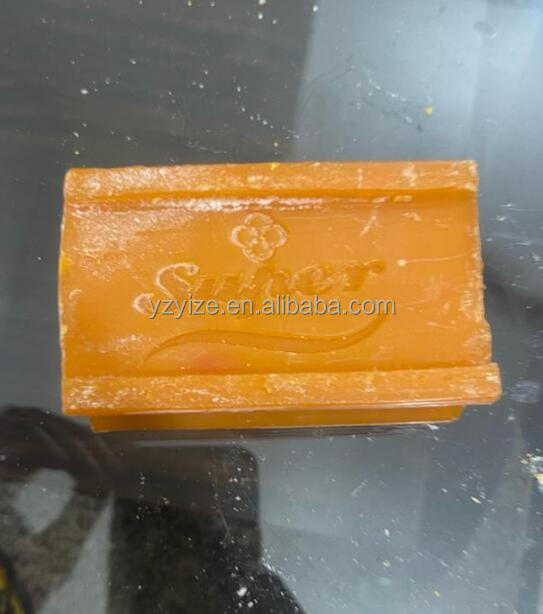

Final Product
Detailed pictures

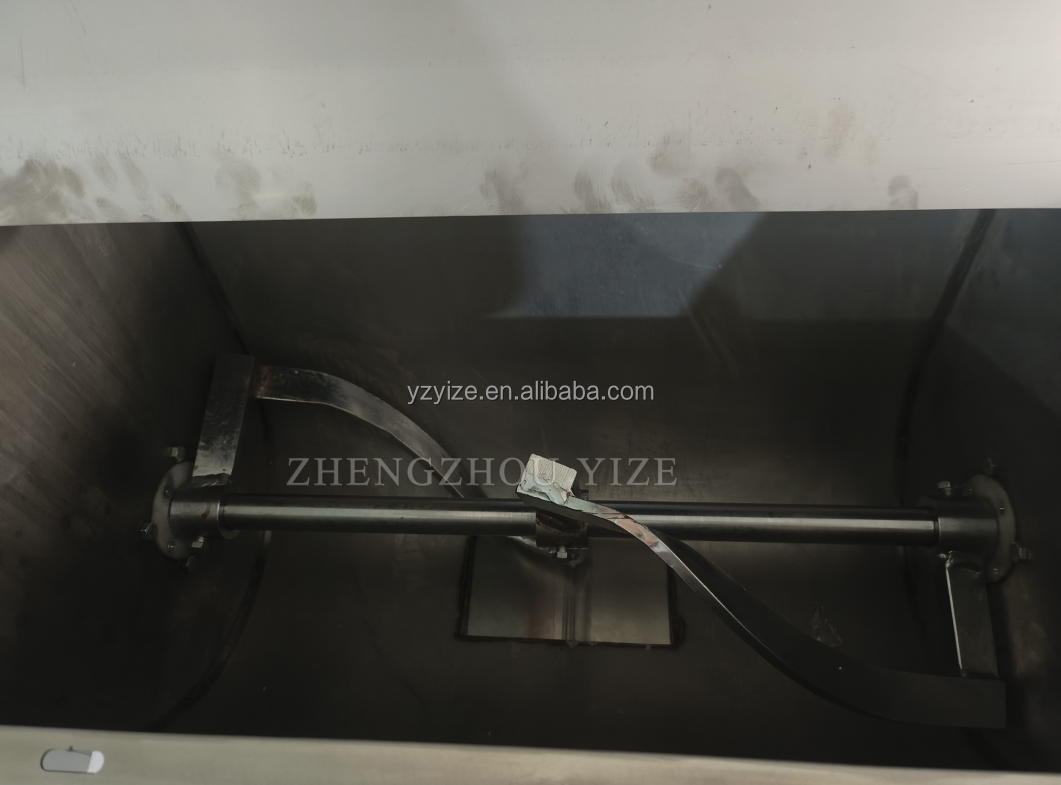

1. Blender
It can mix and stir various raw materials for producing soap fully and evenly, refine the soap particles, and fully mix various auxiliary materials and spices into the soap particles.
Model | YZJB-100 |
Material | Stainless steel |
Mixed Type | Single axis "Z" type |
capacity | 100kg/time |
Mixing time | 5-8 minutes/time |
Speed | 40 rpm |
Voltage | Three-phase, 380V, 50Hz |
strength | 2.2 kW |
Discharging method | Bottom discharge |
Machine size | 150*65*105cm |
weight | 240 kg |

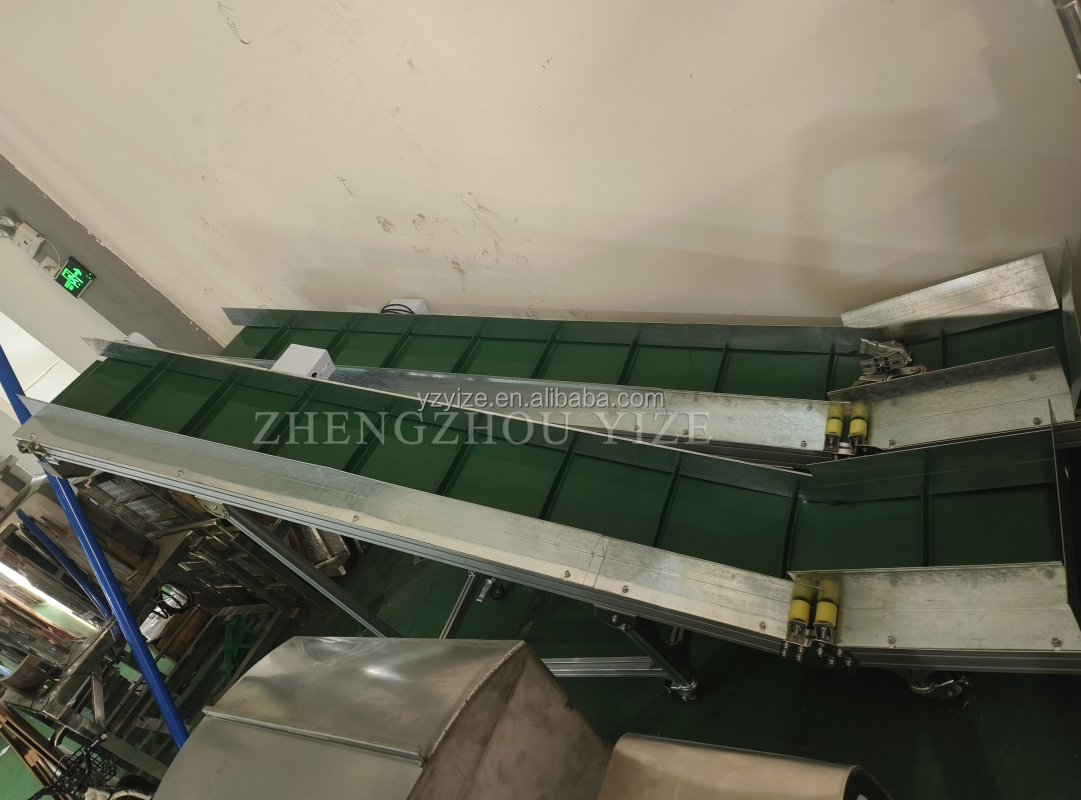

2. Conveyor
The conveyor is used between the internal mixer and the three-roll mill, and between the three-roll mill and the single screw extruder.
Model | Expedition |
length | 3 min |
width | 30cm |
Voltage | Single phase, 220V, 50Hz |
strength | 120W |

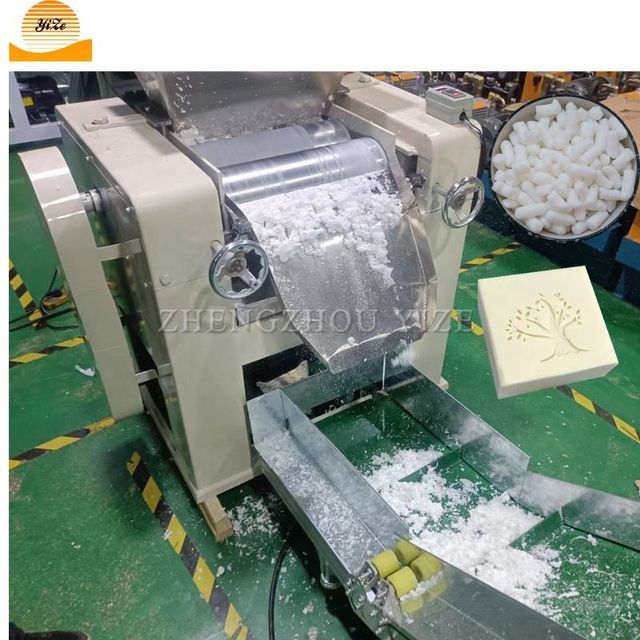

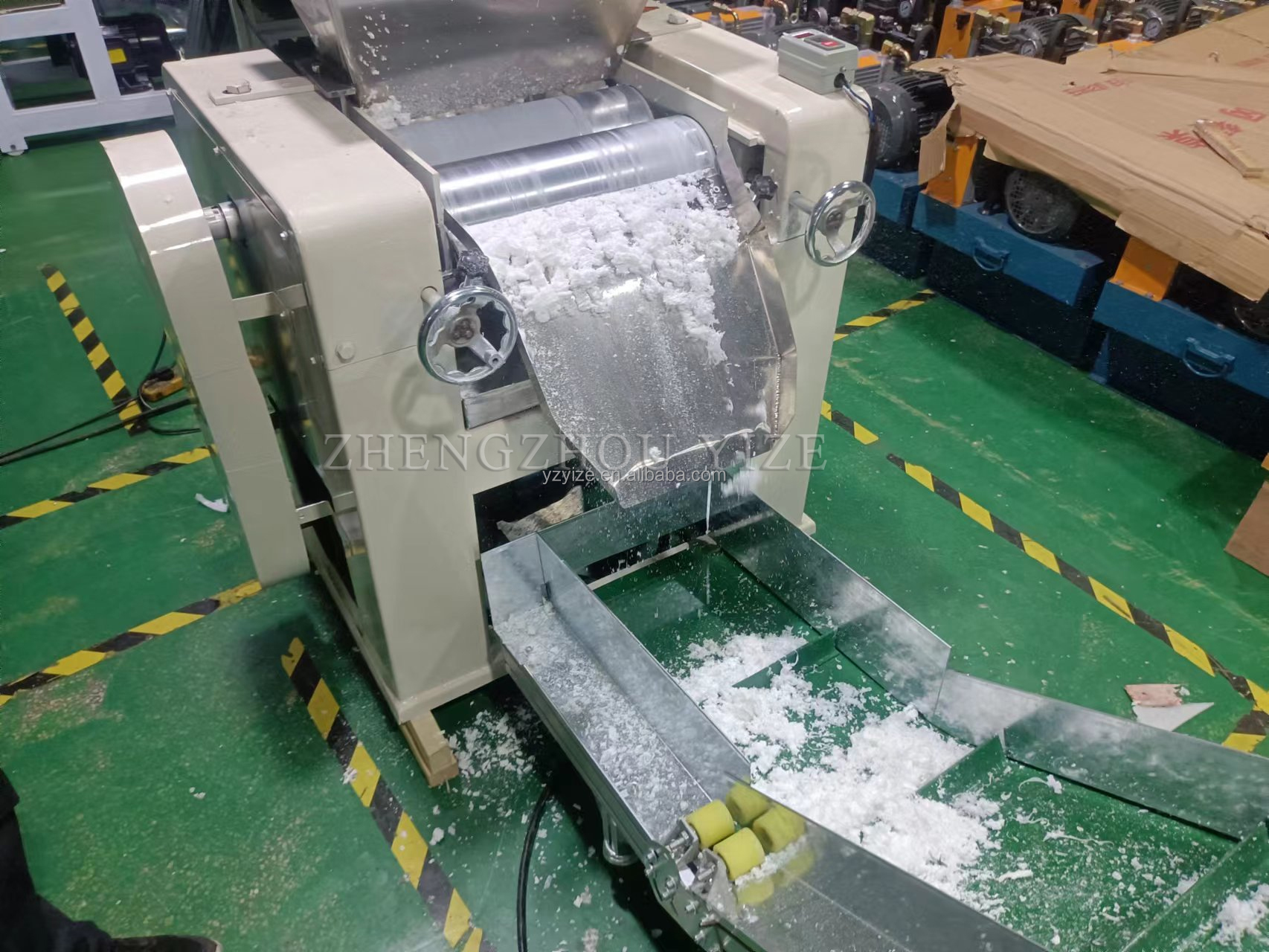

3. Three-roller mill
Used to grind soap particles and added materials to improve the density and quality of the soap body. The grinder is equipped with three horizontal rollers, which grind the raw materials twice through roller extrusion and grinding at different speeds.
Model | YZYM-150 |
Material | Cast iron, chilled alloy |
Drum diameter | 150 mm |
Roller length | 400 mm |
Voltage | Three-phase, 380V, 50Hz |
strength | 4 kW |
Machine size | 95*100*115cm |
weight | 380 kg |

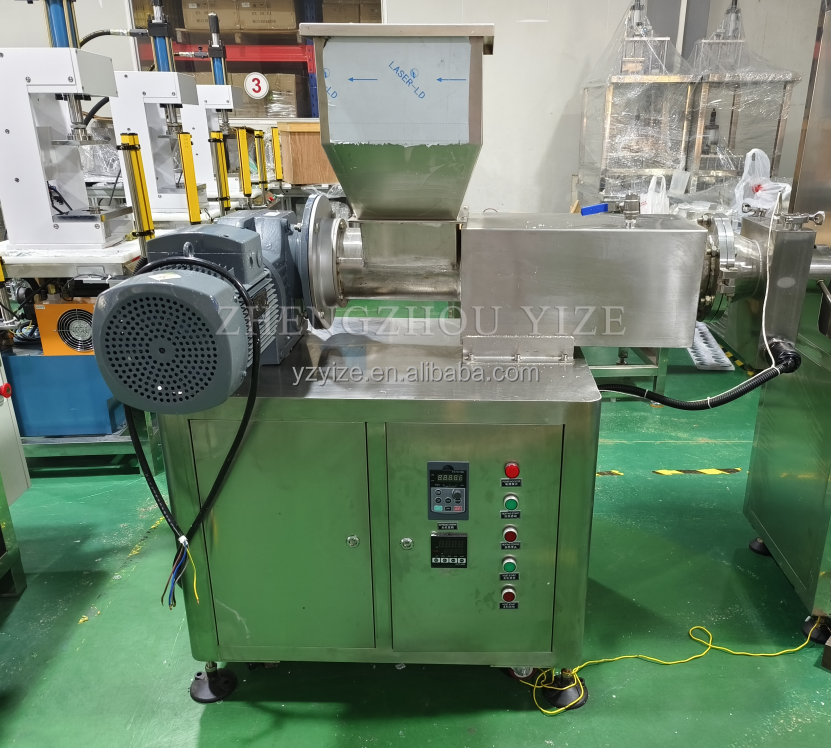

4. Single screw extruder
It is used to refine, exhaust and extrude the ground soap particles, change the arrangement of soap molecules, and make them arranged neatly into strips for molding.
Model | YZCT-100 |
Material | 304 Stainless Steel |
capacity | 150-300 kg/hour |
Drum diameter | φ140mm |
Speed | 10-23r/min (frequency conversion speed regulation)c |
Voltage | Three-phase, 380V, 50Hz |
strength | 4.4 kW |
Machine size | 150*60*140cm |
weight | 200 kg |

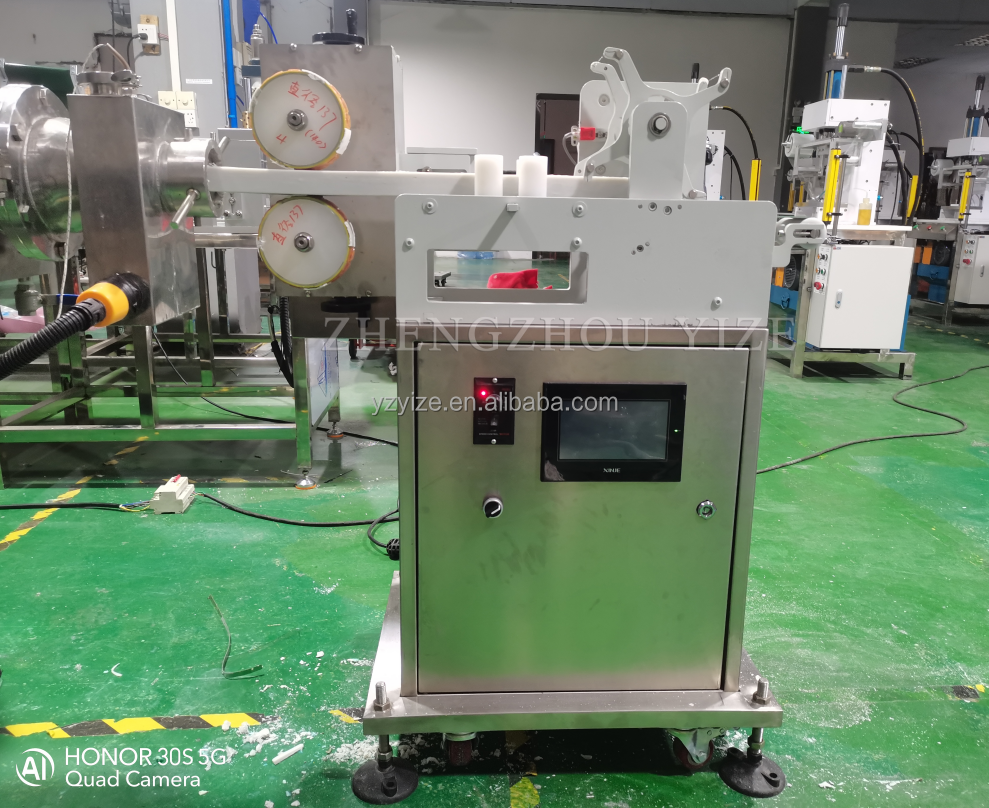

5. Soap stamping and cutting machine
It is used to print logos on soaps and cut soaps, the fonts on the soaps are clear, smooth and beautiful.
Model | YZQK-001 |
Material | 304 stainless steel 45# mold steel |
Cutting speed | Cutting speed is determined by single screw extruder |
Soap Cutting Sizes | According to customer requirements |
capacity | 0-200 pieces/minute |
Voltage | Single phase, 220V, 50Hz |
strength | 1.3 kW |
Machine size | 90*52*150cm |
weight | 110 kg |

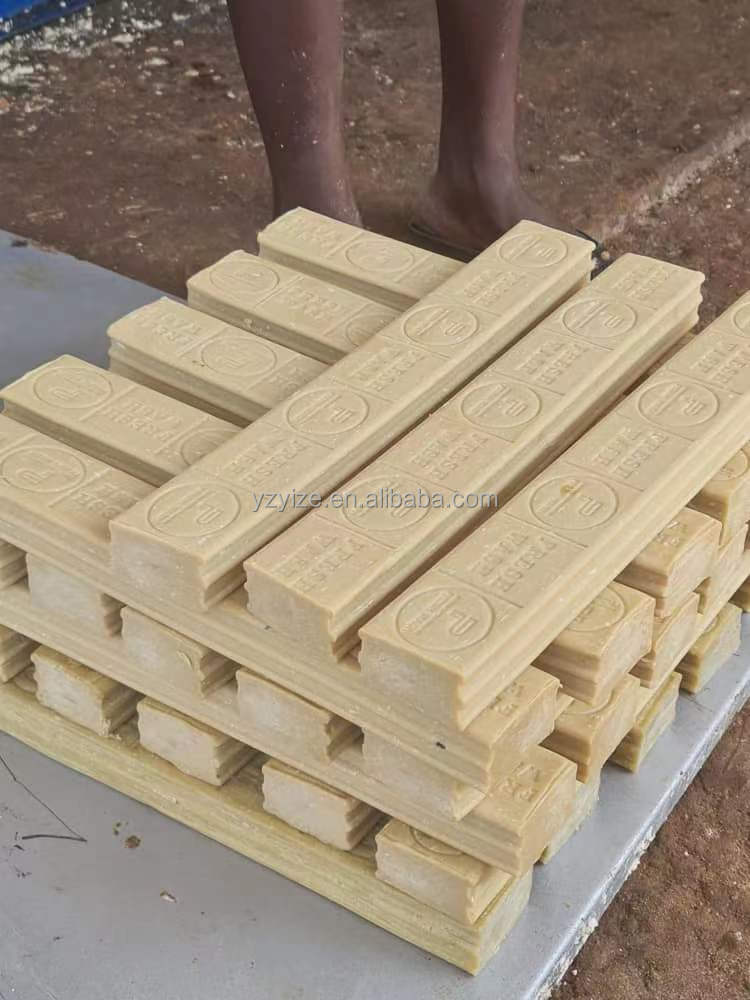

Final Product:
