Fully automatic wire bonding ball bonding machine MD-S800 wire bonding machine wire bonding machine
- $30000.00 /set
- 1 set
- Guangzhou Minder-Hightech Co., Ltd.
- Guangdong, China
- Mr Minder Hu
PRODUCT DETAIL
| Video outbound inspection: | if | Core component warranty: | 1 year |
| Core components: | PLC | brand: | Mingde Hi-tech Company |
| model: | MD-S800 | Supply capacity: | 100 sets per month |
| Marketing type: | Hot Products of 2022 | Health status: | new |
| port: | Guangzhou/Shenzhen/Hong Kong | Mechanical test report: | if |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Warranty: | 1 year |
| Packaging details: | wire bonding machine | Place of origin: | Guangdong, China |
| Showroom location: | Canada, Turkey, United Kingdom, United States, France, Germany, Vietnam, Indonesia, India, Russia, South Korea, Malaysia | Weight (kg): | 800 |
Product Description

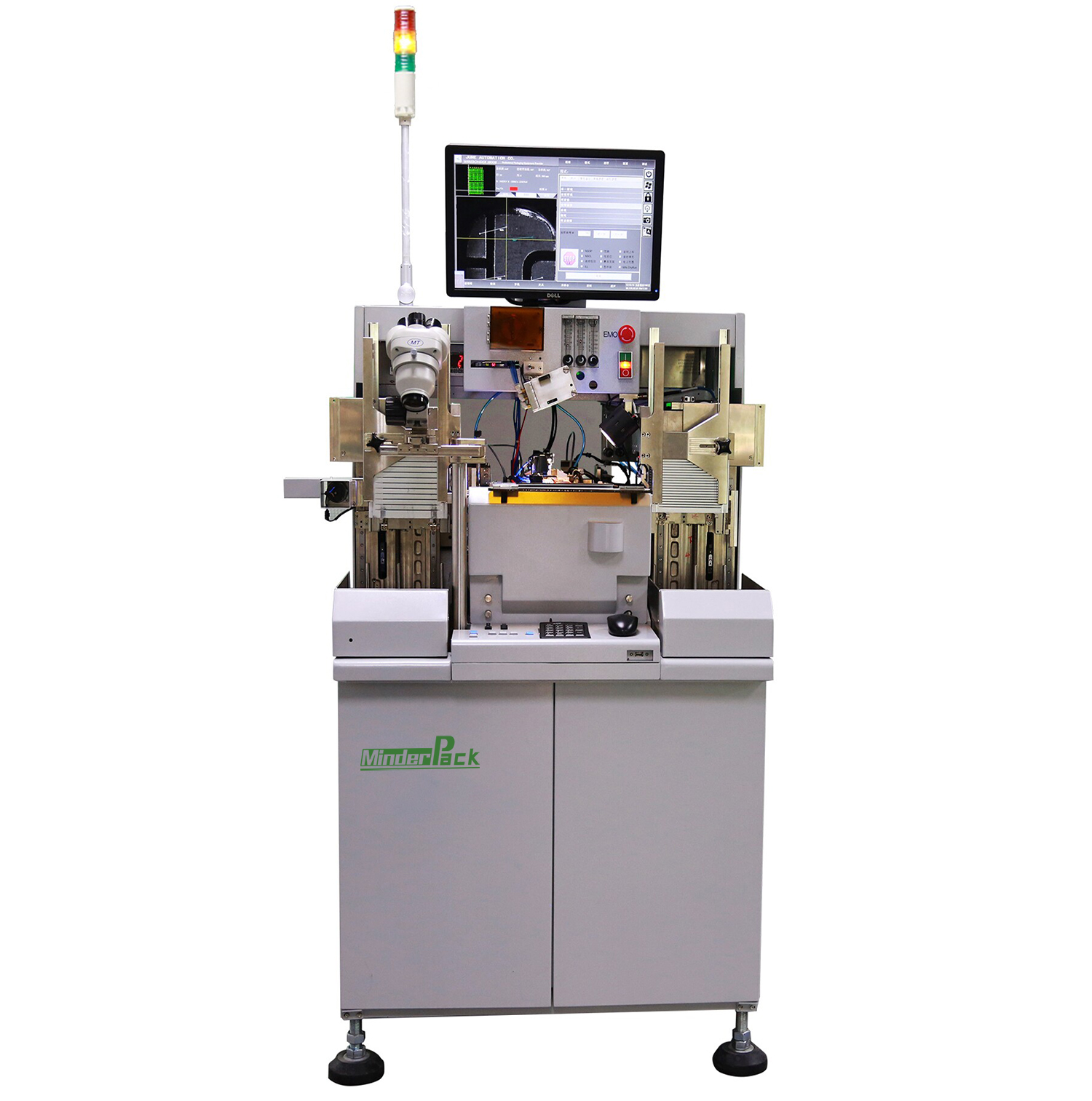

Automatic wire ball bonding machine MD-S800
Specification
1. Technical specifications
XY platform travel:
XY stroke: 65*70 mm
XY platform accuracy: 0.04 mil (1um)
Z bonding travel: 9.0 mm
Image recognition system and optical system
Image recognition method: 256 grayscale, can identify R/G/B and frosted chips
Resolution: 640*480
Optical magnification: 2~4, adjustable
Image recognition accuracy: ±0.37um
Ultrasonic generators and transducers
Ultrasonic generator: UTHE 10H-P2
Ultrasonic transducer: UTHE 70PT
Temperature controller: Omron E5CSL
User interface: Windows xp system, Chinese and English
Program memory size: 1000
Minimum gold wire: 0.5 million
speed
Bonding cycle: 70ms/2mm line
Unit per hour: 28K (single line), 15K (double line)
working conditions
Voltage/frequency: AC220V/50-60Hz
Compressed air: ≥0.3~0.5 Bar
Rated power: 1200W
Air consumption: 80 LMP
Weight and dimensions
Weight: 800kg
Size: 1230mm*940*1660
XY platform travel:
XY stroke: 65*70 mm
XY platform accuracy: 0.04 mil (1um)
Z bonding travel: 9.0 mm
Image recognition system and optical system
Image recognition method: 256 grayscale, can identify R/G/B and frosted chips
Resolution: 640*480
Optical magnification: 2~4, adjustable
Image recognition accuracy: ±0.37um
Ultrasonic generators and transducers
Ultrasonic generator: UTHE 10H-P2
Ultrasonic transducer: UTHE 70PT
Temperature controller: Omron E5CSL
User interface: Windows xp system, Chinese and English
Program memory size: 1000
Minimum gold wire: 0.5 million
speed
Bonding cycle: 70ms/2mm line
Unit per hour: 28K (single line), 15K (double line)
working conditions
Voltage/frequency: AC220V/50-60Hz
Compressed air: ≥0.3~0.5 Bar
Rated power: 1200W
Air consumption: 80 LMP
Weight and dimensions
Weight: 800kg
Size: 1230mm*940*1660

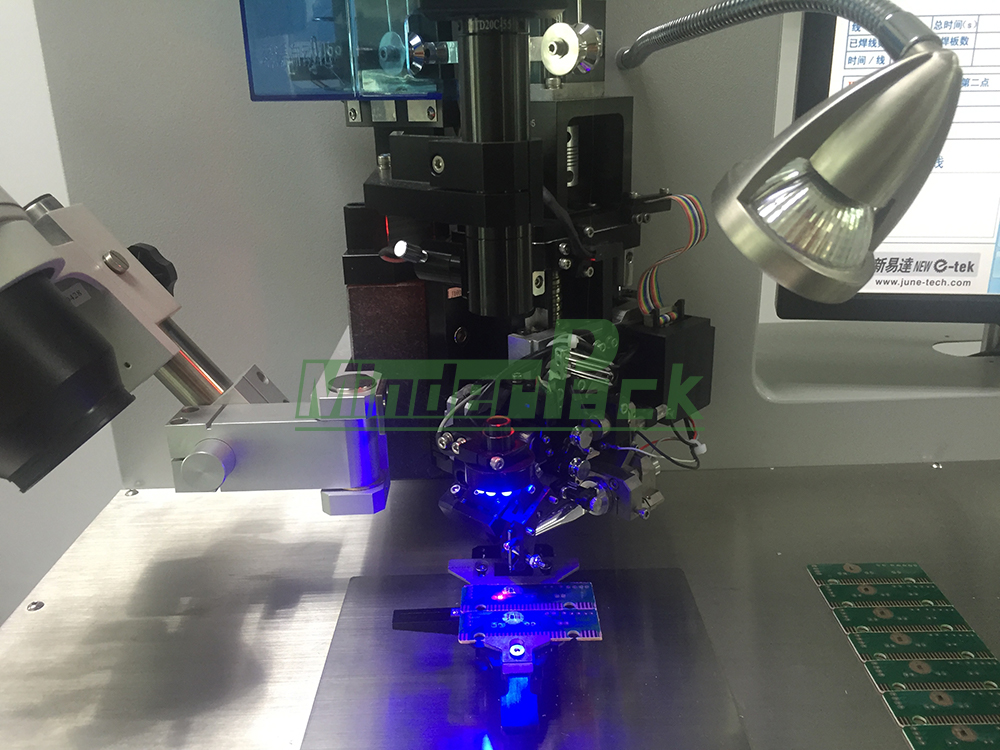

detail

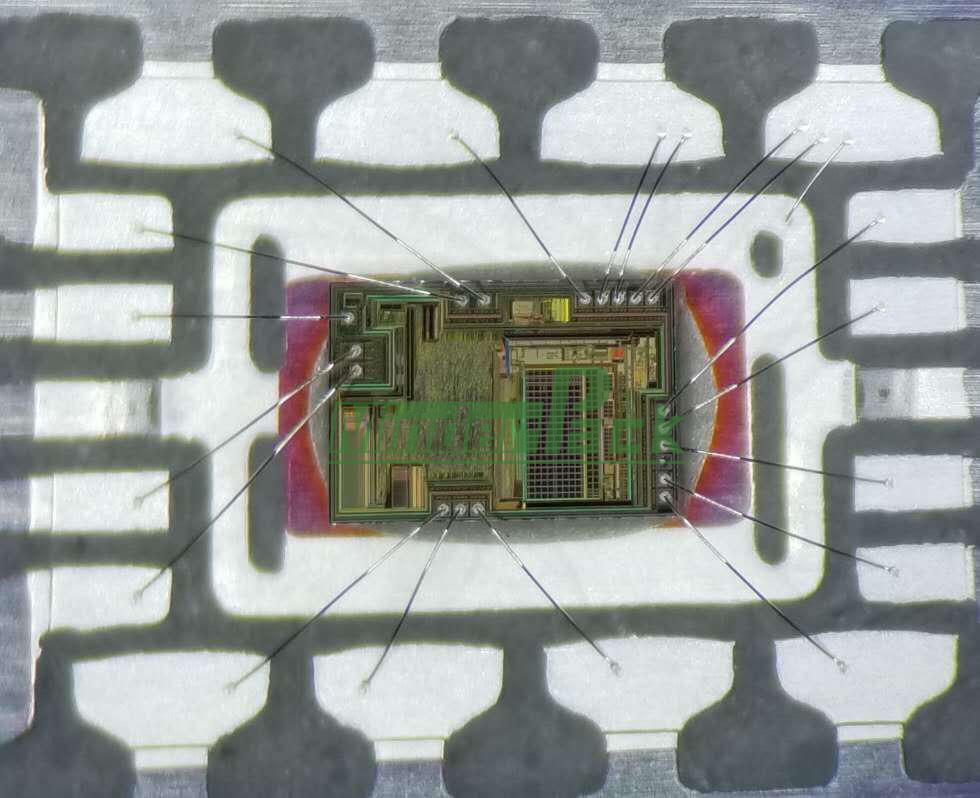

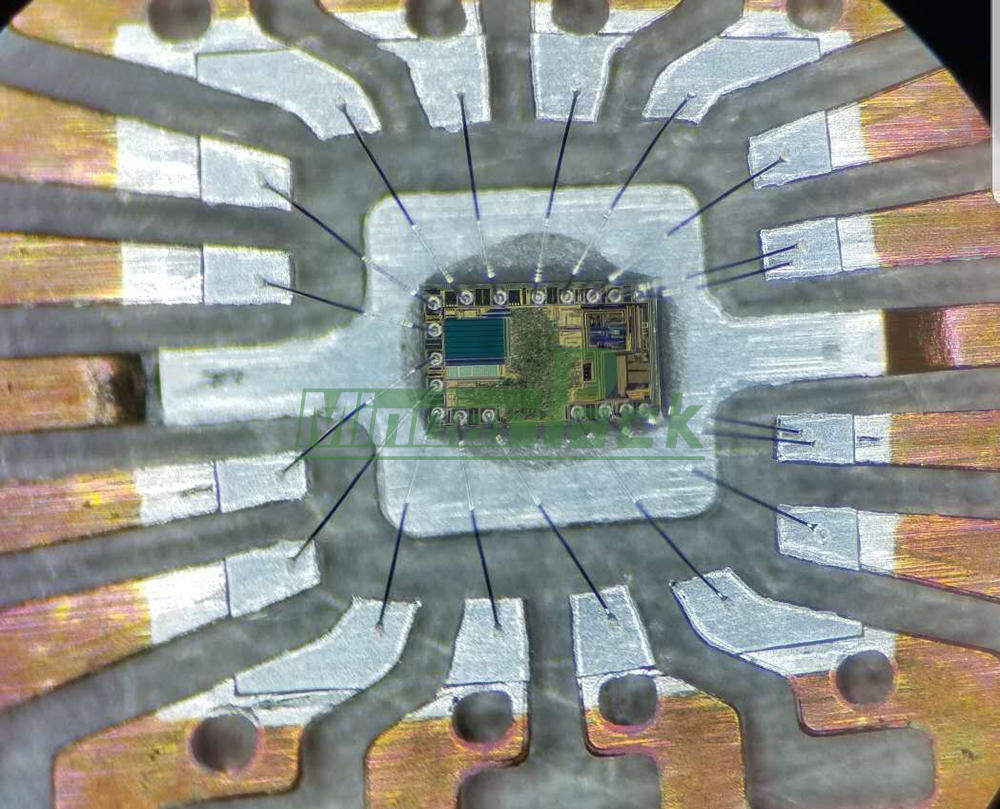

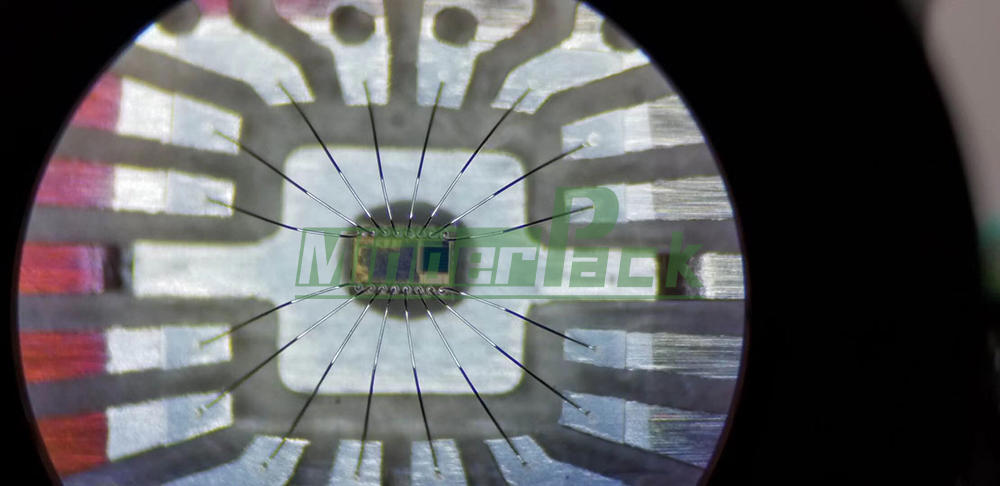

sample

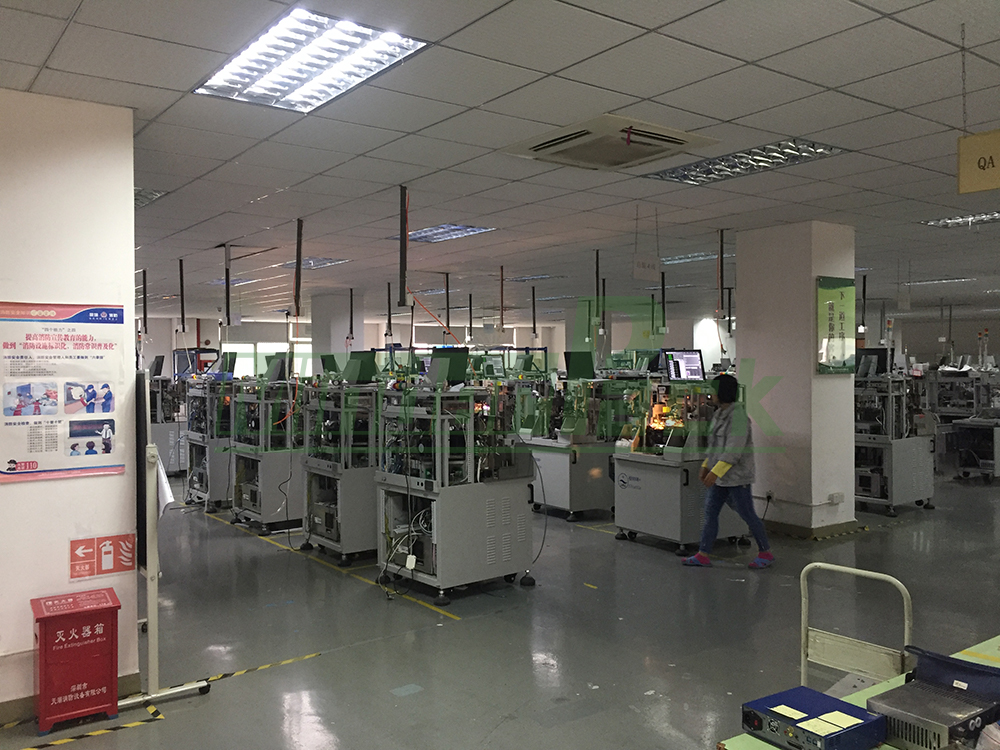

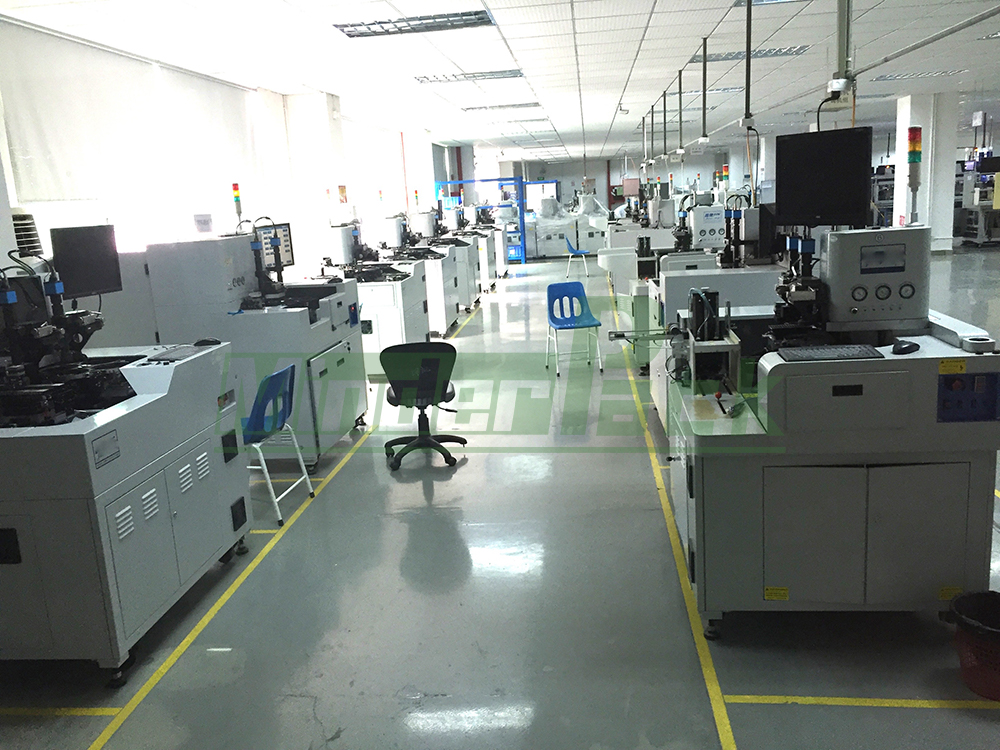

Customer use
