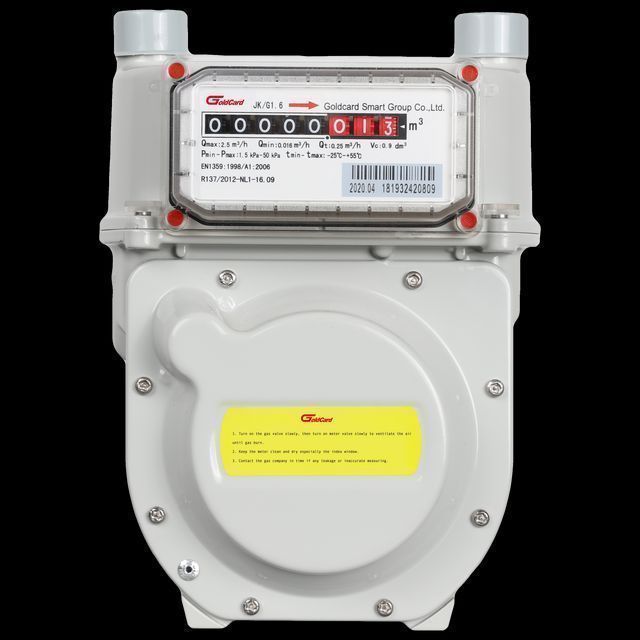

G1.6 G2.5 G2.5W Gas Diaphragm Mechanical Aluminum Type
- $15.00 / >=3000 units
- 3000 units
- Goldcard Smart Group Co., Ltd.
- Zhejiang, China
- Ms Tina Zhou
PRODUCT DETAIL
| brand: | Gold Card | Supply capacity: | 200,000 units per month |
| place of origin; place of origin: | Zhejiang, China | Gas type: | Natural gas, air, propane butane, nitrogen and all non-corrosive gases |
| Packaging Details: | 6 pcs/1 box (box side: 650mm*375mm*260mm) 4 boxes/layer, 5 layers 120 pcs/1 tray | port: | Shanghai/Ningbo |
| model: | JK/G2.5 JK/G2.5 JKG2.5W | payment terms: | letter of credit, wire transfer |
| accuracy: | Level 1.5 | type: | Diaphragm/Bellows Instruments |
Product Description
working principle
Inside the meter, there are four chambers, separated by two diaphragms. When the gas flows, the diaphragm moves alternately because different pressures appear in the four chambers. The gas flow is calculated by a series of transmission and variable speed mechanisms, and finally displayed on the counter.
advantage
- Anti-backflow design effectively prevents backflow.
- Separation of diaphragm and bracket; accurate metering and stable performance.
- Adjustable core and clear mechanical design ensure accurate measurements.
- Using magnetic drive technology to ensure safety and reliability.
smallSpecification
| type | JK/G1.6 | JK/G2.5 |
| Qmax (m³/h) | 2.5 | 4 |
| Qmin (m³/h) | 0.016 | 0.025 |
| accuracy | 1.5 | 1.5 |
| Circulation volume (dm³) | 0.9 | 0.9 |
| Working pressure (kPa) | ≤ 50 | ≤ 50 |
| Pressure absorption (Pa) | ≤ 200 | ≤ 200 |
| Working temperature (℃) | -25 ~ 55 | -25 ~ 55 |
| Inlet/Outlet Connector Type | M30×2 | M30×2 |
| Between shafts (mm) | 130 | 130 |
| intellectual property | IP65 | IP65 |
| Explosion-proof grade | EXib IIBT3 Gb | EXib IIBT3 Gb |

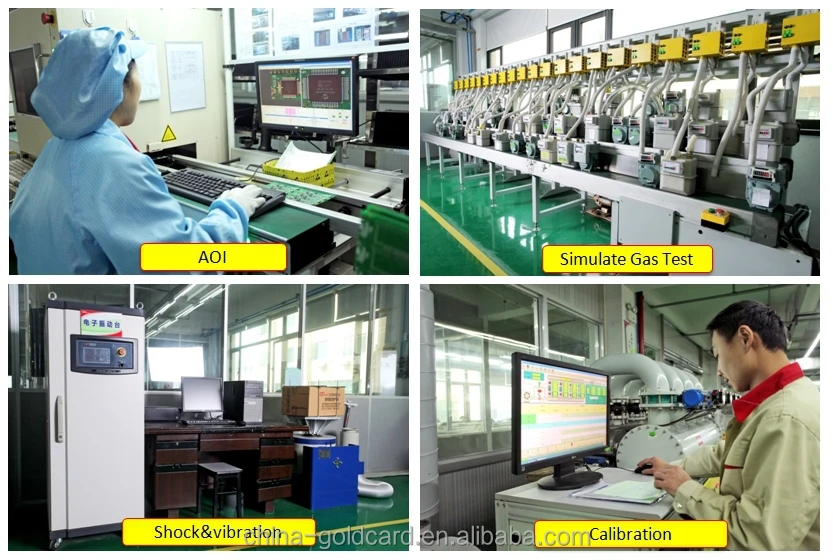

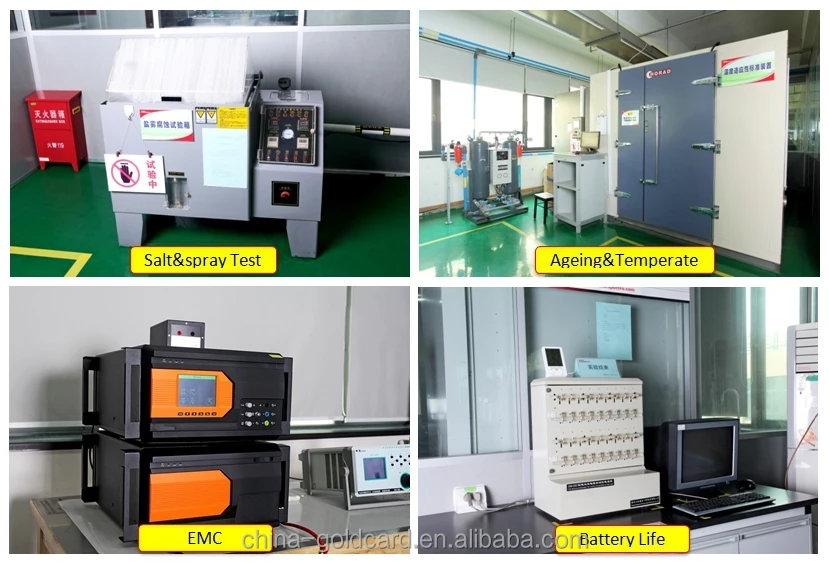

- test facility
- quality assurance

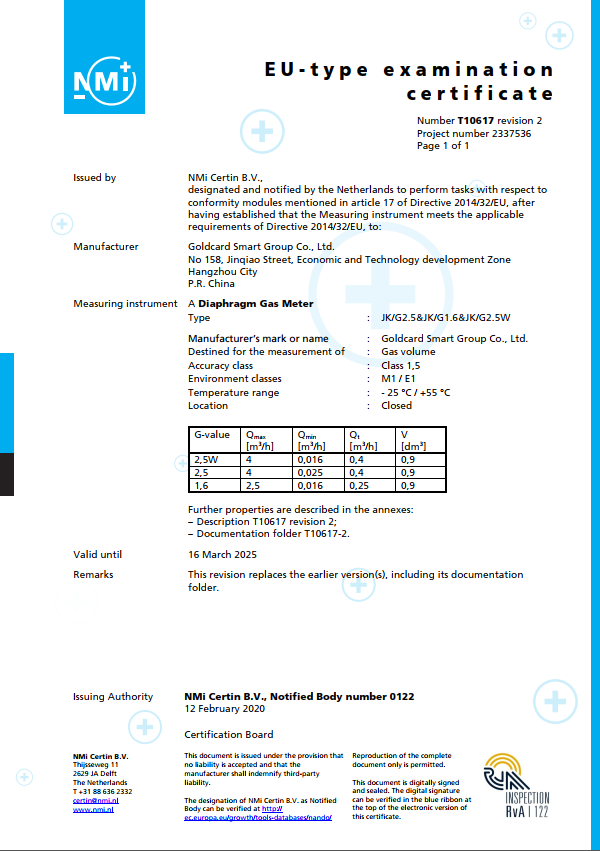

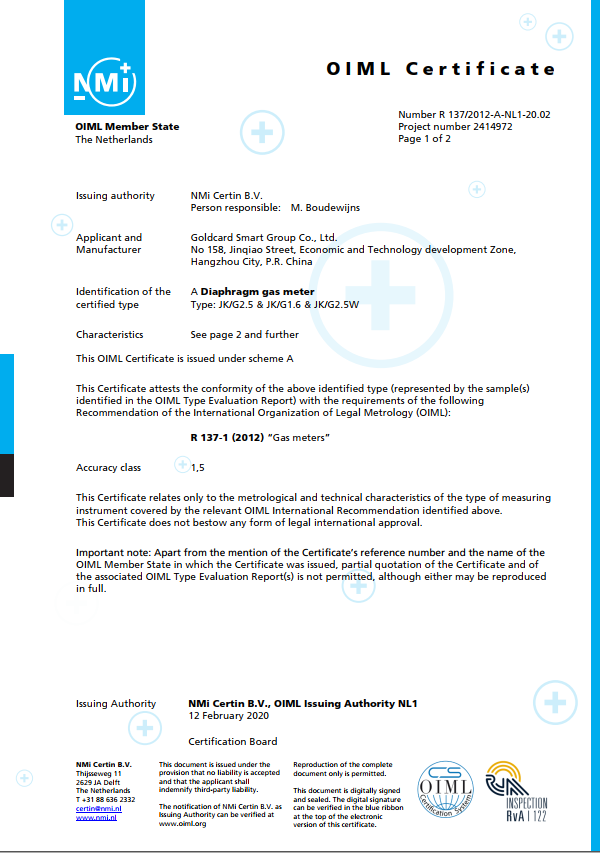

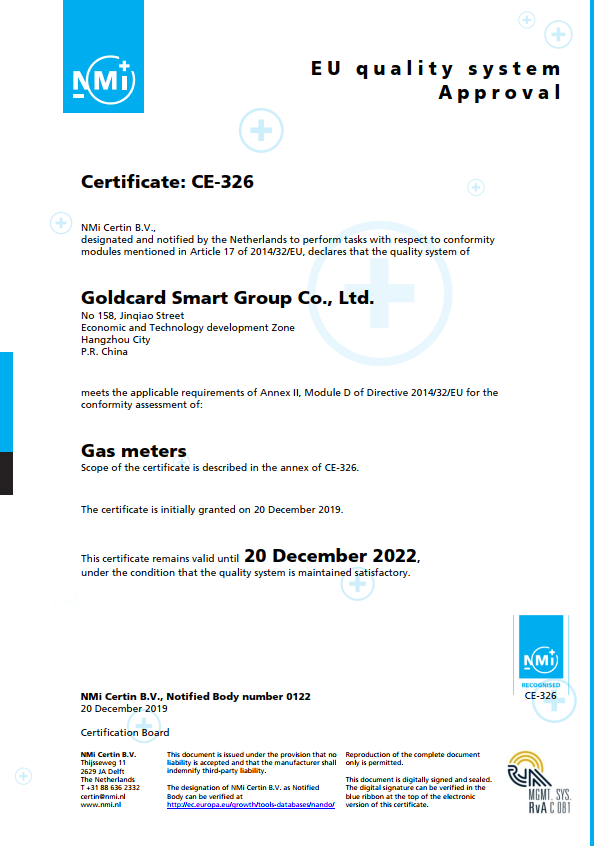

- Certificate
company information

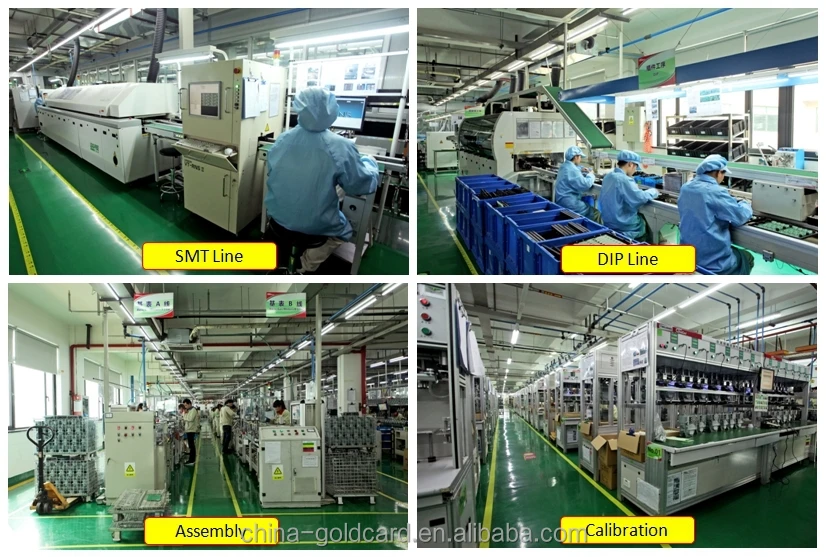

Manufacturing capacity
