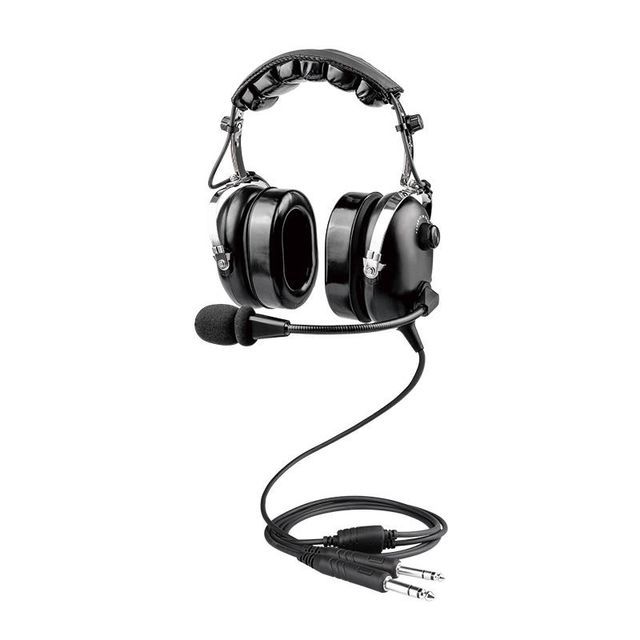

GA dual-plug noise-canceling aviation headphones for pilots
- $70.00 / 24 - 49 pieces
$65.00 / 50 - 99 pieces
$60.00 / >=100 pieces - 24 pieces
- Raytalk Communications Ltd.
- Guangdong, China
- Ms Kim RayTalk
| brand: | RT | Packaging details: | Each item is packed in plastic bag or carton, all packed in carton. aviation headphones |
| use: | aviation communications | Warranty: | 1 year |

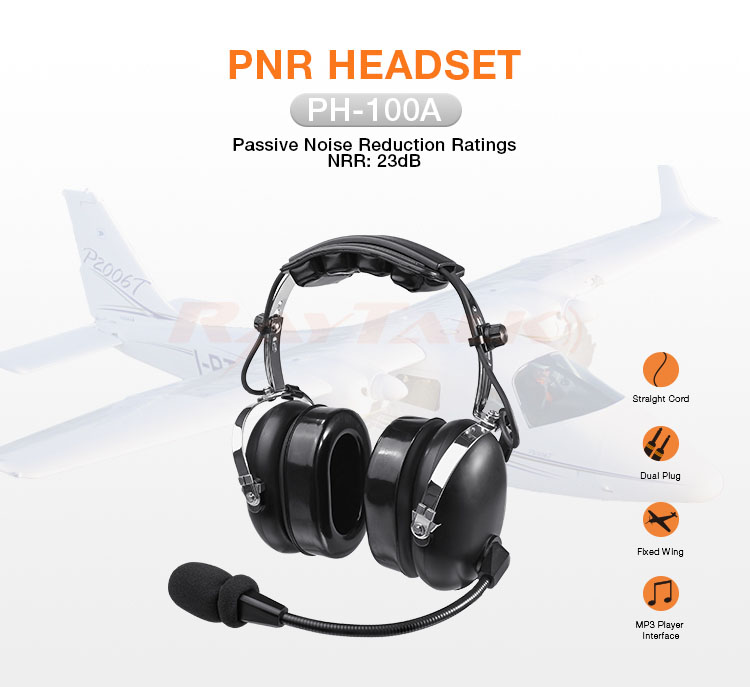

| product name: | Aviation headset PH-100A | style: | overhead |
| color: | Black | Package preview: | |
| Supply capacity: | 10,000 pieces per month | port: | Shenzhen/Hong Kong |
| Material: | ABS+PVC | Function: | Noise canceling microphone |
| model: | PH-100A | pack: | 1 piece/box |
| payment terms: | Western Union, Wire Transfer, PayPal | Place of origin: | Guangdong, China |
| type: | Headbands, aviation headphones | Connector: | GA dual plug |
GA Pilots Use Dual-Plug Noise-Canceling Aviation Headphones
|
earphone |
General |
|
Type: Dynamic (F50) |
Operating temperature: -20 to 70 °C |
|
Frequency response: 100Hz to 8kHz |
Cord: Straight cord from earphones to molded |
|
Sensitivity: 95+/-5 dB SPL |
Plug, 150CM |
|
(1 kHz, 1 mW input per earcup side) |
Intercom connection plug: |
|
Full volume on ear simulator |

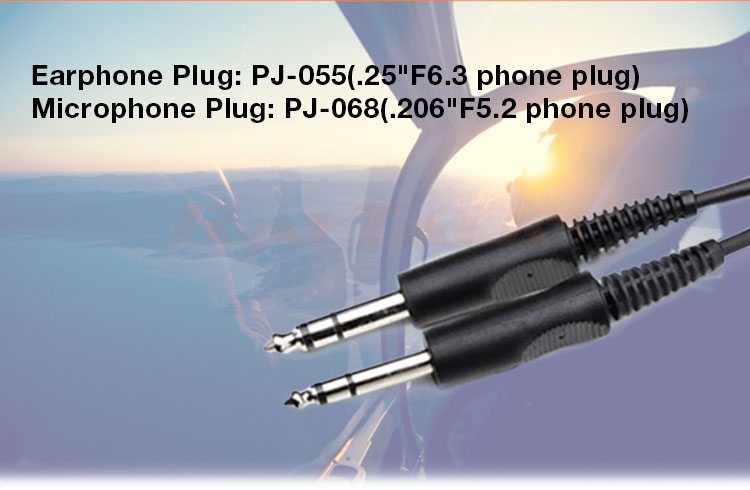

Headphone plug: PJ-055 (.25"F6.3 headphone plug) |
|
Impedance: 150 ohms (300 ohms each; parallel) |
Microphone plug: PJ-068 (.206"F5.2 headphone plug) |
|
Input rate: 100mW |
Weight: 530g |
|
maximum. Input: 250mW |
Headphone size range Height: 10 to 14 cm |
|
Microphone and amplifier: |
Color: green/black/pink/red/yellow/blue/white |
|
Component Type: Noise Reduction Electret |
/grey |
|
Frequency response: 100Hz to 5kHz |
|
|
Operating voltage (provided by aircraft): 8-32 VDC |
|
|
Matching impedance: 150-1000 ohms |
|
|
Sensitivity: -33+/-4 dB |
|
|
(Reference: 0dB SPL=20.0uPa at 1 kHz at 10 Vdc 150 ohms |
|
|
AC load) |
feature
General aircraft (GA) use dual plugs.
PNR active noise reduction: 29dB.
Small AA battery compartment with belt clip.
Low profile volume control knob.

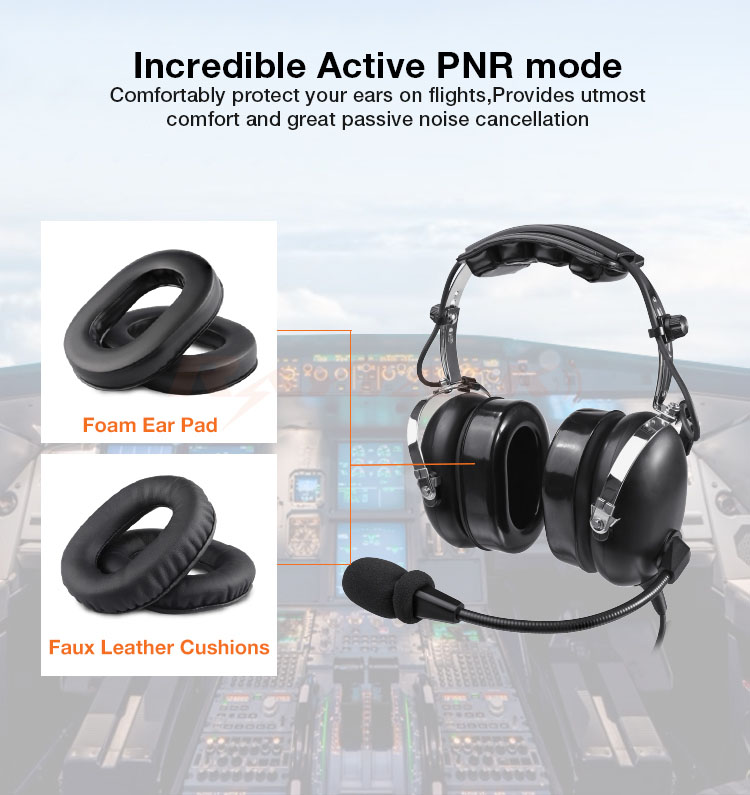

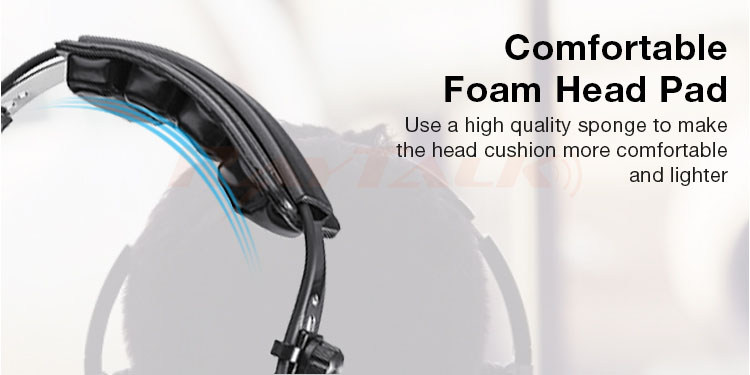

Super comfortable double layer foam head cushion.
Comfortable gel ear seals and gel ear pads.
Clear listening performance audio speakers.
Wide operating temperature range: -20~70℃

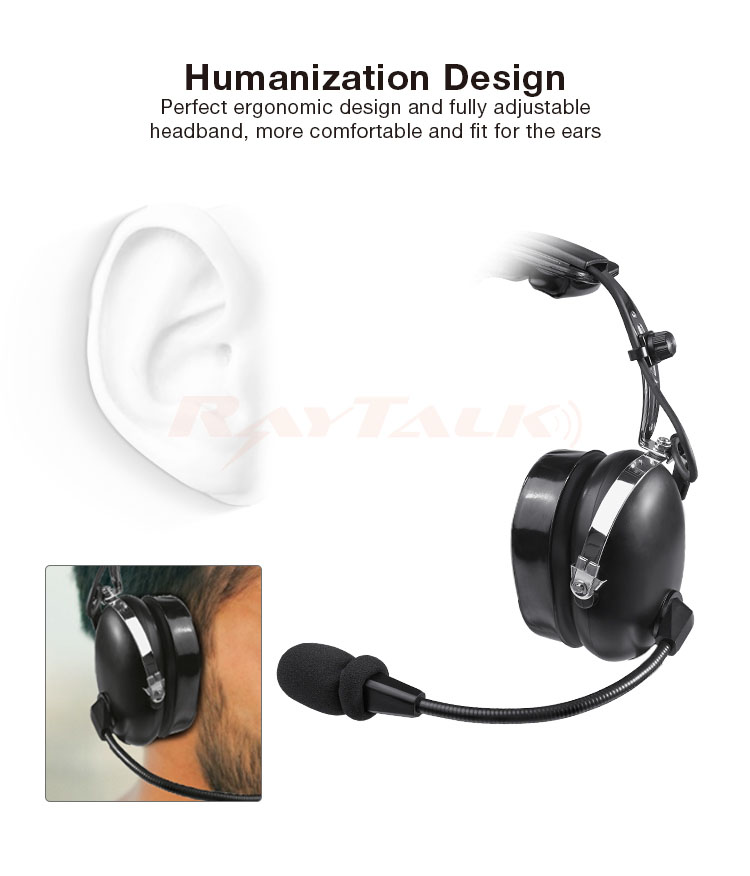

Fully adjustable spring steel headband.
Adjustable stainless steel straps overhead.

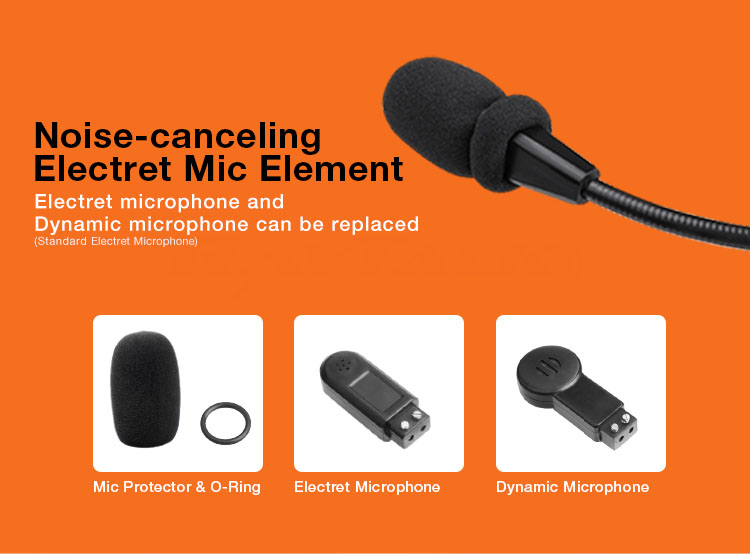

Noise reduction electret microphone and dynamic microphone are optional.

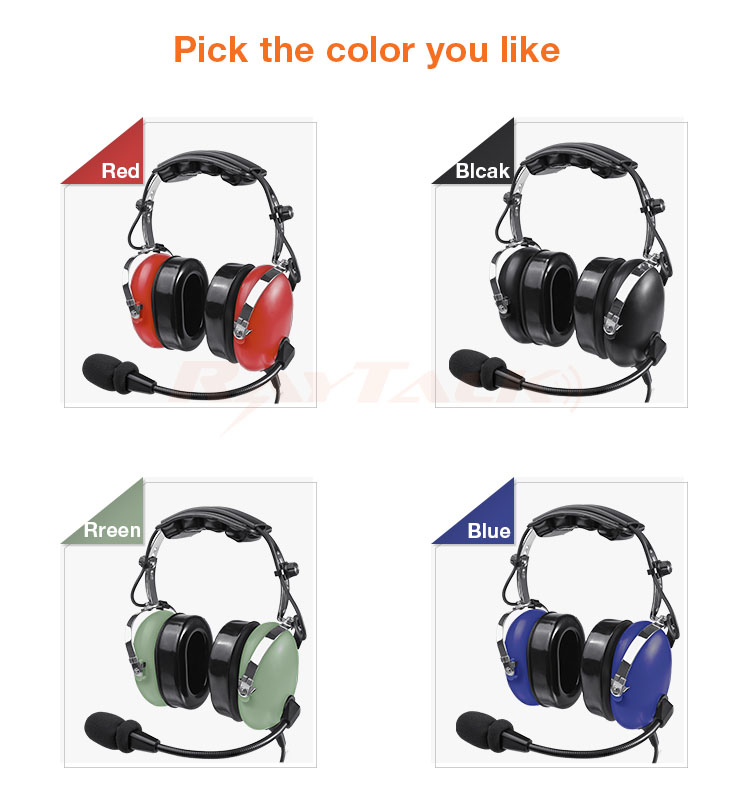

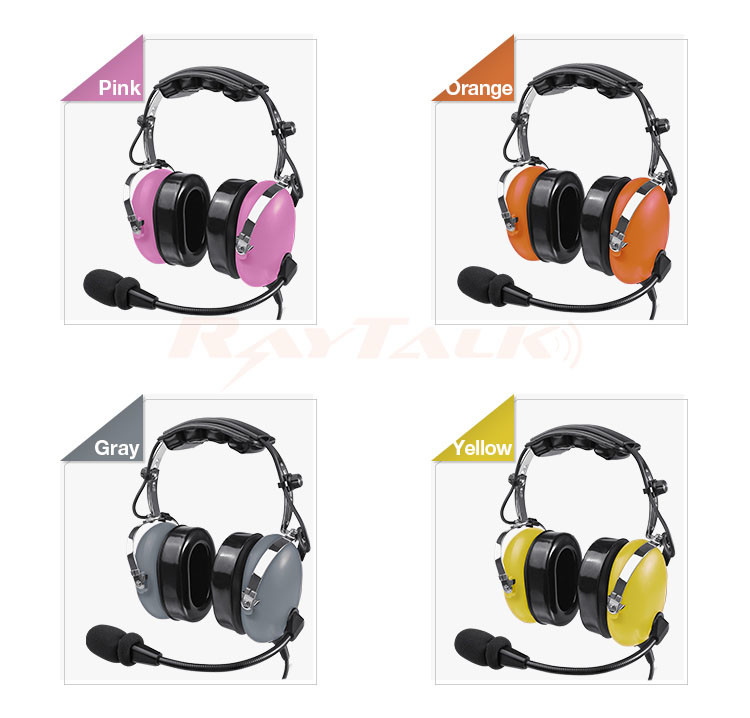

Color: black, blue, yellow, green, gray, pink, red optional.
