GUA Rigid Duct Outlet Box
- $10.00 / >=2000 pieces
- 2000 pieces
- Cixi Chenghe Pipe Industry Co., Ltd.
- Zhejiang, China
- Mr
PRODUCT DETAIL
brand: | Product/CCPI | type: | Explosion-proof |
Origin: | Zhejiang, China | Material: | malleable cast iron |
model: | melon | Package preview: | |
port: | Ningbo and Shanghai port | Packaging Details: | in pallet carton |
payment terms: | L/C, T/T | Supply capacity: | 10000 pieces per month |
Finish: | hot dip galvanized |
Product Details

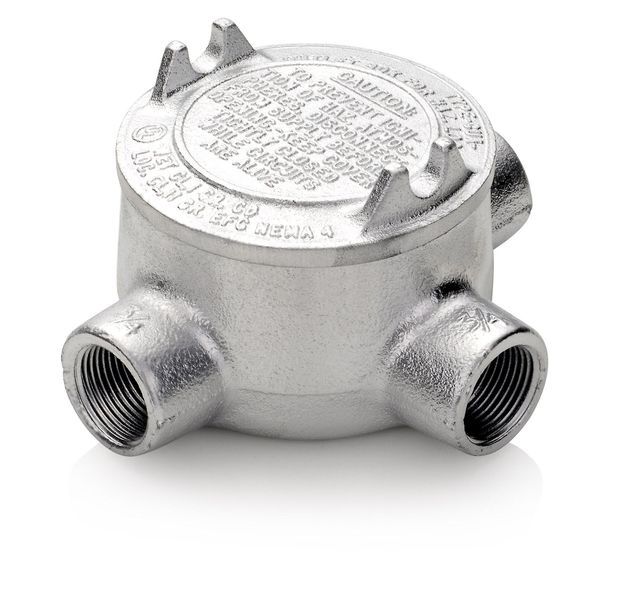

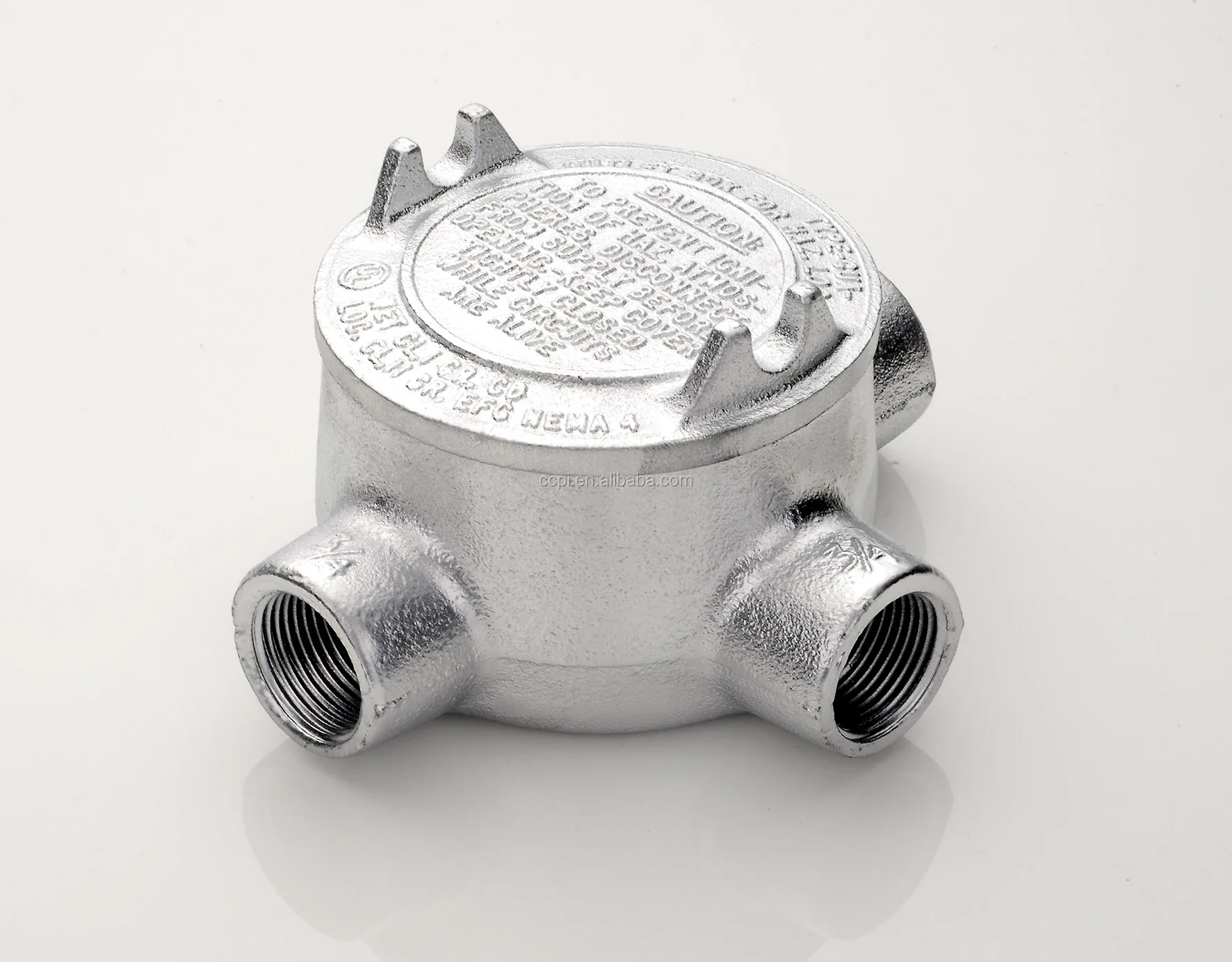

GUA conduit outlet box
For rigid steel and IMC conduits
All sizes and shapes will be available soon!
GUA Series Conduit Outlet Boxes are installed in hazardous area conduit systems for:
- Protects conductors in threaded rigid conduits
- Acts as a pull and splice box
- connecting conduit length
- Change pipe direction
- Provides access to conductors for maintenance and future system changes
- Mounting socket that acts as a fixture
- as sealing fitting
standard material
malleable cast iron
standard finish
Double zinc coating - hot dip galvanized and galvanized
Optional - Galvanized
Certification and Compliance
UL Standard: 886
ANSI Standard: C33.27
CSA Standard: C22.2 No. 30
hub size
1/2"-2"
Drawings and Spec Sheets
available when needed
