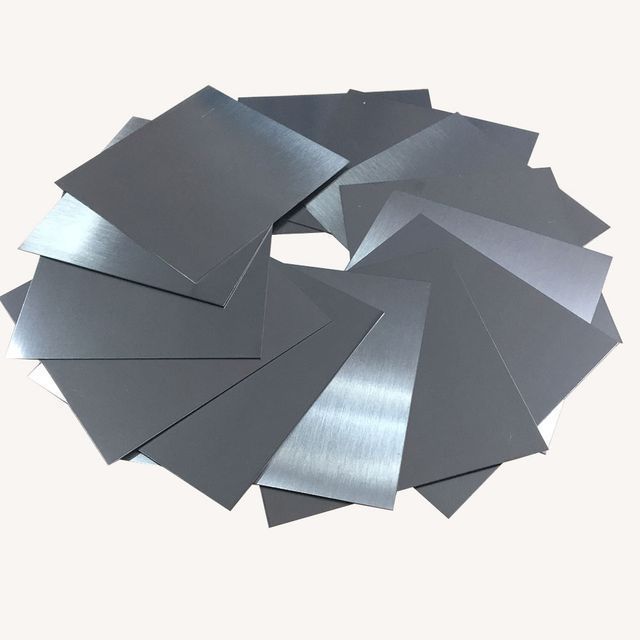

Gr1 Gr2 Titanium Plate 1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm

PRODUCT DETAIL
density:4.51g/cm3Material Milling Certificate:Yes
Titanium (min):Minimum 99.6%grade:Gr1
brand:YunchiPackaging Preview:
model:YZ-titanium platestandard:ASME SB265/ASTM B265
width:1000mmtechnology:cold rolled
length:≤6000mmSupply capacity:100 kg per day
Certification:ISO 9001:2015, TUVcolor:sliver
Packaging Details:Export wooden box or according to customer requirements Gr1 Gr2 Titanium plate/sheet 1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mmProcessing service:Bending, welding, uncoiling, cutting, punching
Other standard options:AMS4911/ASTM F67/ASTM F136application:industrial, medical
Material:Gr1 Gr2 Gr5 Gr7 gr12port:Shanghai/Guangdong/Shenzhen
place of origin; place of origin:Shaanxi, Chinasurface:Polishing / Sandblasting / Pickling
process:Hot Rolled/Cold RolledAdvantage:Corrosion resistance, high strength, light weight
payment terms:Western Union, wire transfer

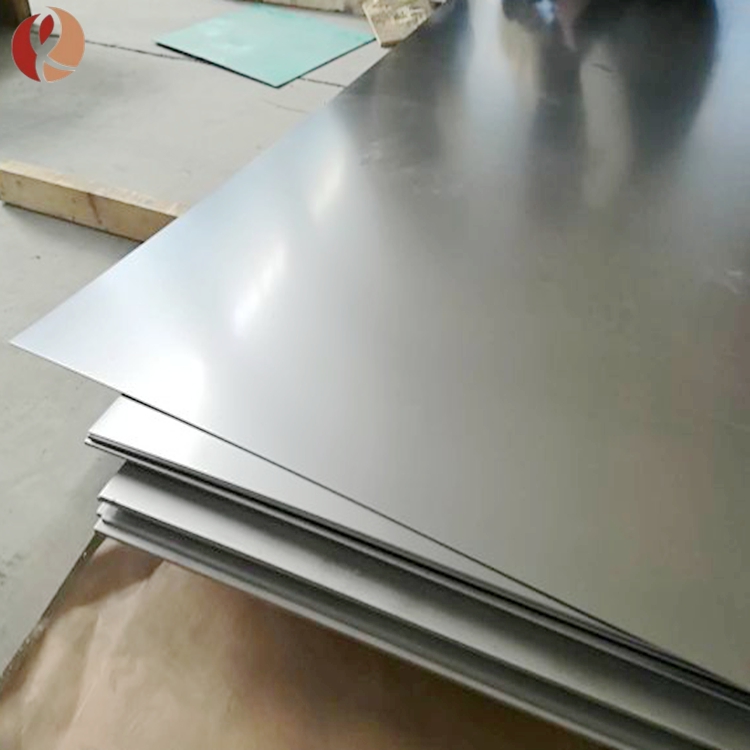

Gr1 Gr2 Titanium plate/sheet 1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm



Product Description

product name
Titanium foil/titanium plate/titanium sheet/titanium tape/titanium roll
standard
ASTM B265 / ASME SB265 / AMS 4911 / ASTM F67 / ASTM F136 / ISO 5832-2 / ISO 5832-3
Titanium
Commercially Pure (CP)/Titanium Alloy
grade

Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333

BT1-00 BT1-0 BT1-2

thickness
0.025-75mm
length
Cut on request
technology
hot rolled or cold rolled
surface
Acid finish or polished, sandblasted finish
application
Aviation, Navigation, Petrochemical, Industrial, Equipment Manufacturing, Medical, Automotive and Sports



1. Chemical requirements
grade N(≤) C(≤) H(≤) Iron (≤) O(≤) Aluminum (≤) V(≤) Palladium (≤) Molybdenum (≤) Nickel(≤) titanium
GR1 0.03 0.08 0.015 0.2 0.18 / / / / / Barr
GR2 0.03 0.08 0.015 0.3 0.25 / / / / / Barr
GR3 0.05 0.08 0.015 0.3 0.35 / / / / / Barr
GR4 0.05 0.08 0.015 0.2 0.4 / / / / / Barr
GR5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / Barr
GR7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / Barr
GR9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / Barr
GR12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 Barr
GR23 0.05 0.08 0.012 0.25 0.13 5.5~6.5 3.5~4.5       Barr



2. Tensile requirements
grade Tensile strength (≥) Yield strength (≥)) Elongation (≥)%)
Kersey MPa Kersey MPa
GR1 35 240 20 138 twenty four
GR2 50 345 40 275 20
GR3 65 450 55 380 18
GR4 80 550 70 483 15
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 483 15
GR12 70 483 20 345 18
GR23 120 828 110 760 10









application



equipment

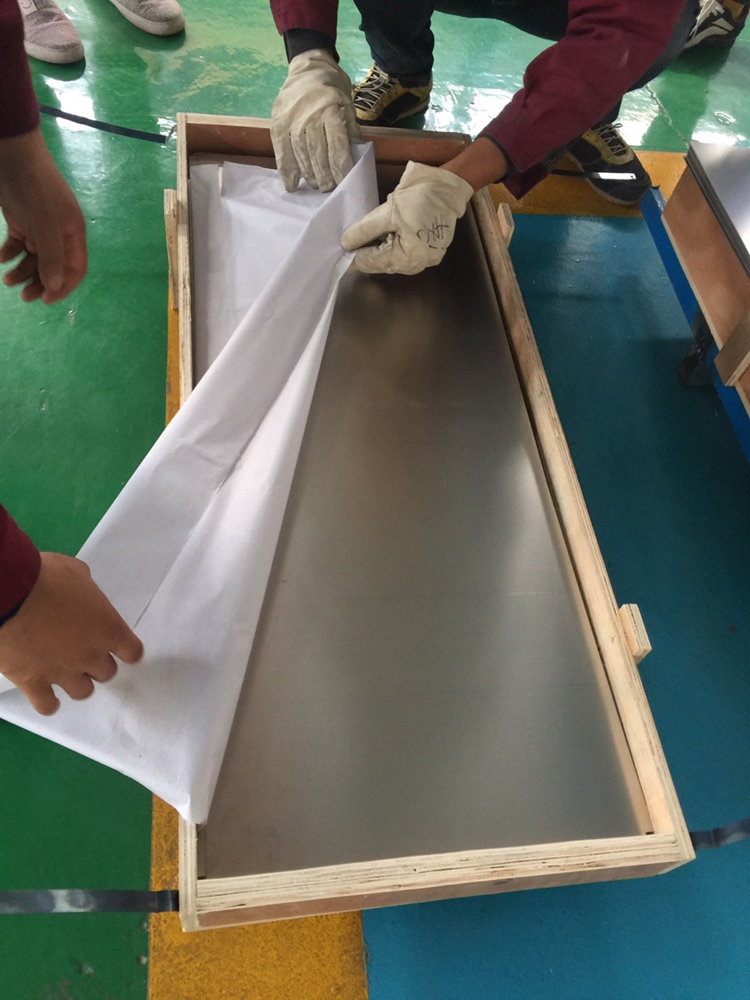

Packaging and Shipping

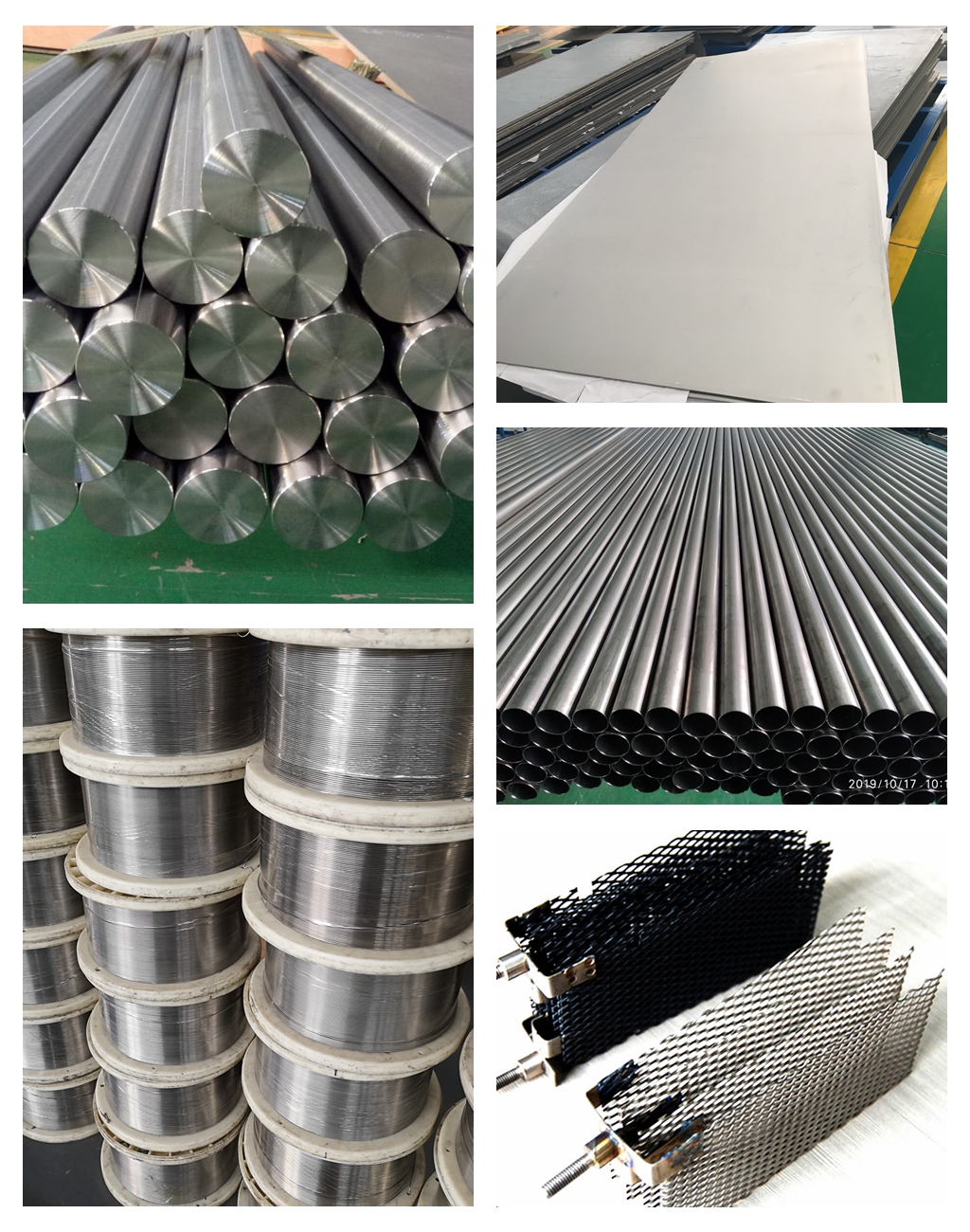

main products



Our advantage





exhibition

Hannover Messe and CeMAT in April 2018.

The leaders of Yunqi Titanium Industry, Alvin Liu and Alex Huo jointly attended the official opening ceremony of the Hannover Fair in Germany.
