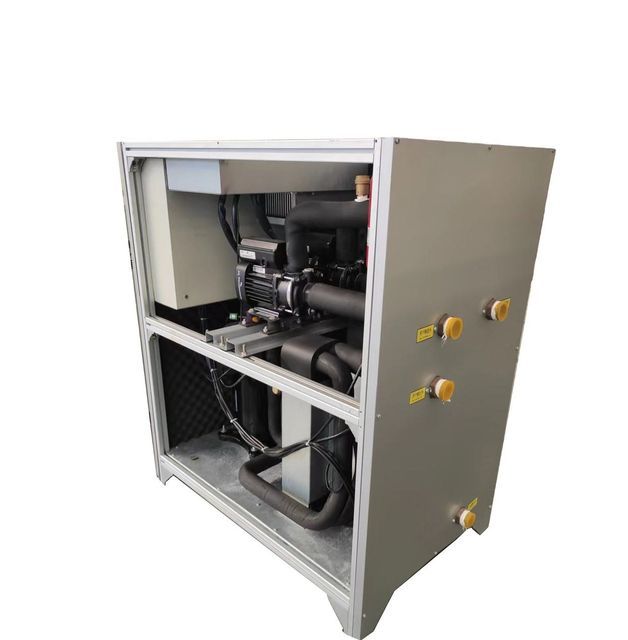

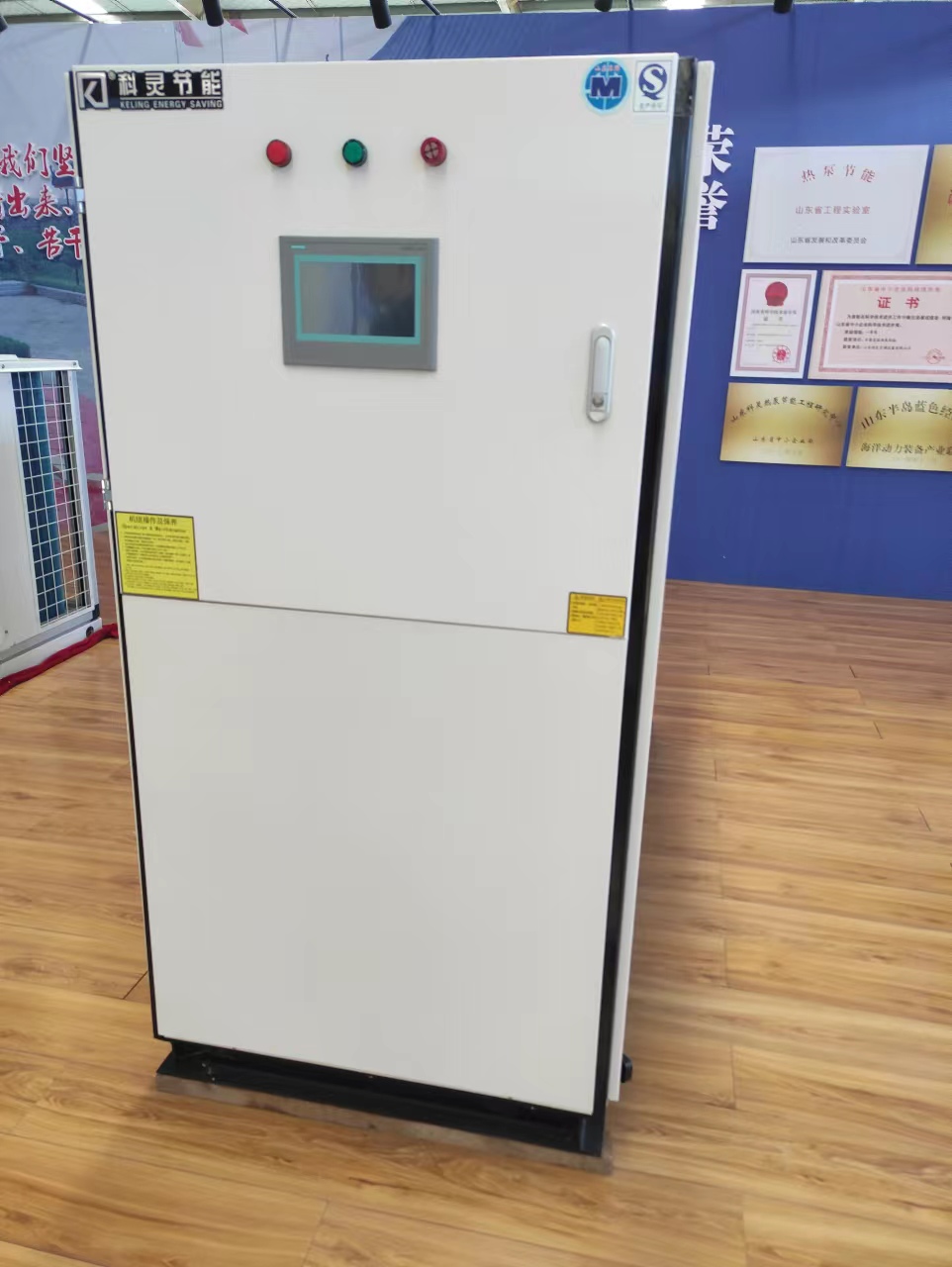

Ground source ground source heat pump water heater frequency conversion heating and cooling

PRODUCT DETAIL
port:Qingdao PortHeating capacity:20 kW
Package preview:Cooling capacity:16 kW
payment terms:L/C, Western Union, T/TCertificate:International Organization for Standardization
Supply capacity:30 sets per monthtype:inverter
Function:Heat pump, cooling, hot waterapplication:Community, villa, restaurant, etc.
control:LCD, touch screen, PLCPackaging Details:Protective packaging or plywood case for long distance shipments
Product Description

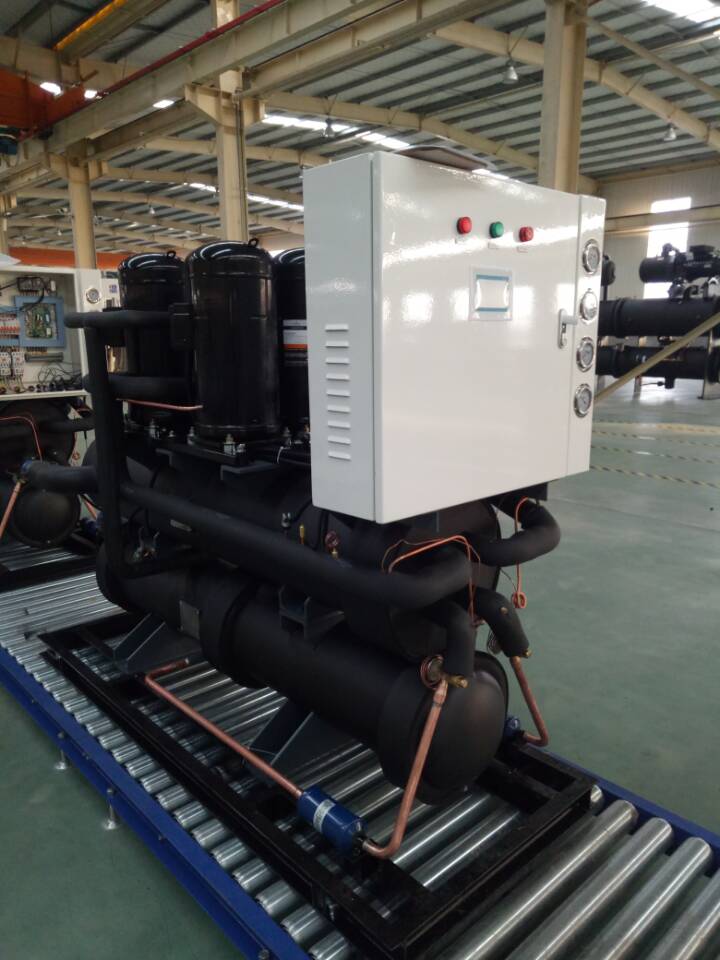

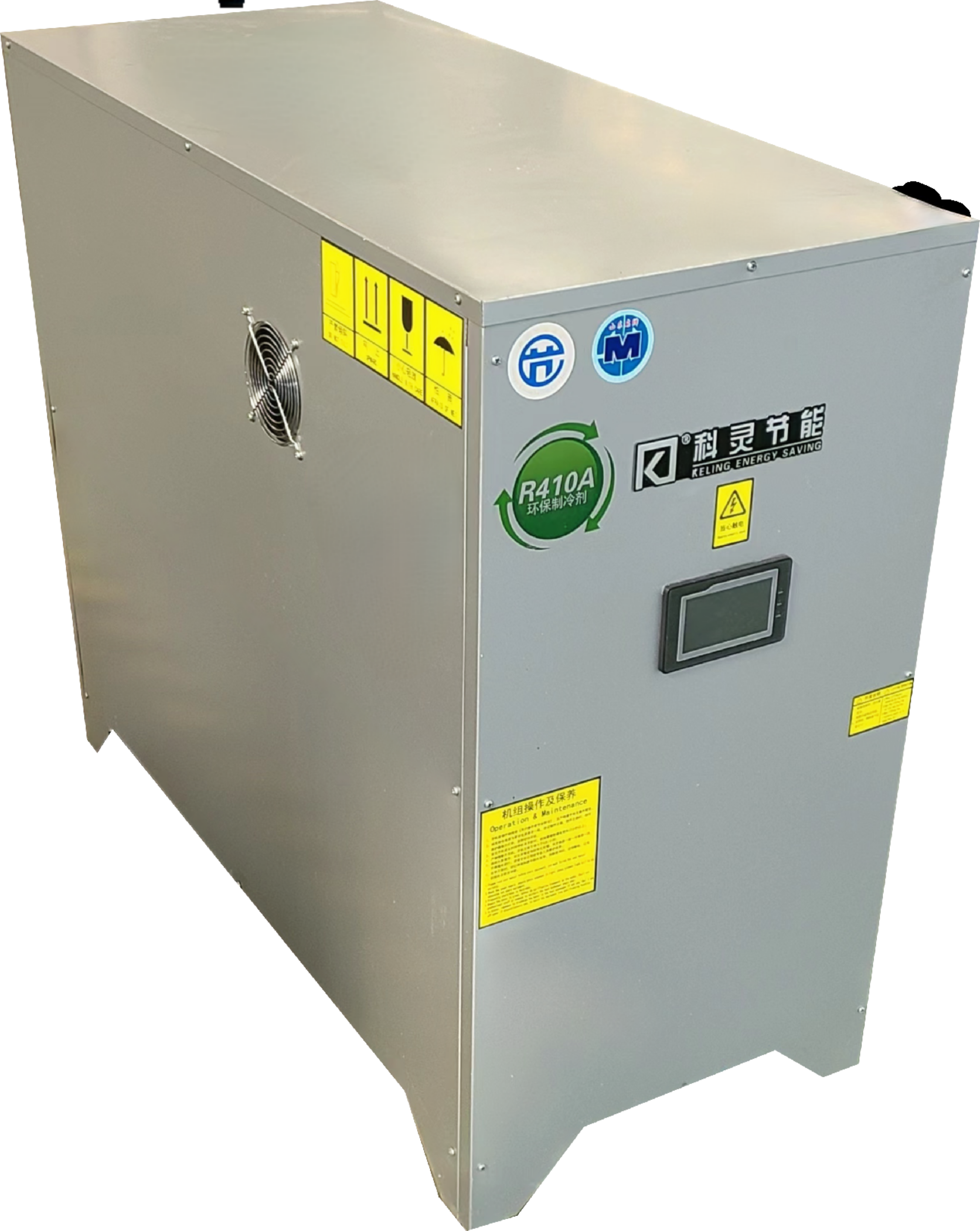

Keling ground source heat pump is a high-efficiency and energy-saving air-conditioning solution that uses shallow geothermal sources to provide heating or hot water. There are 3 series, frequency conversion miniature ground source heat pump, modular ground source heat pump, screw ground source heat pump. Frequency conversion ground source heat pumps are widely used in HVAC systems and hot water supply with an area of ​​100m2-1000m2. The scope of application includes villas, hotels, restaurants, factory theaters, stadiums, apartments, etc.
thing
value
Cooling capacity
8kw-40kw
Heating capacity
10kw-45kw
type
inverter
application
Community, villa, restaurant, etc.
Function
Heat pump, cooling, hot water
control
LCD, touch screen, PLC
Certificate
International Organization for Standardization
feature
hHigh COP
COP can reach 6.2,40% energy saving than traditional central air conditioners;
The operating cost is 50%-60% of the traditional central air conditioner.
Key components such as compressors, heat exchangers, fans, valves, and electrical appliances are all of well-known brands (such as Bitzer, Hanbell, Copeland, Daikin compressors, Schneider or Siemens electronics, Punp or Syslab controllers) to ensure high quality.
Easy to install and operate
Small size, light weight, easy to install, transport and maintain;
Works immediately after power and water connections; fully sealed design avoids potential damage to components
Advanced microcomputer control system, with fully automatic control function and high and low voltage overload protection function,
Insufficient voltage, phase loss, low temperature, etc.;

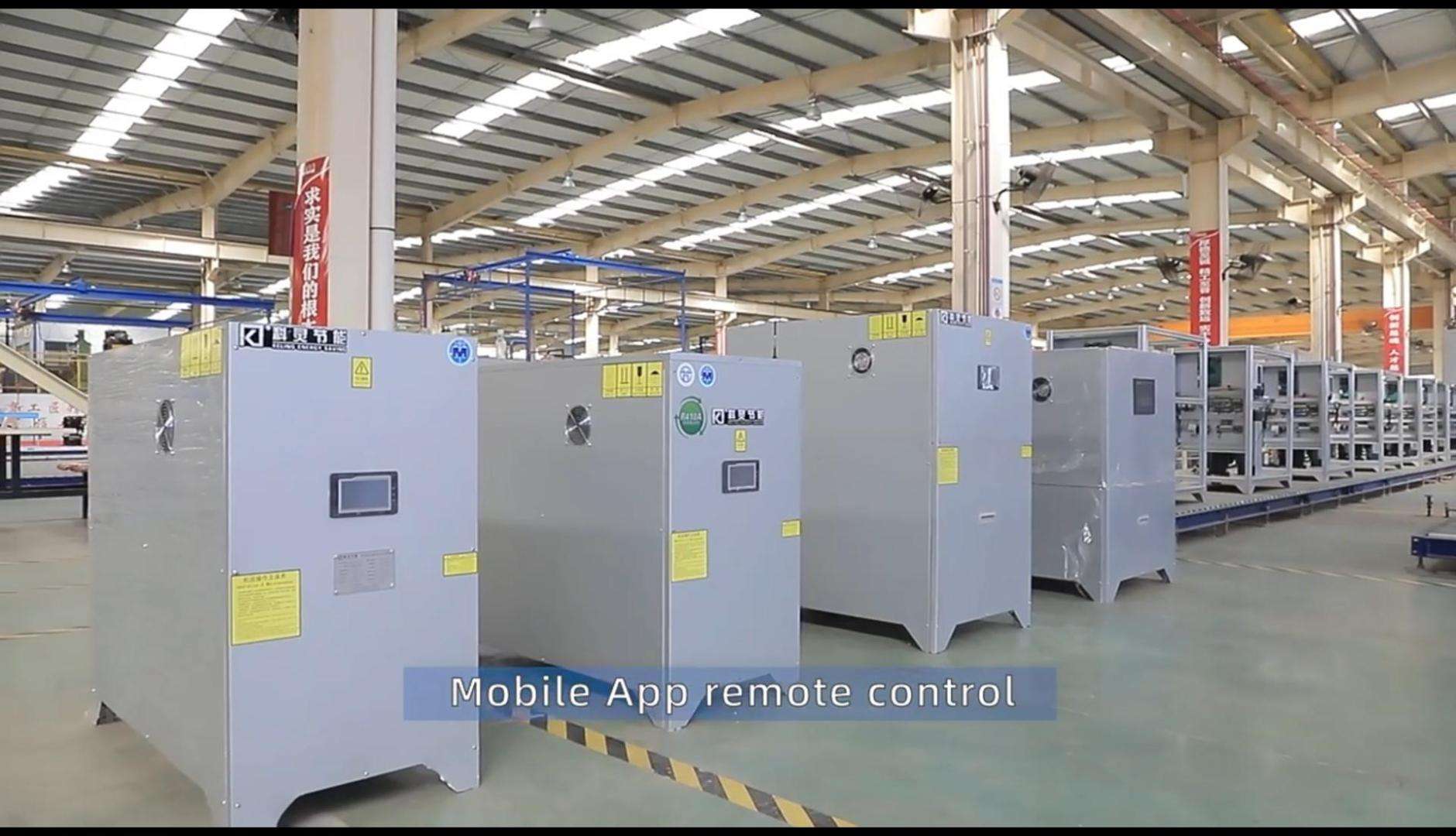

APP control message start and alarm.

Environmental application
Replace boiler heating in winter, no waste gas, waste residue, waste water discharge; significantly reduce greenhouse gas emissions;
R410A environmentally friendly refrigerant.
compact size
The built-in water pump and optimized design structure simplify the water pipe system on the user side and are compact in size. The footprint is less than 1.5m, saving installation space.
customization options
Plate heat exchanger
compressor brand
heat recovery system
rubber shock absorber
Water circuit metal filter
water pump
Flow switch

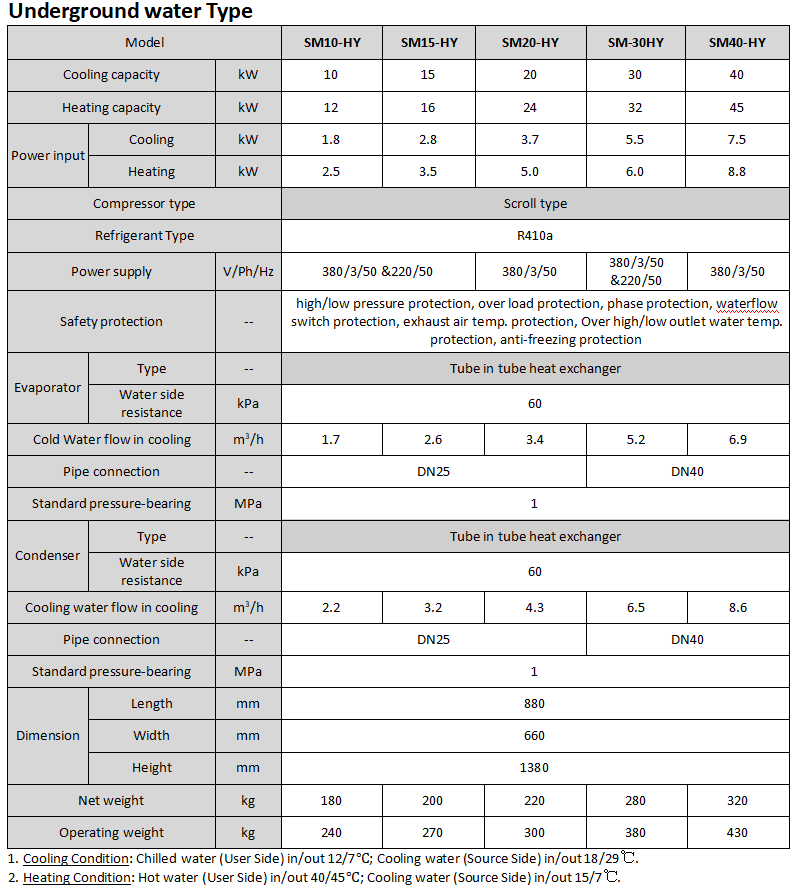

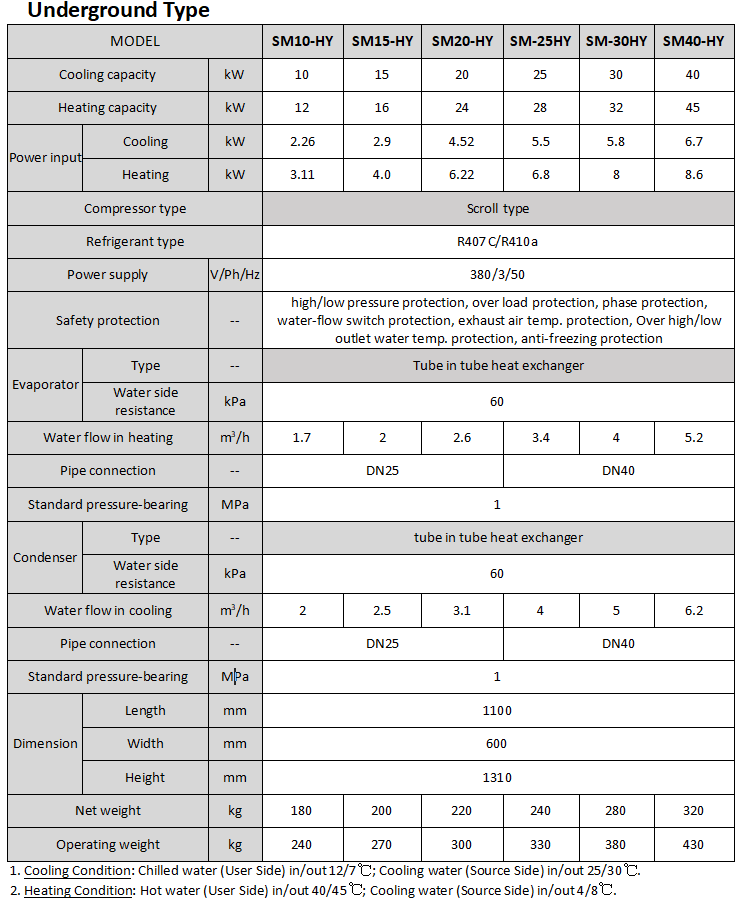

Specification

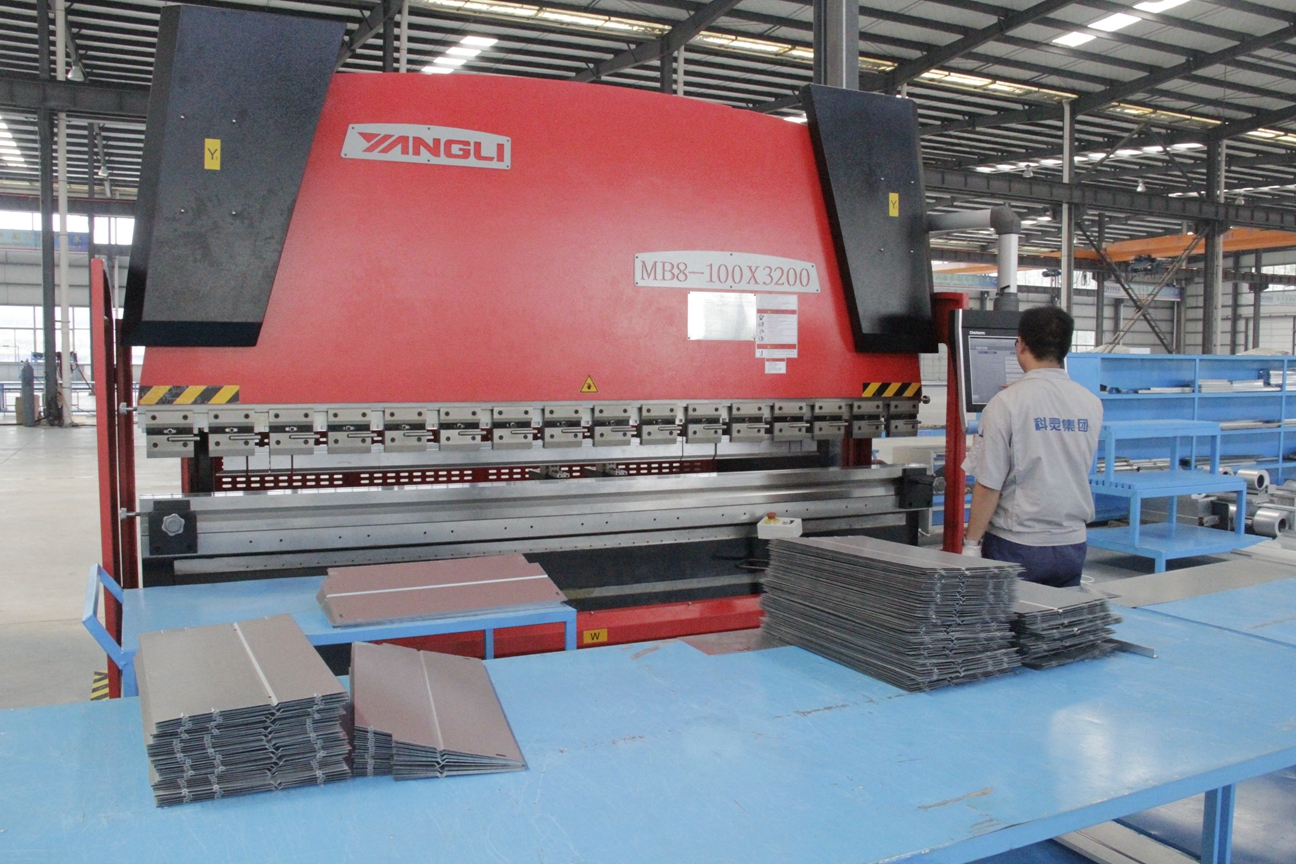

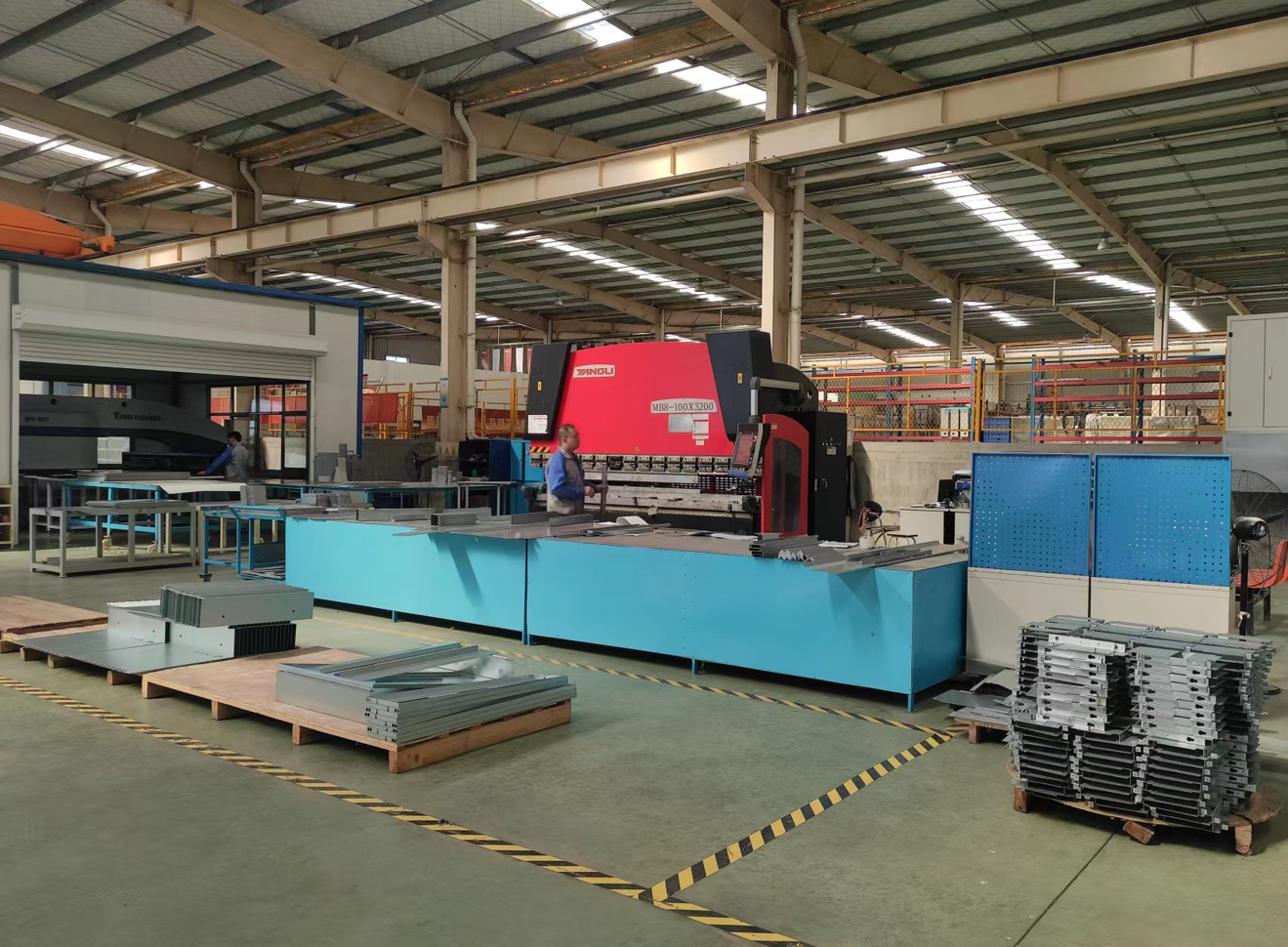

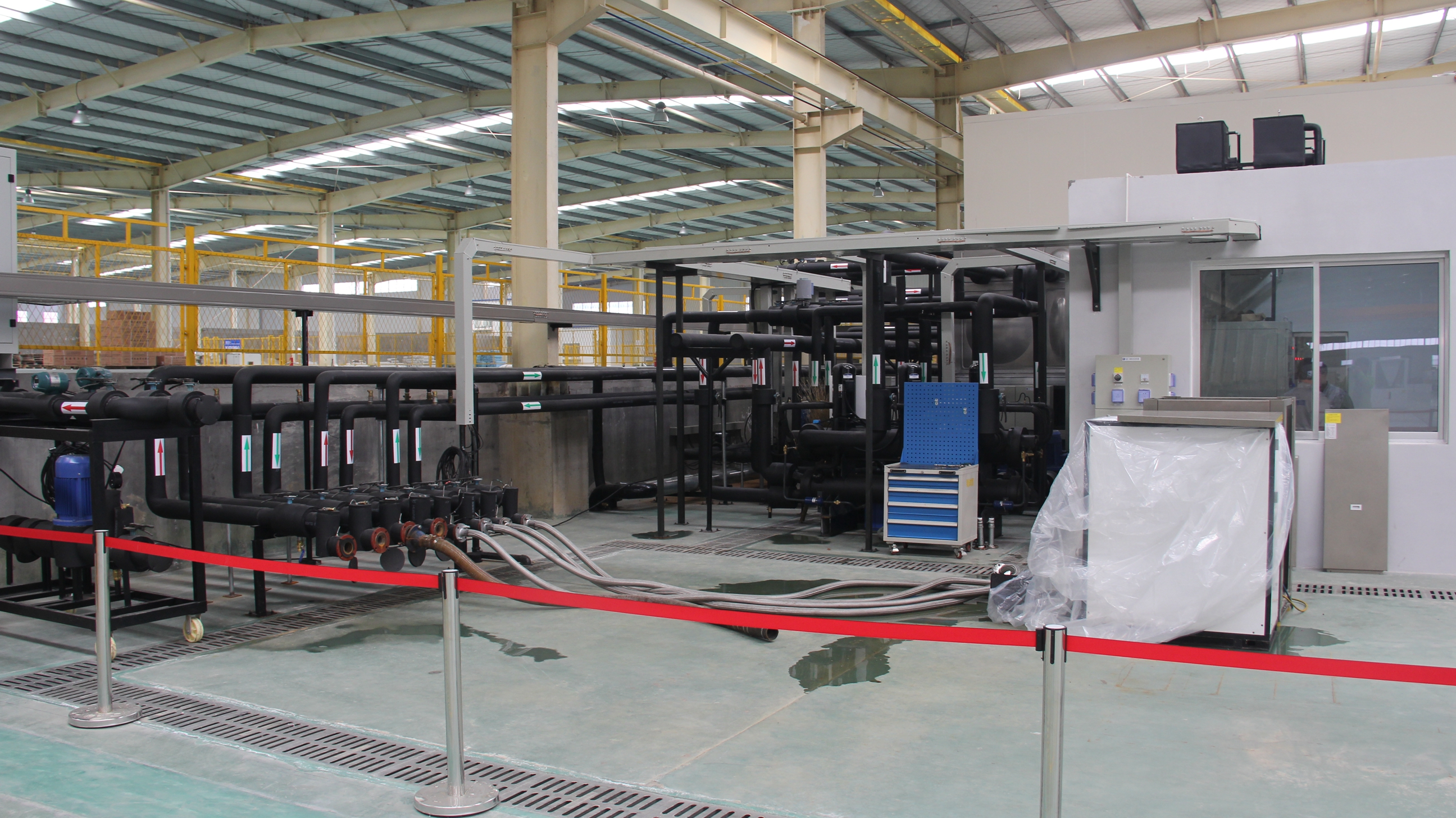

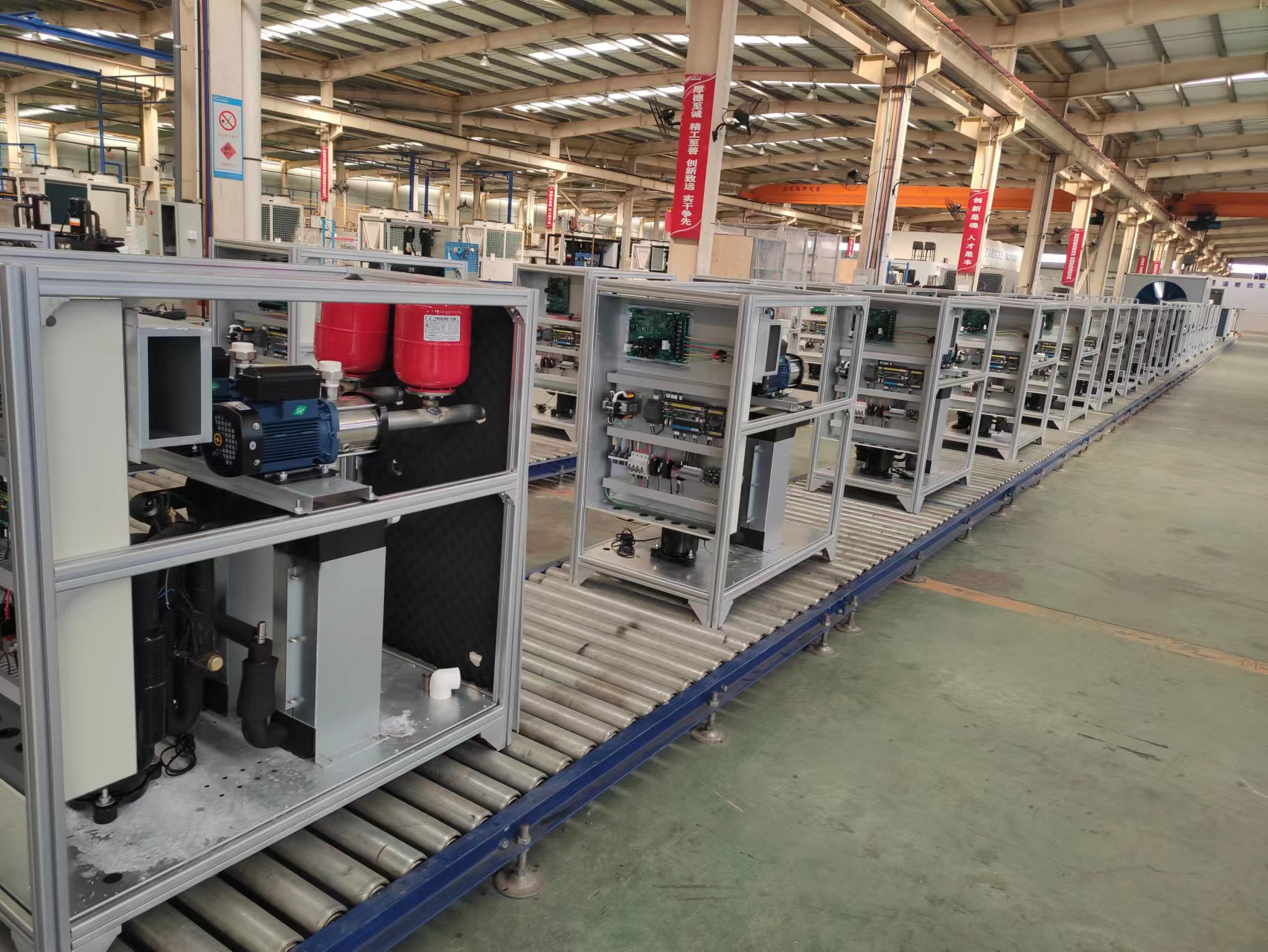

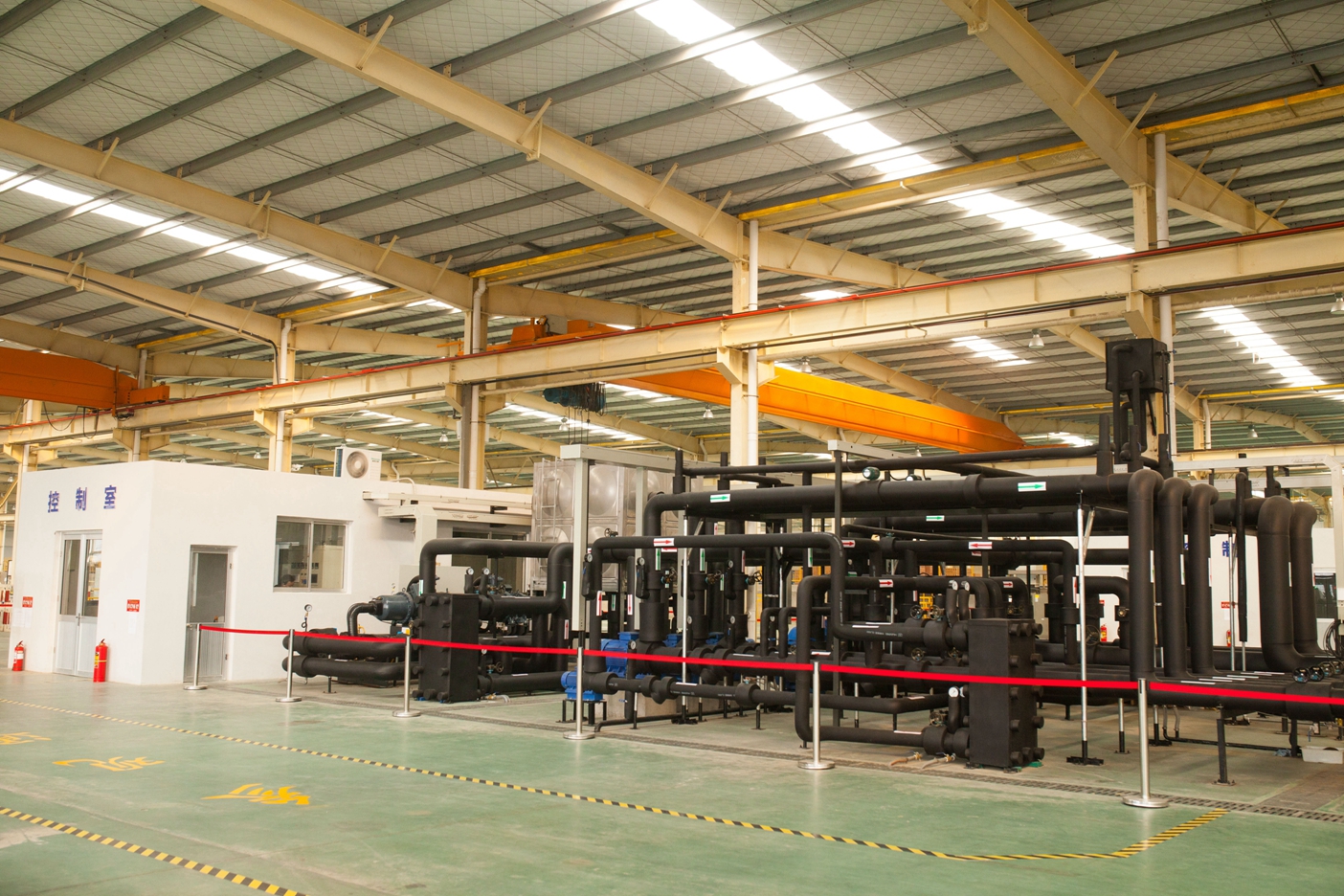

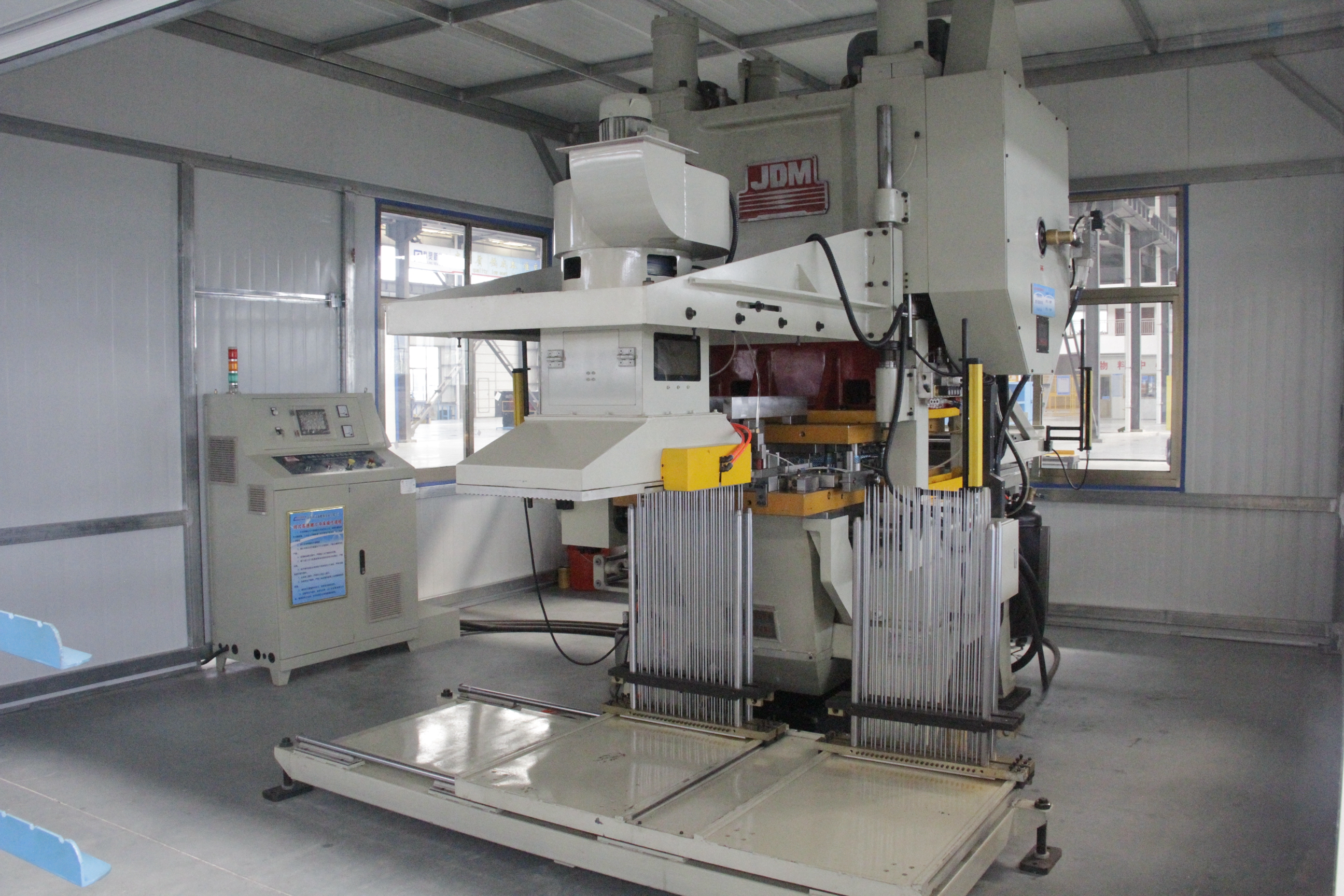

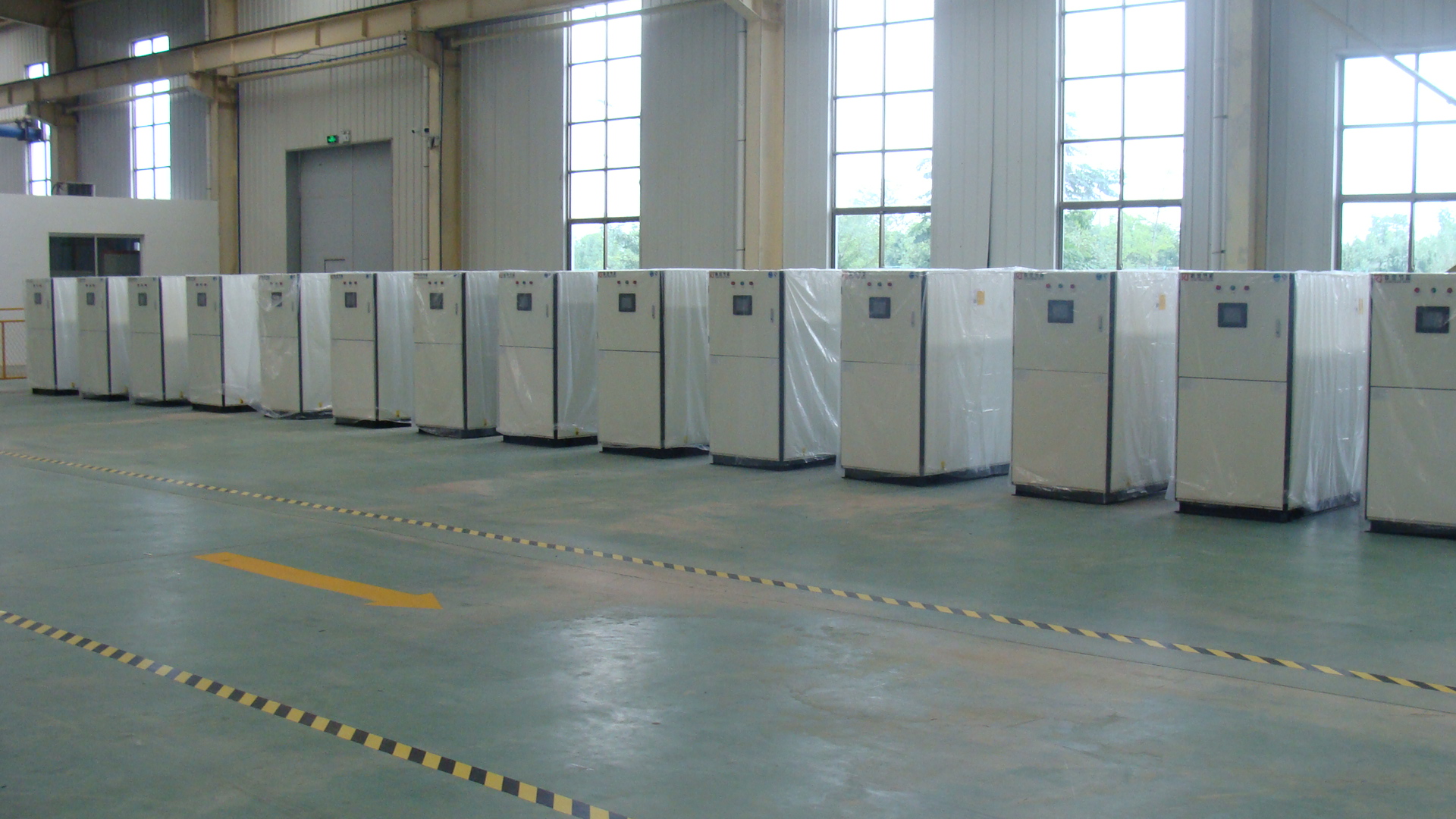

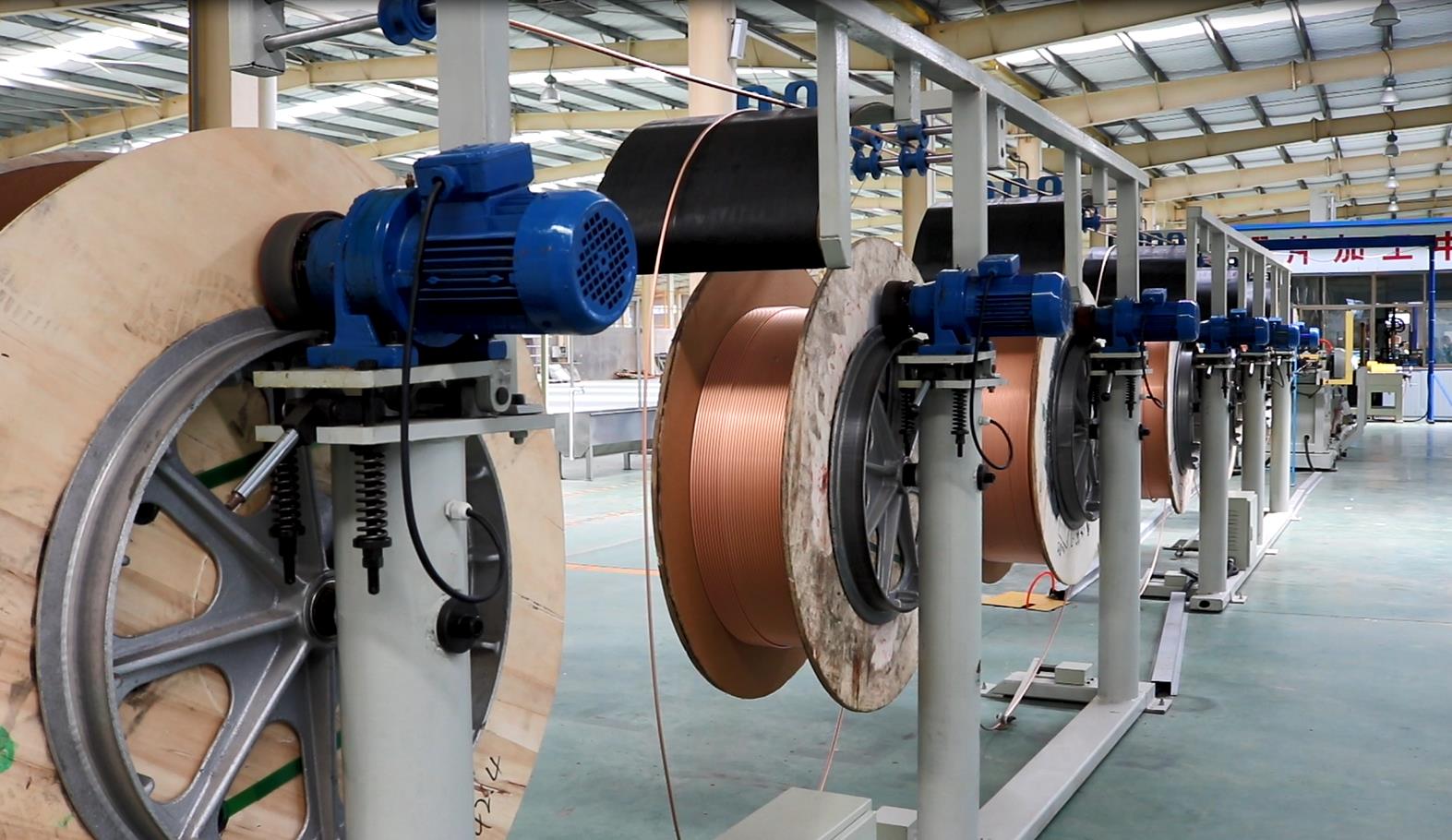

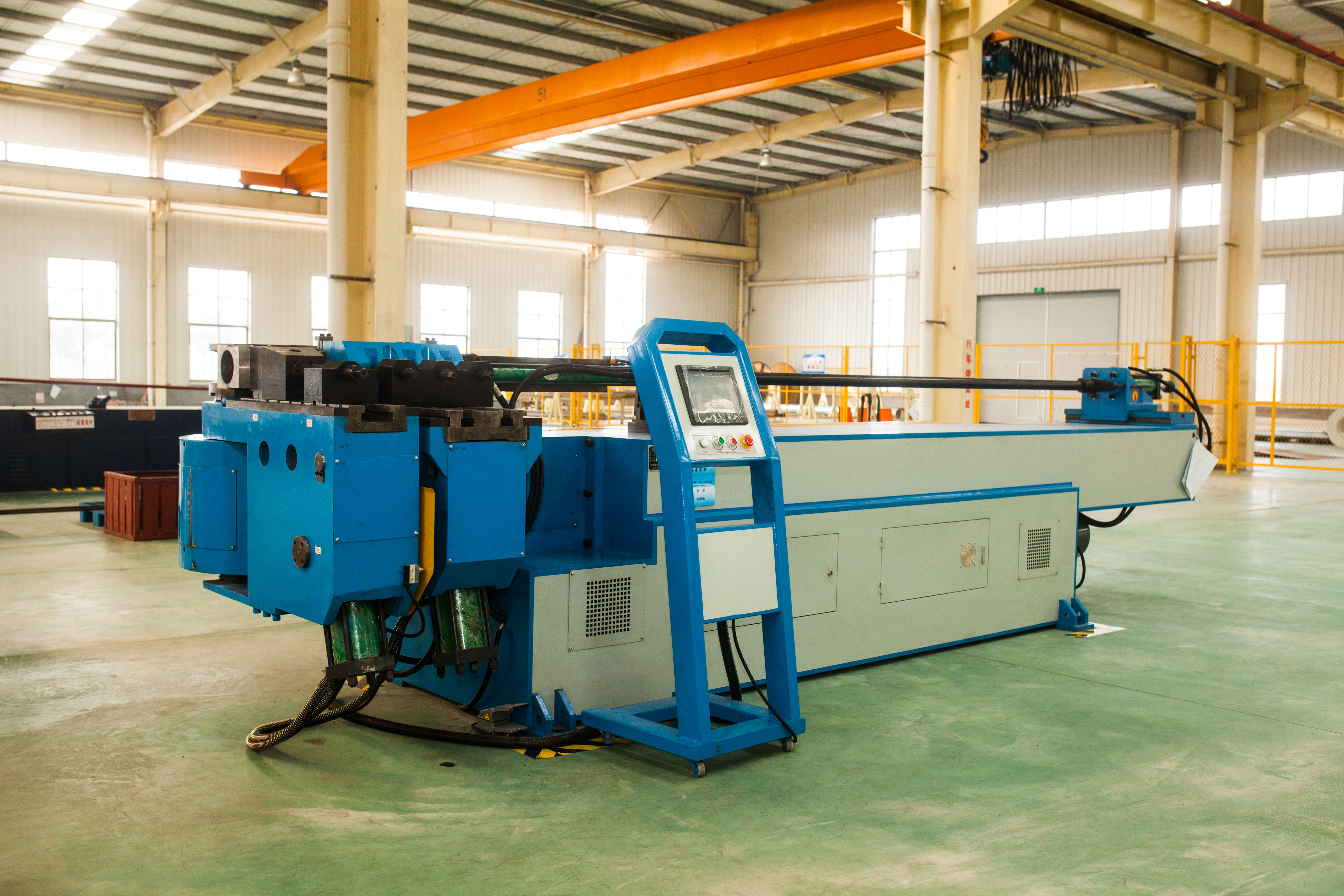

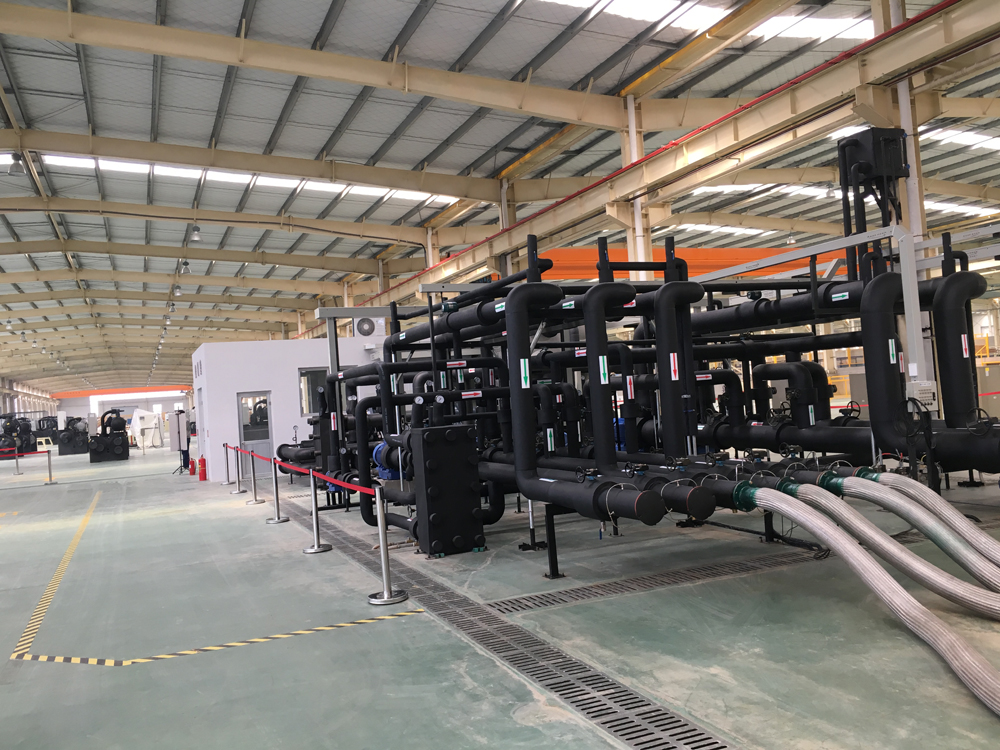

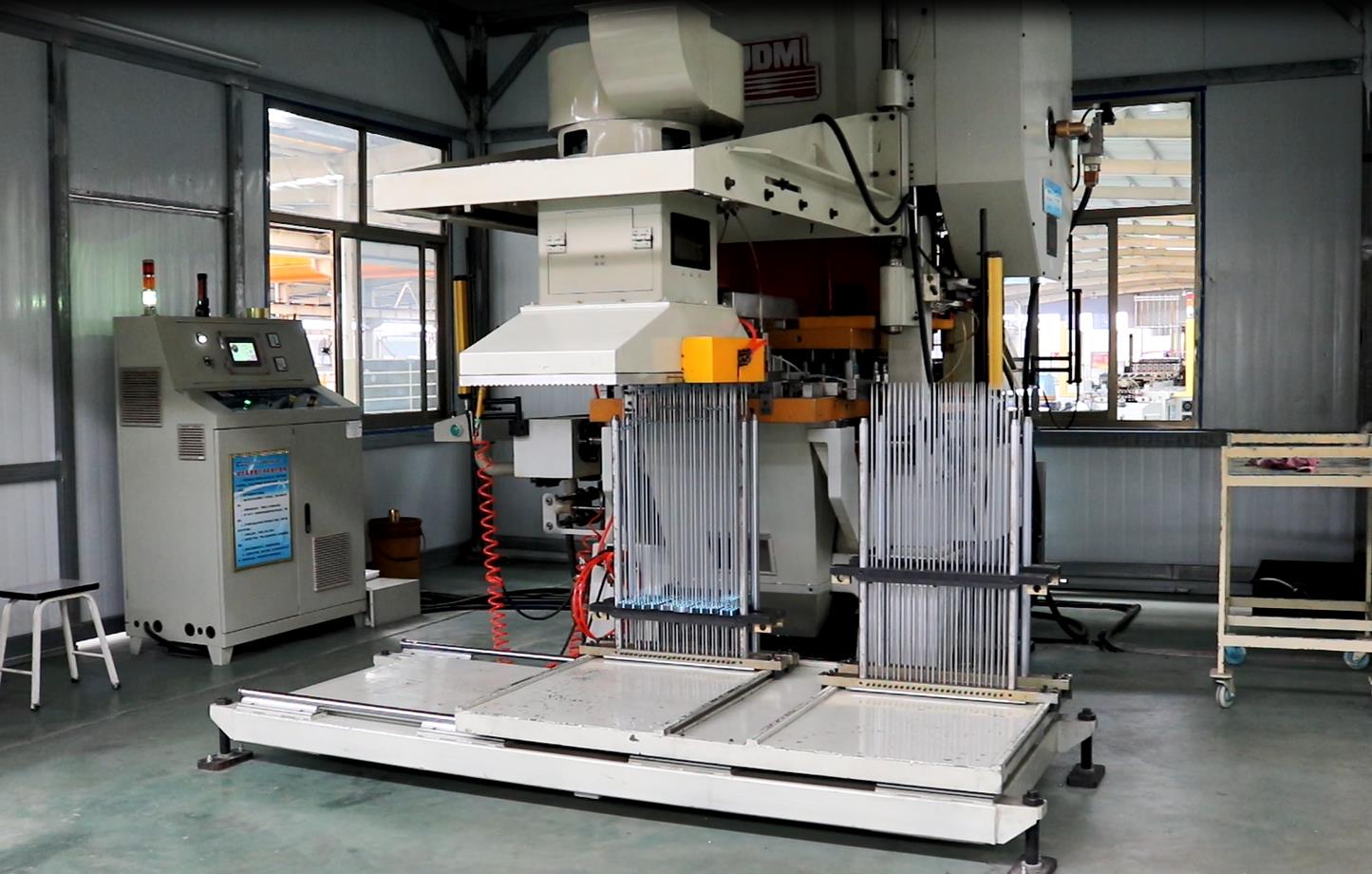

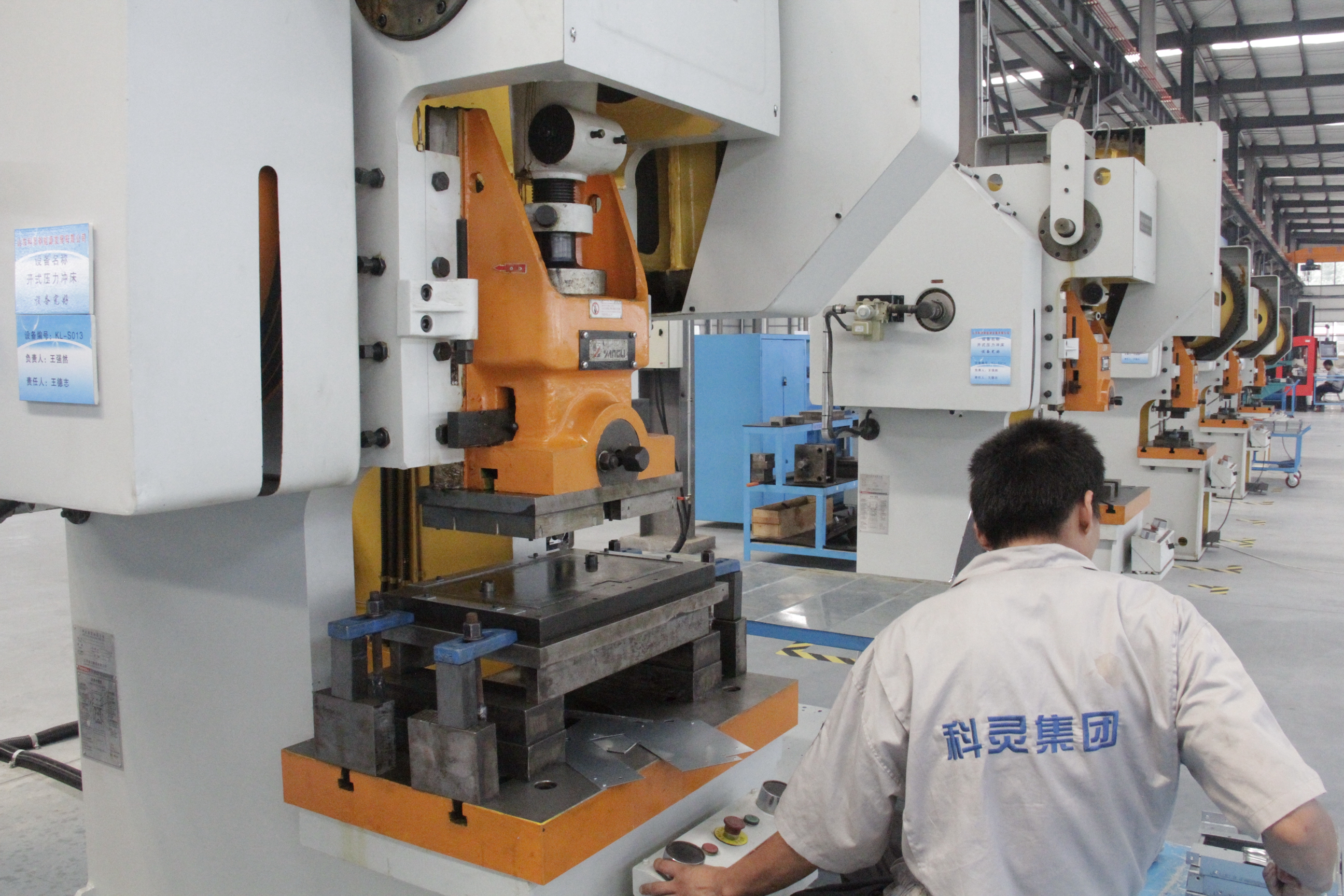

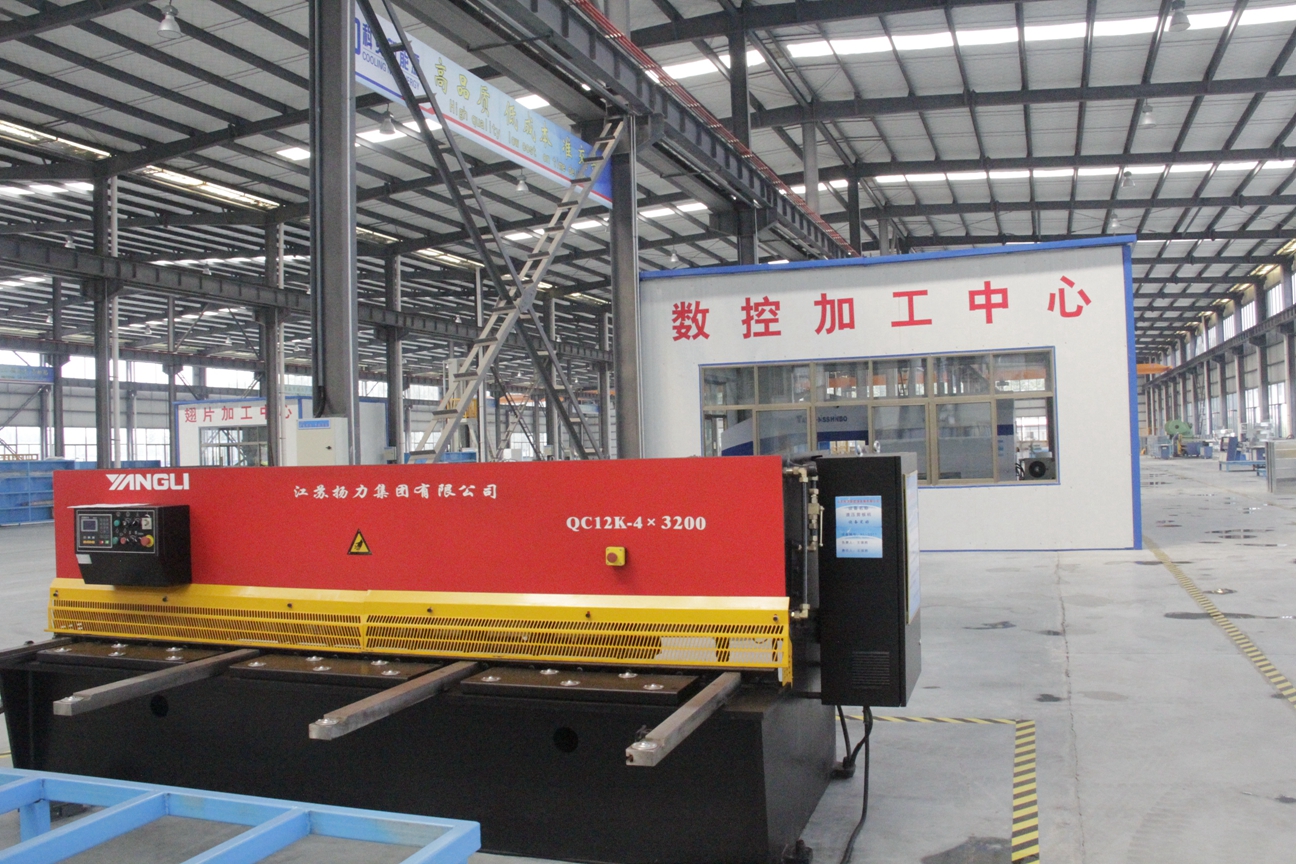

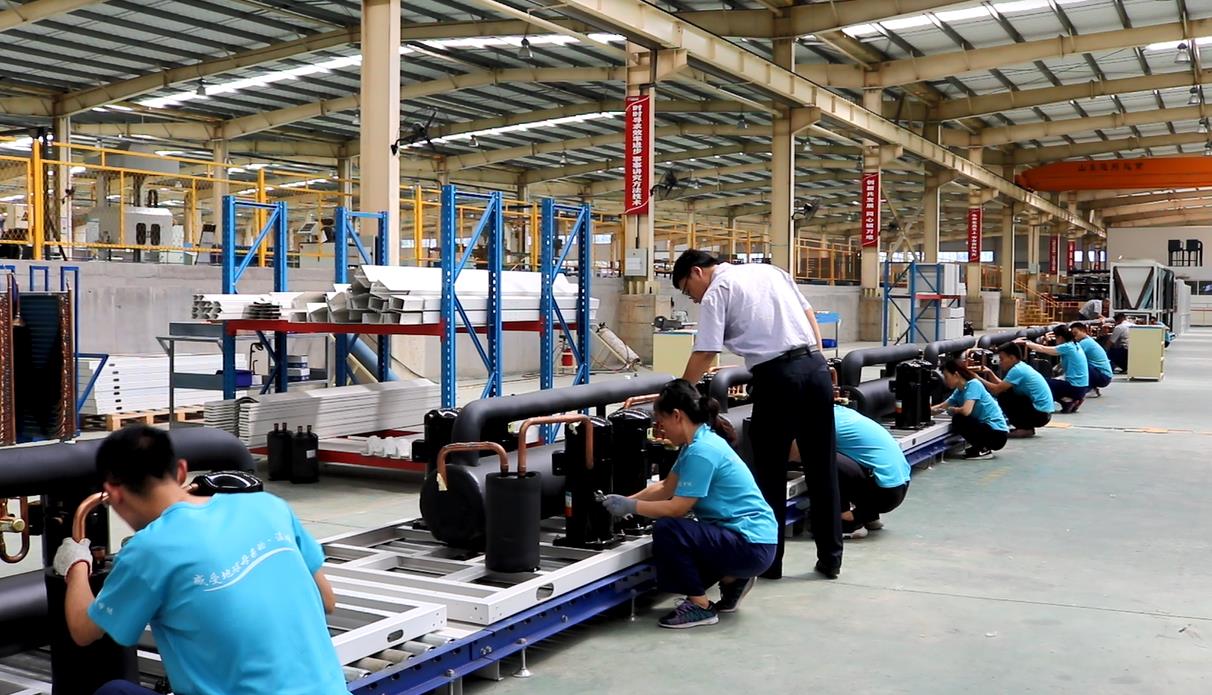

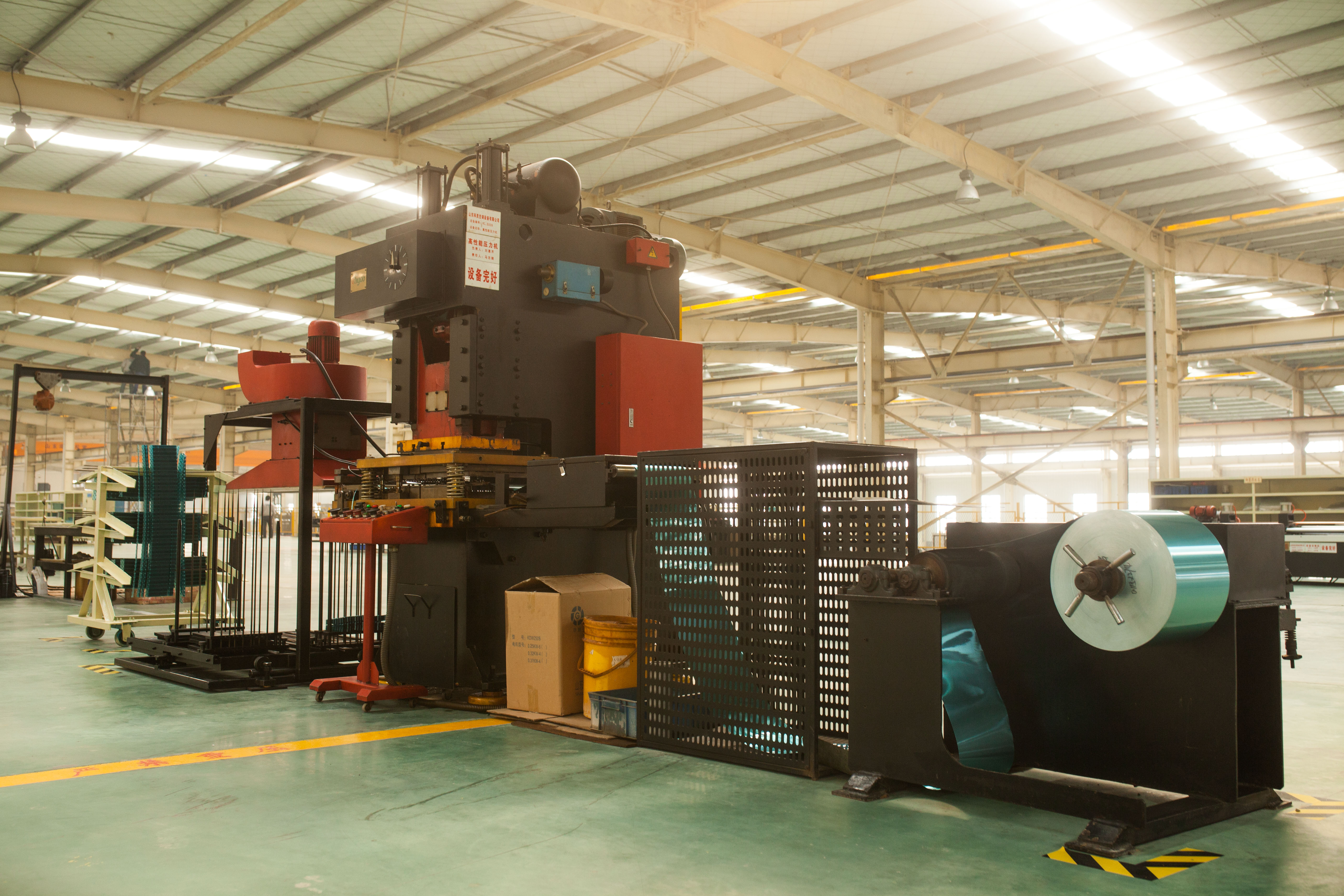

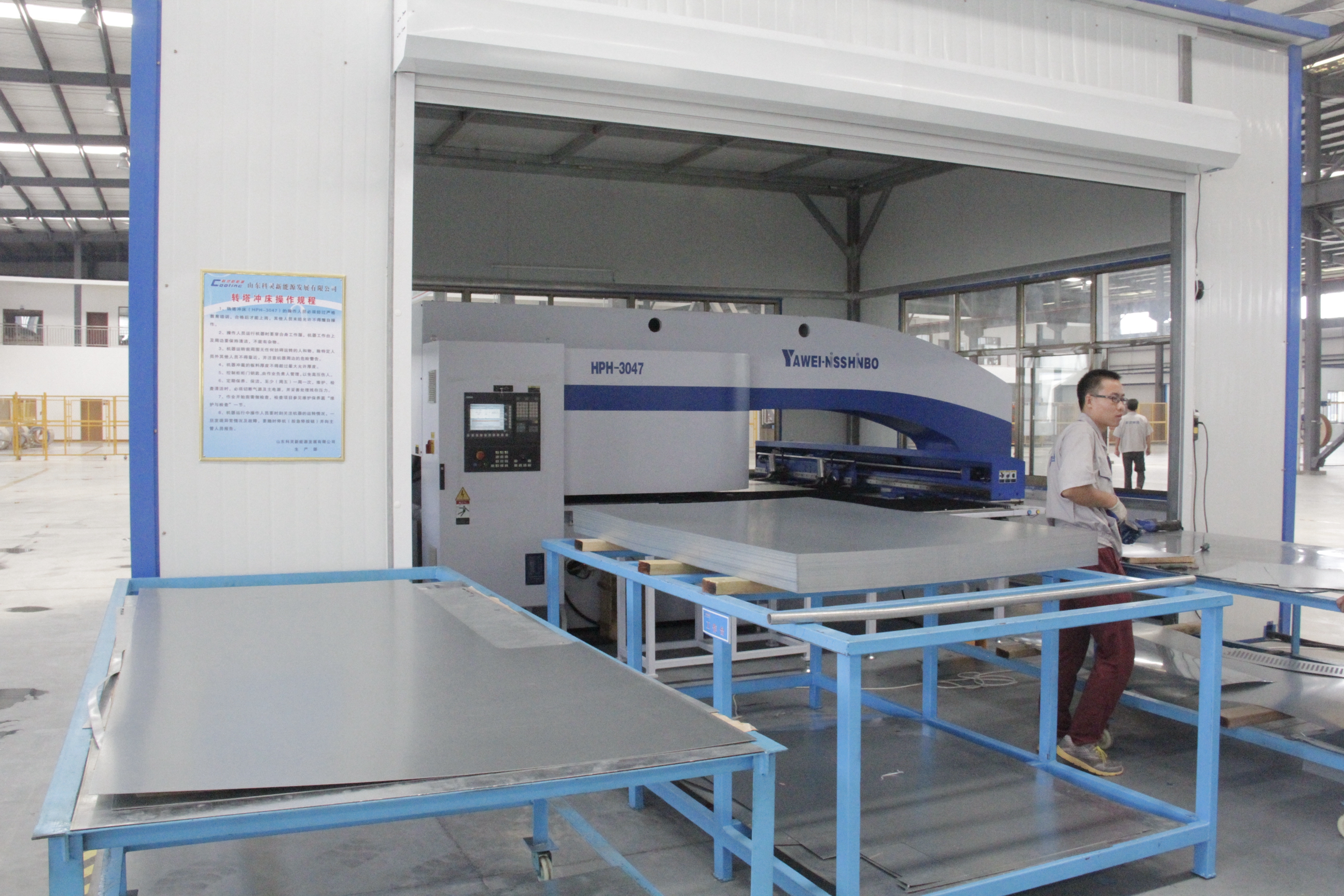

production line
