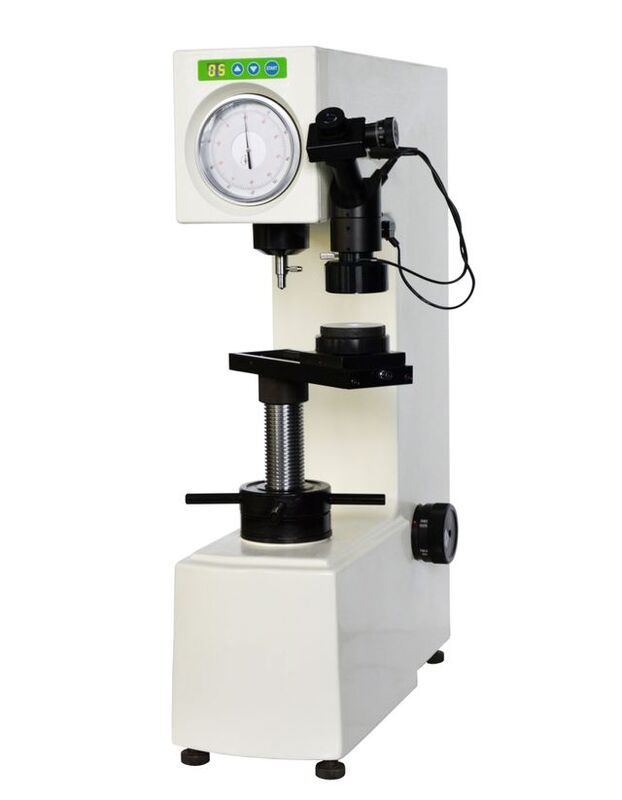

HBRV-187.5D Brinell Rockwell Vick Hardness Tester / universal hardness tester price / Durometer
- $811.00 / 1 - 2 sets
$433.00 / >=3 sets - 1 set
- Jinan Hensgrand Instrument Co., Ltd.
- Shandong, China
- Ms Lucy Sheng
| Packaging Detail: | Standard exporting case; | Customized support: | OEM,ODM,OBM; |
| Hardness system: | brinell rockwell vicker; | TYPE: | motorized; |
| Model Number: | HBRV-187.5D; | Measuring range: | brinell vickers rockwell; |
| Brand Name: | hensgrand; | Port: | Qingdao; |
| Display: | Dial Display; | Type: | new; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T; | Place of Origin: | Shandong, China; |
| Supply Ability: | 300 Sets per Month; | Rockwell hardness test: | 588, 980.7, 1471 (HRA, HRB, HRC); |
| Power Supply: | AC220V / 50Hz; | Application: | brinell rockwell vicker; |
| Warranty: | 1 year; | Vickers hardness test: | 294.2, 980.7( HV-30, HV100); |
| testing machine type: | universal hardness tester; | weight: | 90kg; |

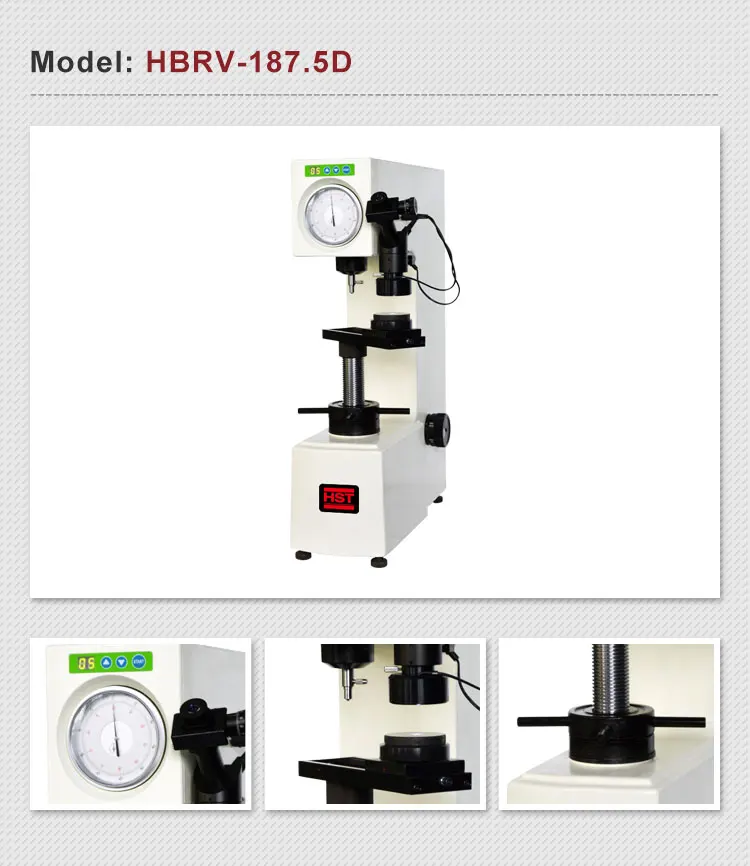

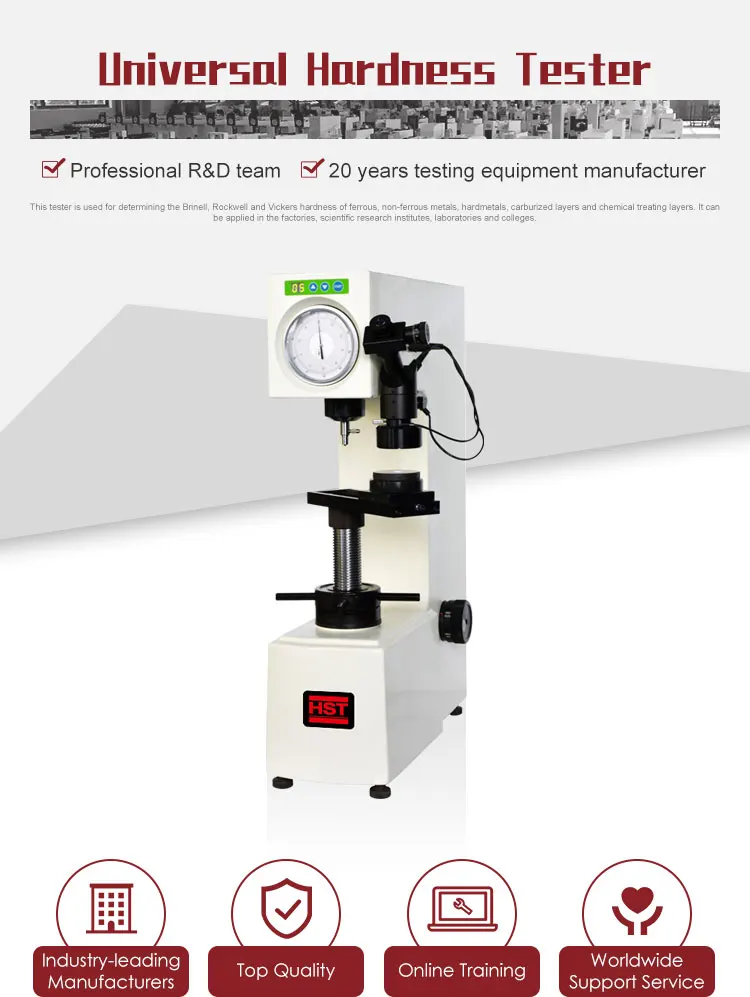

HBRV-187.5D Brinell Rockwell Vick Hardness Tester / universal hardness tester price / Durometer

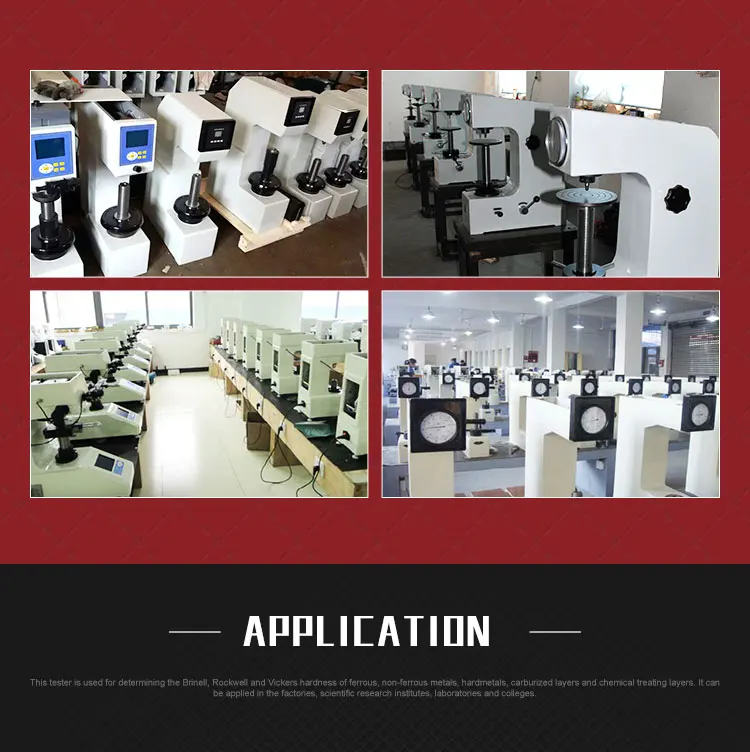

Application
The Motorized Brinell Rockwell & Vickers Hardness Tester, a multi-functional hardness tester with Brinell, Rockwell &Vickers 3 kinds of testing methods and 7 steps testing force will meet the needs of many kinds of hardness measurement. The instrument is adopted automatic shifter to load, dwell and unload testing force, therefore the operation for this instrument is simple, easy and quickly.
Technical specifications
1. The Initial Test Force: 98.07N (10Kg); Tolerance: ± 2.0%
2.The Tolerance of Total Test Force: ± 1.0%
2.1 The Test Force of Brinell Hardness: 294.2N(30kg), 306.5N (31.25kg), 612.9N (62.5kg),
980.7N(100kg), 1893N(187.5kg)
2.2 The Test Force of Rockwell Hardness: 588.4N (60kg), 980.7N (100kg), 1471N(150kg)
2.3 The Test Force of Vickers Hardness: 294.2N (30Kg), 980.7N (100Kg)
3. The Indenter Specifications:
3.1 The diamond Rockwell indenter
3.2 The diamond Vickers indenter
3.3 The φ1.5875 mm, φ2.5 mm, φ5 mm ball indenter
4. The Power Source and the Voltage: AC220V±5%, 50-60 HZ
5. Time-delayed control: 2-60 seconds, can be adjusted
