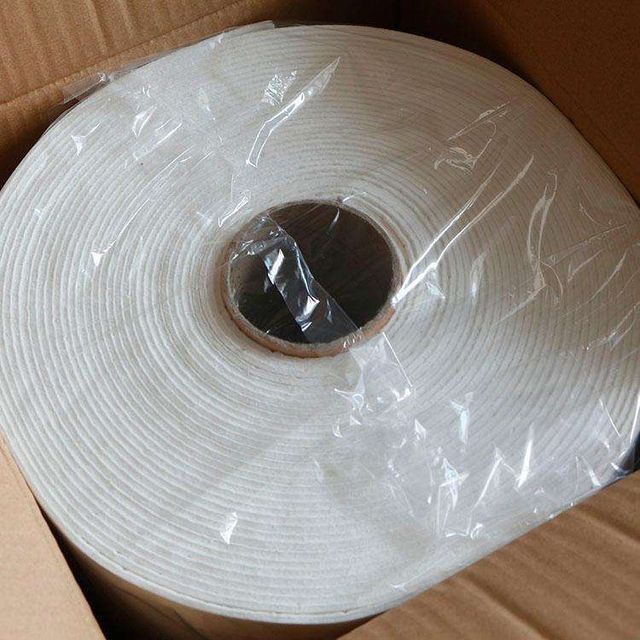

Heat resistant ceramic paper 1260 with ceramic fiber
- $28.00 / 1 - 99 rolls
$25.00 / 100 - 199 rolls
$20.00 / >=200 rolls - 1 roll
- Zibo Yaoxing Fire-Resistant And Heat-Preservation Material Co., Ltd.
- Shandong, China
- Mr ERIC WONG
port: | Qingdao | Density (kg/m3): | 160 |
Specification: | According to your requests | Thermal Conductivity: | 0.075 |
port: | Qingdao | chemical composition: | alumina silica |
Supply capacity: | 500 rolls of flexible ceramic fiber insulation panels per day | width: | 610/1200mm |
Grading temperature: | 1260°C | model: | YXTX-236 |
color: | white | Package preview: | |
chemical composition: | AL2O3+SIO2,99% | Pay: | wire transfer |
Shrinkage (1800℉, 3 hours): | ≤3% | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
density: | 220kg/m3 | Package: | Carton bag |
Operating temperature: | 1100°C | Ultimate Strength (≥MPa): | 0.3 |
Name: | Flexible ceramic fiber insulation board | grade: | ST (Standard) |
brand: | shining star | Fiber Diameter: | 3 microns |
Packaging Details: | Flexible ceramic fiber insulation board carton | application: | insulation |
length: | 12000-100000mm | Operating temperature: | 1100°C |
Origin: | Shandong China |

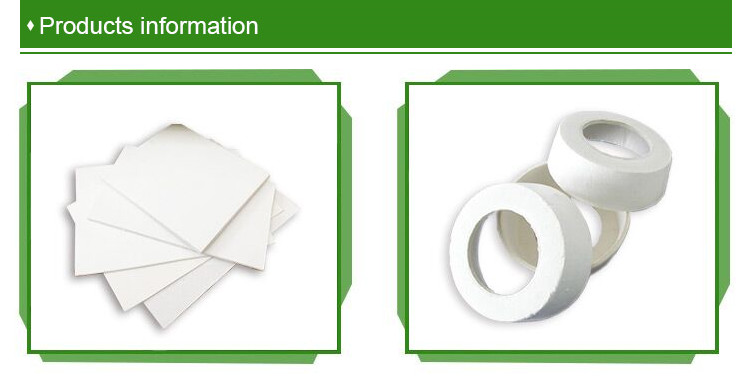

Fireproof k wool ceramic fiber paper for kiln
Product Series:
1260 ceramic fiber paper YXTX-236
1400 ceramic fiber paper YXTX-336
describe:
1. Yaoxing ceramic fiber paper is processed from high-purity fiber,
It can be used in the field of high temperature insulation.
Because of our advanced processing technology,
Not only can we make the fibers intertwined in an orderly manner,
Thickness and density can also be strictly controlled.
2. A small amount of binder is added to the fiber during processing,
After scientific selection and control, it can be burned in application.
size:
0.5mmX610/1220mmX90 meters
0.7mmX610/1220mmX80m
1mm X610/1220mmX60 meters
2mm X610/1220mmX30 meters
3mm X610/1220mmX20 meters
4mm X610/1220mmX15 meters
5mm X610/1220mmX12 meters
We are a professional team for kiln insulation construction.

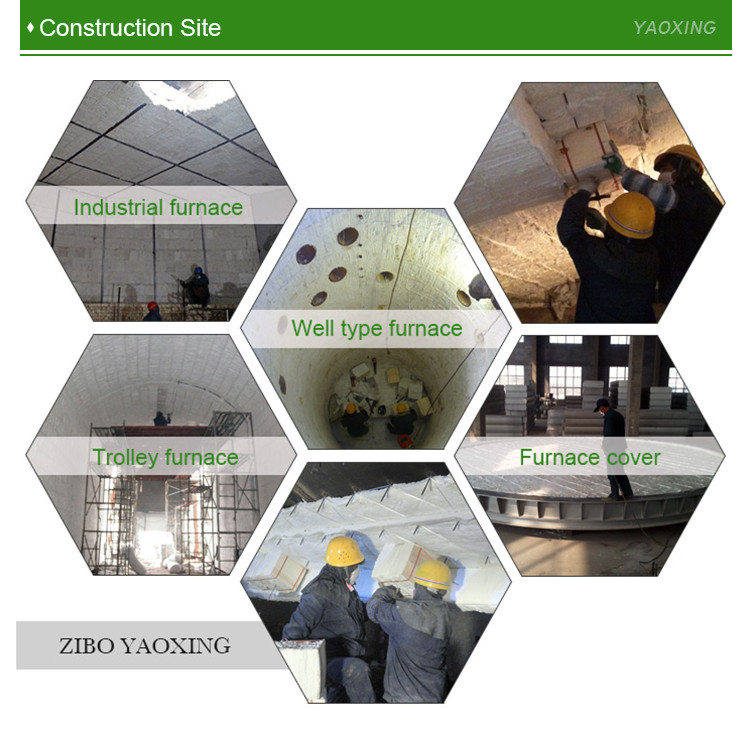

We are in tunnel kiln, trolley furnace, pit furnace, down tube furnace,
Aluminum melting furnace cover, furnace door, etc.

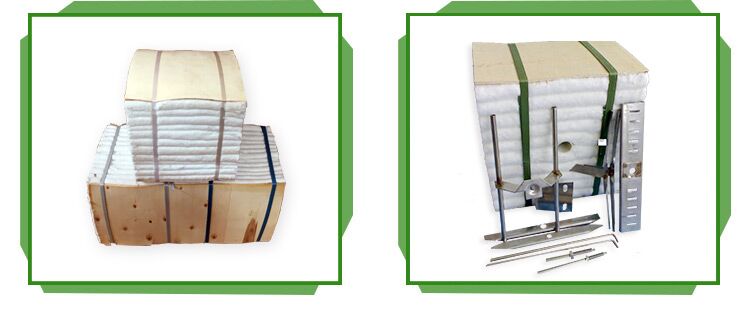

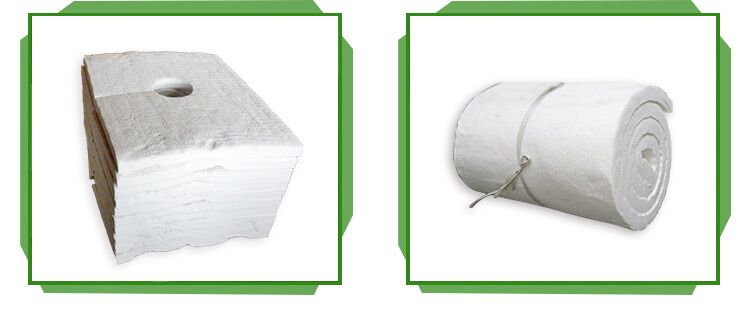

And our ceramic fiber blankets, ceramic fiber modules, refractory anchor bolts and other related kiln refractory materials
Exported to Malaysia, Indonesia, Vietnam, Tajikistan, etc.
What's more, we can provide you with professional guidance on your construction site.
Therefore, choosing us is the best opportunity for us to exchange experience in international kiln construction.
Sincerely hope we can have pleasant cooperation in the future.
Grading temperature |
1260 |
1400 |
|
Name |
ST ceramic fiber paper |
HZ ceramic fiber paper |
|
the code |
YXTX-236 |
YXTX-336 |
|
Heat shrinkage (%) |
1000℃×24h≤-3 |
1350℃×24h≤-3 |
|
theoretically Thermal Conductivity (W/m·k) |
(average at 200°C) (average at 400°C) (600℃average) |
0.075-0.085 0.110-0.121 0.160-0.170 |
|
Organic matter content (%) |
≤ 10 |
≤ 8 |
|
Theoretical density (kg/m3) |
200±15 |
||
Tensile strength (Mpa) |
≥0.3 |
≥0.2 |
|
Moisture content (%) |
≤1 |
||
Specifications (mm) |
100000/12000×610/1220×0.5/7, According to your requests |
||
pack |
Plastic bag inside, carton outside |
||
Quality Control System |
ISO9001-2000, ISO14001-1996 |
