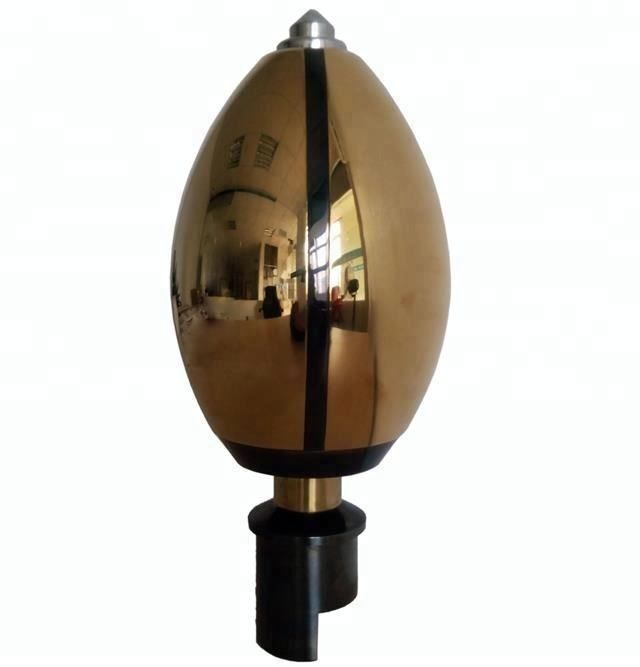

High Building Lightning Rods LPI CAT II - G Stormaster 50 Lightning Arresters Prices
- $1800.00 / 1 - 9 sets
$1700.00 / >=10 sets - 1 set
- Foshan Ipraise Metal Products Co., Ltd.
- Guangdong, China
- Ms Nova Liu
| Function: | ESE air terninal and good lighting protection; | Payment Terms: | L/C,Western Union,D/P,T/T,Cash,ect.; |
| Use for: | High-rise Building Lightning Protection; | Model Number: | LPI Stromaster 50/60; |
| Product name: | ESE Lighting Rod; | Port: | Guangzhou, Shenzhen, Foshan; |
| WEIGHT: | 6.0kg; | Packaging Detail: | Standard seaworthy package(wooden boxes,pvc bags, bubble and other package)or as buyers' requirement;; |
| Place of Origin: | Guangdong, China; | Keyword: | Thunder Lightning Arrester; |
| Material: | Stainless Steel; | Supply Ability: | 5000 Sets per Month lightning rod; |
| Type: | GuardianTM System 5; | Category: | Advance Discharge Ese air terminal; |
| Brand Name: | Ipraise; | Package Preview: | ; |

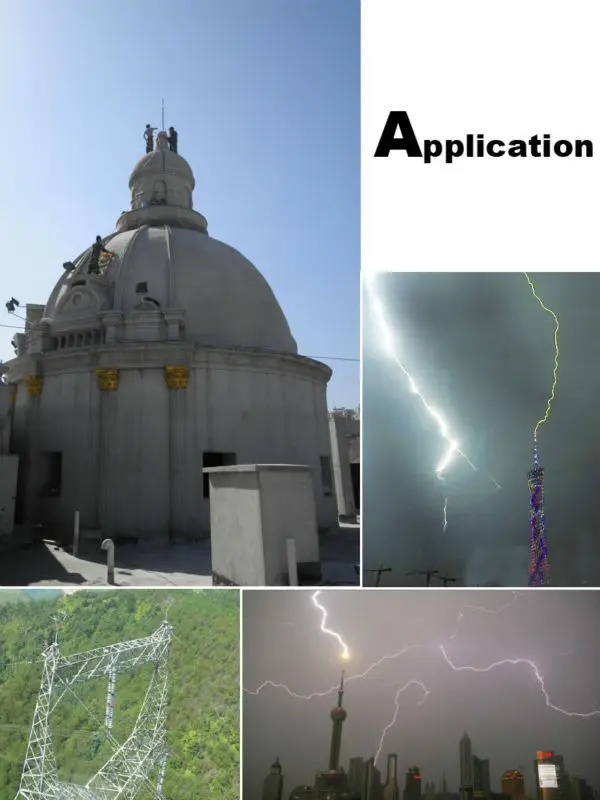

| Application: | ESE Lightning Protection System; |

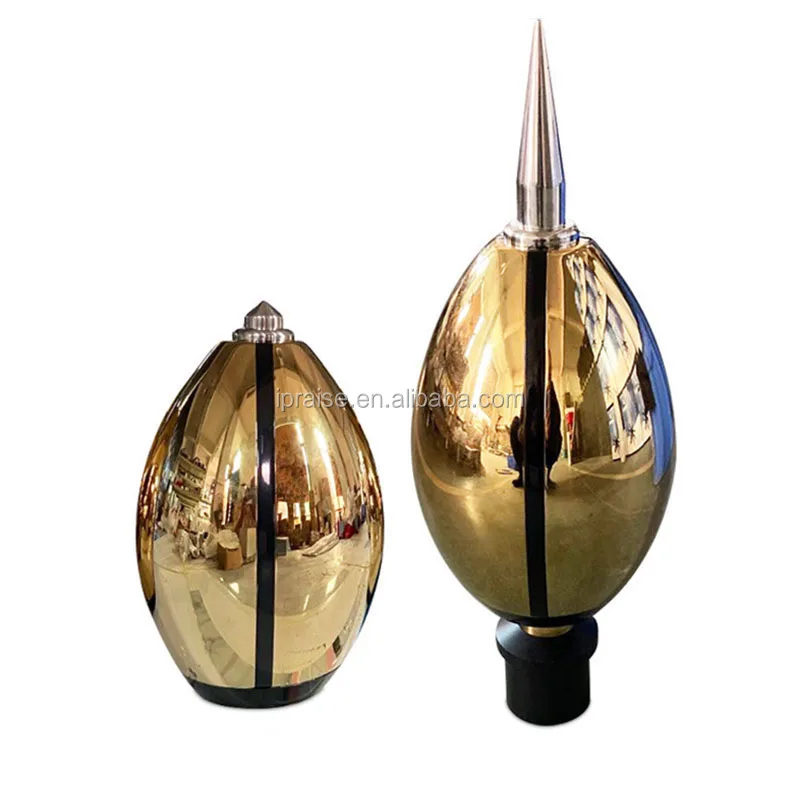

High Building Lightning Rods LPI CAT II - G Stormaster 50 Lightning Arresters Prices
more product, please click it
For more details of products' information, please click the above picture.
LPI® offers a family of air terminals and accessories. Our product design is based
on the most recent advances in lightning research whilst maintaining proven principles
associated with the successes of the past. LPI® Guardian System 5 provides a
purpose designed package for direct lightning protection. The Guardian System 5
has been tested in compliance to IEC Test Standard: IEC 60-1:1989.
1. A Family of LPI®CAT (Controlled Advanced Triggering) series air terminals.
2. A Fibreglass Reinforced Plastic (FRP) mast.
3. A purpose-designed High Voltage Shielded Cable (HVSC).
4. A lightning strike recorder (LSR).
5.An earthing system which consists of Earth rods, Clamps, Copper tapes and Ground
resistance improvement powder (GRIP).
Key Benefits of LPI Stormaster ESE Terminals
1.Blunt finial tip which minimizes corona effect.
2.4 electrically isolated panels.
3.High Voltage connection at the base.
4.Triggering procedure allows the initiation of an intercepting streamer.

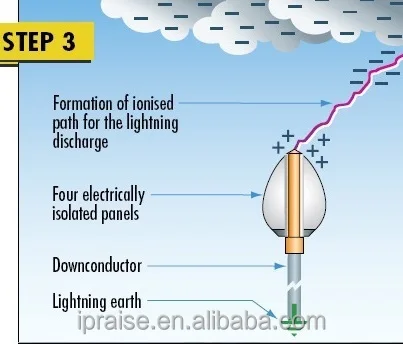

How does an LPI Stormaster Advance Discharge Ese Air Terminal operate?
Risk Assessment
In accordance with Australian Standard (AS1768) all “CATCALC” designs are
subjected to a site risk assessment to determine the perceived risk from a lightning
strike. The risk assessment considers the following.
1.Usage and contents of the structure(s)
2.Construction materials of the structure(s)
3.Height of the structure(s)
4.Situation at site - Flat ground or elevated above sea level
5.Average thunder days per annum
|
PROTECTION RADIUS (m)-(Rp) |
|||||||||
|
h=height of Stormaster terminal above area to be protected (m) |
2 |
4 |
5 |
6 |
10 |
15 |
20 |
45 |
60 |
|
Protection Level 1 (High Protection) Stormaster 15 Stormaster 30 Stormaster 50 Stormaster 60 |
13 19 28 32 |
25 28 55 64 |
32 48 68 79 |
32 48 69 79 |
32 48 69 79 |
34 50 70 80 |
35 50 70 80 |
35 50 70 80 |
35 50 70 80 |
|
Protection Level 2 (Medium Protection) Stormaster 15 Stormaster 30 Stormaster 50 Stormaster 60 |
18 25 35 40 |
36 50 69 78 |
45 63 86 97 |
46 64 87 97 |
49 66 88 99 |
52 68 90 101 |
55 71 92 102 |
60 75 95 105 |
60 75 95 105 |
|
Protection Level 3 (Standard Protection) Stormaster 15 Stormaster 30 Stormaster 50 Stormaster 60 |
20 28 38 44 |
41 57 76 87 |
51 71 95 107 |
52 72 96 107 |
56 75 98 109 |
60 77 100 111 |
63 81 102 113 |
73 89 110 120 |
75 90 110 120 |

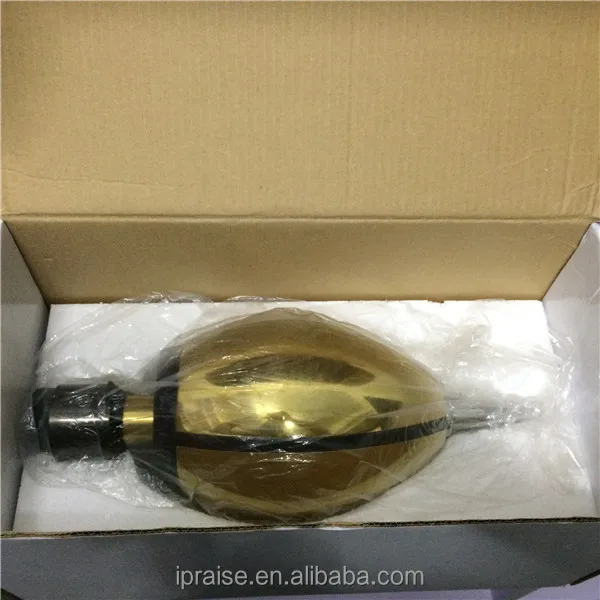

Packing
Packaging Detail: Standard seaworthy packag(wooden boxes,pvc bags, bubble and other package)or as buyers' requirement
Transport
1. Why should we can be your partner?
Our own factory:favorable prices
Technician:give you the most professional solution.
Certifications: ISO9001:2008 and ENISO12100:2010ensure the superior in quality.
2. Is the sample free or not?
It depends on which product do you want? For example, if it is stainless steel pipe, we can supply the free sample. However, as for lightning rod, because the cost of the lightning rod is very high, we are afraid that we can not provide the free sample.
3. If the order is too large , can you ensure in time delivery?
Sure! Our factory with high productive force and we have the advanced technology
devices which make us ensure in time delivery.
4. How to deal with the problems after purchase?
If it is the problem of installation, our technical personnel will be in the fastest time to reply you,
and guide you how to install the operation.If it is the problem of quality, please show me your
evidence, we will make corresponding solution on specific issues, such as replacement or
refund.
Trade Assurance
Follow the Trade Assurance process and get:
1. On-time shipment and pre-shipment product quality safeguards
2. Refund up to the covered amount agreed with your supplier if we share the same mind to help these people, why not just kindly give a inquire now and let's discuss further
If you have any question, you can click it and contact us
