High Intensity Discharge UV Lamp Display Electronic Ballast 10W 20W 30W 40W 60 Watt Electronic Ballast For UV Lamp
- $4.40 / 10 - 99 pieces
$3.60 / 100 - 499 pieces
$2.90 / >=500 pieces - 10 pieces
- Foshan Tengnuo Technology Co., Ltd.
- Guangdong, China
- Mr lex lu
PRODUCT DETAIL
| Lamp Specification/Lamp Type: | GPH212-843T5L UVC11W-UVC40W | AC power: | 99-264V |
| Input voltage: | 220-270V±10% | Certificate: | EU Directive |
| Output current: | 0.39~0.43A typical value | Packaging Details: | wooden case/carton/pearl cotton |
| Power factor: | 0.99 typical. | Matching tube: | no |
| Supply capacity: | 100000 pieces per month | Lighting Solutions Services: | Lighting and Circuit Design |
| usage: | low pressure mercury lamp | brand: | TEPRO |
| Origin: | Guangdong, China | Product weight (kg): | 0.055 |
| Bulb Power: | 10-40W | Input voltage (V): | 220V |
| Warranty (year): | 2 years | port: | Guangzhou |
| Package preview: | size: | 200*80*57mm | |
| input power: | 12-45W | Power Factor Compensation: | No |
| style: | electronic ballast | Color temperature (CCT): | no |
| Luminous efficacy (lm/w): | 0 | payment terms: | D/P, D/A, T/T, Money Gram, Credit Card |
| intellectual property: | IP64 |
electronic ballast,Click to consult moredetailed question
Product Description
The compatibility of UV germicidal lamps and ballasts is very important, but it is often overlooked in practical applications. There are magnetic ballasts and electronic ballasts on the market, but the latter is more environmentally friendly and energy-efficient than the former. Tennuo can provide various forms of electronic ballasts and inverters compatible with lamps.feature
1. The energy storage characteristics and performance of the electronic ballast are consistent, and the luminous efficiency of the energy-saving system is higher and better. 2. The electronic ballast has strong reliability and high performance, and can be used during use to reduce early failures. 3. The electronic ballast also has good starting characteristics, which greatly improves the life of the lamp tube. 4. Beautiful appearance, suitable for various types of lamps or table lamps. 5. The compactness of the electronic ballast is enhanced, and the design of the lamp tube and ignition point is more compact. 6. No noise, providing a more comfortable environment.
7. With special sound and light warning function.
type | size | Input voltage | bulb power | Bulb Specifications |
RW12-180-10 | 81.5*42*23.5mm | 220-240V±10% | 4-8W | CUH-5W CUH-7W CUH-13W UVC-4WT5 UVC-6WT5 UVC-8WT5 |
RW12-180-10A | 81.5*42*23.5mm | 110-120V±10% | 4-8W | CUH-9W CUH-11W CUH-13W UVC-4WT5 UVC-6WT5 UVC-8WT5 |
RW12-425-18 | 81.5*42*23.5mm | 220-240V±10% | 14-17W | CUH-18W G10T5L/17W GPH287T5L/14W GPH303T5L/15W GPH357T5L/17W |
RW12-425-18A | 81.5*42*23.5mm | 110-120V±10% | 14-17W | CUH-18W G10T5L/17W GPH287T5L/14W GPH303T5L/15W GPH357T5L/17W |
RL11-350-30 | 165*38*26mm | 220-240V±10% | 15-30W | CUH-24W UVC-20WT5 UVC-30WT5 |
RL11-350-30A | 165*38*26mm | 110-120V±10% | 10-40W | CUH-24W UVC-20WT5 UVC-30WT5 |
RL11-800-35 | 165*38*26mm | 220-240V±10% | 20-35W | CUH-35W GPH212T56/HO/48W GPH287T5L/HO/27W GPH357T5L/HO/32W |
RL11-800-35A | 165*38*26mm | 110-120V±10% | 20-35W | CUH-35W GPH212T56/HO/48W GPH287T5L/HO/27W GPH357T5L/HO/32W |
RL11-425-40 | 165*38*26mm | 220-240V±10% | 10-40W | CUH-36W UVC-36WT5 UVC-40WT5 G36T5L/40W GPH436T5L/21W GPH550T5L/28W GPH793T5L/37W GPH843T5L/40W |
RL11-425-40A | 165*38*26mm | 110-120V±10% | 10-40W | CUH-36W UVC-36WT5 UVC-40WT5 G36T5L/40W GPH436T5L/21W GPH550T5L/28W GPH793T5L/37W GPH843T5L/40W |
RL11-530-55 | 165*38*26mm | 220-240V±10% | 25-55W | CUH-55W UVC-25WT5 |
RL11-530-55A | 165*38*26mm | 110-120V±10% | 25-55W | CUH-55W UVC-25WT5 |
RL1-800-100 | 215*44*26mm | 220-240V±10% | 40-100W | CUH-60W CUH-95W GU80W GU100W GPH436T5L/HP/48W GPH793T5L/HO/72W GPH846T5L/HO/80W GPH893T5L/HO/90W |
RL1-800-75A | 215*44*26mm | 110-120V±10% | 40-75W | CUH-60W GU80W GU100W GPH436T5L/HP/48W GPH793T5L/HO/72W GPH846T5L/HO/80W GPH893T5L/HO/90W |
RH2-800-2/75U | 200*66*33mm | 110-277V±10% | 2*35~75W 1*100~155W | CUH-95W GU120W GU150W GU190W GPH1148T5L/HO/120W GPH1554T5L/HO/150W |
RW12-350-15 | 81.5*42*23.5mm | 220-240V±10% | 15-24W | UVC-11WT5 UVC-16WT5 UVC-10WT5 UVC-15WT5 |
RW12-350-15A | 81.5*42*23.5mm | 110-120V±10% | 15-24W | UVC-11WT5 UVC-16WT5 UVC-10WT5 UVC-15WT5 |
RL1-425-90 | 215*44*26mm | 220-240V±10% | 40-79W | GPH843-1630T5 G48T5 G64T5 G67T5 G48T5L/55W G64T5L/75W G67T5L/79W GPH1148T5L/55W GPH1554T5L/75W |
RH1-425-75U | 215*44*30mm | 110-277V±10% | 55-80W | TUV64T5 G48T5L/55W G64T5L/75 G67T5L/79W GPH1148T5L/55W GPH1554T5L/75W |
PH7-1200-105U | 190*60*45mm | 110V-240V | 105W | GPHA357T5L/42W GPHA843T5L/105W |
PH8-1200-190 | 260*70*45mm | 110V-240V | 190W | GPHA1000T5L/127W GPHA1554T5L/190W |
PH7-1800-57U | 190*60*45mm | 110V-240V | 57W | GPHA357T5L/57W |
PH8-1800-150 | 260*70*45mm | 110V-240V | 150W | GPHA843T6L/130W GPHA1000T6L/150W |
PH8-2100-200 | 260*70*45mm | 110V-240V | 200W | GPHA357T6L/65W GPHA843T6L/172W GPHA1000T6L/207W |
PH9-2100-320 | 260*103*50mm | 230V | 320W | GPHA1554T6L/240W GPHA1554T6L/320W |
RW12-425-10 | 81.5*42*23.5mm | 220-240V±10% | 8-14W | GPH118T5L/6W GPH150T5L/8W GPH212T5L/10W |
RW12-425-10A | 81.5*42*23.5mm | 110-120V±10% | 8-14W | GPH118T5L/6W GPH150T5L/8W GPH212T5L/10W |
PH2-800-2/75 | 204*69*36mm | 220V | 150W | GU120W GU150W GU190W GPH1148T5L/HO/120W GPH1554T5L/HO/150W |

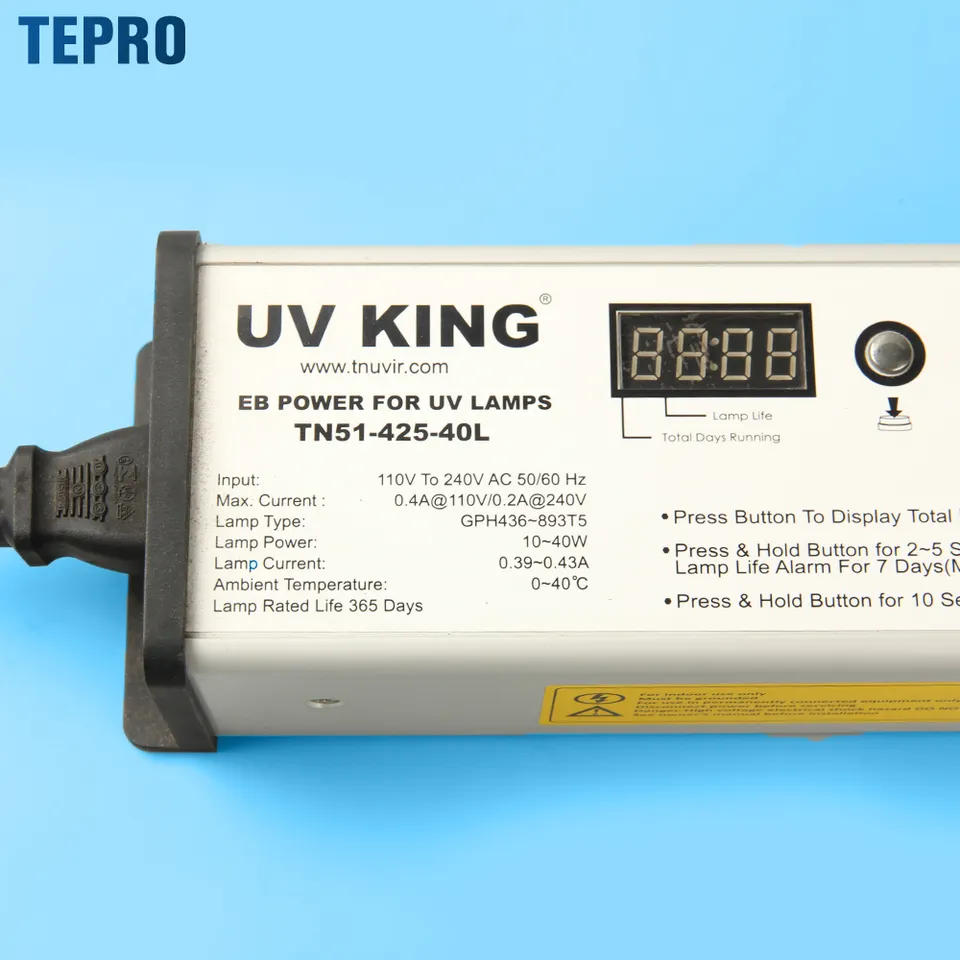

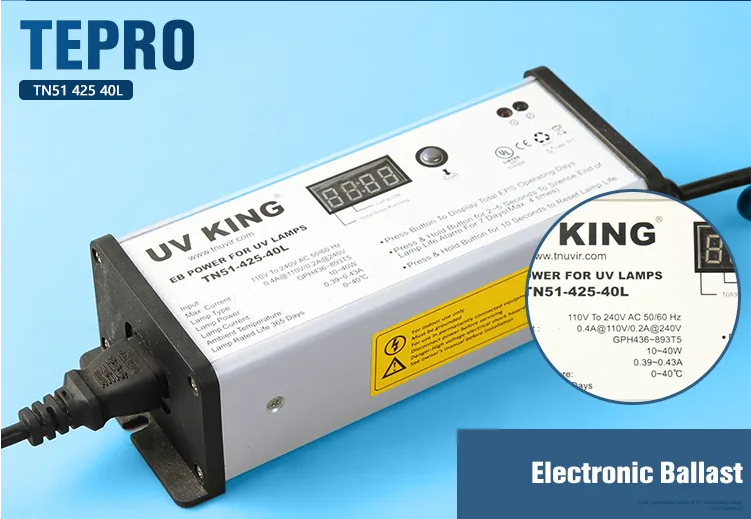

TN51-425-40L | 200*80*57mm | 220-270V±10% | 10-40W | GPH212-843T5L UVC11W-UVC40W |
TN51-800-95L | 200*80*57mm | 220-270V±10% | 48-95W | GPH436-1063T5HO CUH35WHO CUH60WHO CUH95WHO |
detailed drawing
part 1
------------------------------------------
The ballast has preheat start and instant start,Preheating and starting is beneficial to prolong the life of the lamp tube.
------------------------------------------
1. There are waterproof (IP65) and non-waterproof series of ballasts
2. The UV output control self-regulation function can be added.
-----------------------------------------

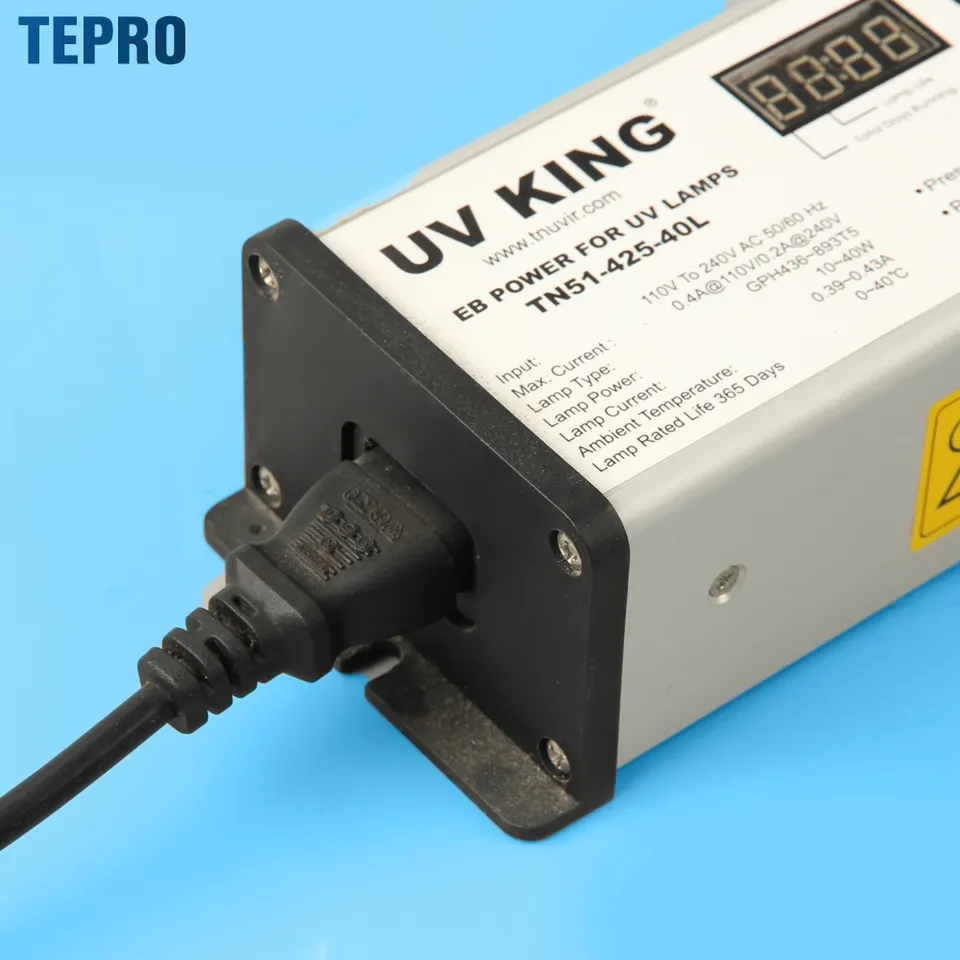

1. Quick connector, the connection is firm and unobstructed,The powerful push makes the UV output even stronger.
2. Supply different styles of plugs (EURO, AUS, USA, CN)
3. UL/CUL/CE certification of wire
If you want to know more details, please click to contactour customer service
