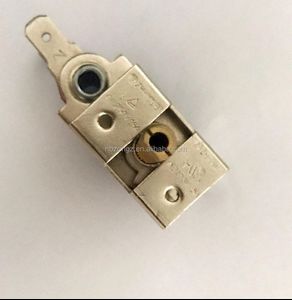

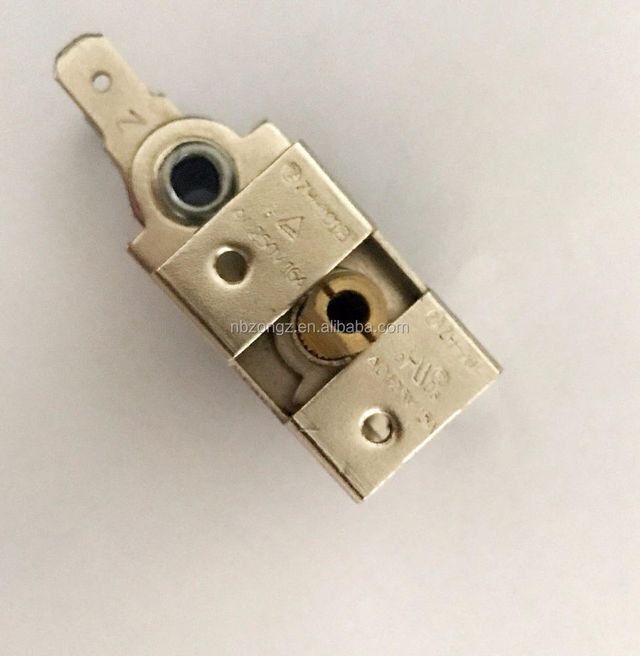

High Quality Electric Plate Thermostat
- $0.08 / 5000 - 9999 pieces
$0.06 / 10000 - 99999 pieces
$0.05 / >=100000 pieces - 5000 pieces
- Yuyao Zongz Electric Co., Ltd.
- Zhejiang, China
- Mr Summer
PRODUCT DETAIL
| Packaging Detail: | Packed by Carton; | Voltage(V): | 125v, 250v; |
| Warranty: | 1 Year; | After-sales Service Provided: | Return and Replacement; |
| Power Source: | Electric; | Main Material: | Metal; |
| Payment Terms: | T/T; | Certification: | TUV/ROHS/UL; |
| Supply Ability: | 20000 Piece/Pieces per Day; | Type: | Hot Plate Parts; |
| Model Number: | ZH-001B; | Package Preview: | ; |
| Brand Name: | ZZ; | Place of Origin: | Zhejiang China; |
| Application: | Household; | Product name: | Thermostat for insulation plate; |
| Port: | Ningbo; | Usage: | Kitchen Appliance Cooking; |
Specification:
| Electrical Ratings | AC 250V/10A/ 16A, AC125V/15A |
| Temperature Setting Range | 0~300ºC |
| Max Service Temperature | 300 ºC (Designed by user's requirements) |
| Temperature Tolerance | ±5 ºC% |
| Reset Temperature | 5 ºC -30 ºC |
| Life Cycle | No less than 100,000 times |
Working Principle:
Being used the bimetal as temperature response element. It can be deformed when the bimetal reach a definite temperature. Trip of bimetal can separate the contactor quickly and cuts off the power. The reset of bimetal can switch on the power when the temperature decreased to the original level. Adjusting the screw bolt to push the spring can adjust the different working temperature of appliances. ac thermostat, mechanical thermostat
