High Speed Needle Roller Cam Follower Bearing CF10
- $0.39 / >=10 pieces
- 10 pieces
- Shandong Hanke Bearing Co., Ltd.
- Shandong, China
- Ms Grace Cui
| Model Number: | CF10; | Structure: | Single Row Needle Roller; |
| Product name: | High Speed Needle Roller Cam Follower Bearing CF10; | Lubrication: | Oil; |
| Feature: | Long Life; | Type: | Needle; |
| Service: | OEM Customized Services; | Packaging Detail: | A: barreled package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle box+outer carton+pallets D: According to your's requestion for High Speed Needle Roller Cam Follower Bearing CF10; |
| Application: | Machinery; | Place of Origin: | Shandong, China; |
| Number of Row: | Single row; | Package: | Box; |
| Material: | Gcr15; | Bore Size: | 9.99 - 10 mm; |
| Hardness: | 58-65; | Seals Type: | Open; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal,Trade Assurance; |
| Port: | Any China Port; | Brand Name: | CLUNT; |
| Precision Rating: | P0 P6 P5 P4 P2; | Vibration: | V1 V2 V3 V4; |
| Supply Ability: | 3000 Pieces per Week Cam Follower Bearing CF10; |
High Speed Needle Roller Cam Follower Bearing CF10
Needle Bearing
Needle bearing is a roller bearing with a cylindrical roller, which is thin and long relative to its diameter.This roller is called a needle roller.Although has a small cross-section, bearing still has high load capacity, needle bearing with fine and long roller (roller diameter D 5 mm or less, acuity 2.5 L/D, L) for the roller length, so the radial structure is compact, its diameter and load capacity at the same time, with other types of bearing outside diameter to a minimum, especially suitable for the limited size of the radial installation supporting structure.
Type
(1) closed punching outer ring needle roller bearing(
(2) needle roller bearing with inner ring
(3) needle roller bearing without inner ring/needle bearing without inner ring without retaining frame
(4) full needle roller bearing with and without a cage
(5) They also can supply various types of needle roller bearing, 1, 2 needle cage components, no guard the needle roller bearing 3, can make 4, combined needle roller / 5, combined needle roller bearing/thrust ball bearings
(6) Combined needle/cylinder roller thrust bearing.
Advantages
Needle bearing with fine and long roller (3 ~ 10 times the diameter of the roller length is, no more than 5 mm in diameter), so the radial structure is compact, its diameter and load capacity at the same time, with other types of bearing outside diameter to a minimum, especially suitable for the limited size of the radial installation supporting structure.The processing precision and surface quality of needle roller bearing should be combined with bearing sleeve and application according to different usage.Needle roller bearing is a bearing unit composed of a core needle bearing and a thrust bearing component.
| Product Name | High Speed Needle Roller Cam Follower Bearing CF10 |
| Model Number | CF10 |
| Inner Diameter | 10MM |
| Outer Diameter | 26MM |
| Breadth | 12MM |
| Weight | 0.61KG |
| Product Material | Chrome steel |
| Precision Grade | P0 P6 P5 P4 P2 are all available |
| Cage Material | steel , brass , nylon |
| Serive | Agent, OEM ,customized |
| Delivery Time | Generally it is 2-5 datys if in stock,7-15 days if not stock,or it is according to customer's requirements |
| Features | Long life and high quality |
| High precision , low noise with strict controling of the quality | |
| High loading by the advanced high-technical design | |
| Most competitive price , factory direct | |
| OEM service offered ,to meet the customer's requrements | |
| Price Terms | EXW, FOB, CFR, CIF |
| Package | PE bag+paper box+outer carton+wooden box+pallet, or as customers' requirement |

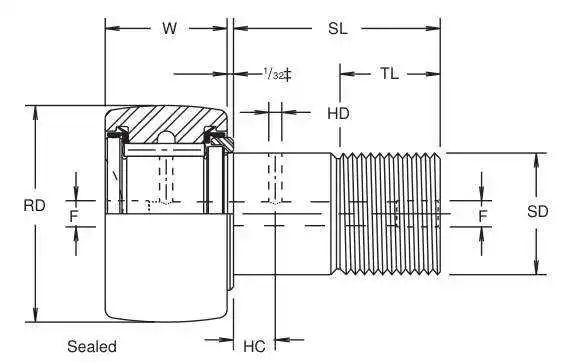

| Stud diameter d |
Model No. | Outer diameter D |
Outer ring width C |
Threaded G |
| 5 | CF 5 | 13 | 9 | M5×0.8 |
| 6 | CF 6 | 16 | 11 | M6×1 |
| 8 | CF 8 | 19 | 11 | M8×1.25 |
| 10 | CF 10 | 22 | 12 | M10×1.25 |
| 10 | CF 10-1 | 26 | 12 | M10×1.25 |
| 12 | CF 12 | 30 | 14 | M12×1.5 |
| 12 | CF 12-1 | 32 | 14 | M12×1.5 |
| 16 | CF 16 | 35 | 18 | M16×1.5 |
| 18 | CF 18 | 40 | 20 | M18×1.5 |
| 20 | CF 20 | 52 | 24 | M20×1.5 |
| 20 | CF 20-1 | 47 | 24 | M20×1.5 |
| 24 | CF 24 | 62 | 29 | M24×1.5 |
| 24 | CF 24-1 | 72 | 29 | M24×1.5 |
| 30 | CF 30 | 80 | 35 | M30×1.5 |
| 30 | CF 30-1 | 85 | 35 | M30×1.5 |
| 30 | CF 30-2 | 90 | 35 | M30×1.5 |
| Stud diameter d |
Model No | Outer diameter D |
Outer ring width C |
Threaded G |
| 12 | CF 12-B | 30 | 14 | M12×1.5 |
| 12 | CF 12-1-B | 32 | 14 | M12×1.5 |
| 16 | CF 16-B | 35 | 18 | M16×1.5 |
| 18 | CF 18-B | 40 | 20 | M18×1.5 |
| 20 | CF 20-B | 52 | 24 | M20×1.5 |
| 20 | CF 20-1-B | 47 | 24 | M20×1.5 |
| 24 | CF 24-B | 62 | 29 | M24×1.5 |
| 24 | CF 24-1-B | 72 | 29 | M24×1.5 |
| 30 | CF 30-B | 80 | 35 | M30×1.5 |
| 30 | CF 30-1-B | 85 | 35 | M30×1.5 |
| 30 | CF 30-2-B | 90 | 35 | M30×1.5 |
