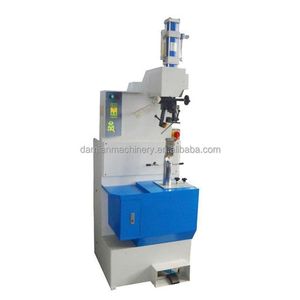

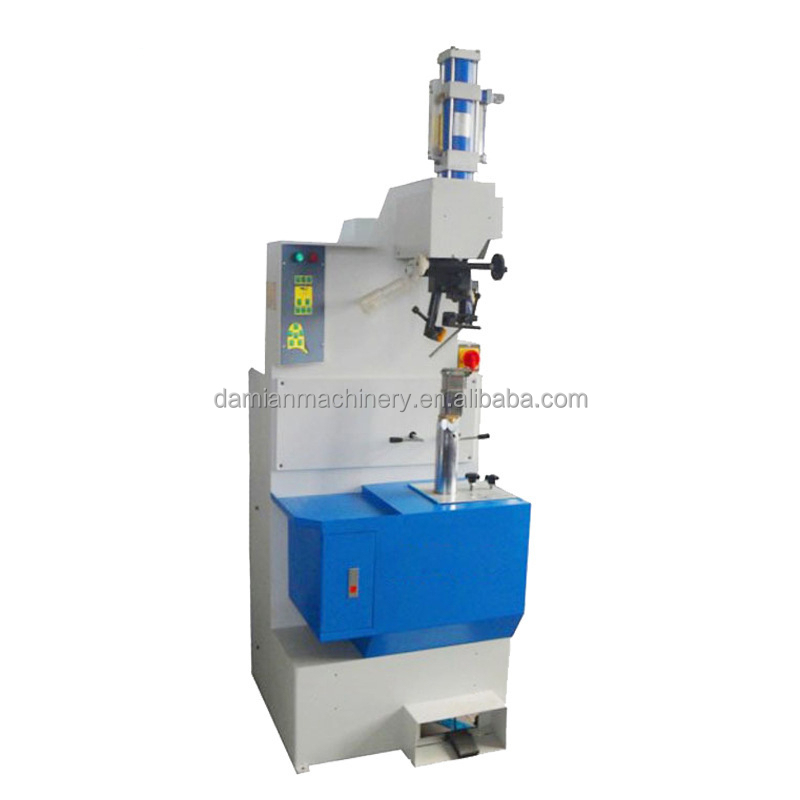

High-heeled shoes semi-automatic heeling machine
- $3650.00 /set
- 1 set
- Quanzhou Damian Machinery Trading Co., Ltd.
- Fujian, China
- Mr Damian Chen
| Core components: | Engines, gearboxes, pressure vessels | weight: | 500 |
| Core component warranty: | 1 year | Automatic level: | automatic |
| strength: | 0.2KW, 0.2KW | Marketing Type: | normal product |
| place of origin; place of origin: | Fujian China | application: | shoe |
| air pressure: | 0.6MPA | payment terms: | Western Union, D/P, D/A, T/T, MoneyGram |
| Warranty: | 1 year | Mechanical test report: | if |
| Packaging Details: | carton | aspect: | 95*85*220cm |
| Supply capacity: | 100 sets per week | Health status: | new |
| port: | Xiamen | brand: | Damian |
| model. : | DM-82M | Applicable industries: | Shoe Machinery |
| Dimensions (L*W*H): | 95*85*220cm | Showroom location: | not any |
| Voltage: | 220V/50HZ | Video shipment inspection: | if |
feature:
* This machine is suitable for heel studs of any men's and women's shoes.
* Imported PLC control system is adopted, which is accurate and efficient. The gasoline balance cylinder can automatically adjust the heel pressure at any height, without damage, without custom molds, economical and convenient.
* The nail box can provide 1-16 nails or screws of any length 8-28mm.
* Staples are angled to avoid piercing the heel.

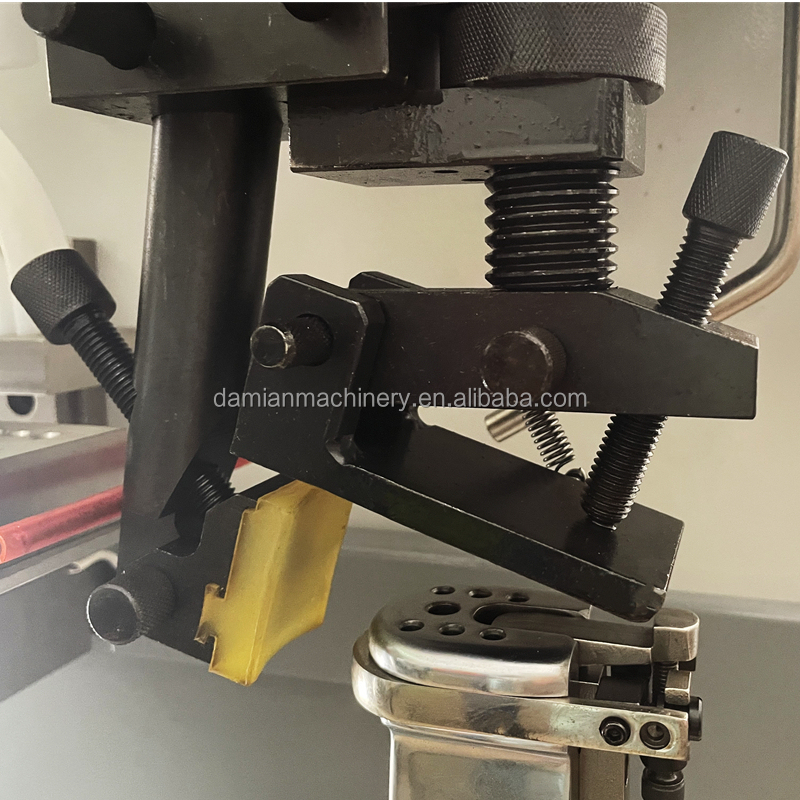

* The nail arm of the automatic nail feeding machine is equipped with a safety protection device to avoid injury to the operator.
* The machine has a triple nailing mode to ensure that the heel will not break due to excessive pressure when nailing.
| thing | Semi-automatic follow-up machine |
| model. | DM-82M |
| air pressure | 0.6MPA |
| strength | 0.2KW |
| Voltage | 220V/50HZ |
| aspect | 95*85*220cm |
| northwest | 470 kg |
The machine will be packed in glued wooden case or carton according to the machine.
